TW200 Chain Guide
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 100% infill
Designer
3.9 h
1 plate
Open in Bambu Studio
Boost
9
22
0
0
12
5
Released
Description

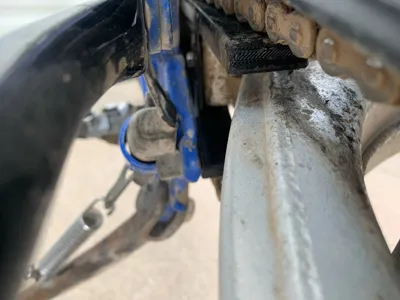

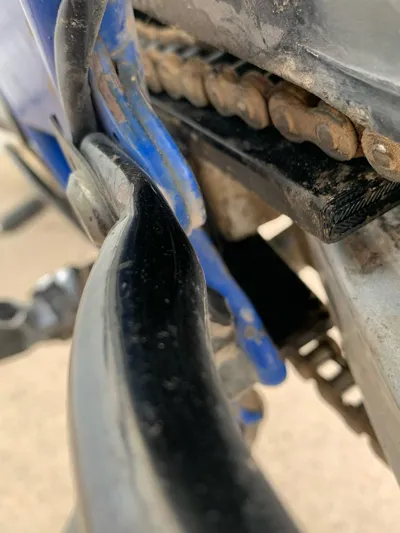

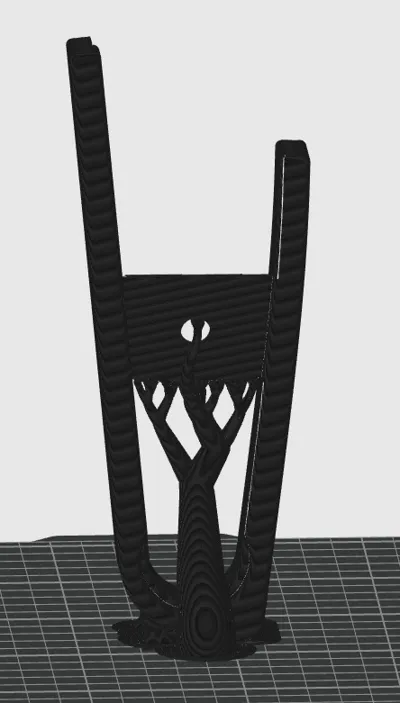

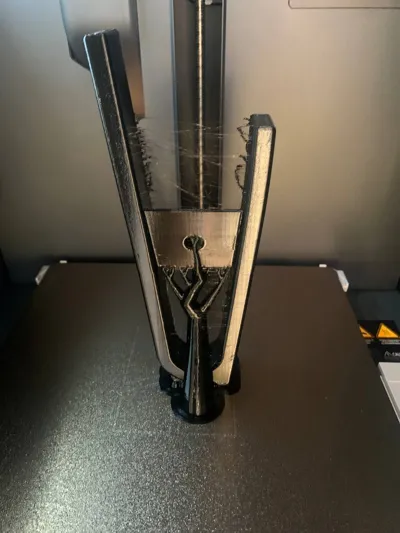

This is a chain guide for my 1987 Yamaha TW200. This part can be installed without removing the swingarm. I updated the design after printing mine, so this is Version 2. It is untested, but the modifications are minor. I printed mine using TPU with 100% infill. I chose to print it standing on end, with a brim and tree supports enabled. This setup seemed to work well.
To install, remove the two bolts holding the chain guard so it can be removed and remove the quick link in the chain so it can be pulled out of the way.
