Summary

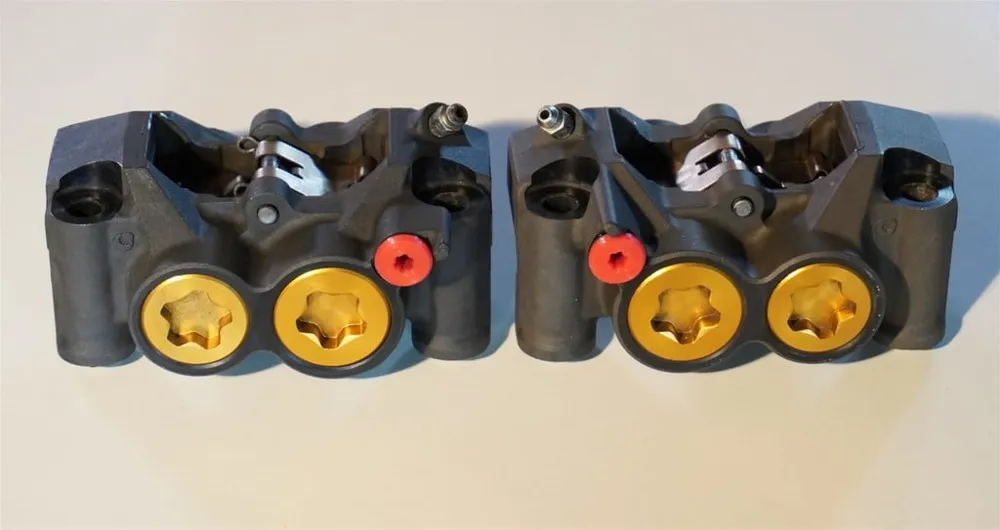

These Plugs are created to seal up the Screwholes of Brakecalipers and Mastercylinders while they are stored.

They can easyly be screwed in with an T30-Torx Screwdriver and also be removed the same way. They cant be tightend up, as the head would shear off. In that case the remaninig part is created in a way, that it still has enough of the Torx to unsrew the plug. I recommend a small O-Ring under the Head for additional sealing, but be aware, that these are not 100% tight. Main use is just to prevent dirt from getting into the brake component.

I recomment to put a little bit of lubricant onto the tread, best wout be brake caliper paste.

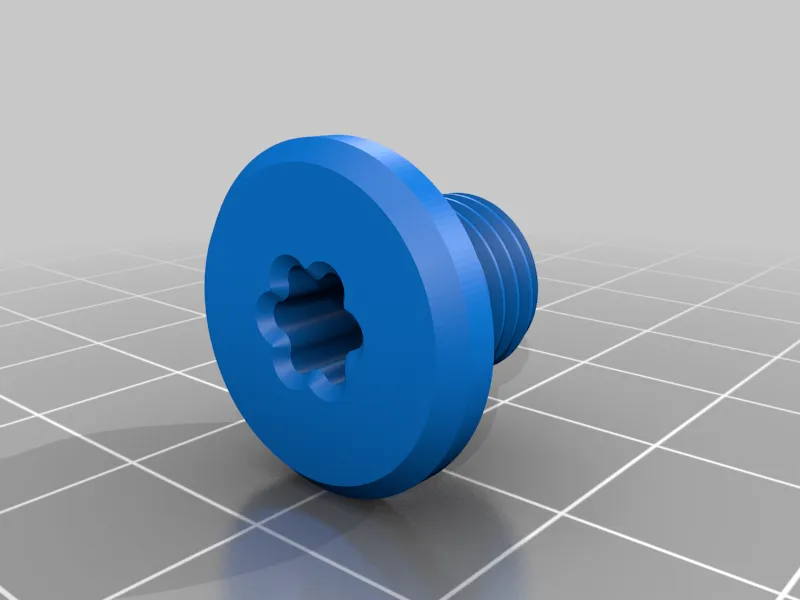

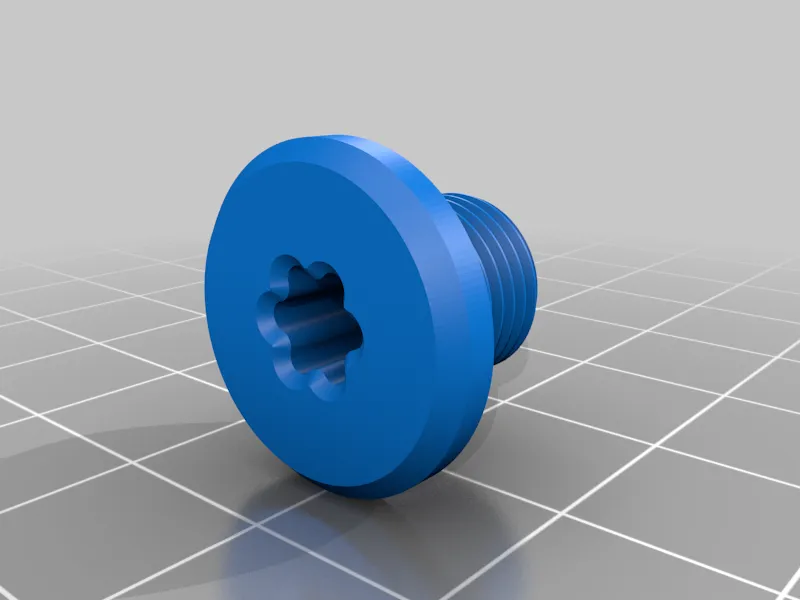

There are two Versions, one with a M10x1mm Thread, typically for Brembo parts, and one with M10x1.25mm Thread for Nissin and the other japanese Brakemanufactures.

Print Settings

Printer:

fullmetal P3 Steel

                                            Rafts:
No

Supports:

                                            Resolution:
0.2

Infill:

100%

                Filament:                                     DasFilament PETG                                    Red
                        Notes:                     Depending on your printer you need to scale the X and Y dimention within the slicer to create the perfekt fit. I needed to scale them down by 1%.

The smaller the Layerheight the better.

Use as many Wall-Layers as possible.
