Mini Waist Fan (PWM speed control, Type-C, no battery)
Print Profile(1)
Description
Boost Me (for free)
I want a new 3D Printer, thank you for your support

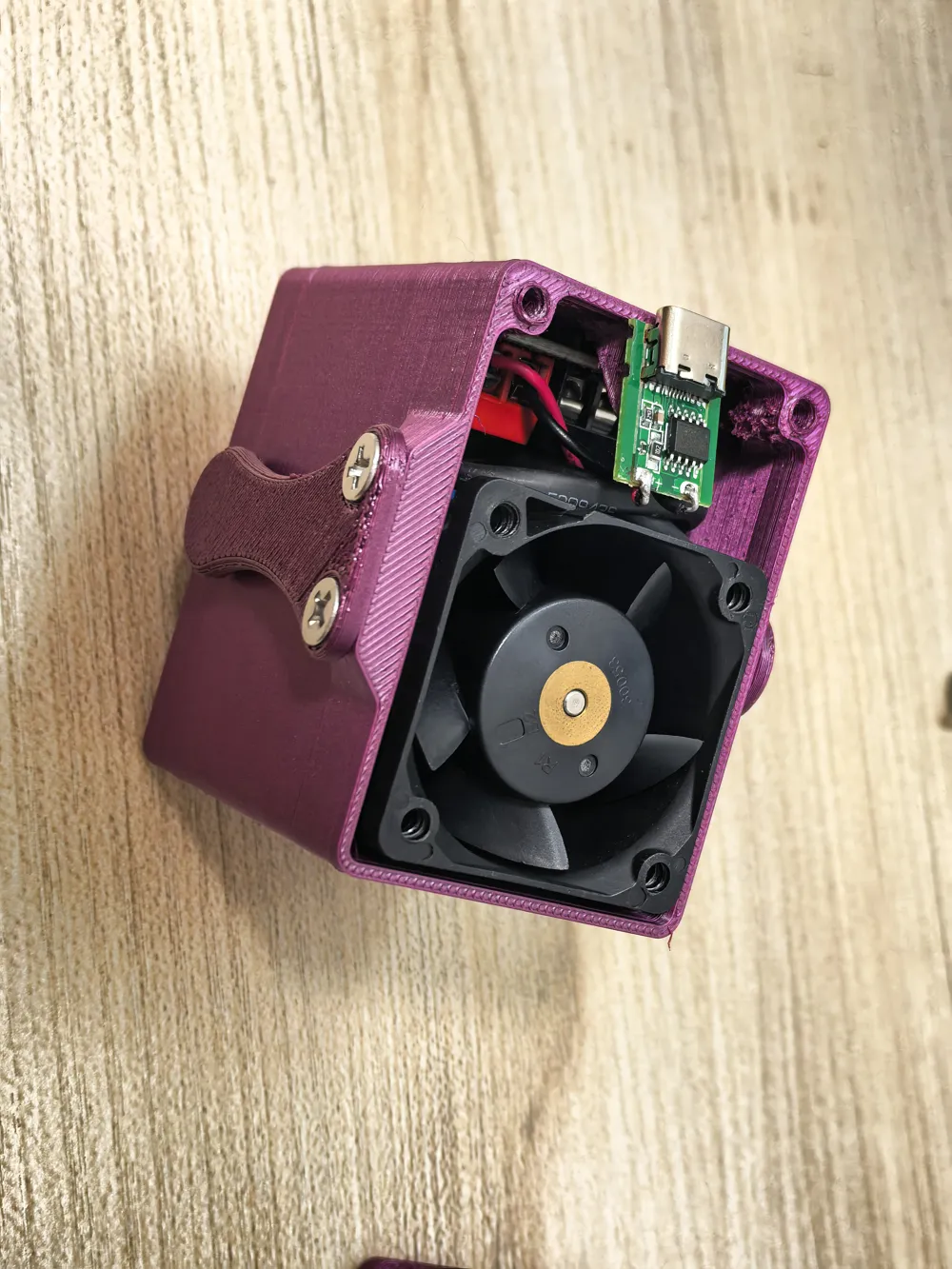

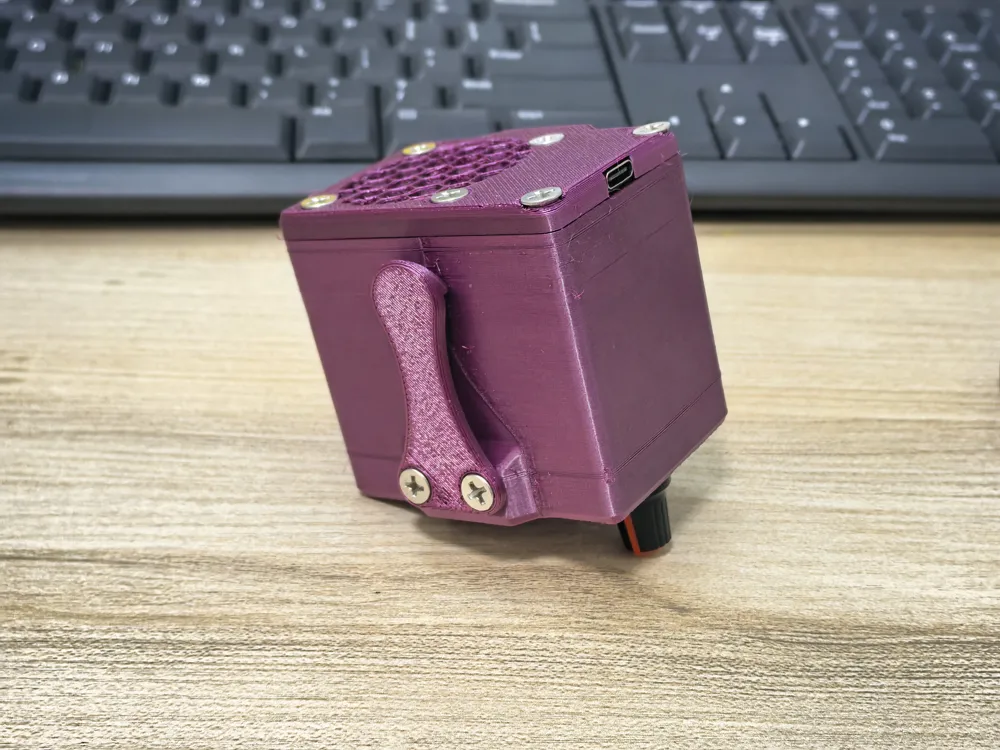

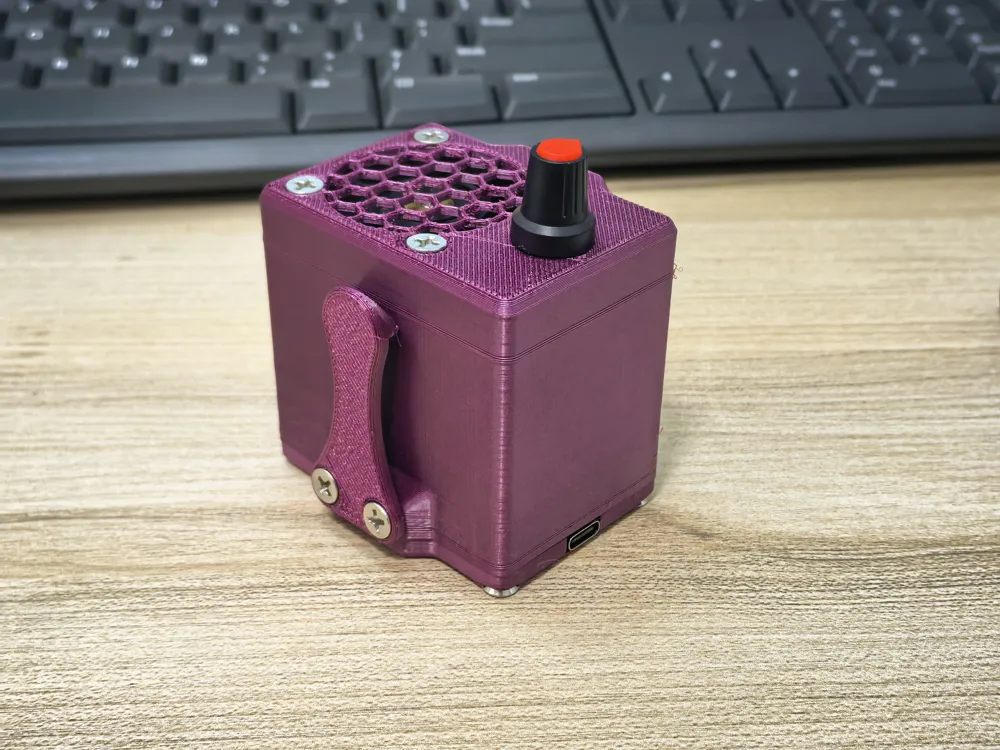

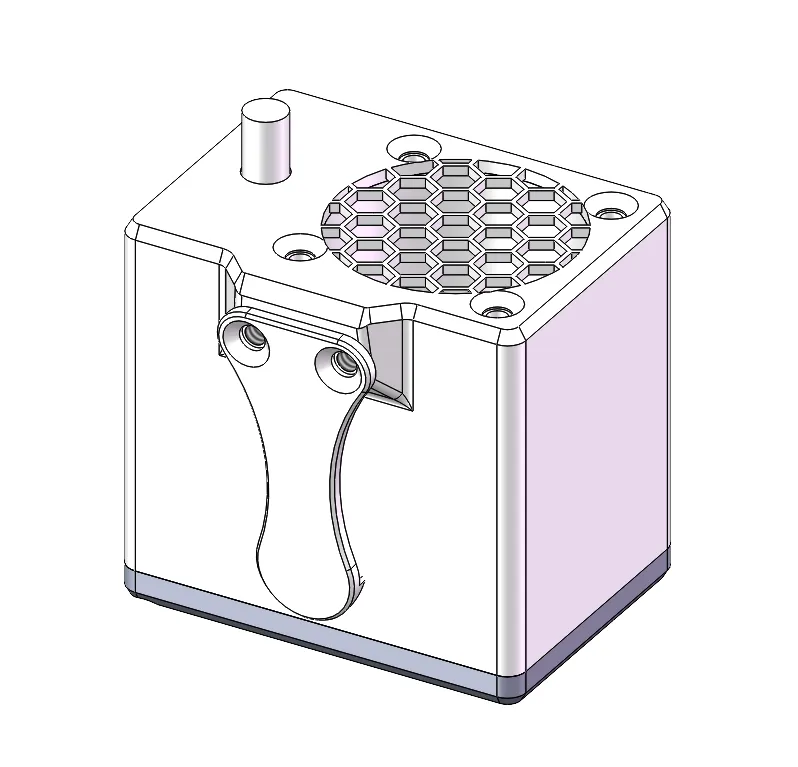

This is a waist-mounted fan I designed myself, it has no built-in battery and is very light, reducing the load on your waistband

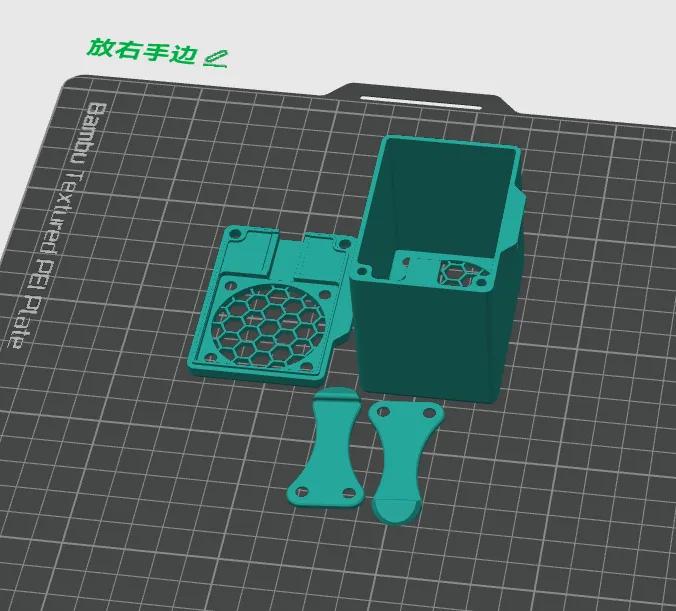

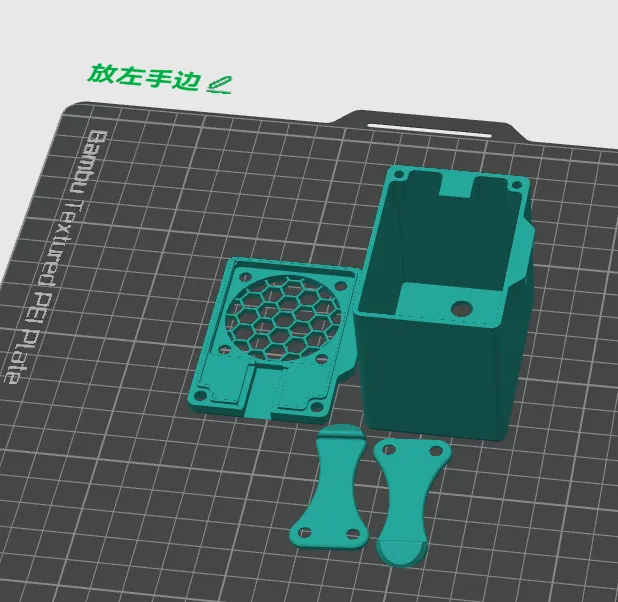

There are 2 versions, one for the right side and one for the left side, choose whichever you prefer

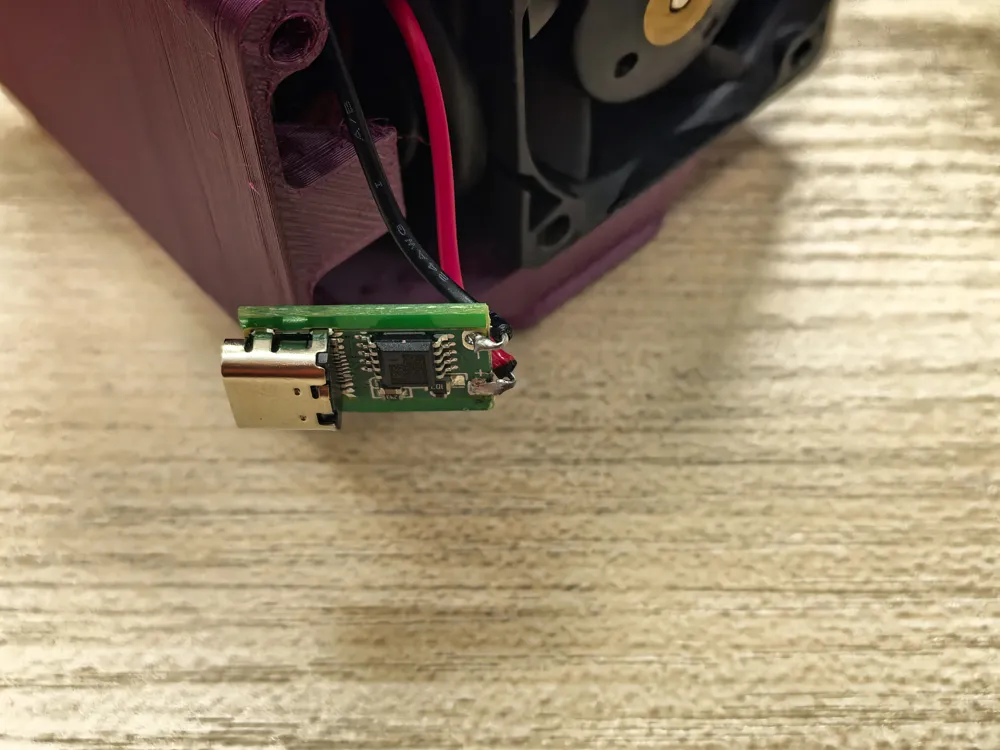

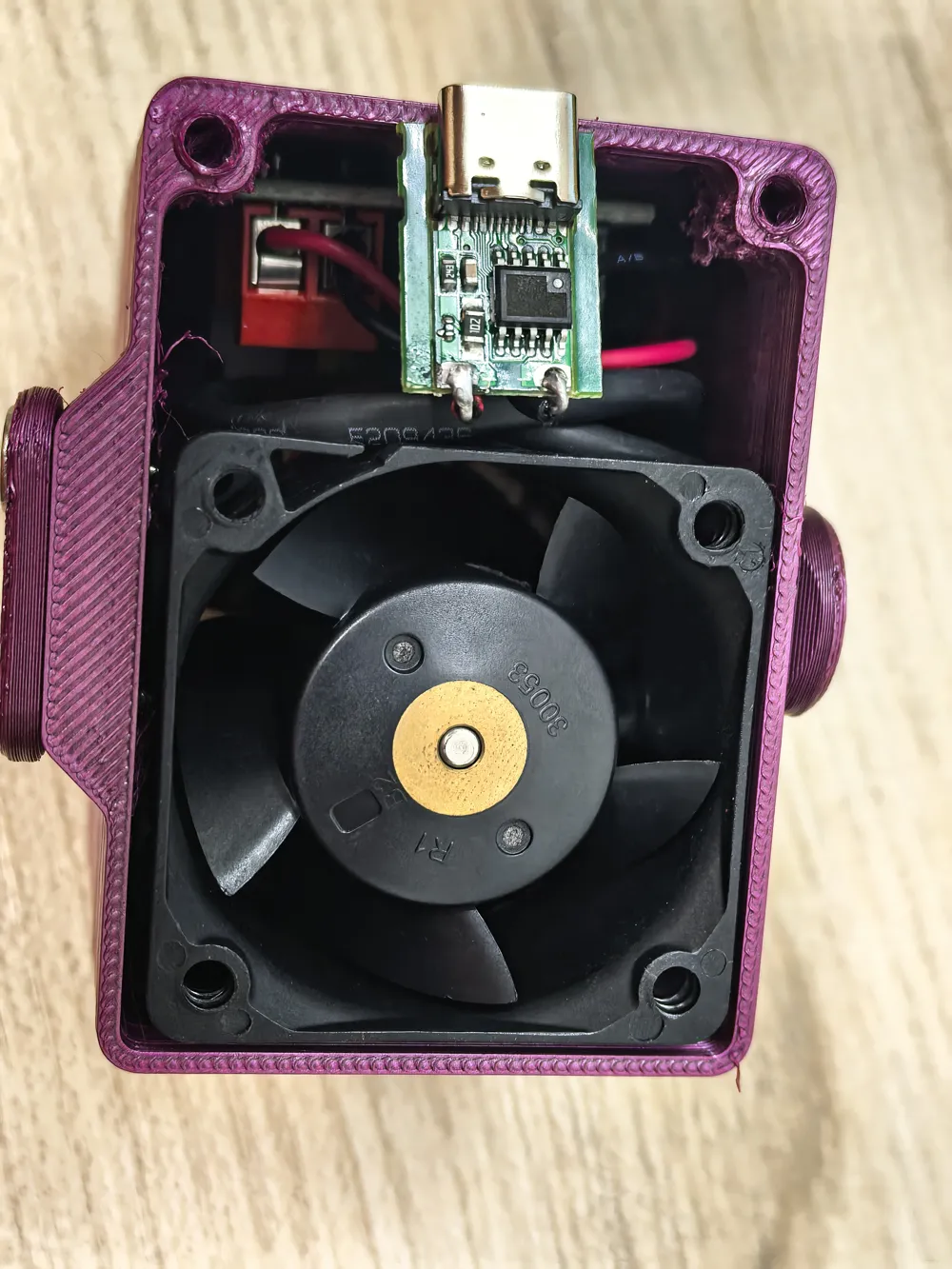

Powered by a 12V PD decoy board, with PWM speed control (precise and delicate speed adjustment)

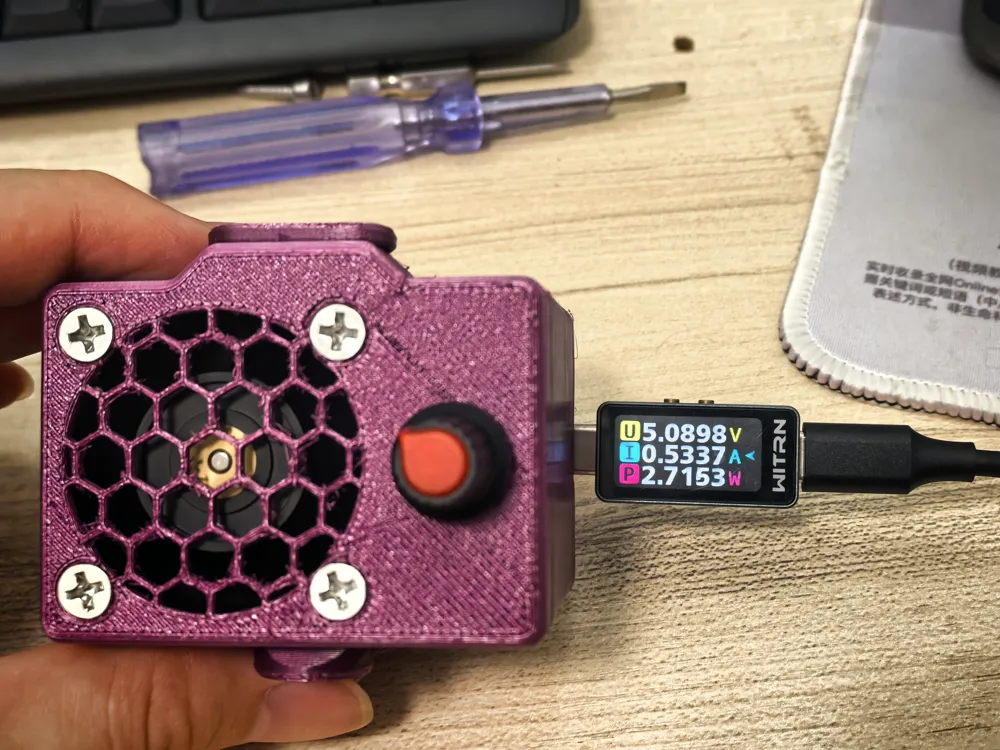

Actual measurement: 5V power supply maximum 2.7W

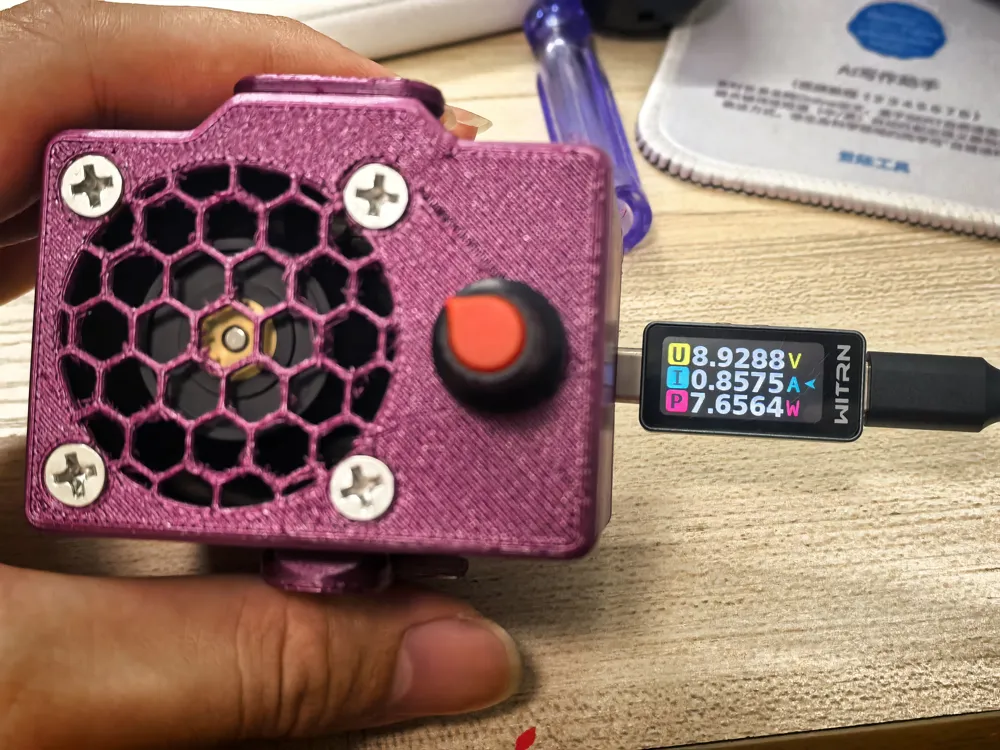

9V power supply maximum 7.6W

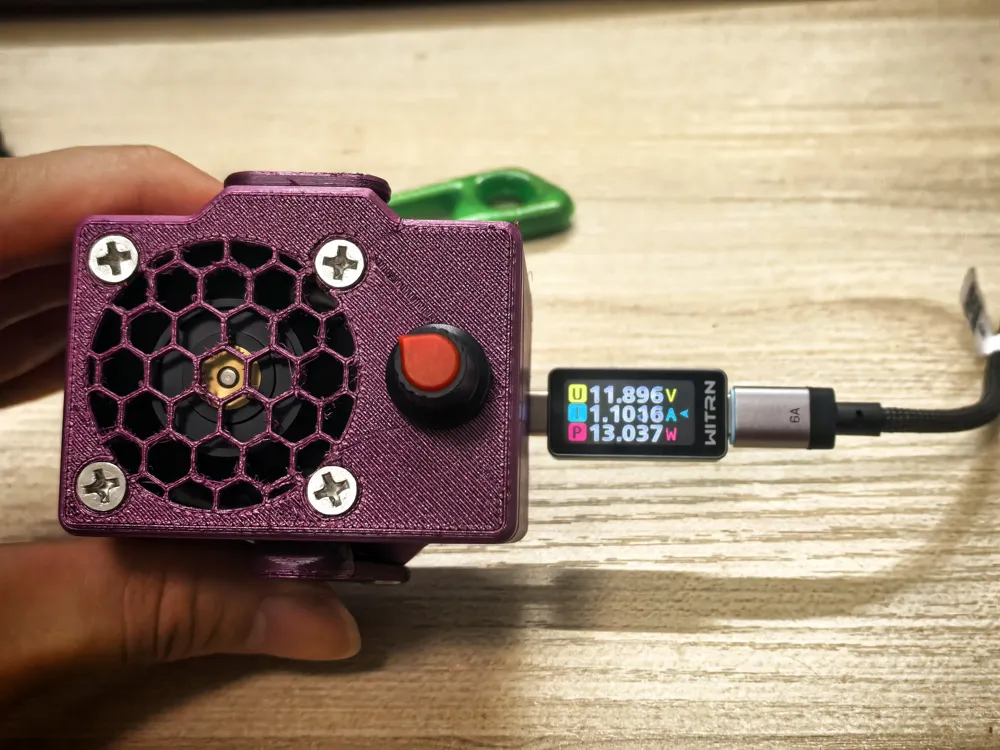

12V power supply maximum 13W
Shopping list as follows

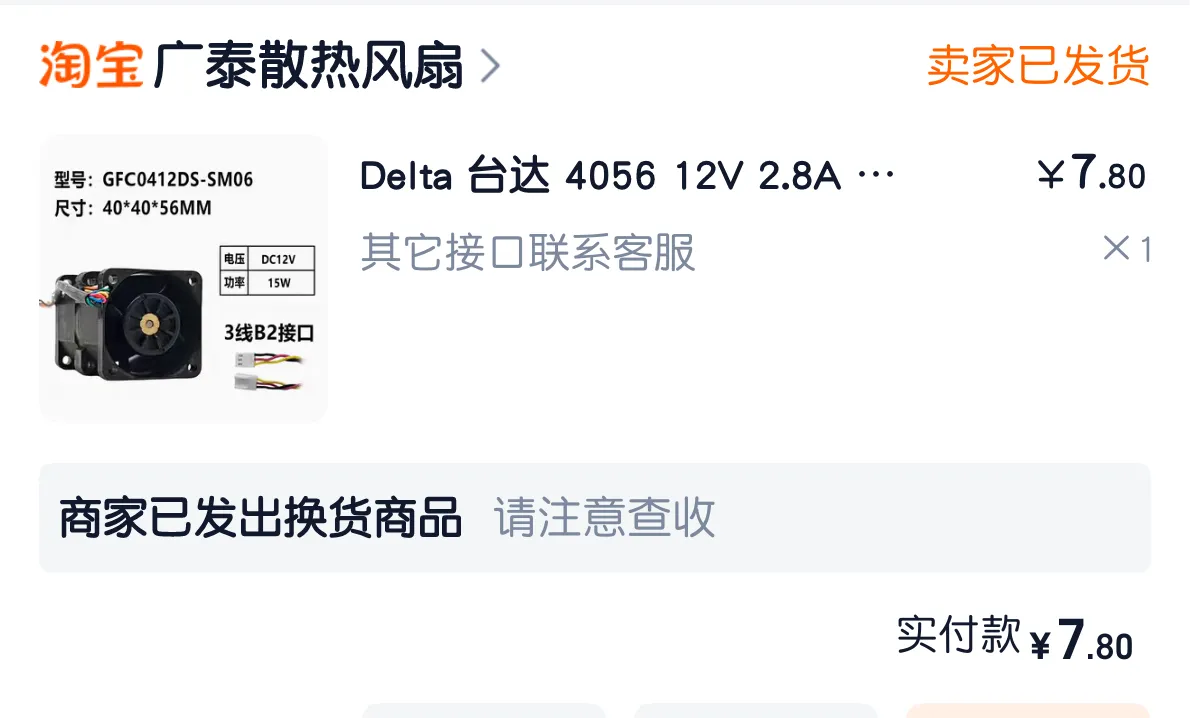

4056 fan 4-wire B3 connector *1

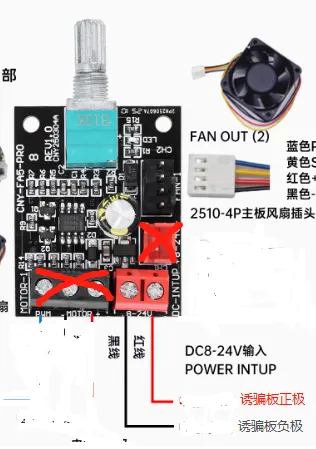

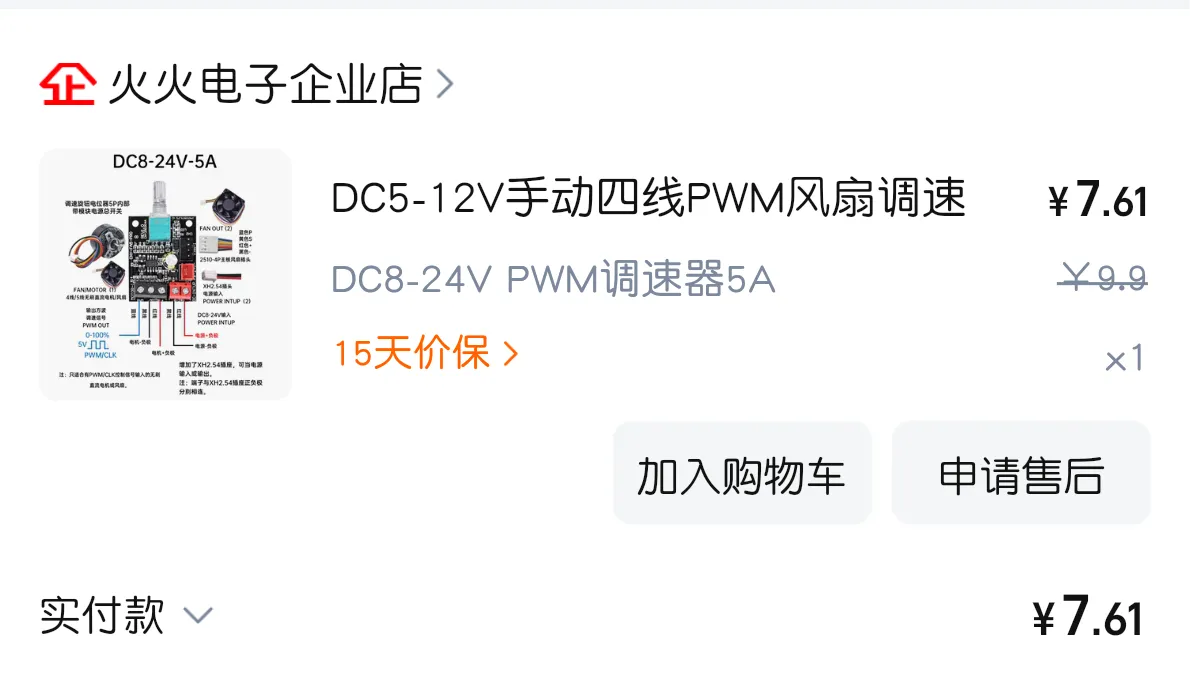

PWM speed control board *1

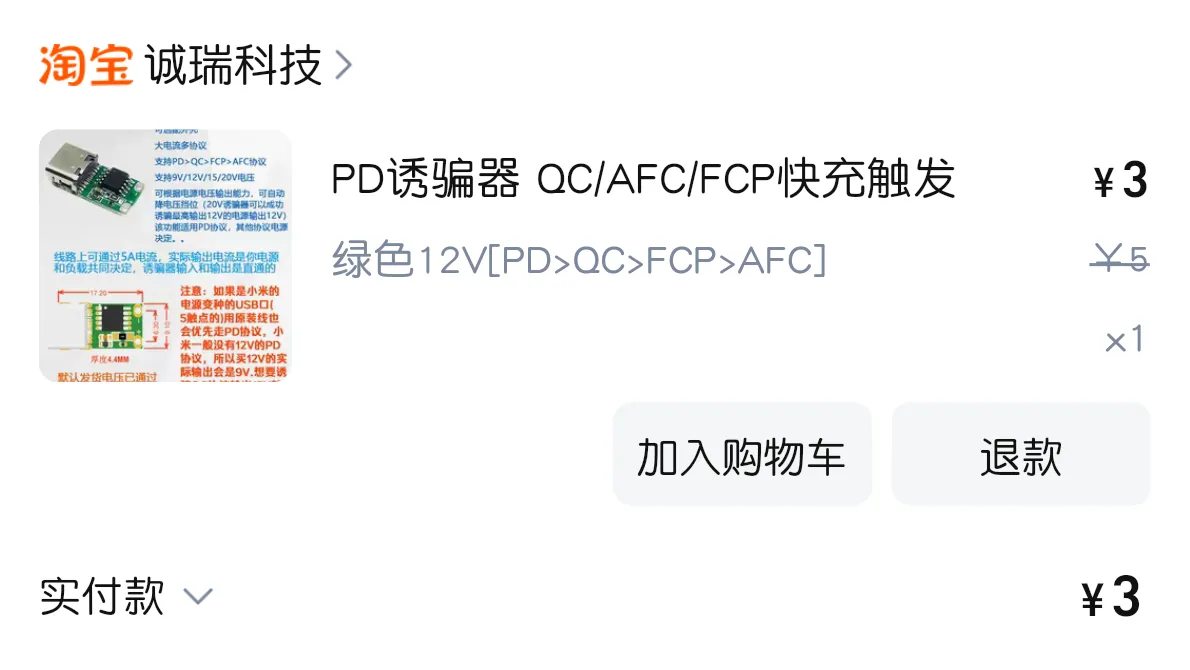

PD decoy board *1

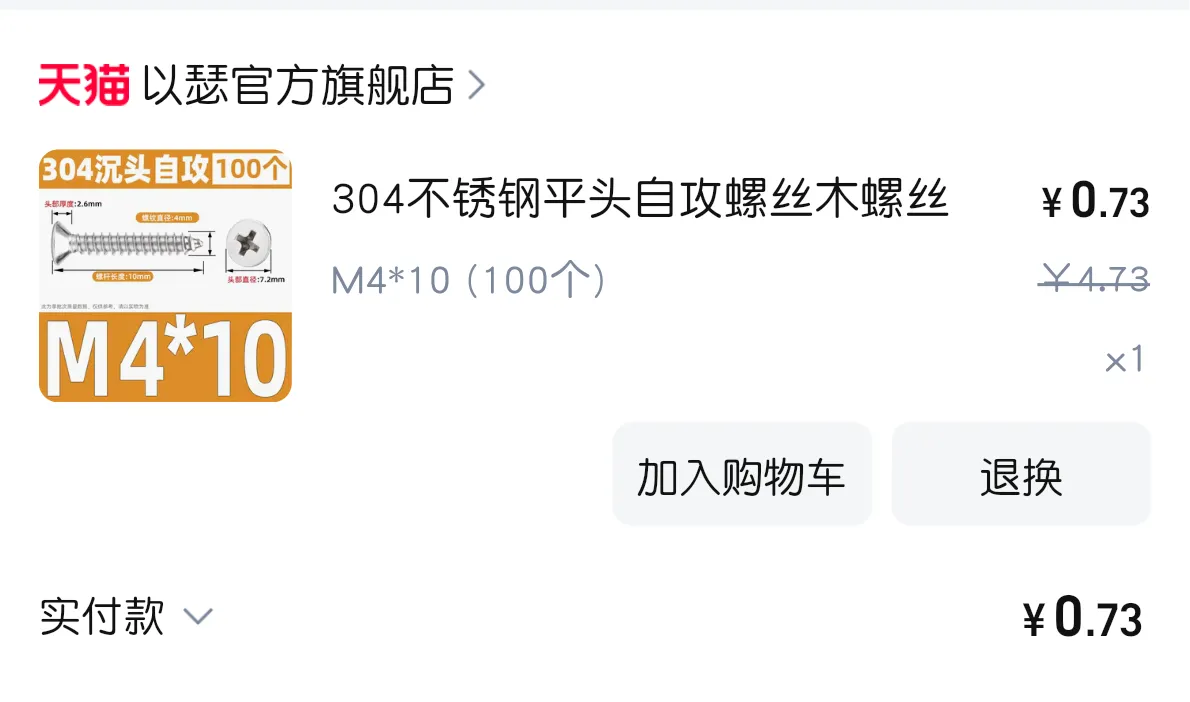

M4*10 self-tapping screws *14
Note 4-wire B3 connector when ordering
