Semi direct drive Fbg5

Summary

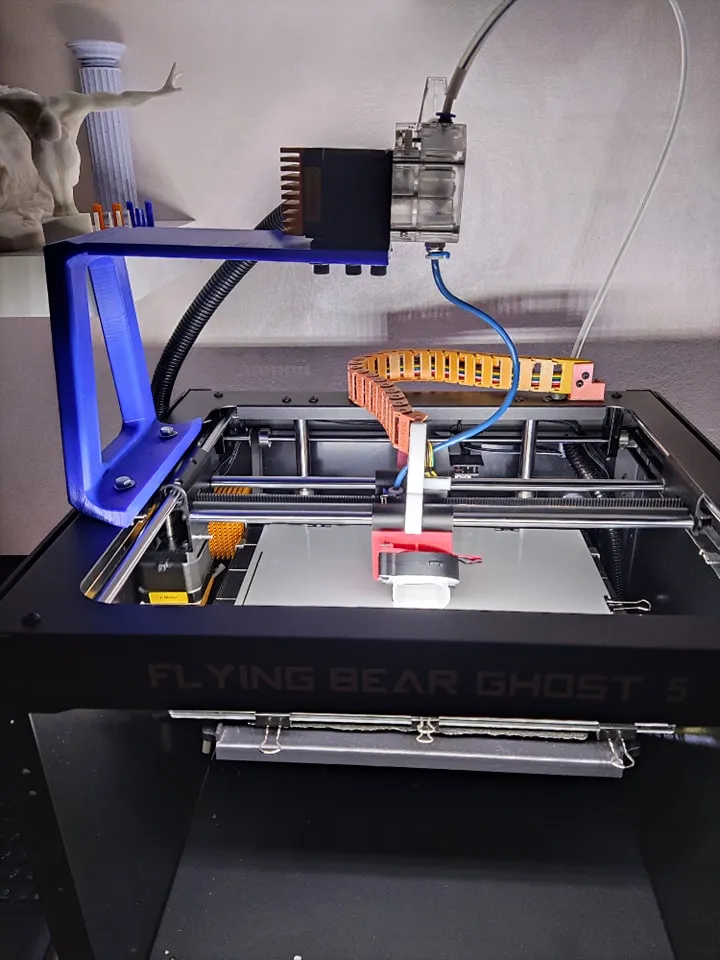

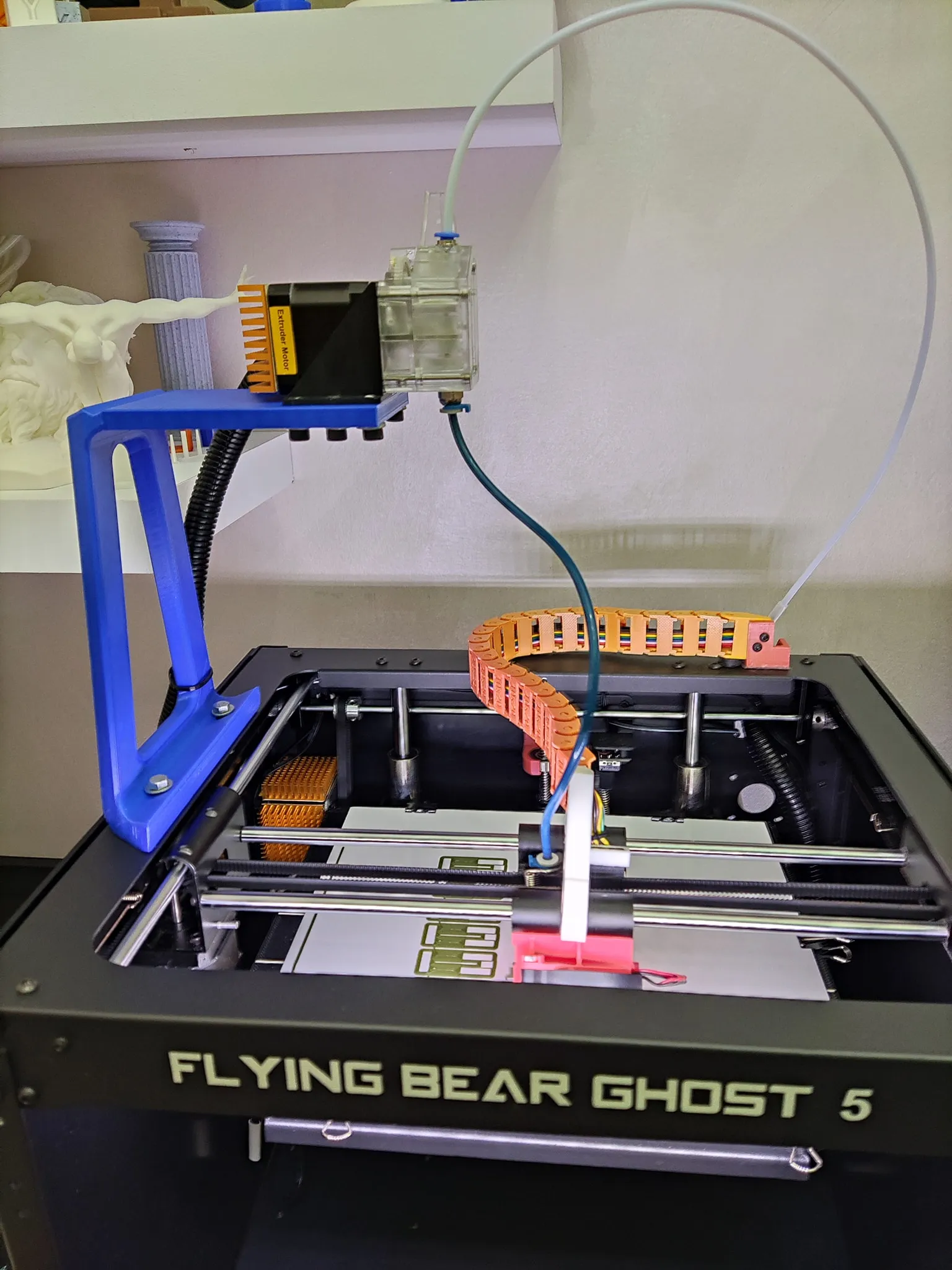

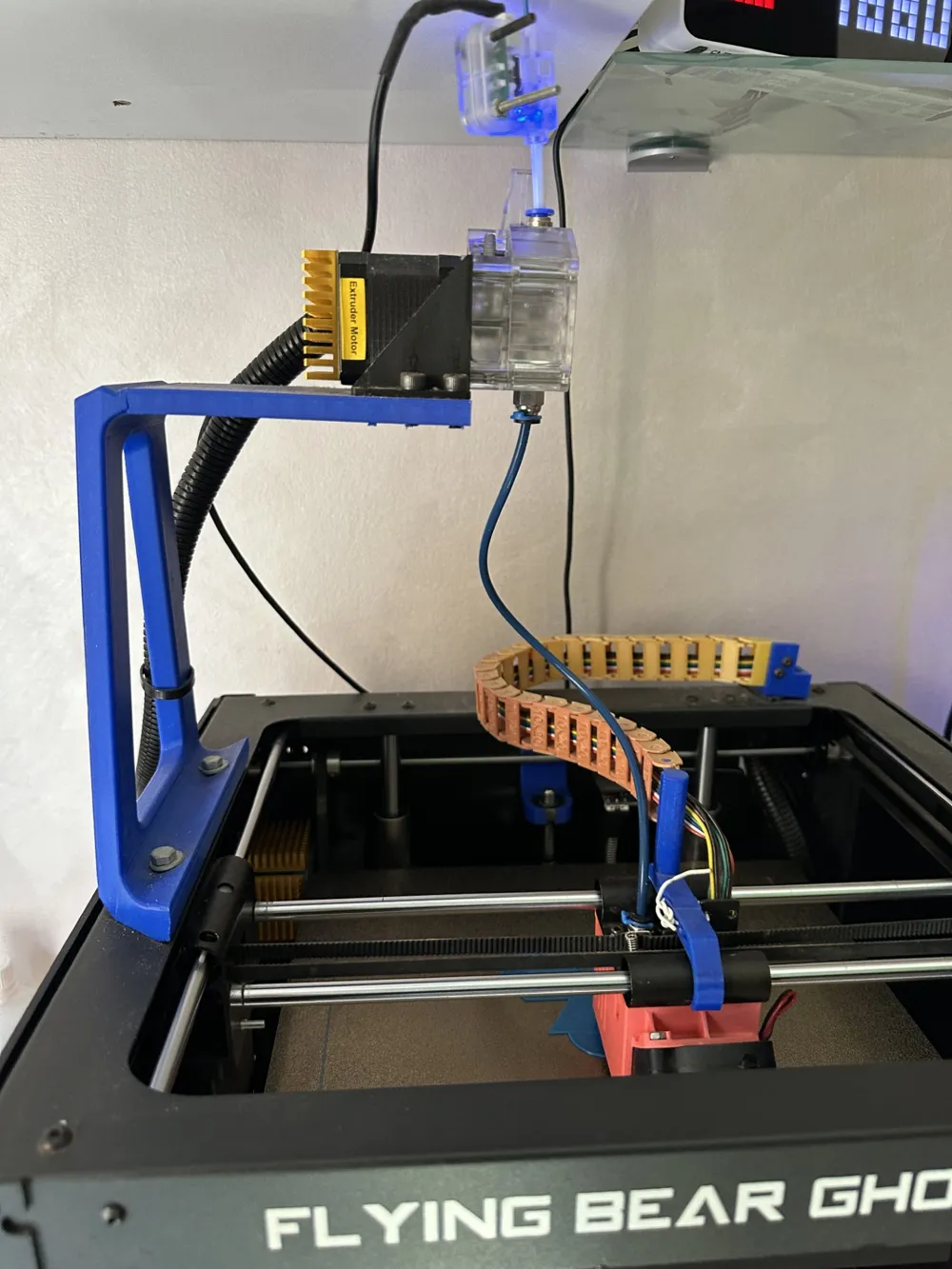

Maybe I'm a bit crazy or maybe not, for days I've been imagining a system to reduce the length of the PTFE tube that causes many problems. With the FB5, I've always thought that direct drive is an excellent solution, but I also find that the print head becomes heavier and vibrations on the nozzle increase. So I modified a bracket with Meshmixer, and this is the result of my ingenuity. Perhaps it won't be the most beautiful, but by doing so, the PTFE tube is half the length of the default tube, and this should be enough to solve many problems we all know. Obviously, direct drive is a separate matter. I made two versions: V1, longer and taller, and the second, lower and longer, which leads to the center of the extruder plate

Print Settings

Printer:

Flying bear ghost 5

Rafts:

No

Supports:

Yes

Resolution:

100

Infill:

30

Filament: Filoprint PLA or PETG or ABS

Notes:

Pay attention to the length of the PTFE tube before cutting it, verify movements by hand

Post-Printing

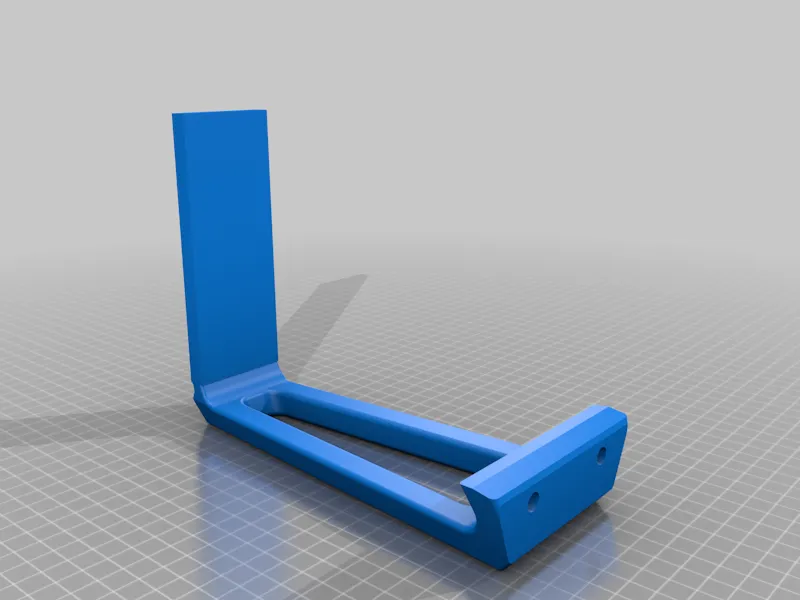

Model V2

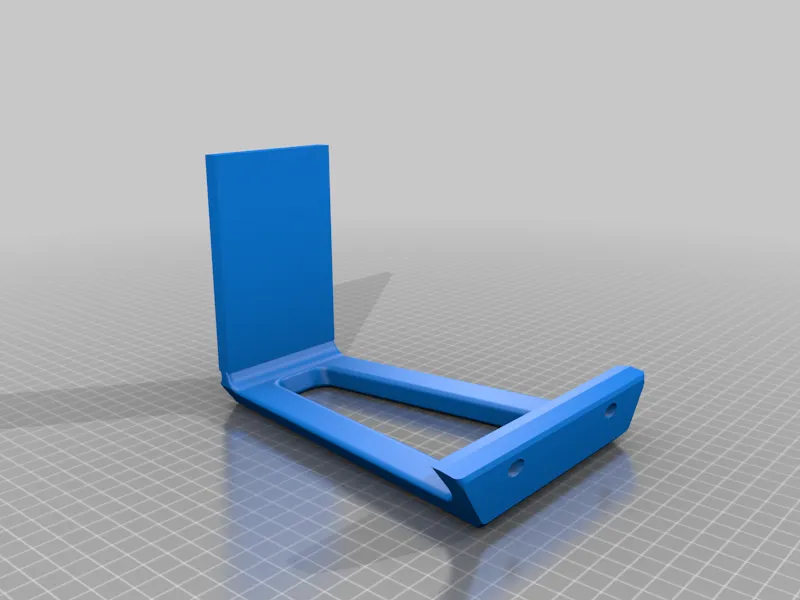

Model V1
