0.2mm nozzle, 0.06mm layer, 4 walls, 15% infill

Designer

47 min

1 plate

4.4(14)

For A1 mini

Designer

48 min

1 plate

5.0(1)

All printers 0.2mm nozzle

42 min

1 plate

1.0(1)

Open in Bambu Studio

Boost

1460

2558

989

422

Released

Description

Boost Me (for free)

A simple boost goes a long way!

**If you love my designs, consider supporting!**

Also check out the U-Joint I have designed for this model!

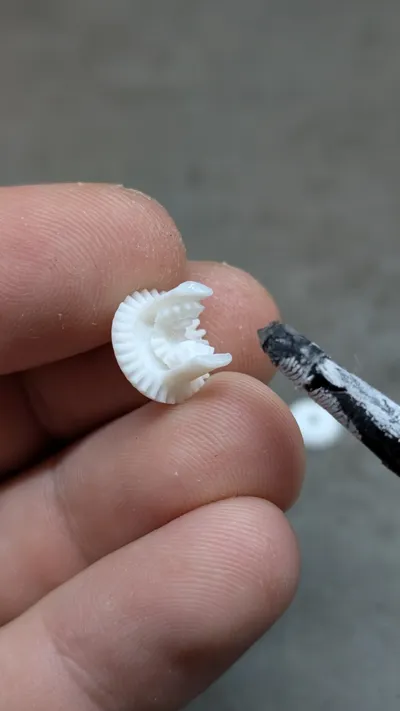

This is the smallest differential I could design as I couldn't find any online.

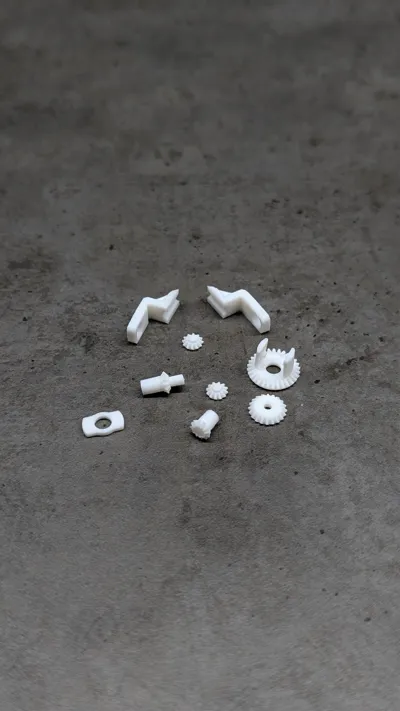

Follow the images above for how to install it and if at any point do the gears not fit the holes, just use some hex screws or something to slightly enlarge them. If any parts seem to have printed crucked or look off, reprint them because the tolerances are very low hence why I also use some lube that came with the printer or any lube of that matter.

If you end up here and actually have built the differential, please leave acoment and a like.

Keep crafting, my friend!
