Hornady Case Ejector

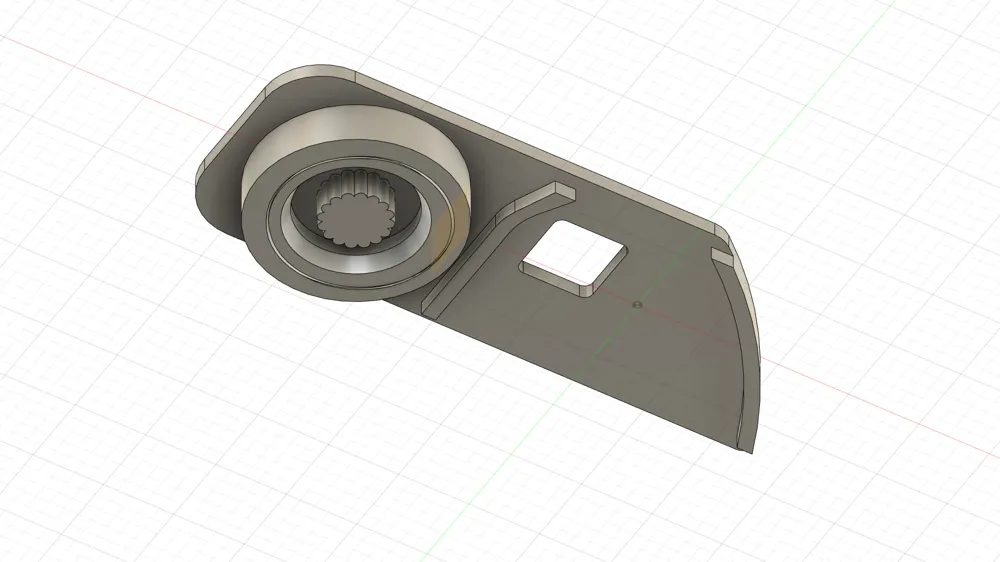

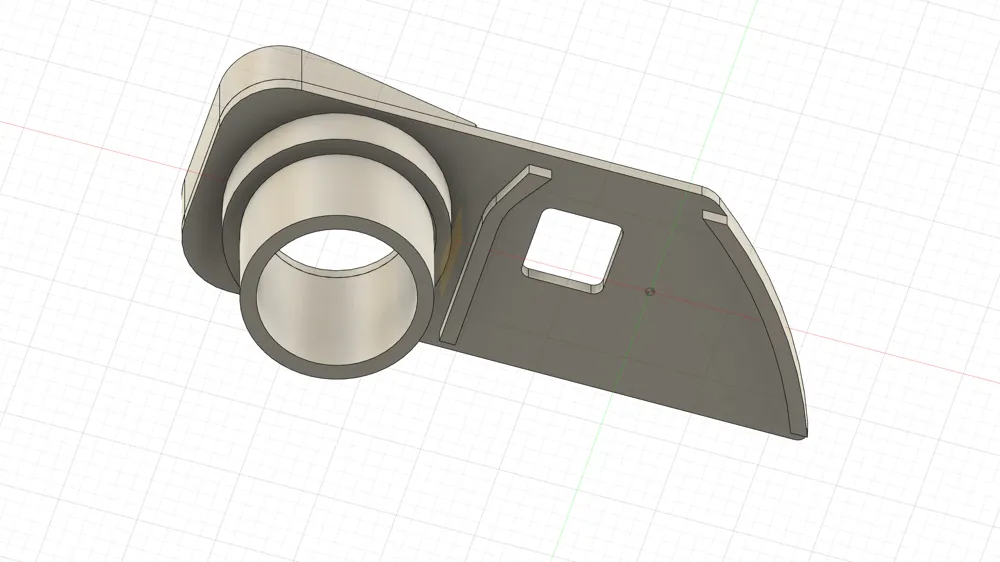

I only found the small shell ejector (file Ejector & Support) on the web. I have slightly reinforced it (only visible in the 3mf file)

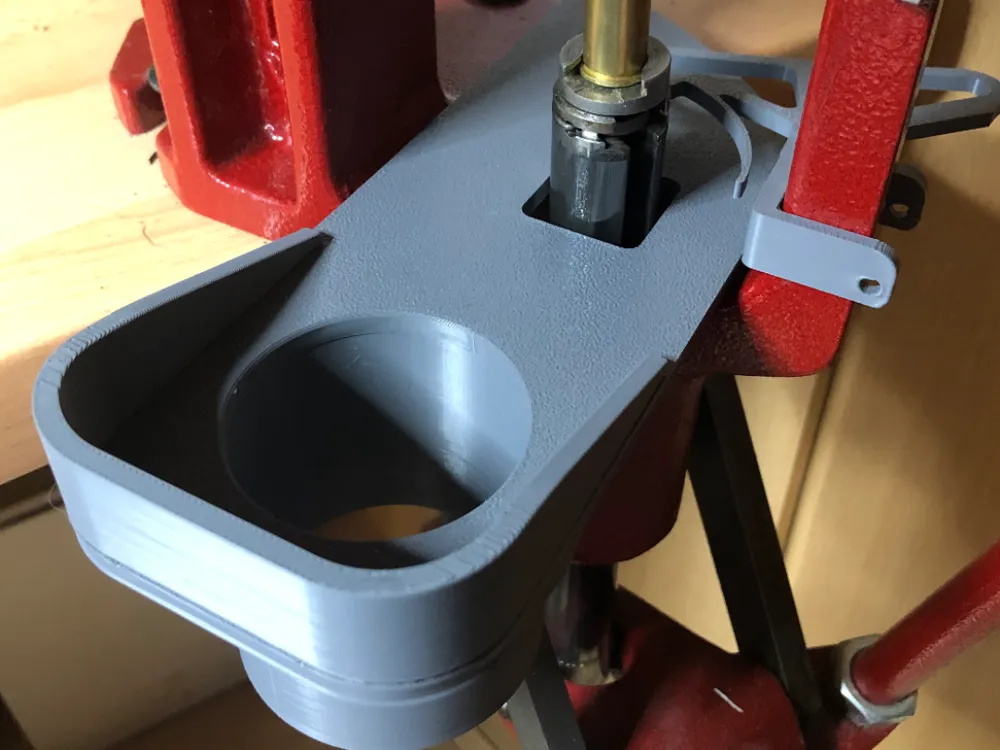

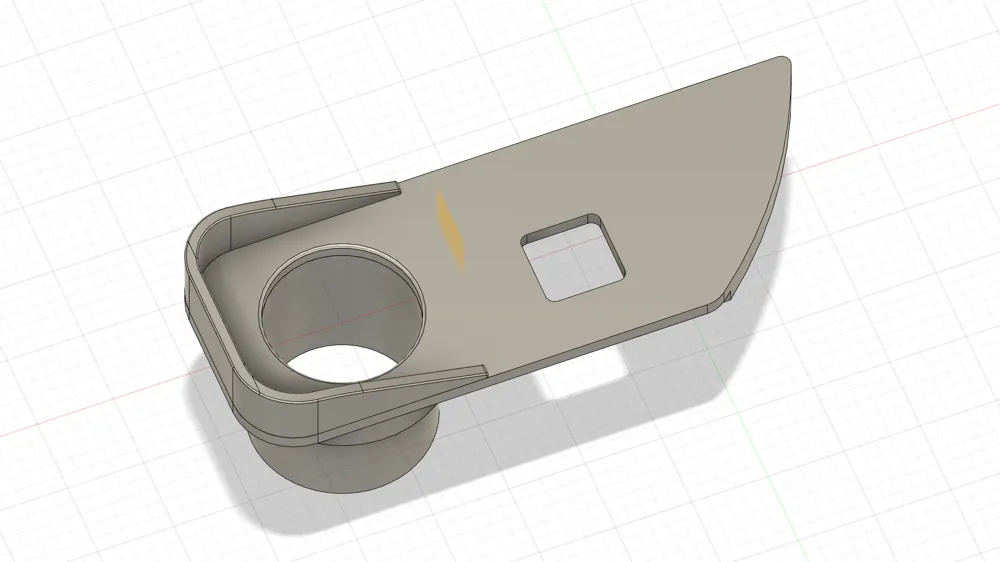

As my own creation, I then designed the “table”. The casings no longer fly around uncontrollably but can be collected in a bucket or similar

Since it is not desired for the casing to be ejected during some work steps, the border is only plugged in, and the opening can be closed with a blind plug

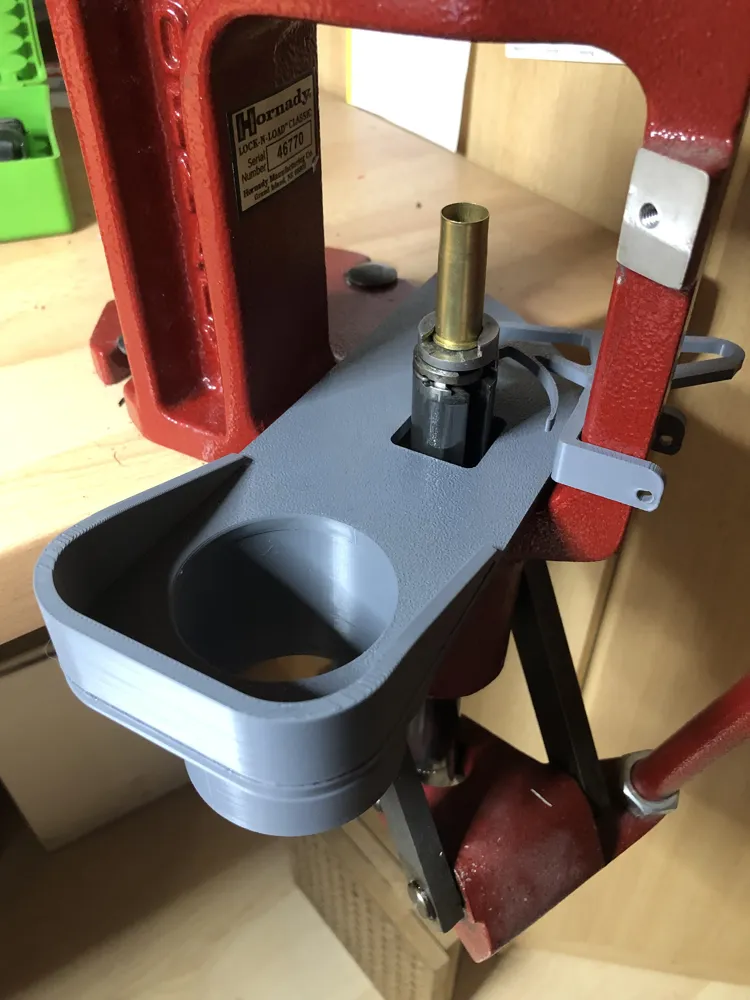

The table is held in place on my press with Tesa adhesive putty, so it can be quickly removed at any time

Small drawback:

Unfortunately, priming with this setup is out of the question

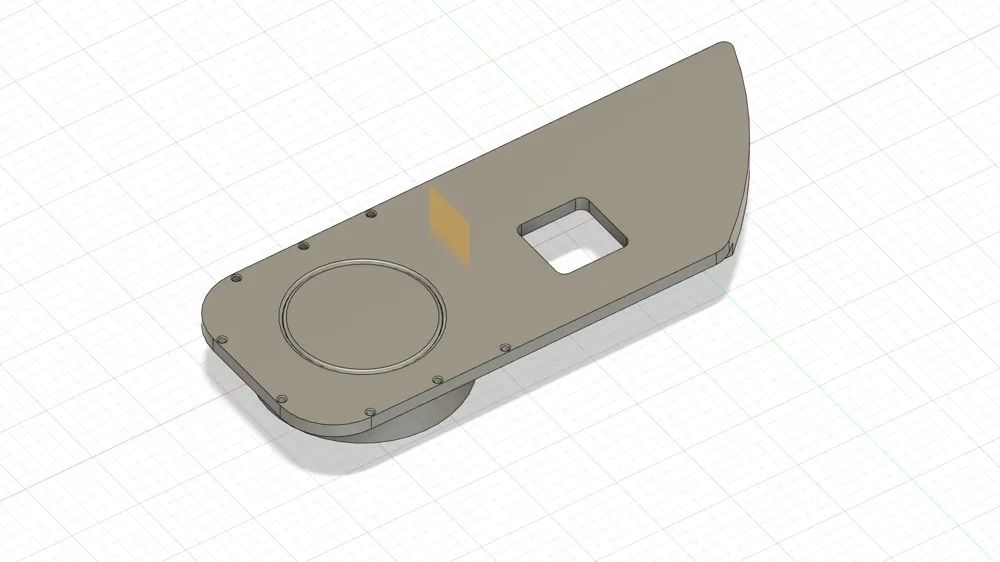

The reason is simple: The primer is set at the very bottom, but at the same time, the ejector would eject the casing. Logically, this doesn't work. Therefore, the ejector must be removed when priming. So that the table does not have to be removed, I have built in a cutout (separate STL - NOT in the 3mf). This way, the primer seater can be used again, but WITHOUT the ejector
