Mini Foldable Gun Shield, R6 Prop Ornament
Print Profile(1)
Description
Boost Me (for free)
The following text is very important and should be read carefully
Printing Instructions:
Layer height can be set freely, the default downloaded 3mf file has added supports and adjusted the joint position between the bottom surface and the part
Hardware Requirements:
2~6 0.3*3*40mm springs, one 12mm*3mm magnet
3 M2 (screw thickness) * 4mm (screw head width) * 6mm (thread length) flat-tail self-tapping screws (can also be replaced with glue)
Precautions:
1. The model has small tolerance reserves; if necessary, you need to manually adjust the X-Y inner contour dimension compensation
2. The connecting parts between the toys are fragile; do not handle them roughly and prevent damage from drops
3. Assembly relies on interference fit; simply press the springs and panel parts directly into the slide grooves

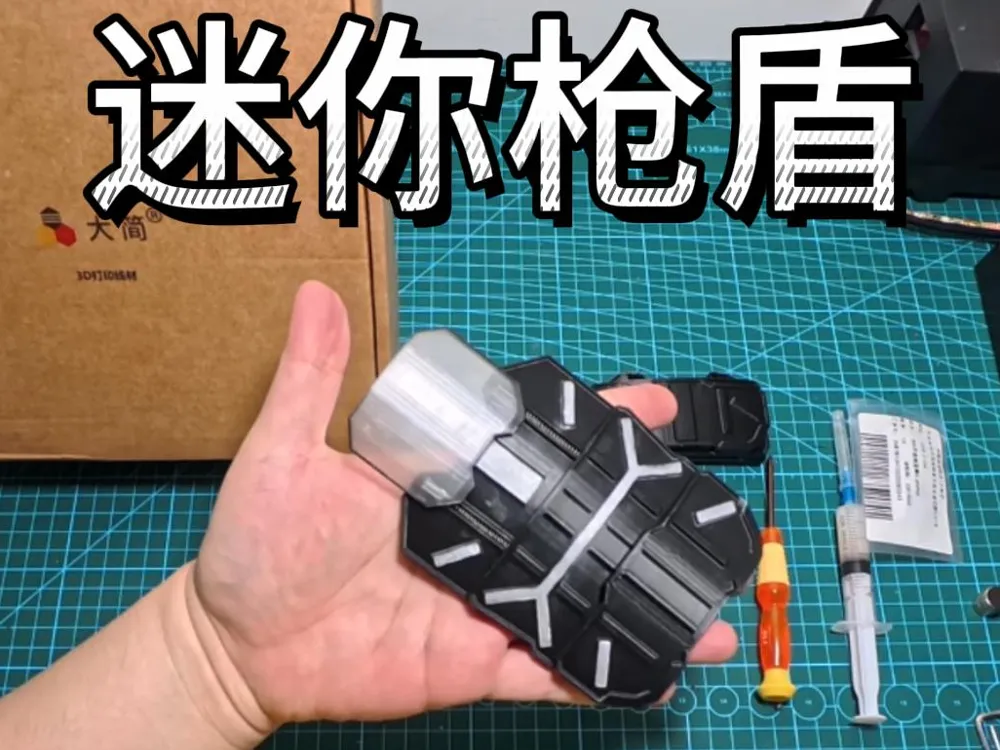

Assembly Reference Video

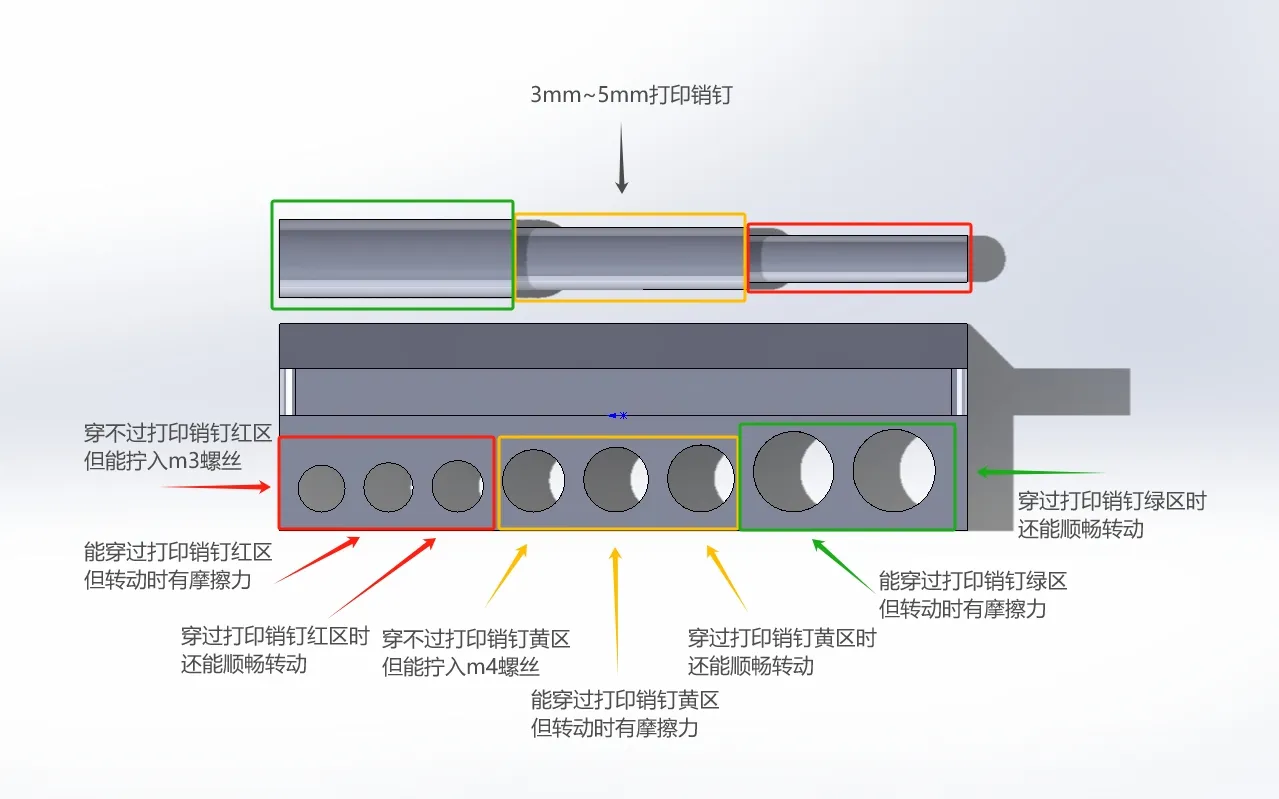

Tolerance Sync Part Usage
