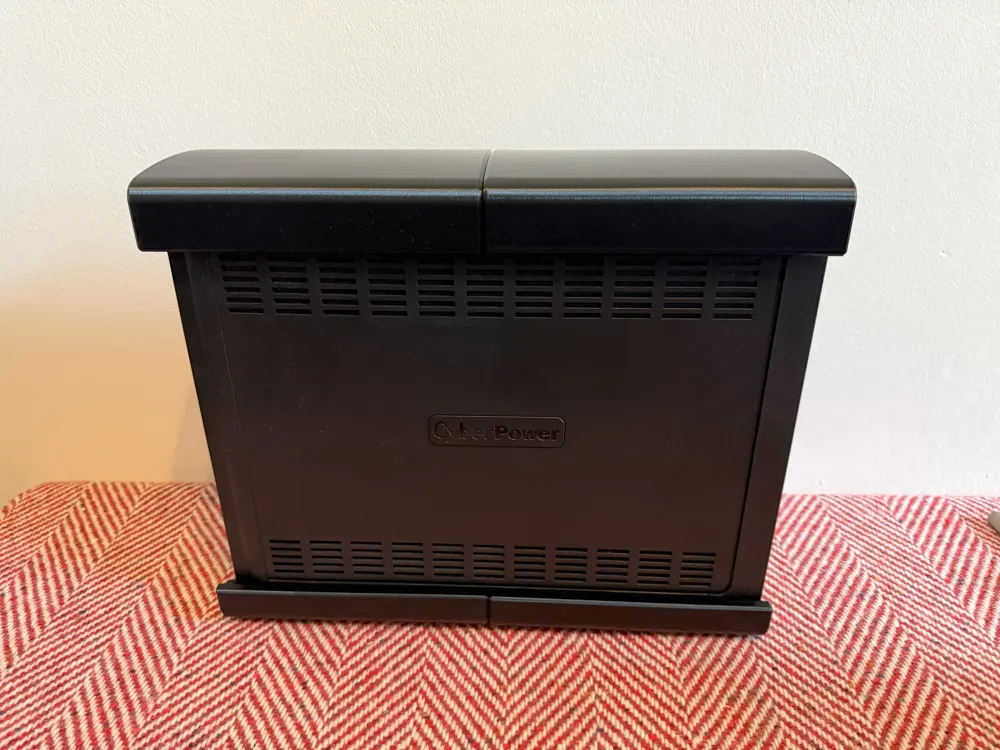

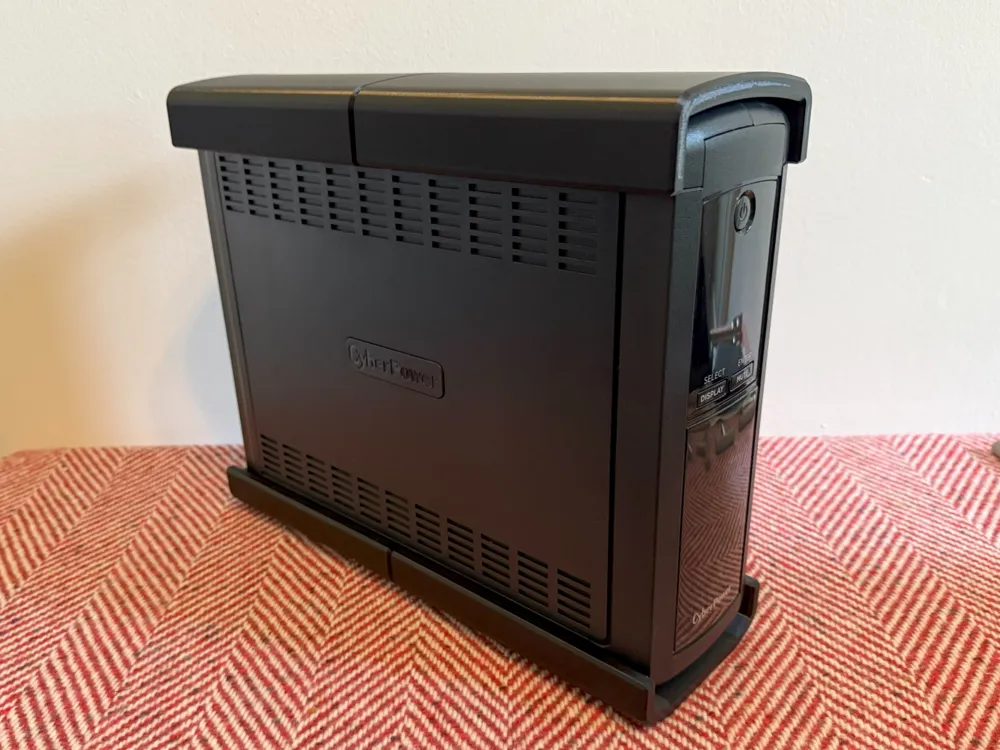

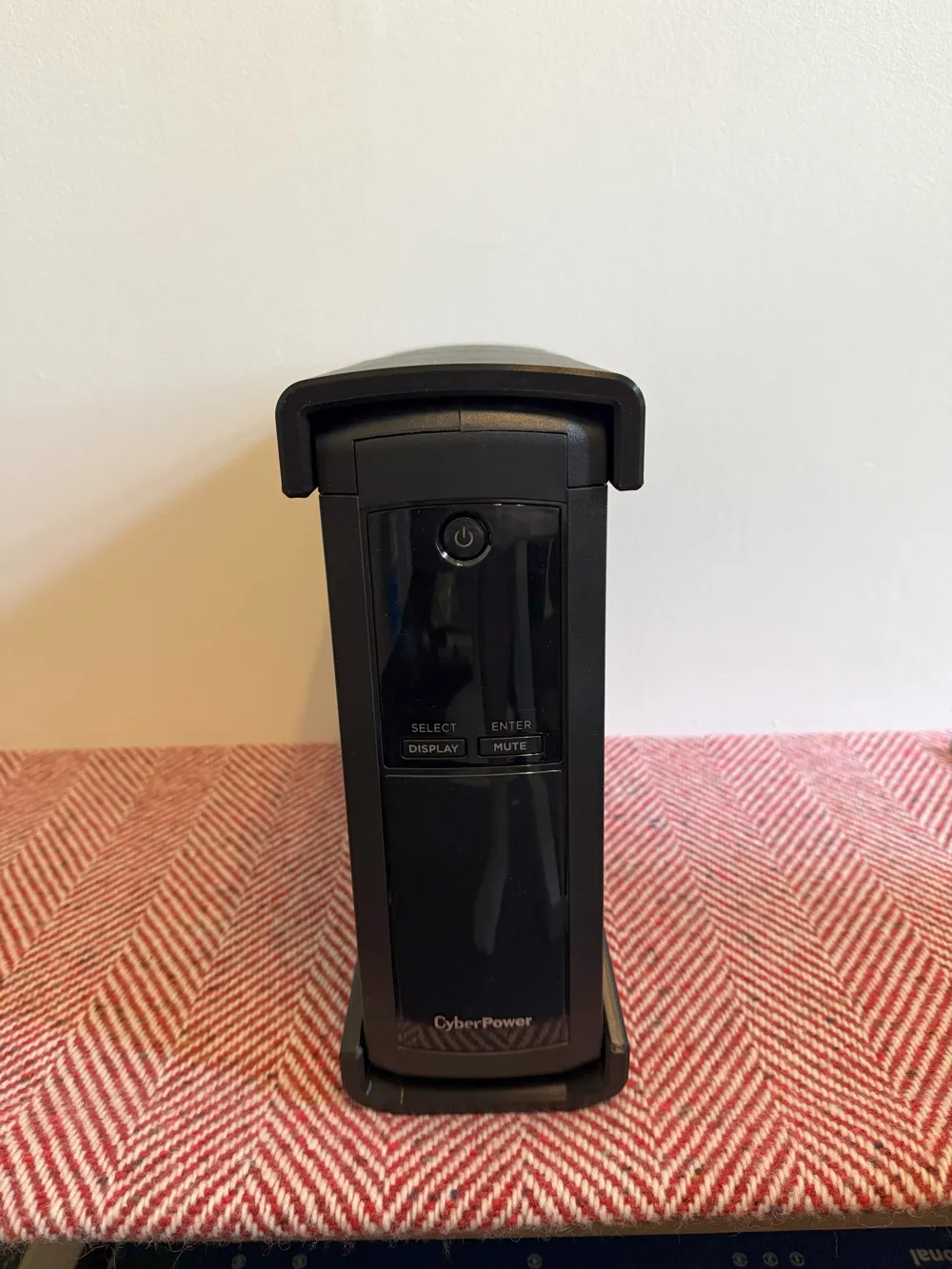

A sturdy CyberPower VP1600EILCD Uninterruptible Power Supply (UPS) mount that can be used horizontally or vertically - I have mine mounted to the underside of my desk.

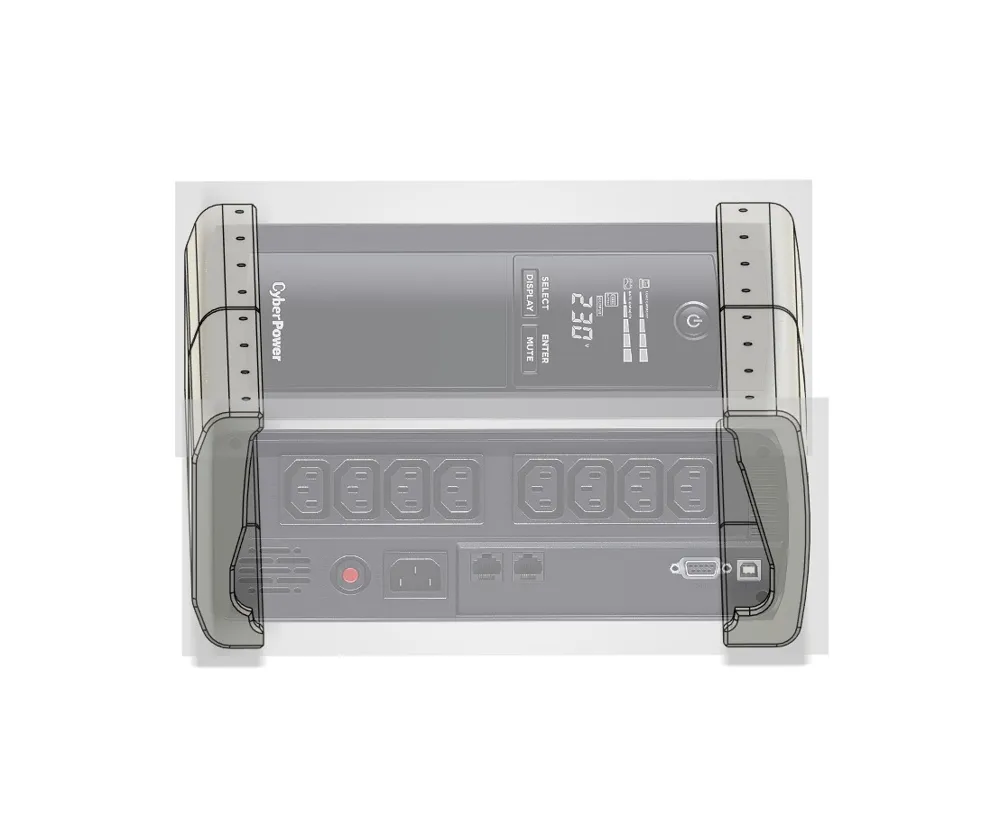

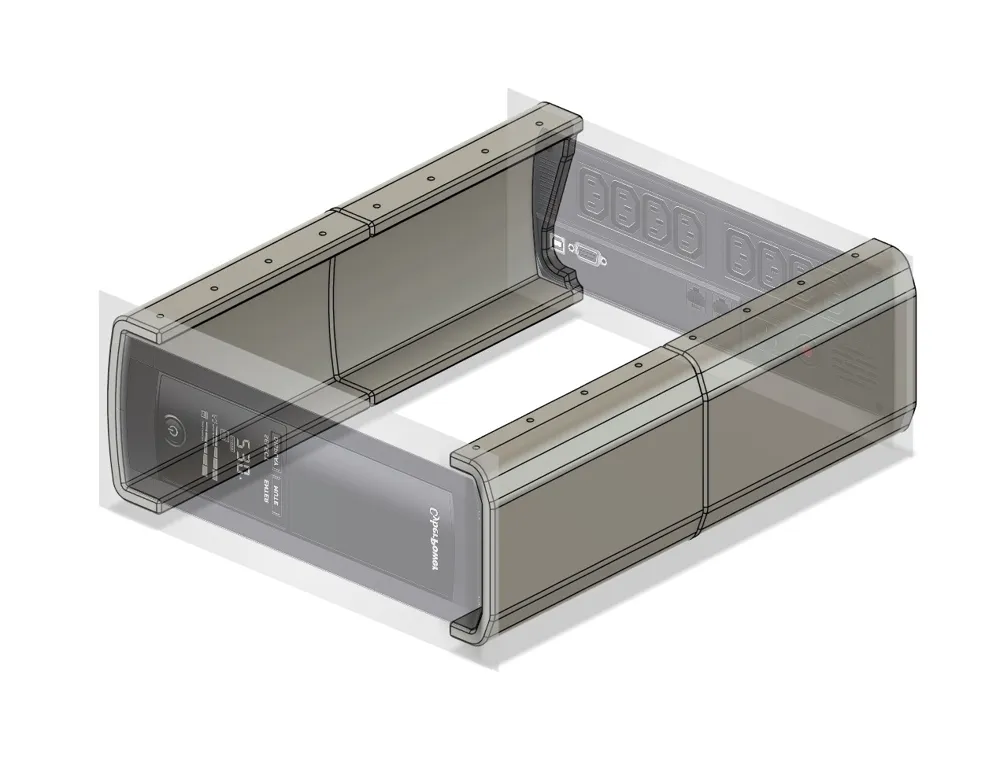

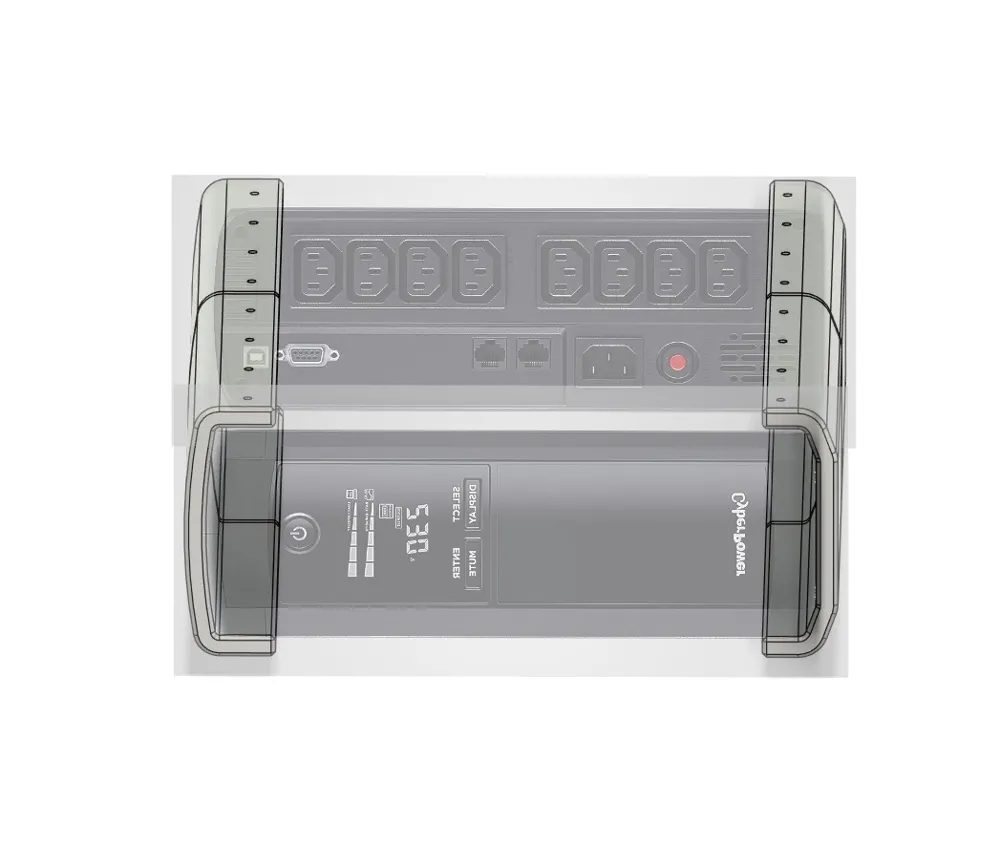

Easy to install and held in place with up to sixteen 3.5mm screws (4 per segment) this mount secures the UPS with a 10mm airgap between the UPS unit itself and the surface being mounted to, and ensures that none of the side vents on either side of the unit are obstructed. With the mounts installed, the unit is slid backwards into the mounts - with the rear aspect providing a back stop, again with contours to ensure access to all ports and no obstruction to any of the vents.
I have mine printed in ABS - please be sure to print using an appropriately strong and fatigue resistant material if you reslice the profiles.
