Drill Press Sanding Dust Collection

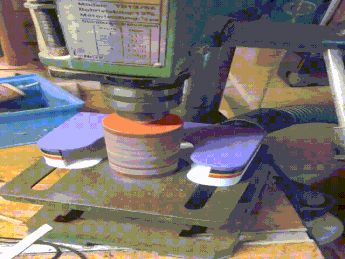

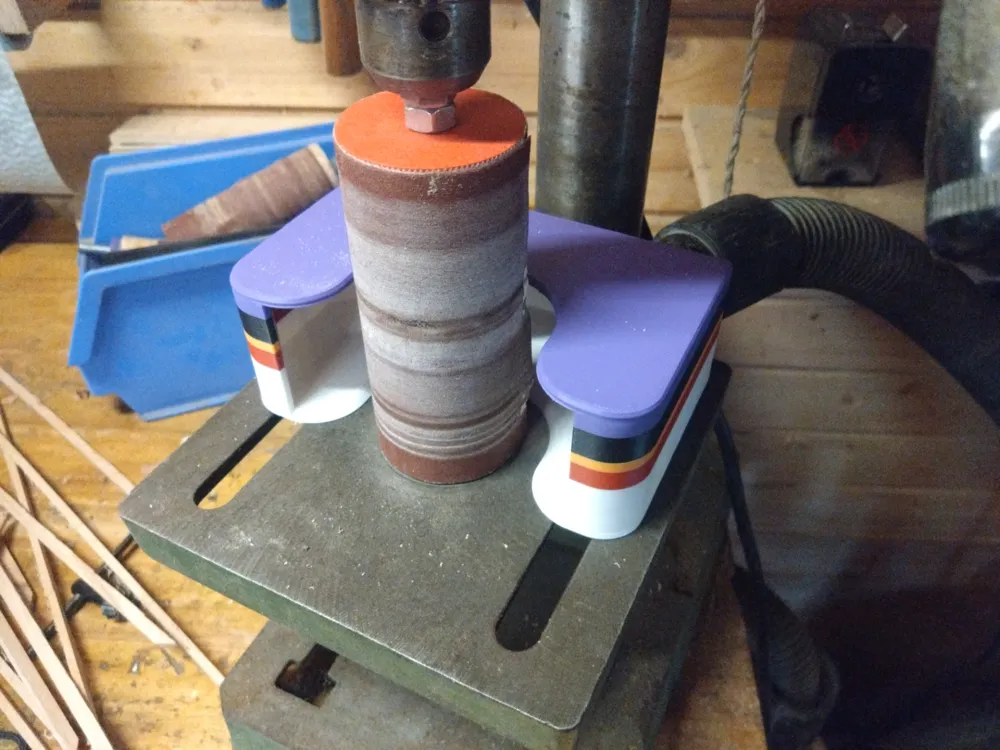

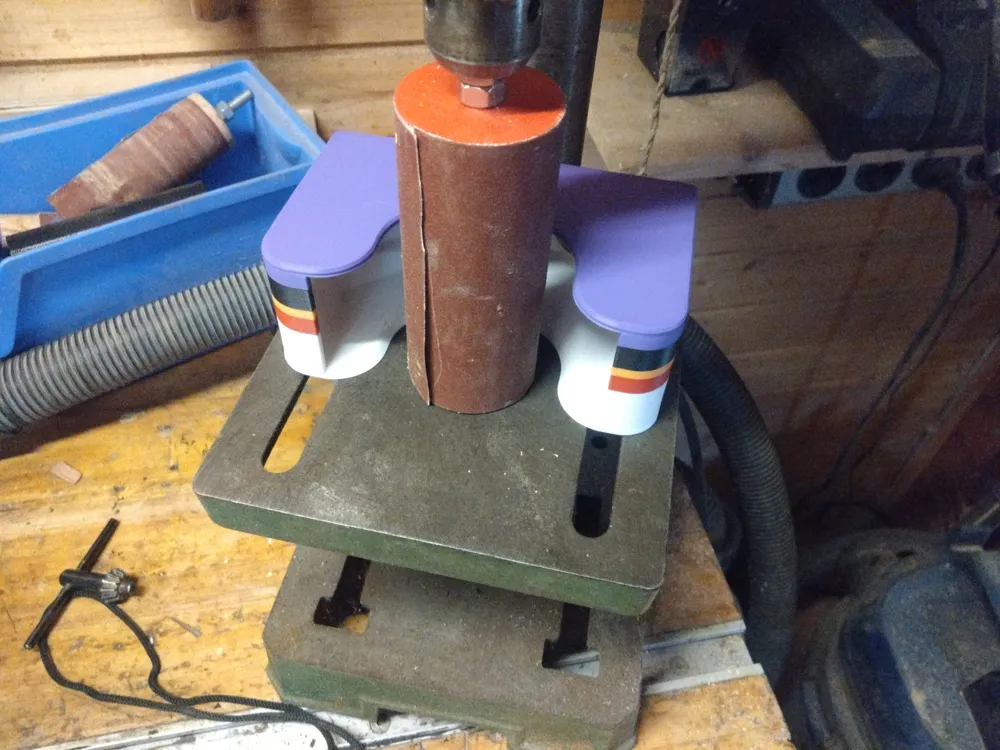

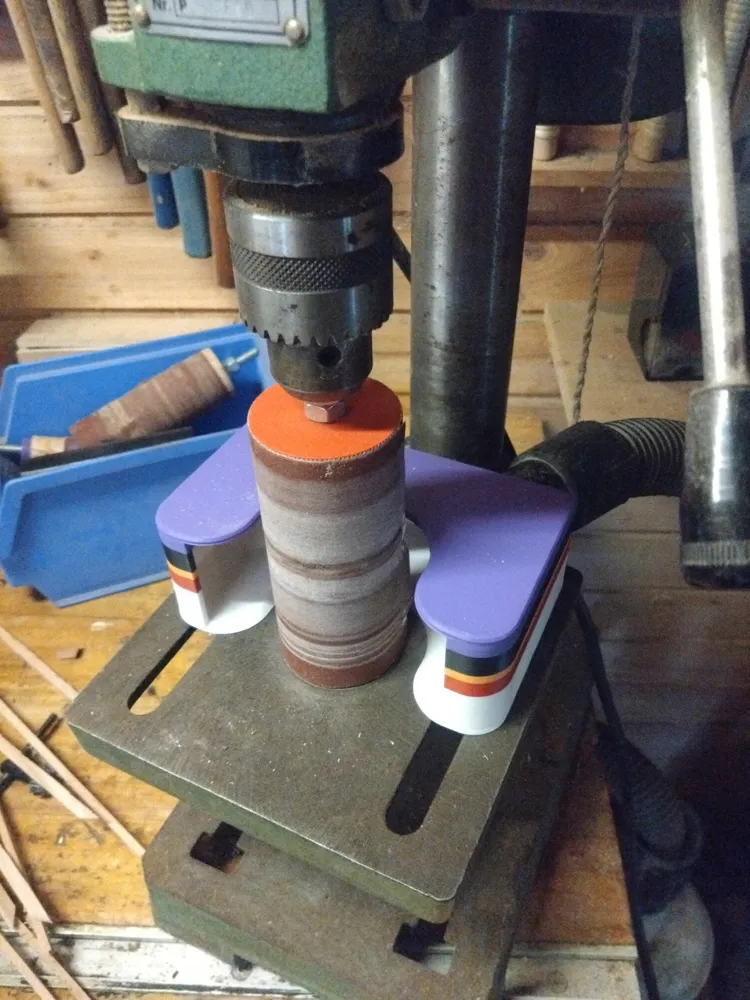

This vac adapter is made for my drill press (Praktiker TB13/5E) and the sanding cylinders I made a while ago to vacuum all the sanding dust right into my shop vac system. A standard vac hose can be attached to the back. the hole model is designed to be placed in the cutouts of the drillpress build plate. there are holes for M4 heat inserts in case they would be needed. In my case, the model already sits with a nice grip. In the gif you can see how the dust gets vacuumed perfectly, even from higher positions.

For all of my models that include supports, I highly recommend a detailing / support removal tool like the one from anish or C59. Those make use of a replacement filament cutter and have proven themselves a very valuable tool for clean and easy support removal, especially for threads.

Also, please keep in mind, that the quality of threads is highly dependent on the quality and dryness of your filament, the calibration of your printer and the print resolution. A thread printed with .2mm layer height will be way harder to thread nicely and will require more force, than a thread printed at .08mm or .12mm layer height. Also, the Arachne wall generator does contribute a lot to precise threads. If you need more part strength, increase the number of walls, make use of the alternate extra wall feature and DO NOT use PLA.
