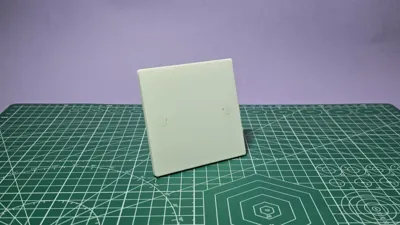

Universal Type-G Outlet Cover (1-Gang & 2-Gang)
Engineered for perfect compatibility with all standard UK domestic Type-G wall outlets, this cover is designed to provide a clean, slim finish while maintaining full compliance with BS 1363-2:2016+A1:2018 guidelines.

The cover can be printed in PLA, PETG, or ABS

Dimensions - 1-Gang

Width x Height: 86 × 86 mm
Center to Center Hole Distance: 60.3 mm

Dimensions - 2-Gang

Width x Height: 146 × 86 mm
Center to Center Hole Distance: 120.6 mm

Version 2 Update
Added 2 Gang variation and integrated bolt cover plugs for an even seamless look
