Parametric Lid Generator

Universal Parametric Lid – For Cans, Jars, and Tins

VERSION 2.0:

• CUSTOMIZE YOUR LID WITH MORE PARAMETERS!!
• A SECOND VERSION OF THE LID WITHOUT A PULL TAB HAS BEEN CREATED

Versatile. Customizable. Easy to print.

This model is a parametric lid generator designed to fit a wide variety of containers: cans, jars, tins for pet food, soft drinks, beer, vegetables, and much more.

To generate the lid that best suits your needs, simply input the following parameters:

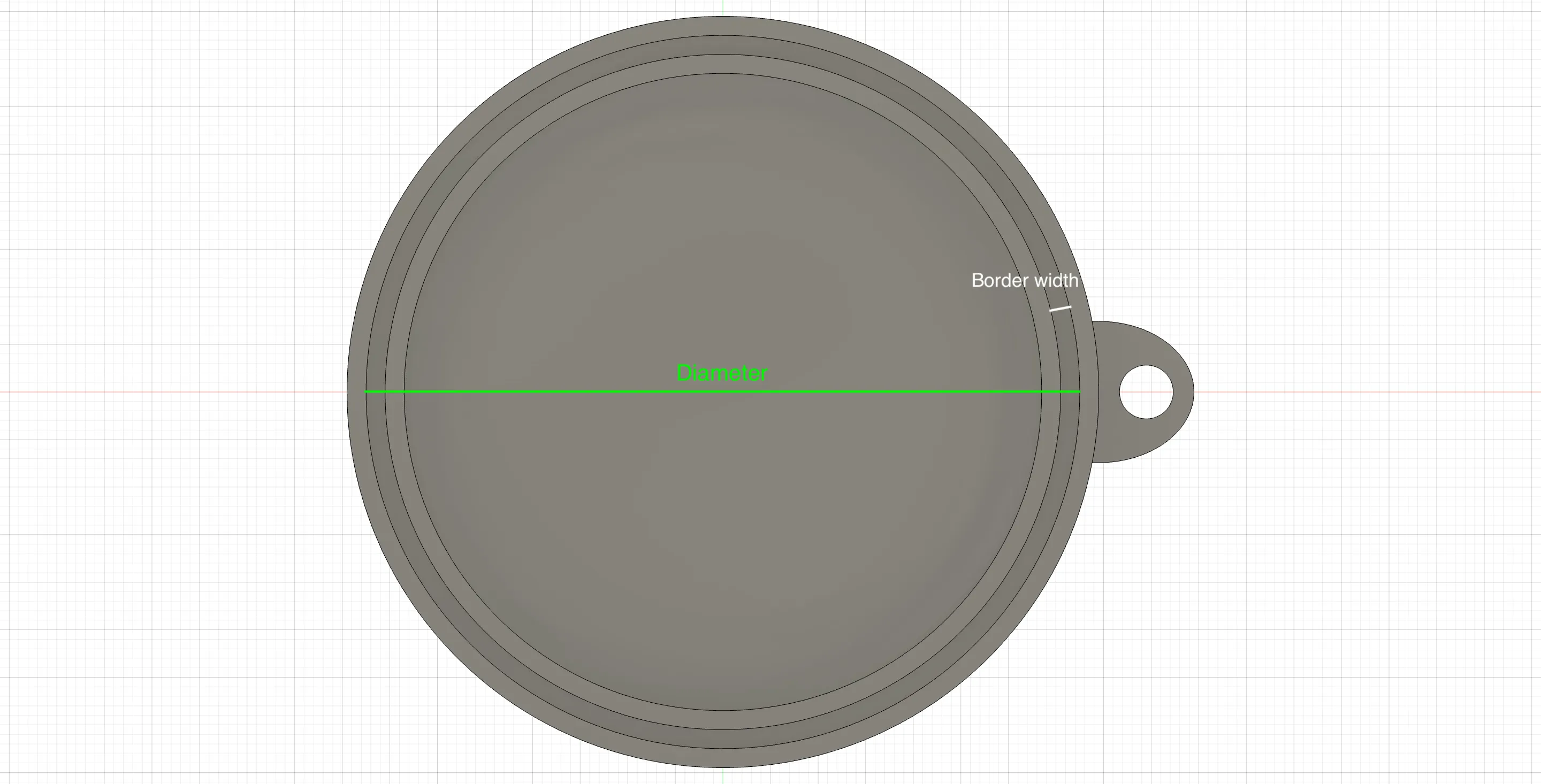

• Lid diameter: corresponds to the outer diameter of your container.
• Locking rim width: defines the radial width (e.g. 2 mm) inside the lid where the protruding edge of the can or jar fits in to ensure a secure grip.

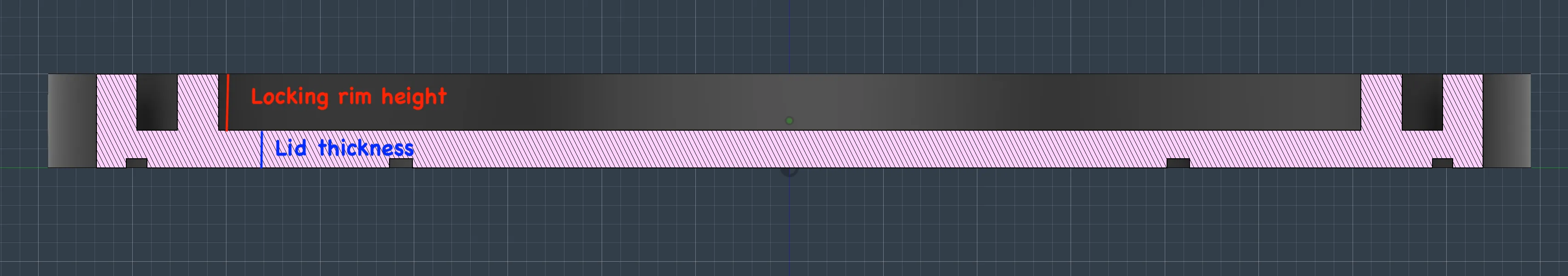

• Lid thickness (New parameter): corresponds to the thickness of the top part of the lid. Warning: The value must be negative (e.g., -2 mm)
• Snap-fit rim height (New parameter): corresponds to the height of the interlocking rim. Warning: The value must be negative (e.g., -3 mm)
• Tolerance (optional): an additional margin added to the diameter to help with fitting, especially when exact measurements are not available or if your printer has slight dimensional deviations.

Easy to use:

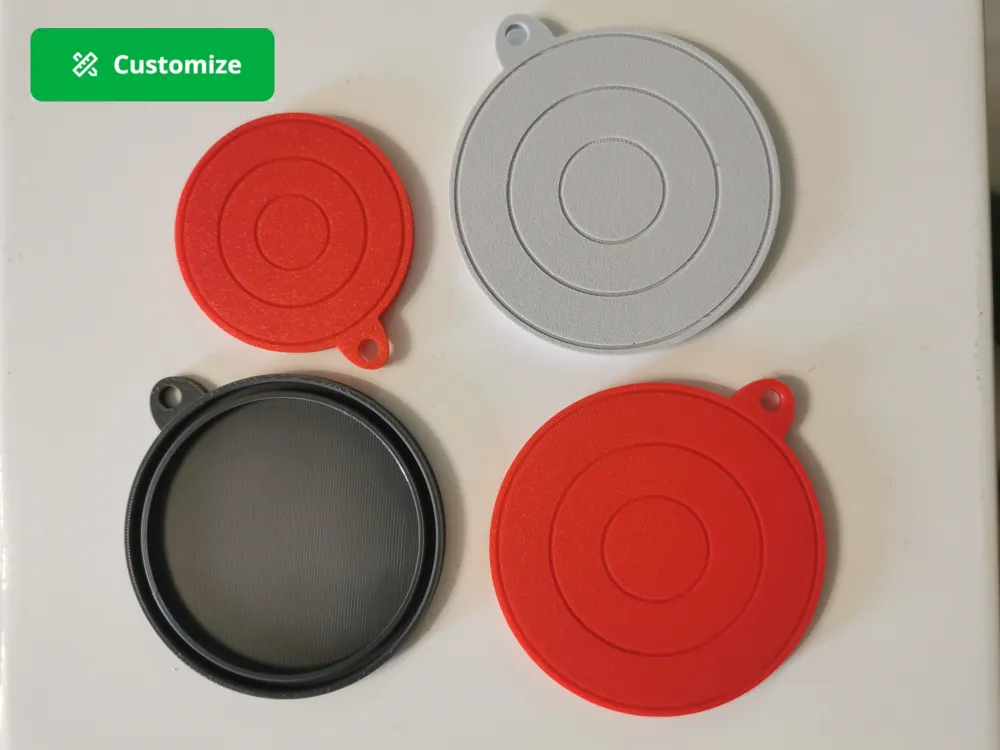

The lid can be printed with or without a pull tab.

Recommended uses:

• Open soda or beer cans
• Pet food tins
• Glass or plastic jars
• Open containers of vegetables, legumes, tuna, and other foods

Easy to print:

• no supports

• Compatible with PLA, PETG, and TPU
