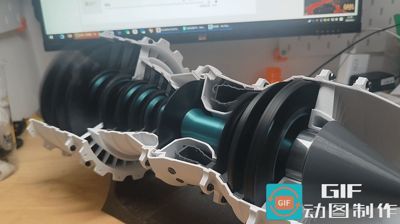

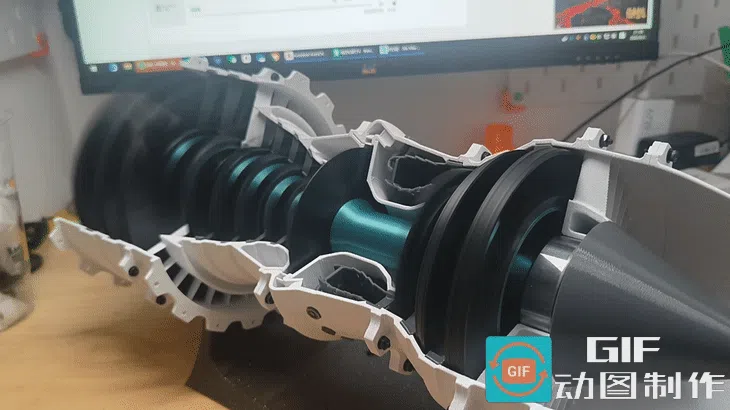

Low Bypass Turbofan Engine Power Assembly
Print Profile(1)
Description

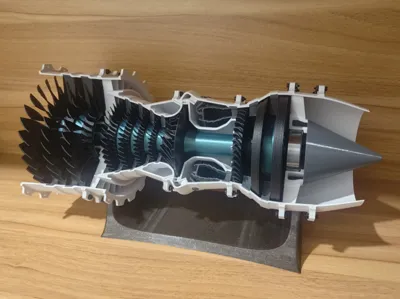

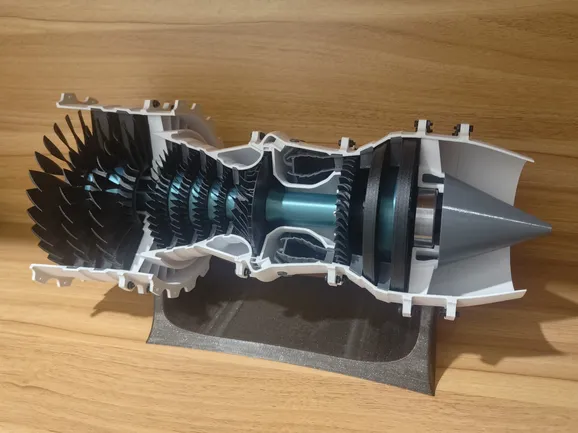

The model prototype utilizes the CATIAV5FTW 3D Printable Low Bypass Turbofan Engine
The power component developed for this model, based on the aforementioned model, utilizes a small motor. I am using
a 500 RPM motor. It is recommended to use motors ranging from 100 to 500 RPM. Various voltage models are available; select according to your requirements.

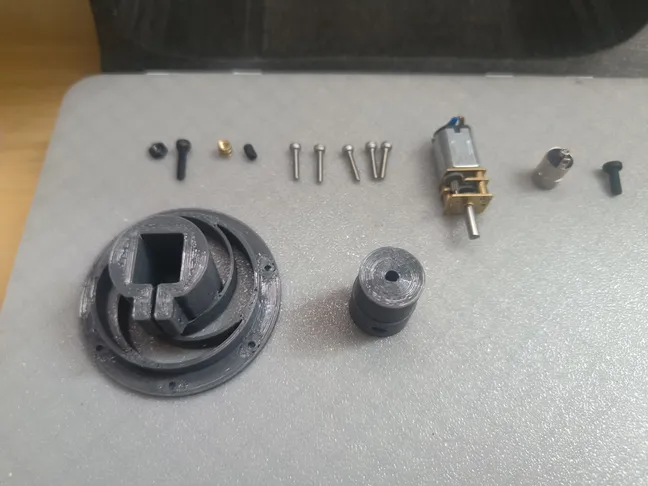

Screw: M2.5×10, 1 piece
Nut: M2.5, 1 piece
Screws: M2×10, 5 pieces

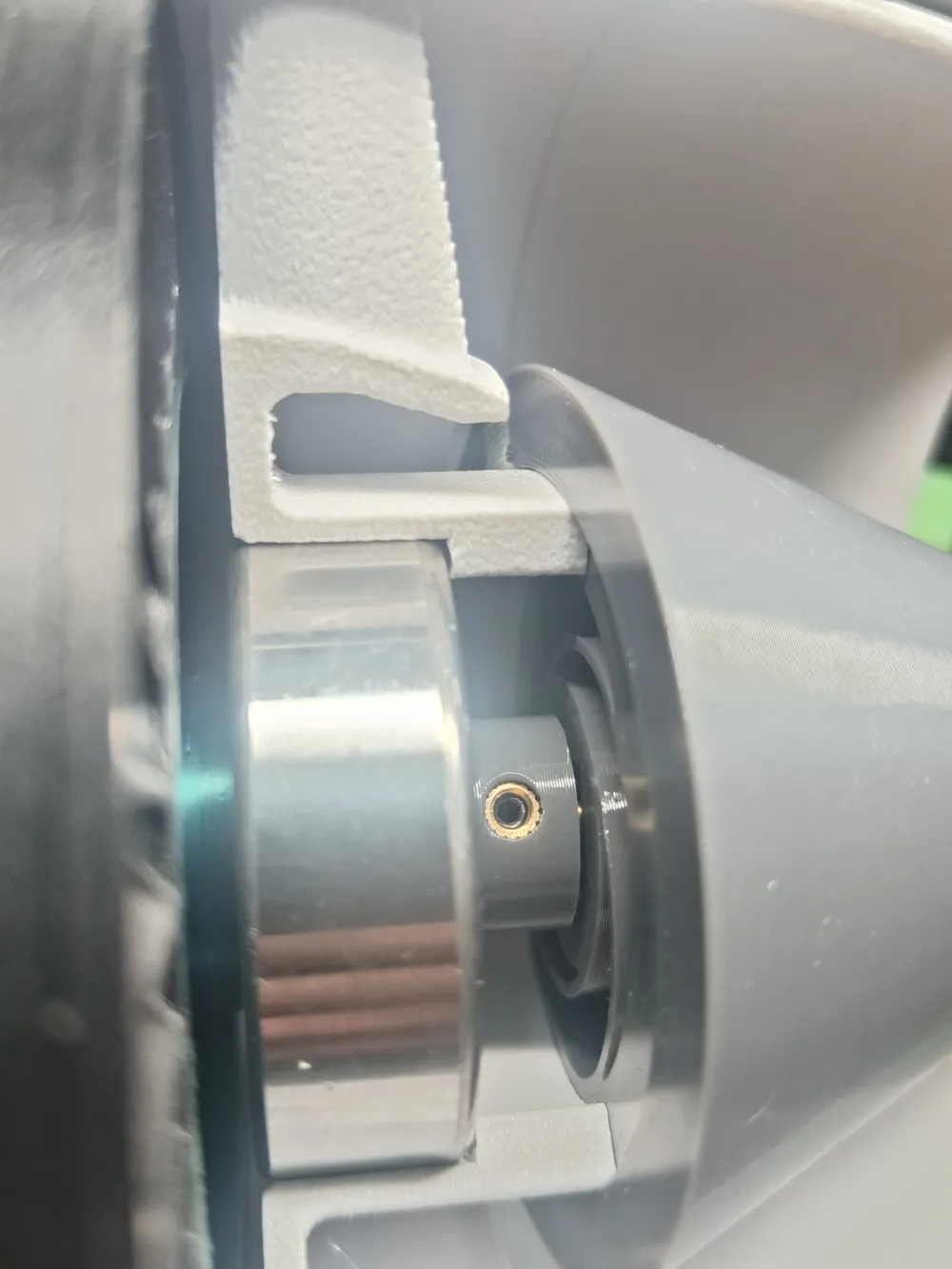

Embedded brass nut: M3×4×4, 1 piece. Grub screw: M3×5, 1 piece (the embedded brass nut and grub screw can be replaced by a single M3×8 screw).

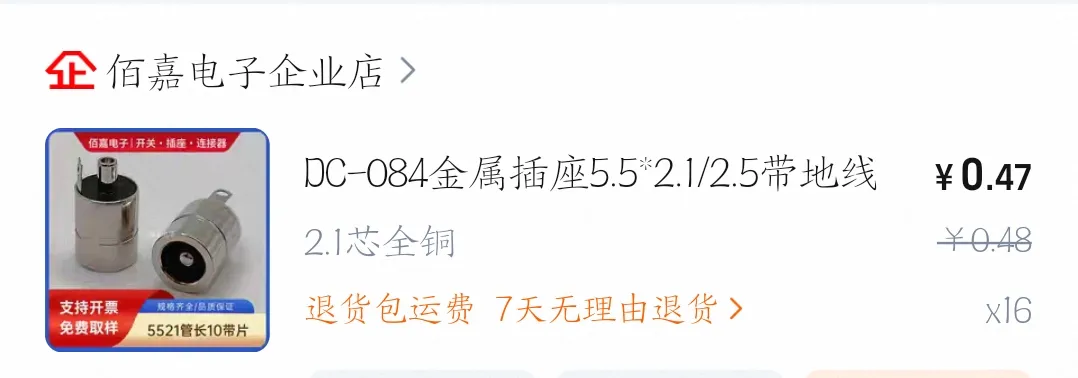

DC power jack, 1 piece

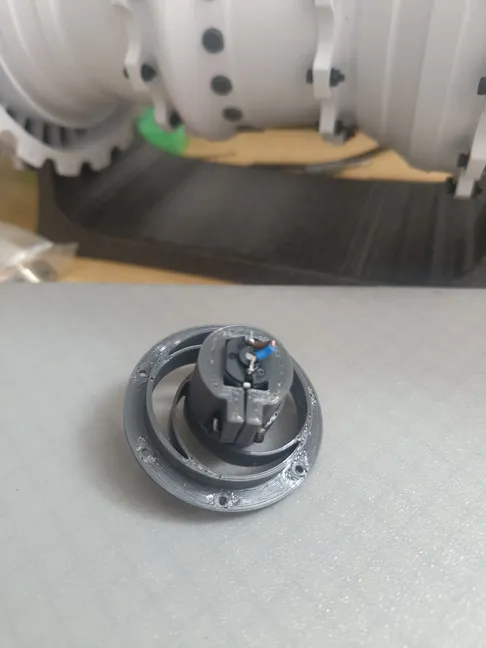

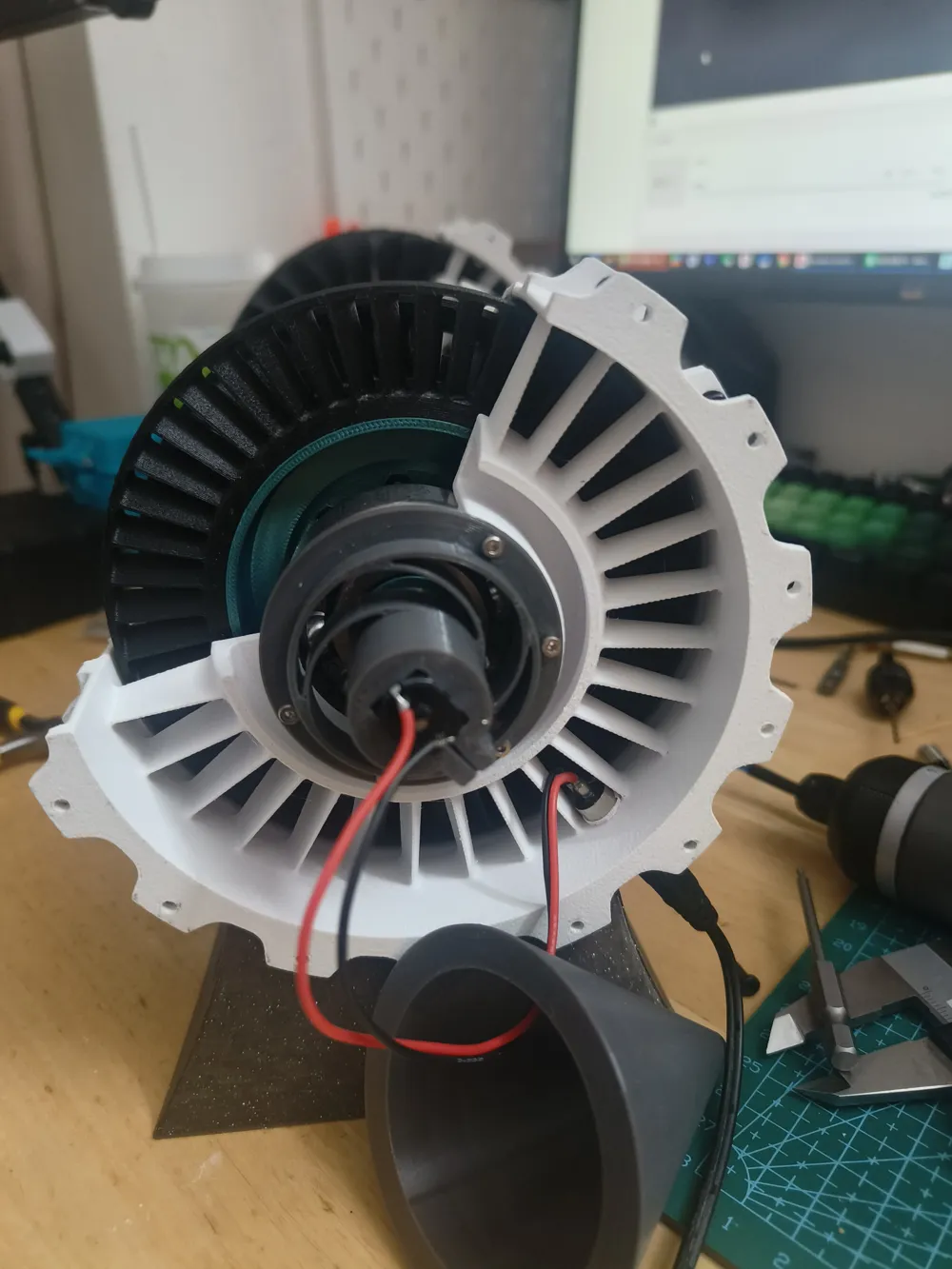

When mounting the motor's fixed base onto the model, drilling is required. It is recommended to use a 1.5mm or 1.6mm twist drill bit for drilling.

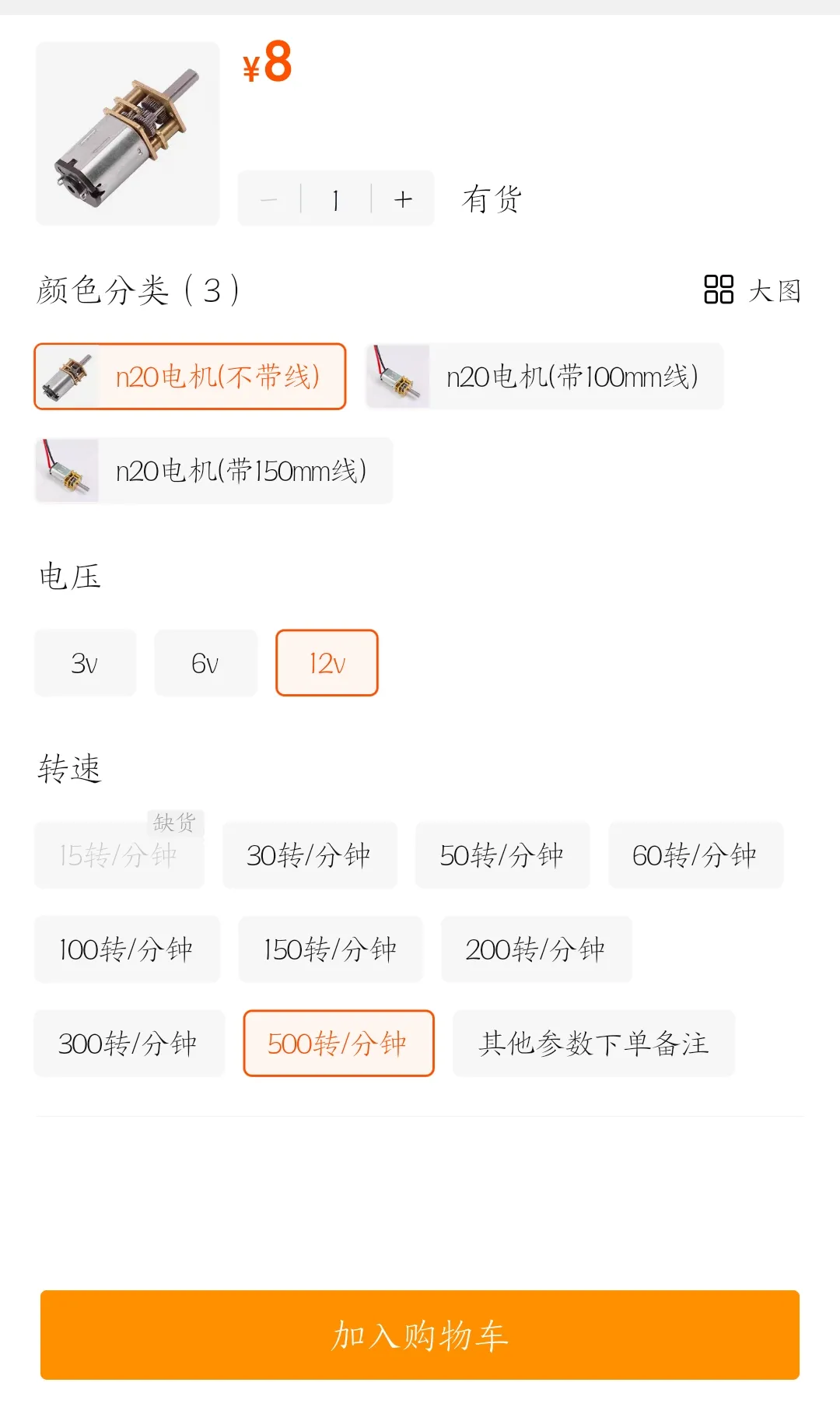

710969286: 08-02 22:02:44 [File] 710969286: 08-02 22:01:02 【Taobao】7-day no-reason return https://e.tb.cn/h.hoXX05vymjjV9fW?tk=82FU4gOyLmn CZ001 「Brand new GA12-N20 geared motor with wire 3V6V12V miniature DC gear reduction motor low-speed motor」 Click the link to open directly or search on Taobao to open directly.
