Comfee 7000 AC adapter kit for intake and outtake
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
7.5 h
4 plates
0.2mm layer, 2 walls, 15% infill
Designer
51 min
1 plate
0.2mm layer, 2 walls, 15% infill
Designer
3.9 h
1 plate
Open in Bambu Studio
Boost
94
427
12
5
230
124
Released
Description
Adapter kit for an Comfee 7000 AC unit.

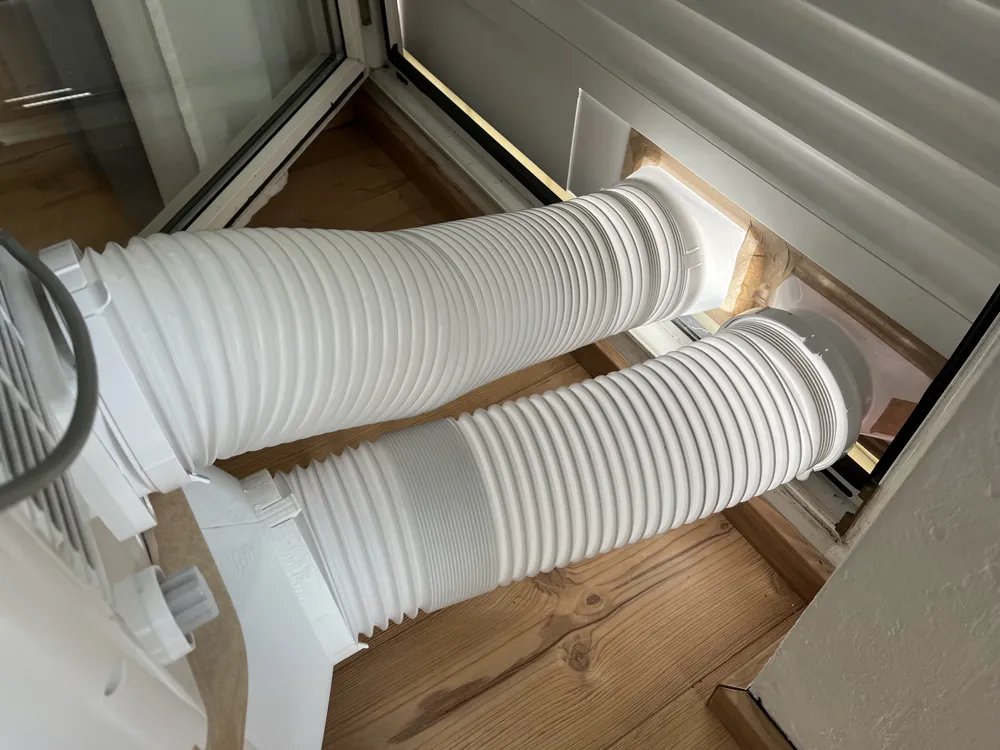

The kit allows to connect a second tube to suck in the air from the outside. This will lead to a better efficiency because there is no more air sucked in from inside of the room. Normally this will cause an underpressure.
It will make a huge difference in room temperature overall.

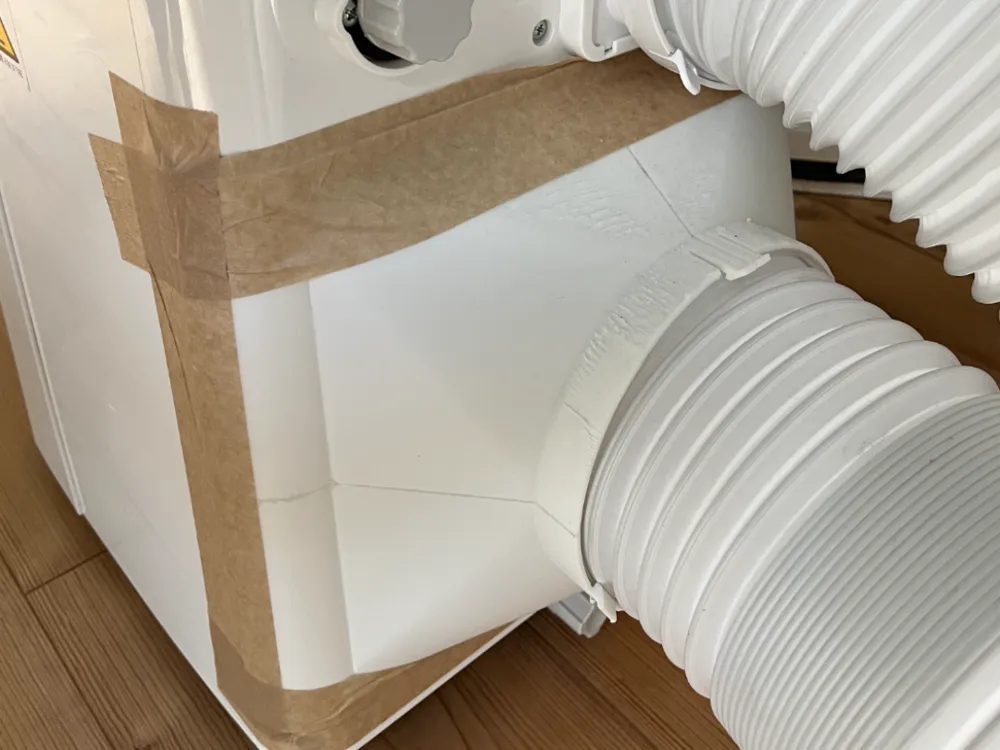

The adapter is quite huge so i cut it into 4 pieces to be printable on the small printbed. It can be glued together. If you own an H2D you can print it in 1 piece.

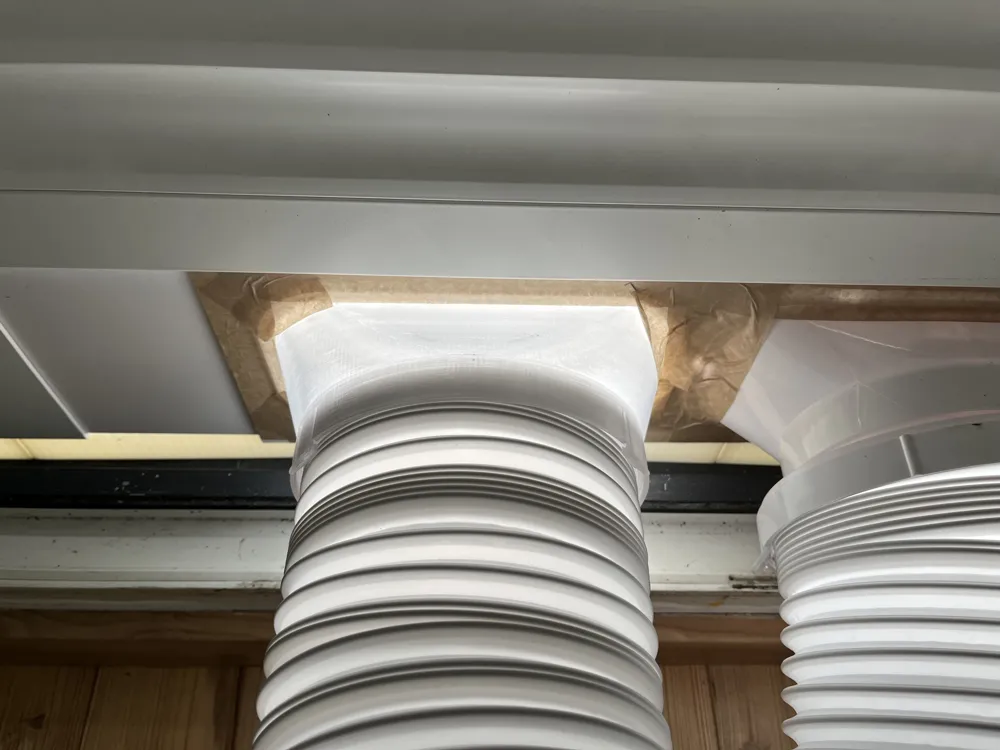

I designed a suitable second adapter to mount it on the window insert. To fit the tubing I designed an adapter ring. You can just use the normal flex tube and cut it in half. It will fit.
