Description

Here is a remix of Domi's SJ410 body that you can find over on thingiverse.

I have combined the individual files into a complete body instead of having to print all the separate pieces. I have opened up the front fenders to give a bit of extra clearance for front tires rubbing. Scaled to fit stock width scx24 axles.

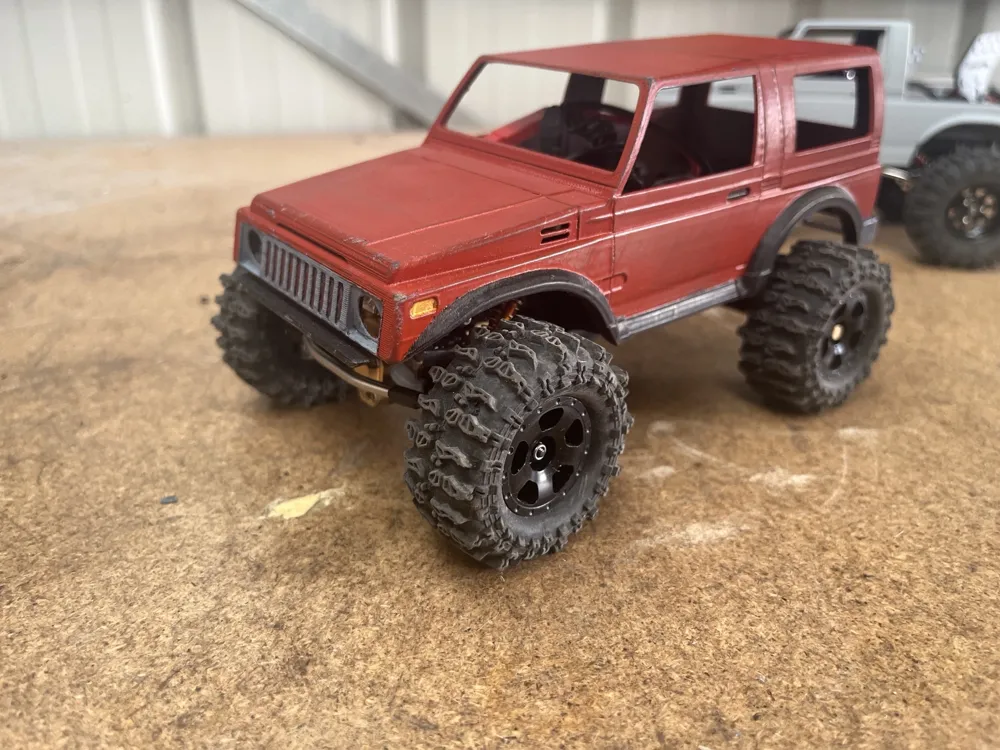

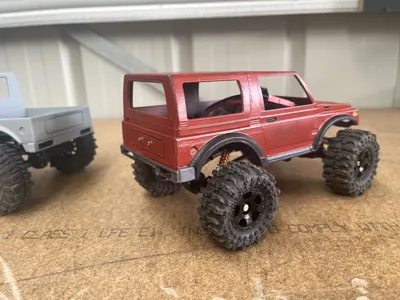

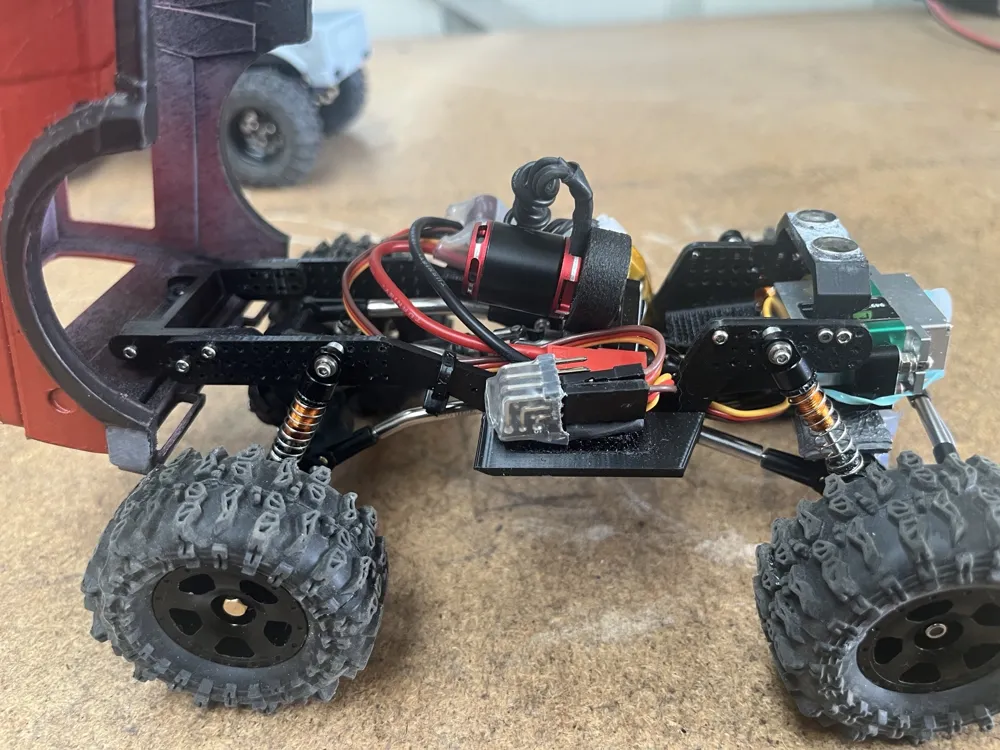

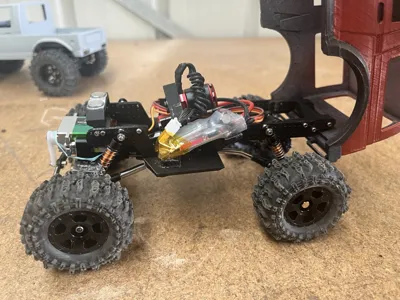

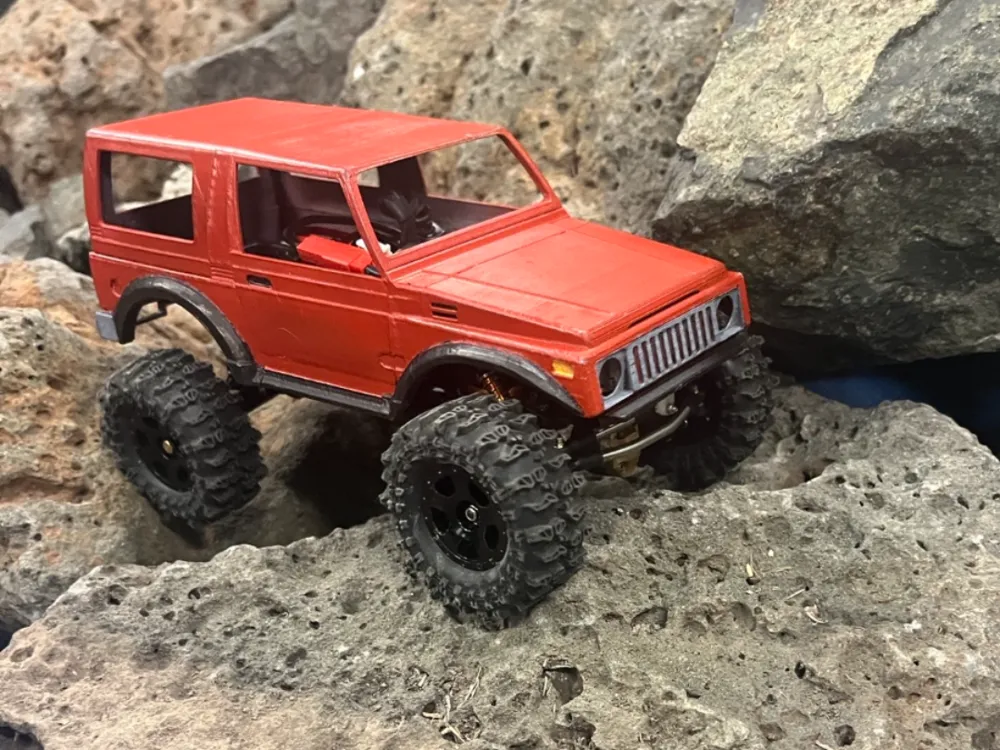

Pictured I have it sitting on my High Clearance Chassis file you can find here if interested: https://makerworld.com/en/models/1390060-high-clearance-scx24-chassis#profileId-1440141

I am running 41mm front links with 50mm rears for a total wheel base of around 115mm.

I have remixed a LWB model you can try here: https://makerworld.com/en/models/1693435-scx24-lwb-suzuki-samurai

Comment & Rating (46)

@davidediambri

Print Profile

0.16mm layer, 5 walls, 15% infill

Scaled to fit my model with a 155mm pitch. Magnificent!!

Show original

@TraxxasFan

Hello, Could you put the body with the 155 mm online here on Maker World, or tell me the dimensions of your scaling Greetings

Show original

@user_368083930

Print Profile

0.16mm layer, 5 walls, 15% infill

first body iv printed came out amazing cant wait to paint it

The profile uploader has replied

@Craiguss

Keen to see what you come up with. Share some pictures when you have it done. 👍

(Edited)

@DadBru

Downloaded this a while ago, scaled it a bit to better fit my truck, then sanded, primed, sanded, primed, painted, made headlights and taillights… I’m super happy with this, just wish I’d slowed down the print and/or sanded it better but I got impatient. Thank you for the awesome model!
