RTX 50 FE Inverted Mount Module compatible with Lian Li A4-H2O

This model is an inverted mounting bracket for the RTX 5090, RTX 5080, and RTX PRO 6000 in the Lian Li A4-H2O case

Requires screws: two 6#-32x6mm flat head screws and two M3x10mm flat head screws, for fixing to the case PCIe slot and fixing the limit block to the graphics card respectively

Additionally, a PCIe extension cable needs to be purchased, with a 270-degree reverse vertical connector at the slot end and a 180-degree straight connector at the plug end, with a 15cm cable length

If it is a high-power graphics card like the RTX 5090 or RTX PRO 6000, the casing temperature may exceed 50℃, so PLA printing is not recommended, and it is advised to use temperature-resistant materials such as PETG

There are two types of inverted baffles, please print as needed

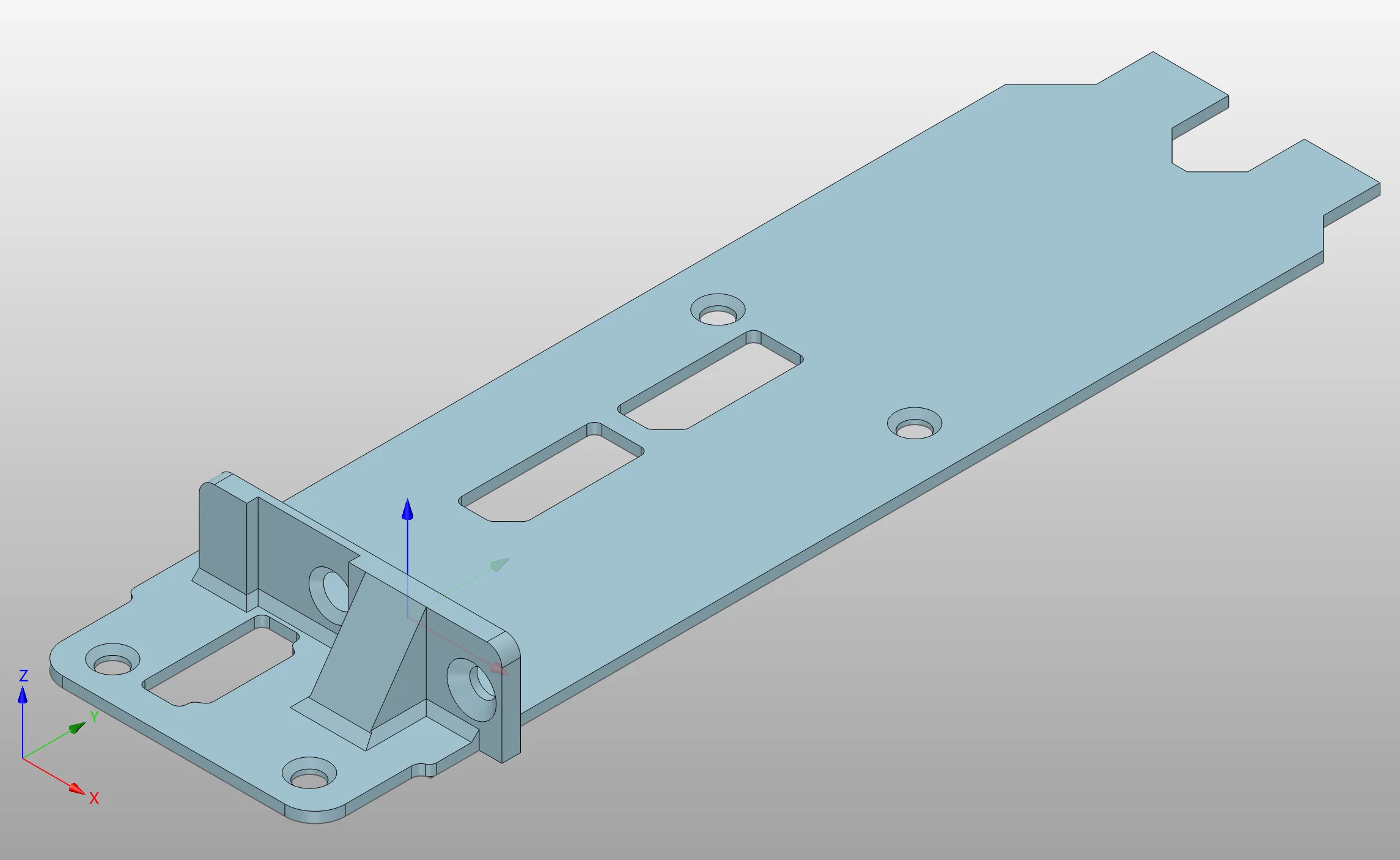

① All display output ports are open ↓

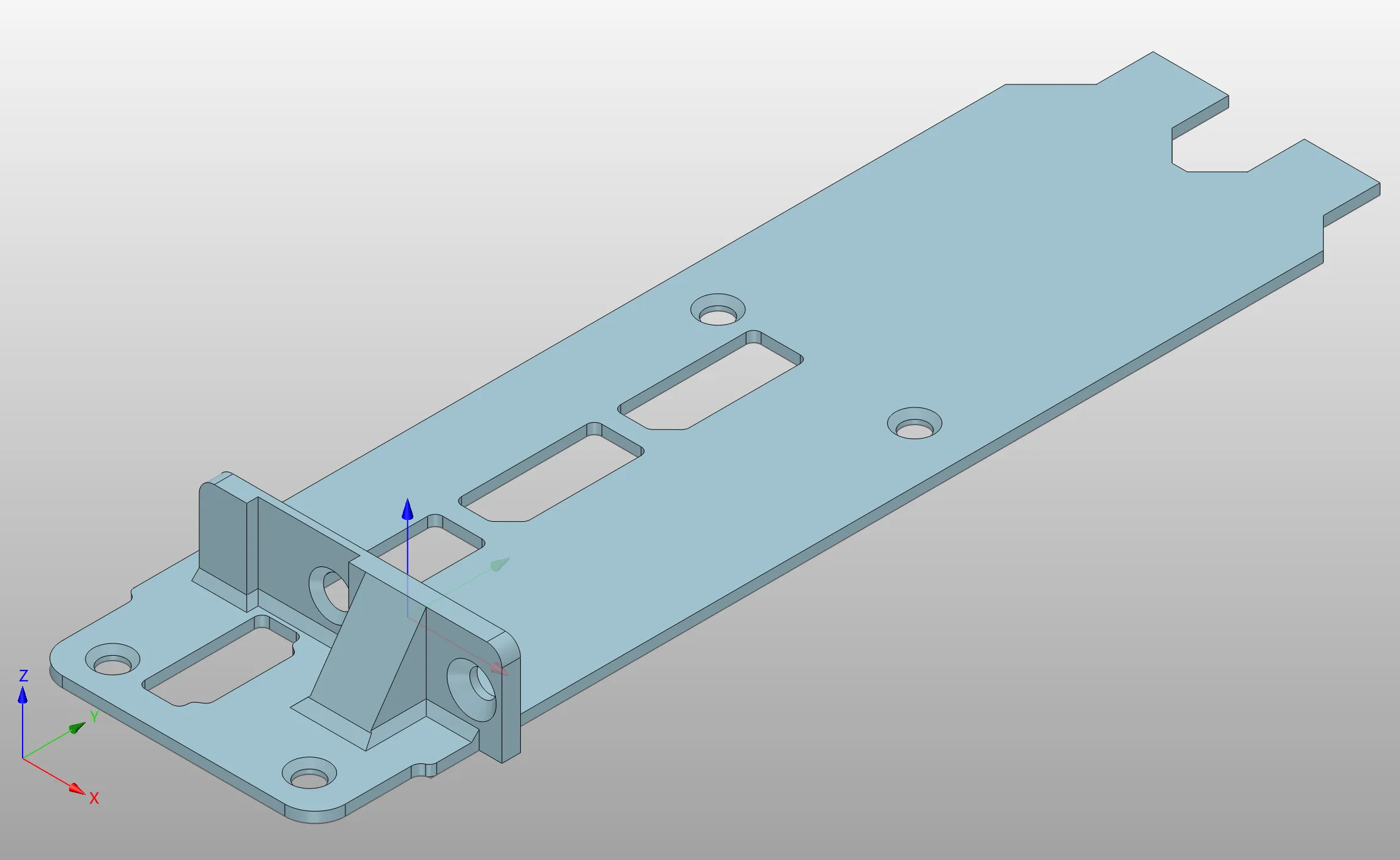

② One DP port is closed due to being blocked by the case ↓

Actual installation demonstration video and test data can be viewed on Bilibili

【A4 Case Blessing! Can Inverted Graphics Card Drop Temperature by 20 Degrees? Sharing the RTX 50 Series Reference Inverted Mounting Solution】 https://www.bilibili.com/video/BV1CTt3zsEao/?share_source=copy_web&vd_source=58ea2b3639d9b991f6b4477cc8f4f0e1

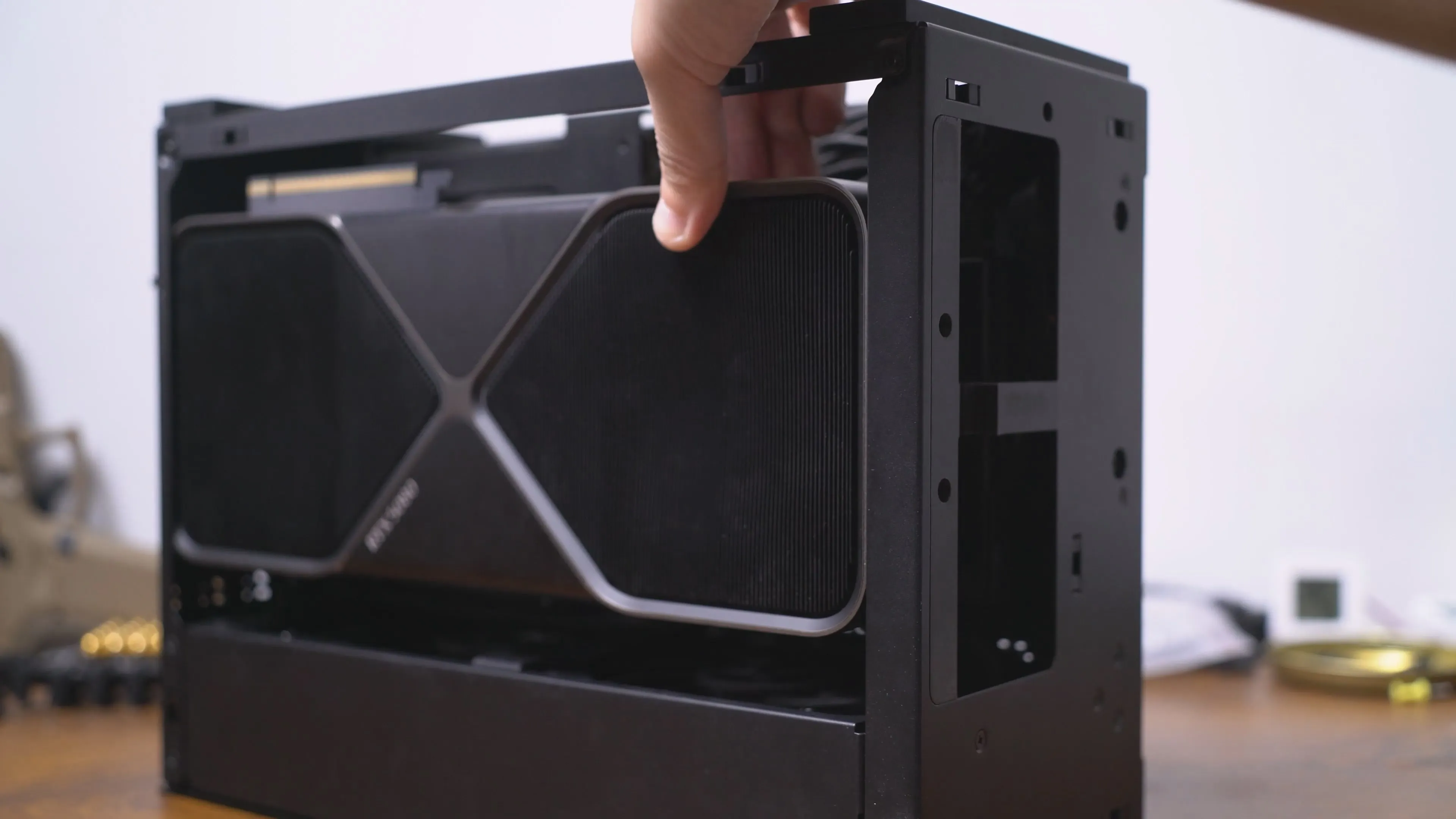

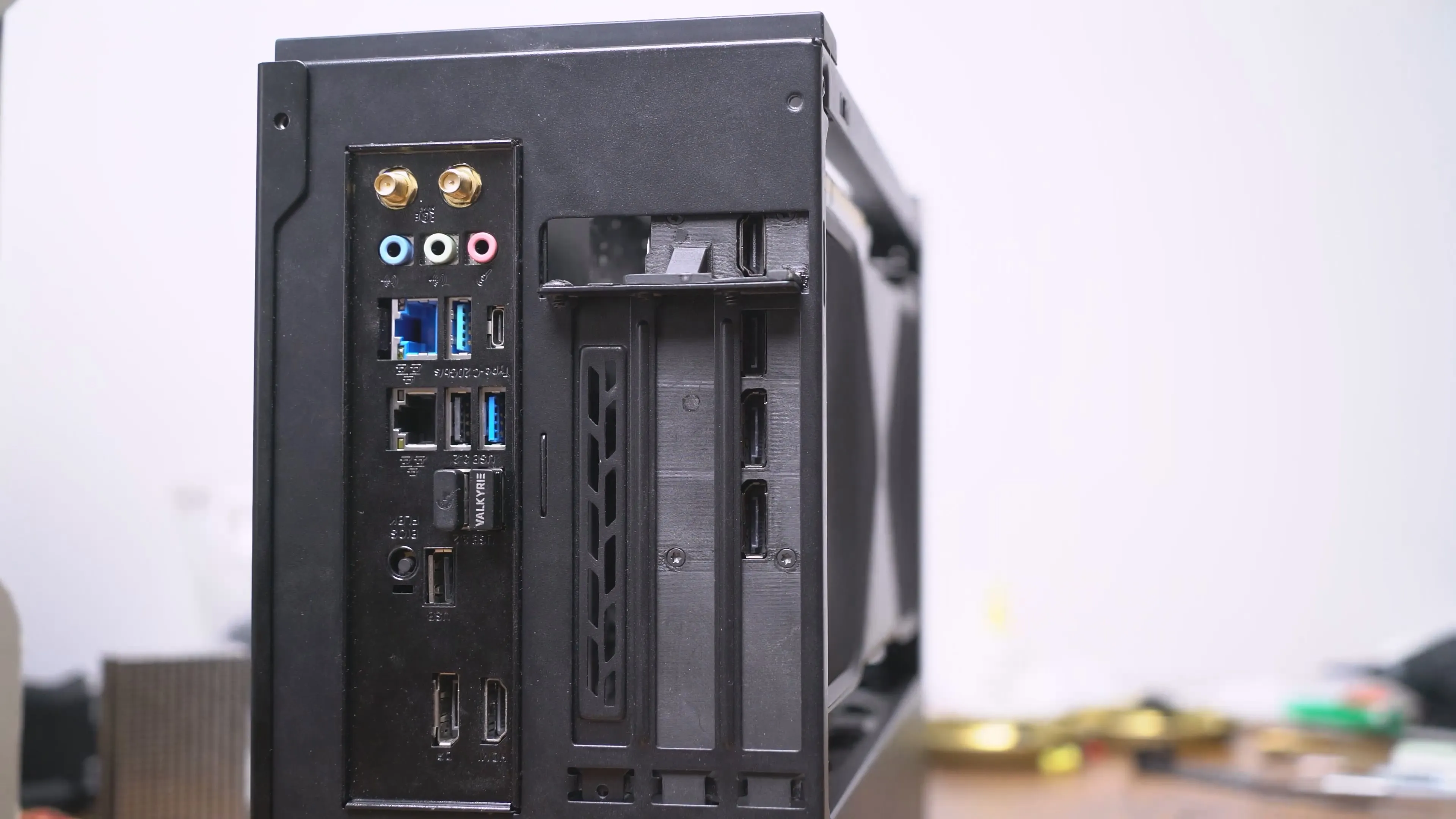

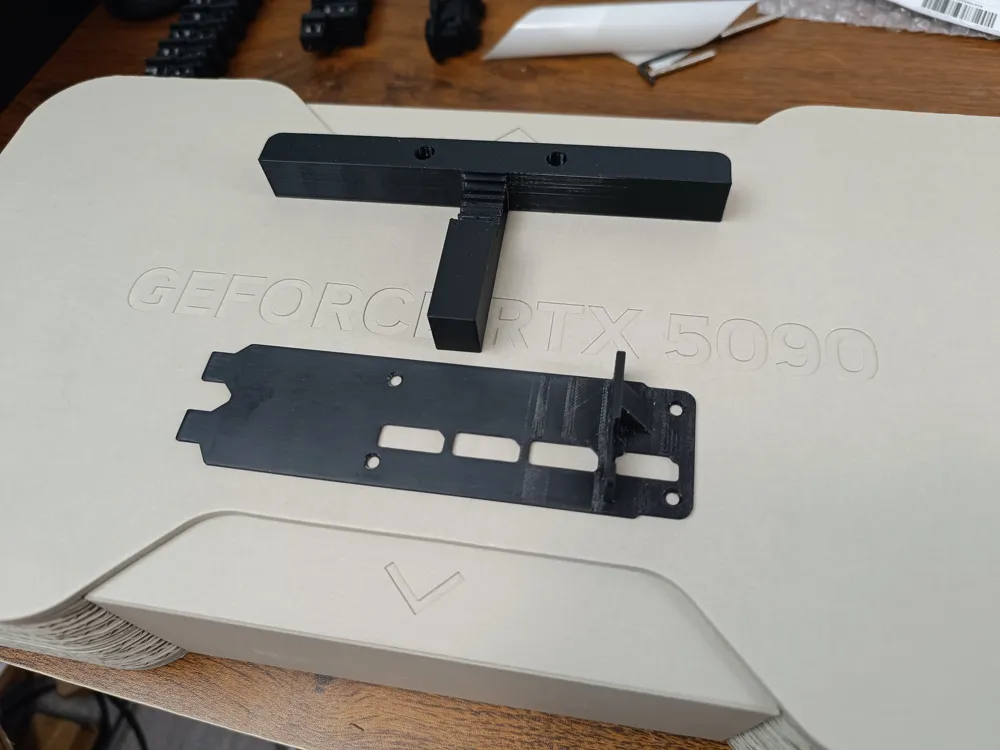

Actual installation images
