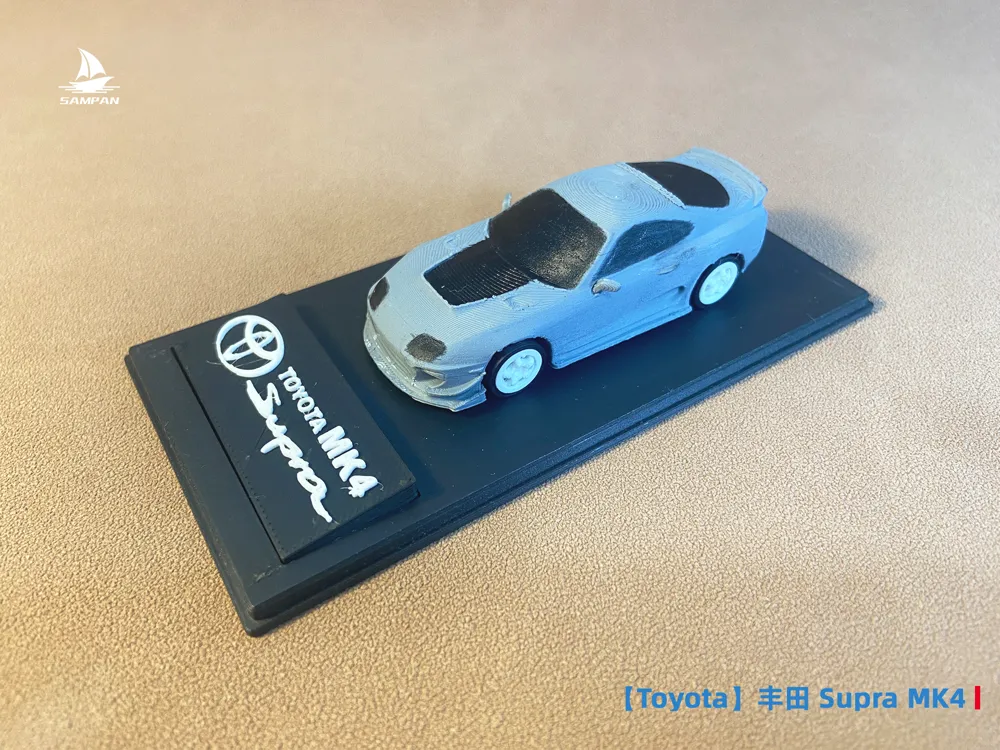

[Toyota] Toyota Supra MK4 (A80) Flagship Supercar "JDM Demon King" Assembly/Movable Wheels

【Special Notes for F1 Models】

1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!

4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!

【Read Before Printing!!! Warm Tips】

It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.

---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------

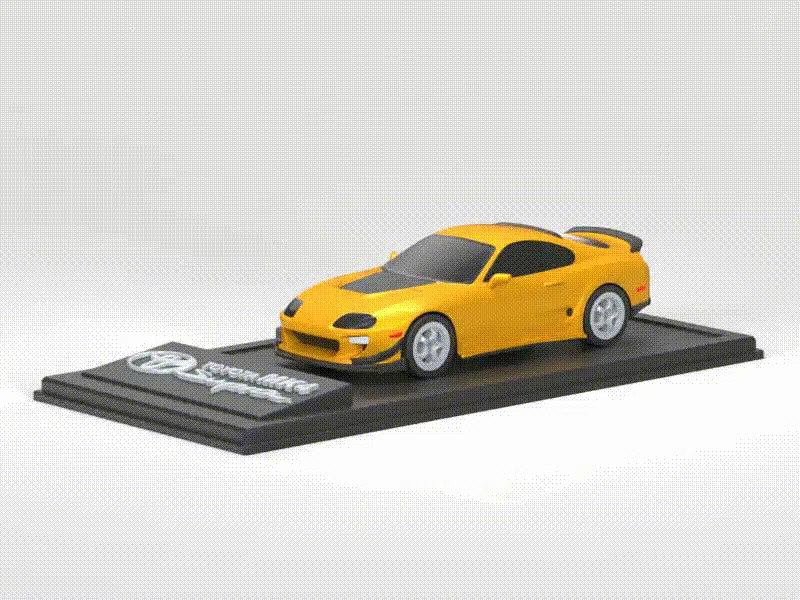

The Toyota Supra MK4 (A80) is not just a sports car; it is a symbol of JDM culture and an iconic figure for inline-six engines.

With its 2JZ-GTE"God Engine", perfect chassis, and classic design, it became the pinnacle of performance cars in the 90s, and remains the "Demon King" in the hearts of car enthusiasts worldwide.

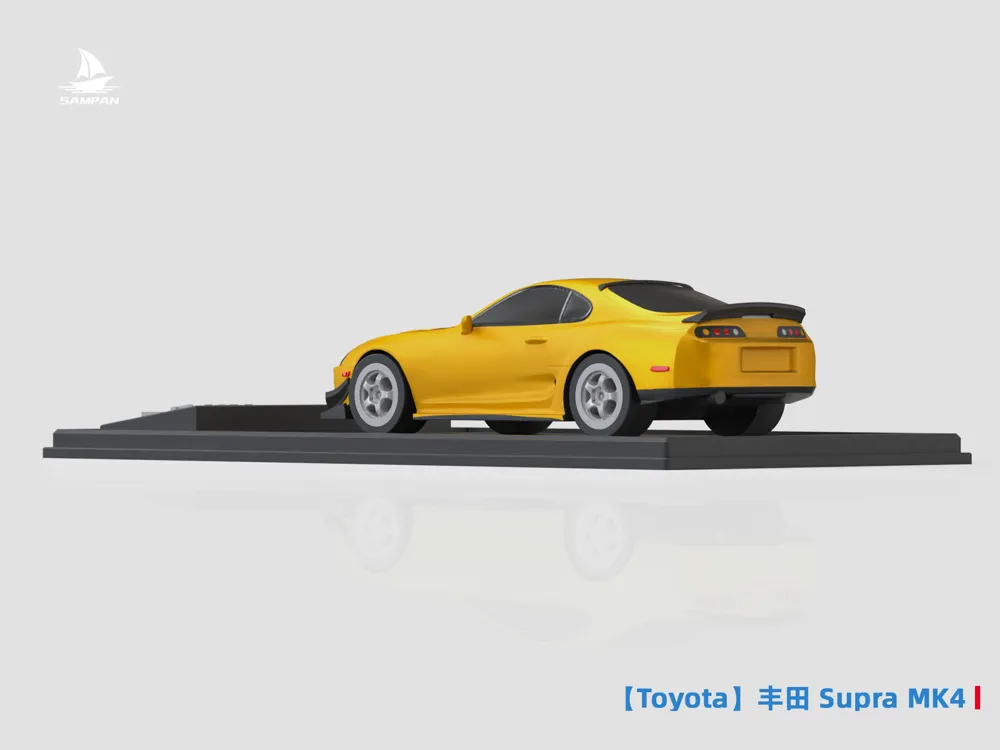

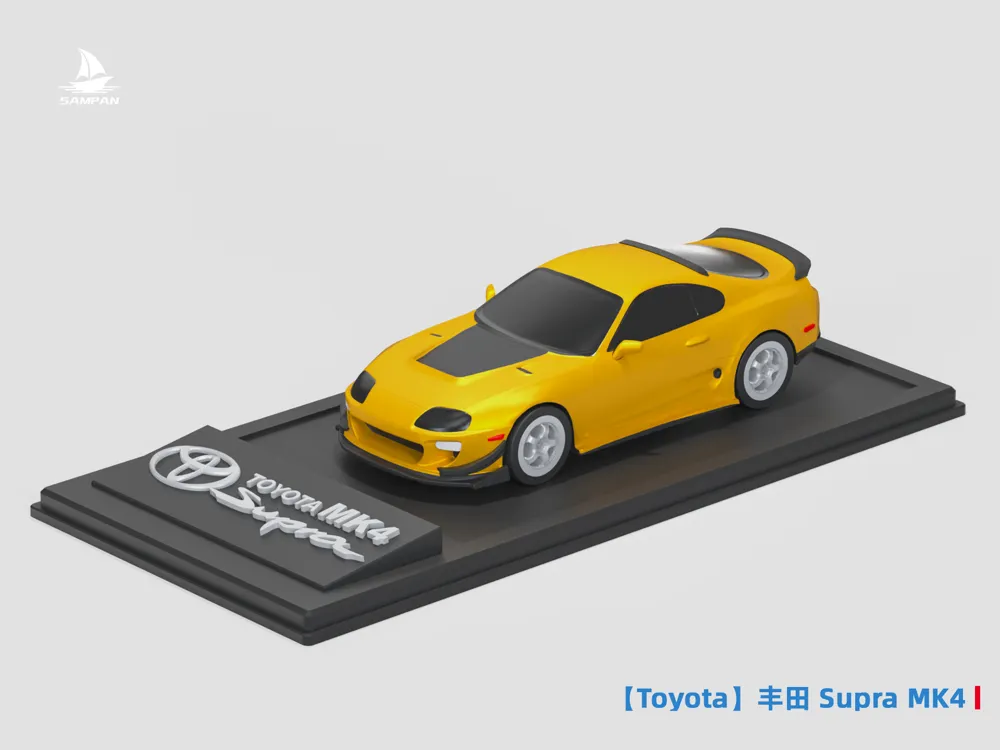

For 3D model designers, the Supra MK4's streamlined body, iconic pop-up headlights, dual-layer rear wing, and classic quad-round taillight design are all highly recognizable design elements that deserve meticulous recreation.

As an eternal classic, the Supra MK4 will always hold an important place in automotive history, and its value and influence will continue to grow over time.



Model Description

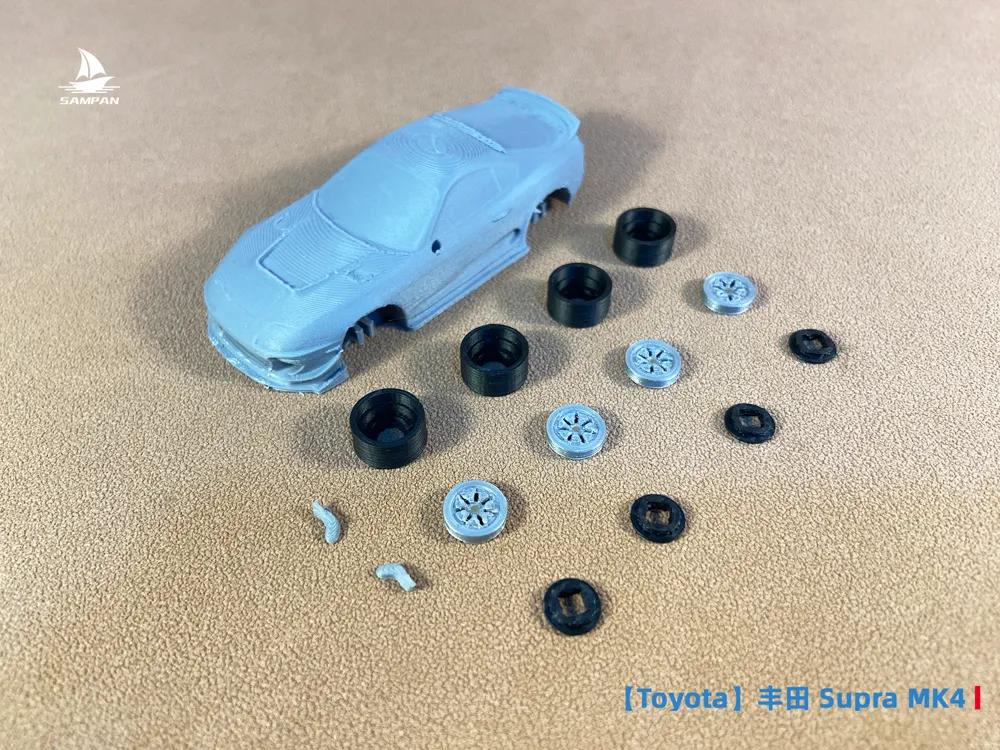

- Movable wheels, assembly requires no glue

- All wheel hubs for 1/64 scale cars under this account are interchangeable. Browse the homepage to download your preferred wheel hub styles.



Dimensions
- 1/64 scale

- 1/43 scale: Simply enlarge by 150%, print with 0.16mm layer height
- Slicing file: Use minimum printer size settings. You can adjust the number of models printed at once based on your printer size to save time and filament.



FDM Printing Settings

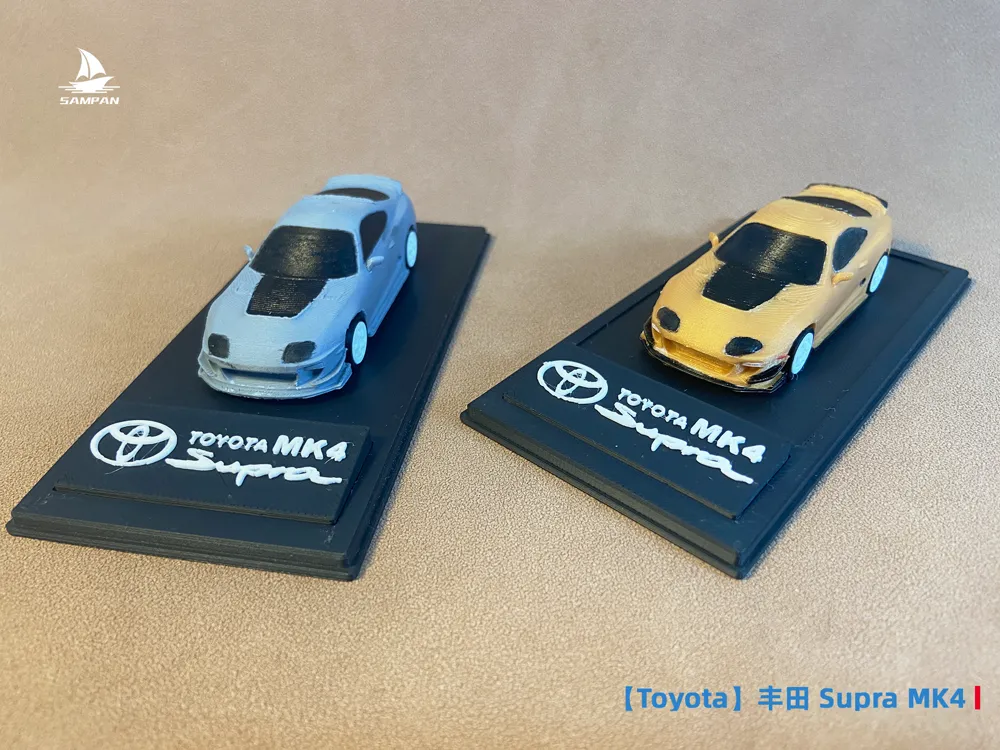

- The physical model was printed using an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA. Better results can be achieved by using equipment, parameters, and filaments with higher specifications (if fitting is too tight or too loose, it can be compensated by adjusting the XY contour dimensions of the assembly, or by using sanding tools and 409 glue for processing and connection).

- Infill density: 15%. To increase the model's weighty feel, the infill density can be adjusted to 100%.

- Supports: A combination of normal and tree supports was used.

- Various painted versions will be released later. Follow the account to stay updated on new releases.

- You can also adjust the printing parameters based on your own printing experience.



Support Removal Instructions

- The model is small, and supports have been added in critical areas. Support removal requires the use of flush cutters and tweezers. Breaking them off by hand will likely result in structural breakage, especially for the rearview mirrors and rear wing sections.

- Tip: To ensure successful removal of multi-color model supports and avoid breakage, you can first print a single-color model for practice to understand the model and support structure before removing supports from the multi-color model (if breakage occurs, 409 glue can be used for connection).

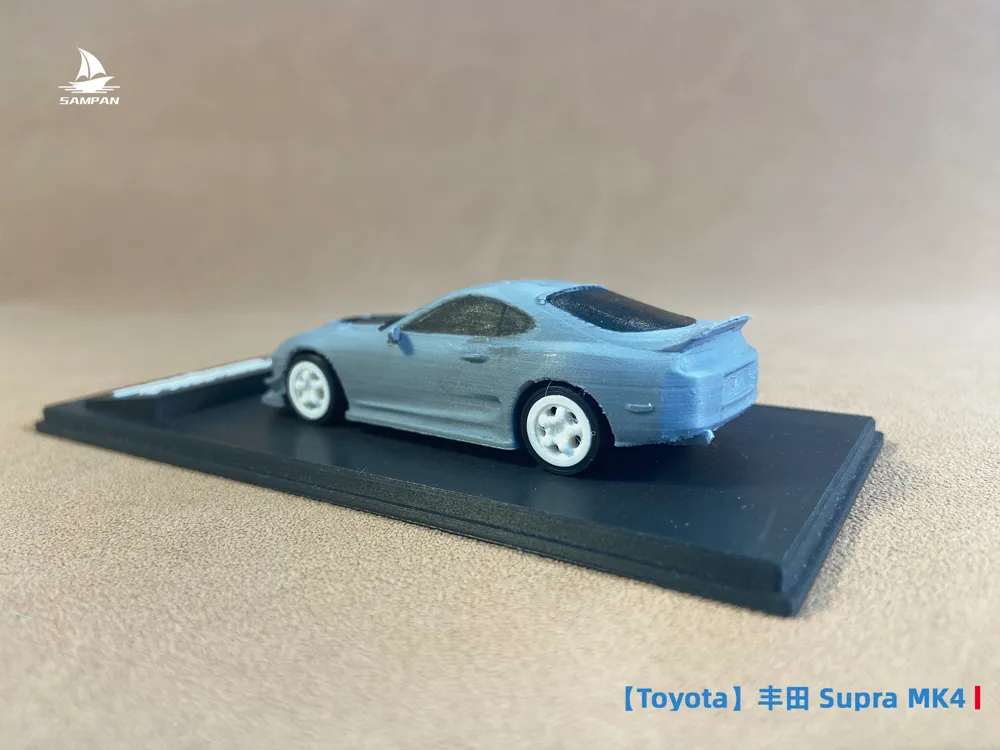

Monochromatic Painting Reference (Printed with White Filament)

- Sanding: (Optional) Sand in the order of 400-600-800 grit.

- Painting: Use acrylic paint brushes for coloring (for issues with layer lines penetrating edges, you can first apply the main color over a large area, then paint the edges).

- Polishing: Use a flannel cloth for sanding and polishing to give the acrylic paint a glossy finish.



Assembly Instructions

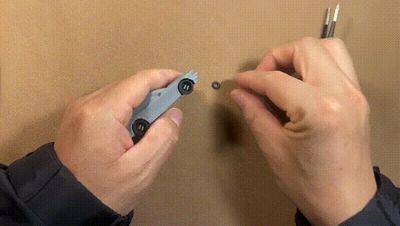

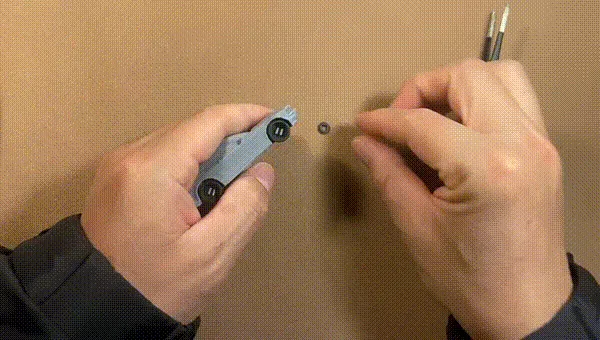

- For long-term stability, the wheels require appropriate force to install, and will be quite tight initially when rotated. After a few plays, they will become more flexible. See the GIF for wheel installation.

- For easier installation of wheel calipers, a wheel caliper installation tool has been specifically designed and produced. Link: 1/64 Scale Wheel Caliper Installation Tool by SAMPAN Replica - MakerWorld

Visit the author's homepage to see all vehicle models, welcome to like and follow!

Hope to see more friends share your printing photos, I'm curious what kind of works you will print!

We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
