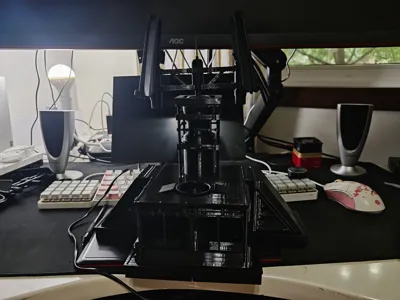

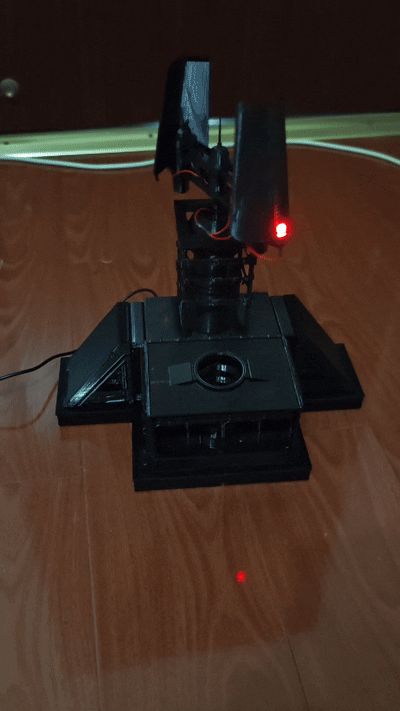

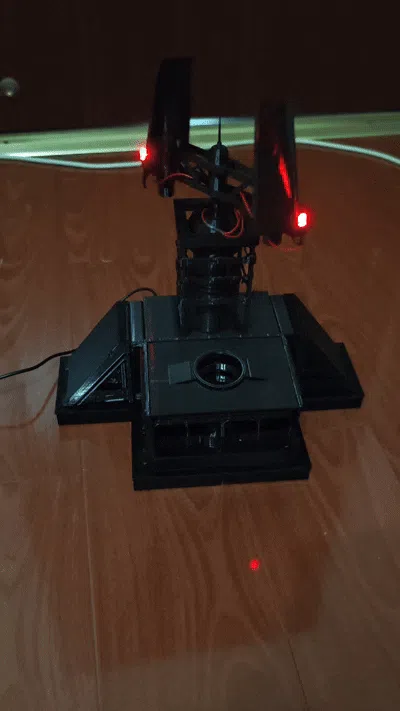

Helldivers2 Automaton Jammer Tower

This is a model of the Jammer Tower from the Automaton faction in Helldivers 2. An easily printable version has been created based on the extracted model. For ease of printing, assembly, and articulation, some original details were intentionally simplified.

The articulated model necessitates the procurement of several electronic components; you will require the following:

Rotation Mechanism

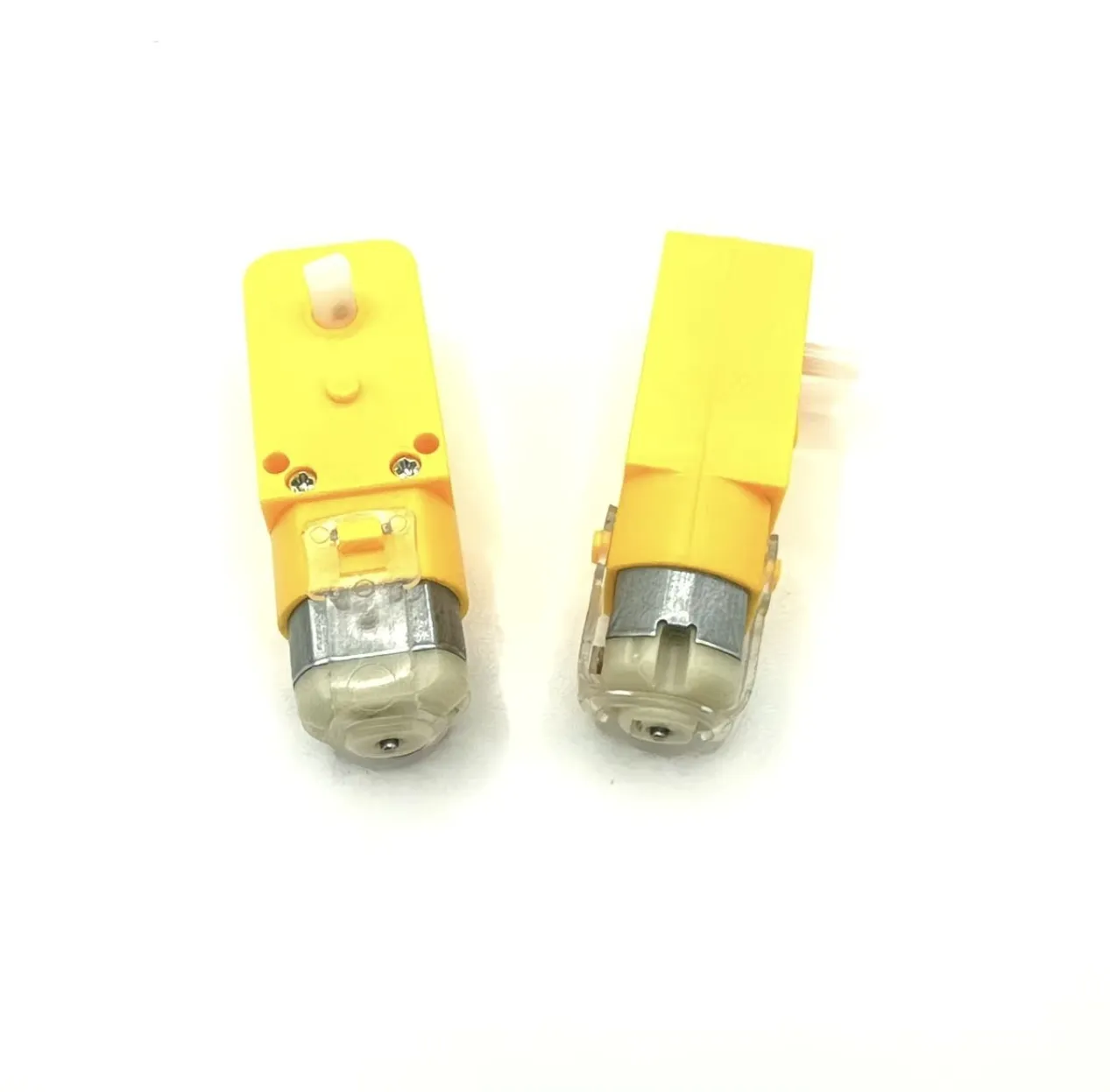

1. 130 geared motor

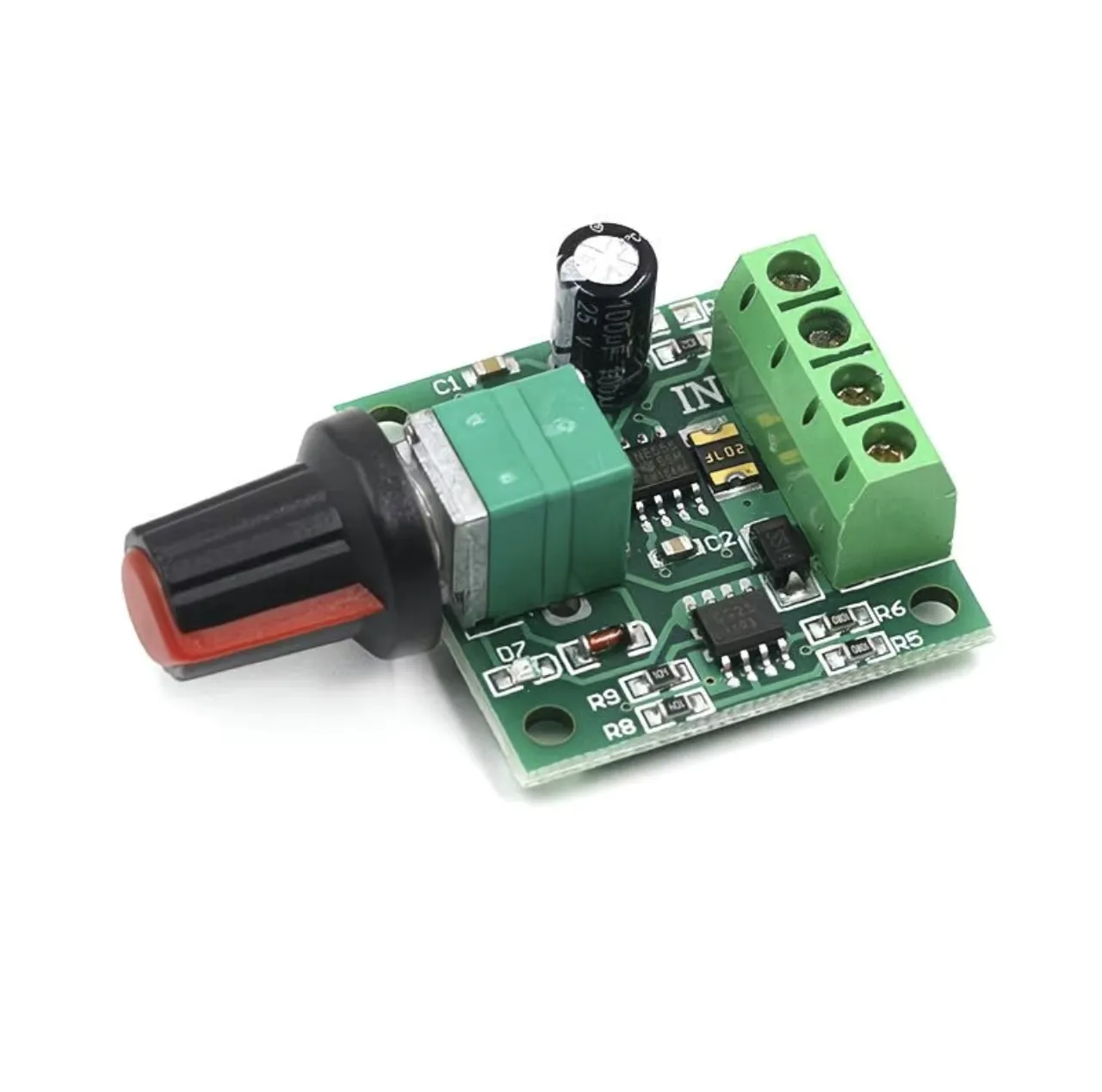

2. 2-12V speed control board

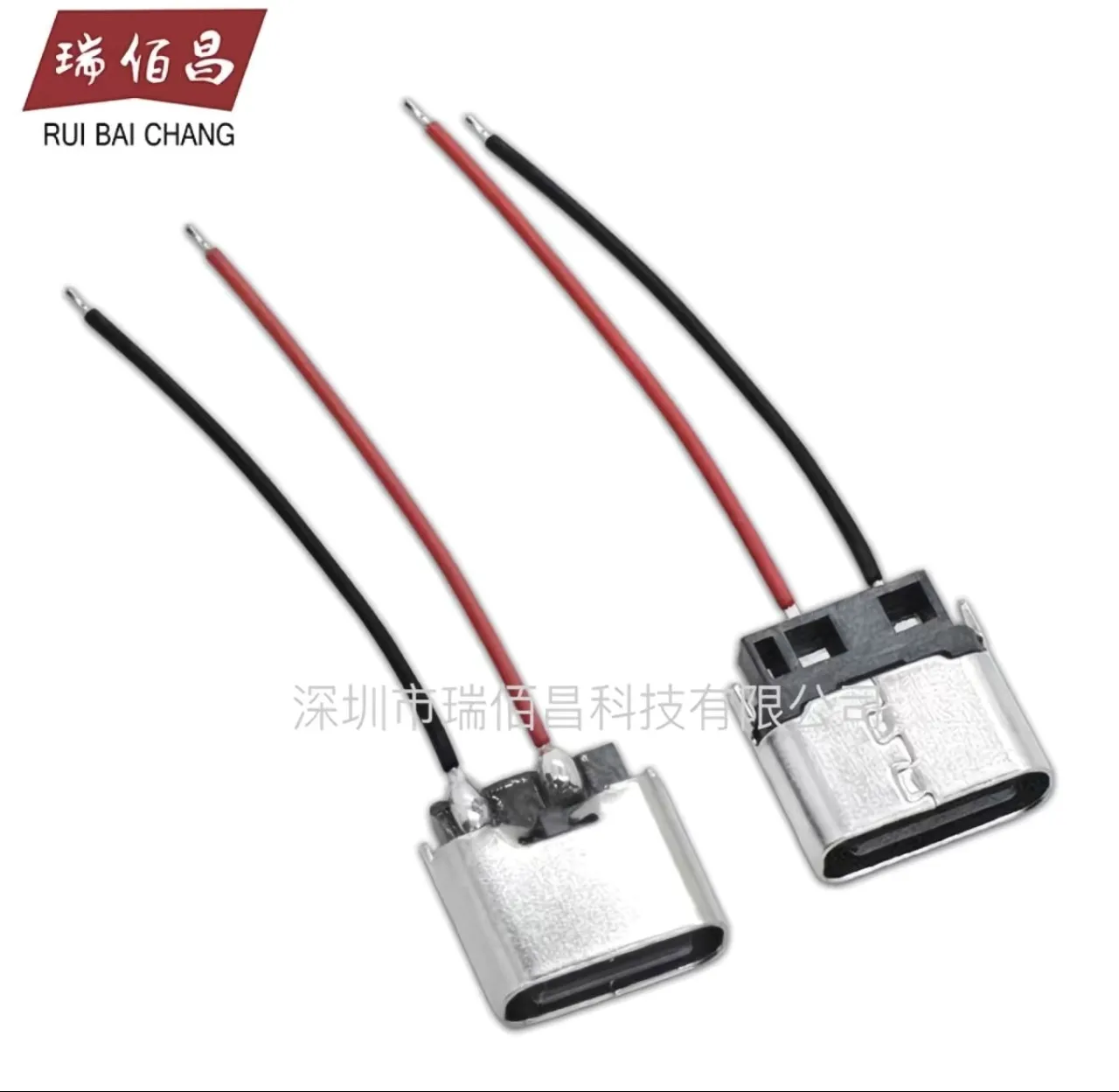

3. Type-C female connector

Lighting

1. 5mm diameter, 5V powered lights, 2 pieces required

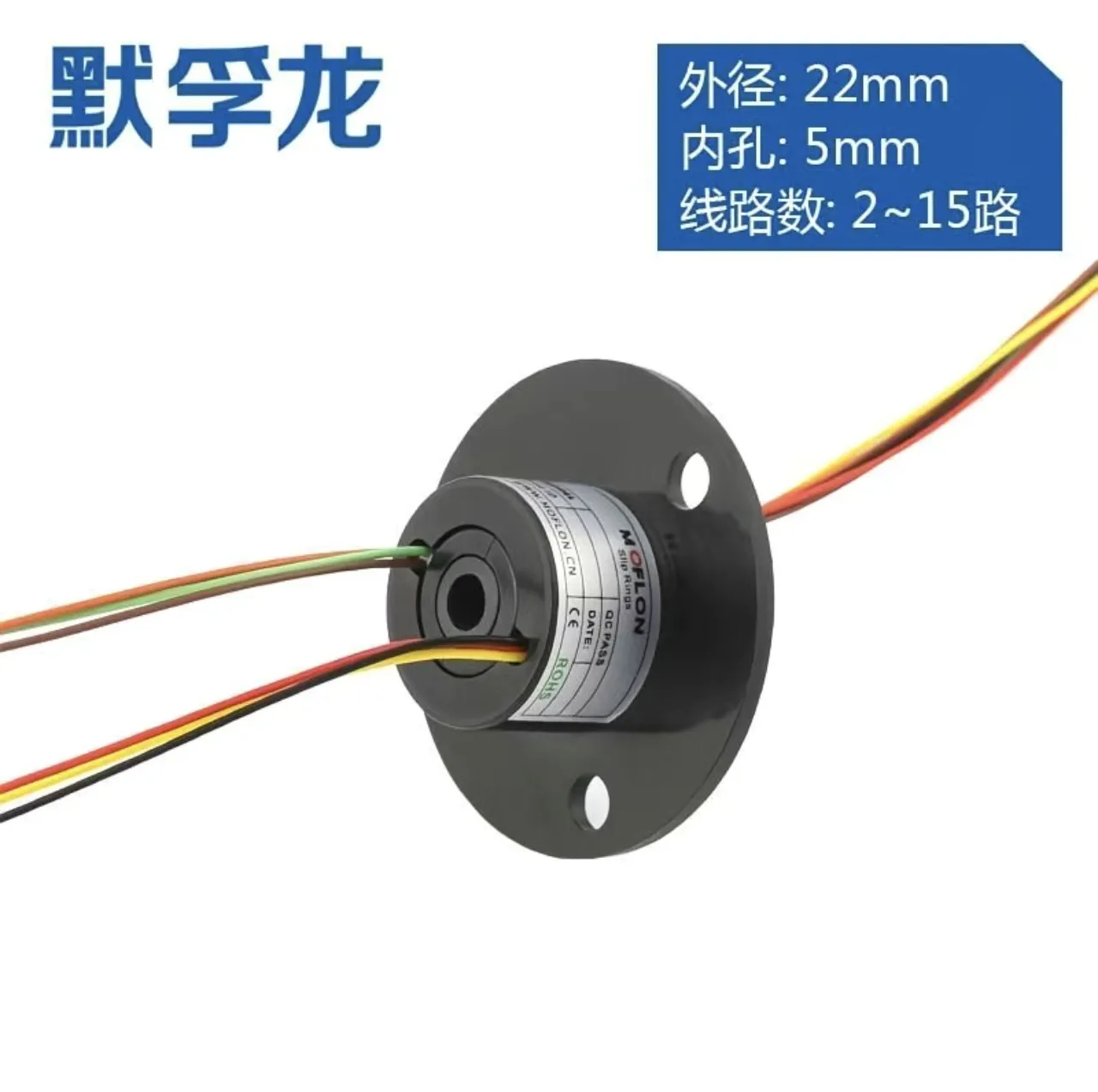

2. 5mm inner diameter, 22mm outer diameter, 44mm flange ring, 2-channel through-hole slip ring

Audio

1. 8MB storage music playback module
2. Type-C male connector (The music module's power interface is a Type-C female connector; I have endeavored to minimize soldering requirements)

Miscellaneous

1. Quick wire connectors, 4~5 pieces required

Wiring Diagram
