BETAFPV Pavo20 Pro Li-Po Battery Protection Cage
Print Profile(2)
Description

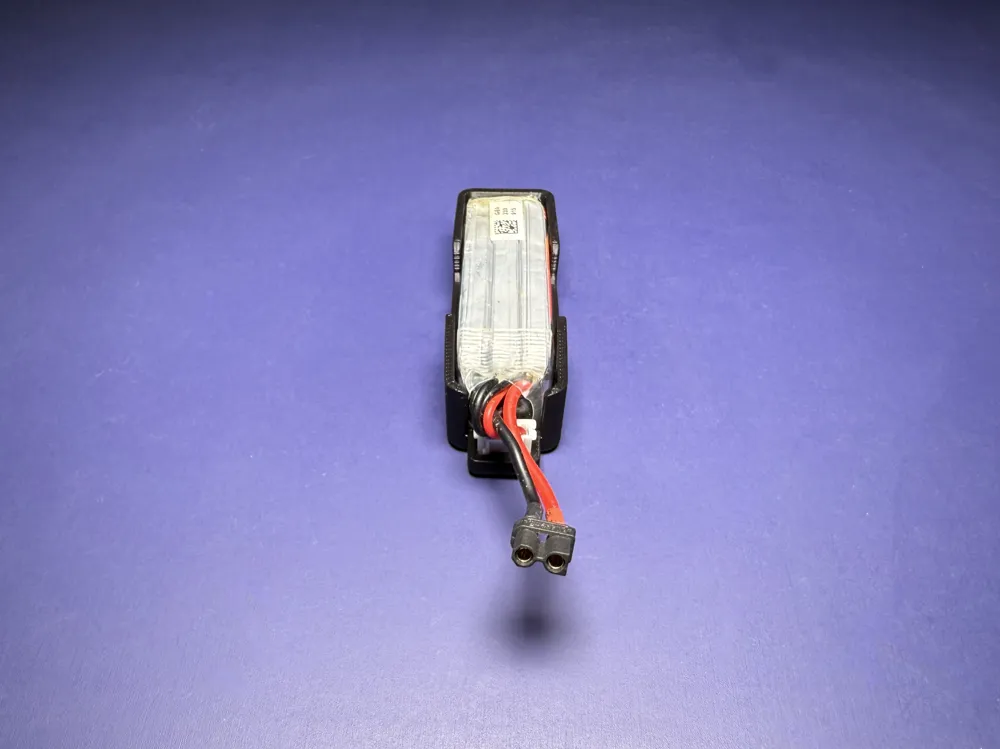

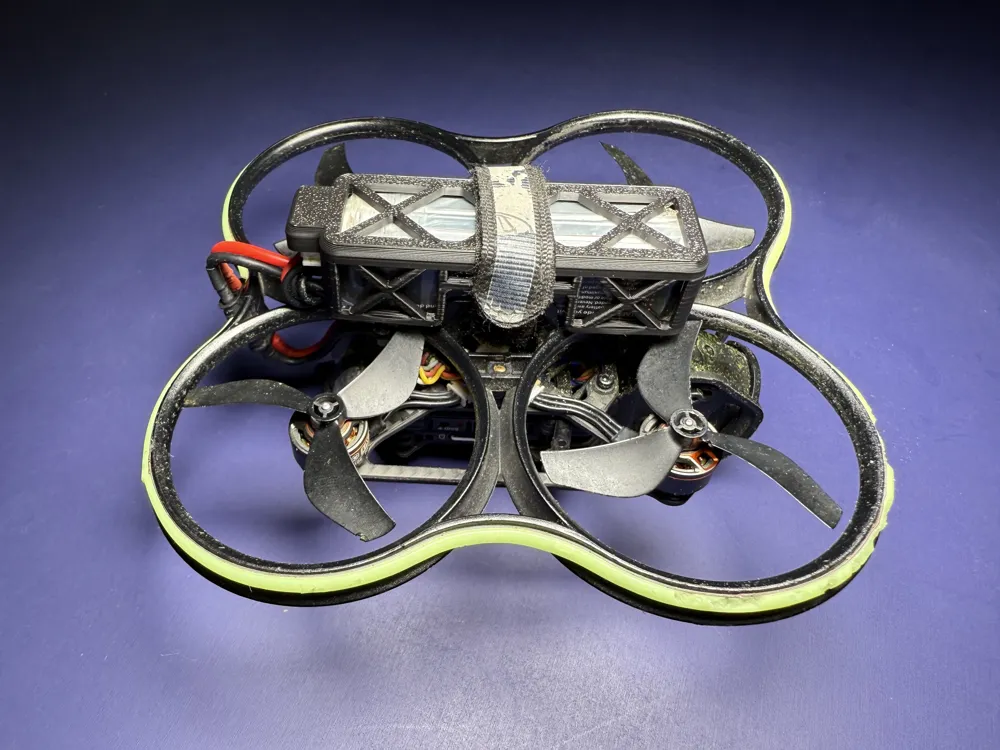

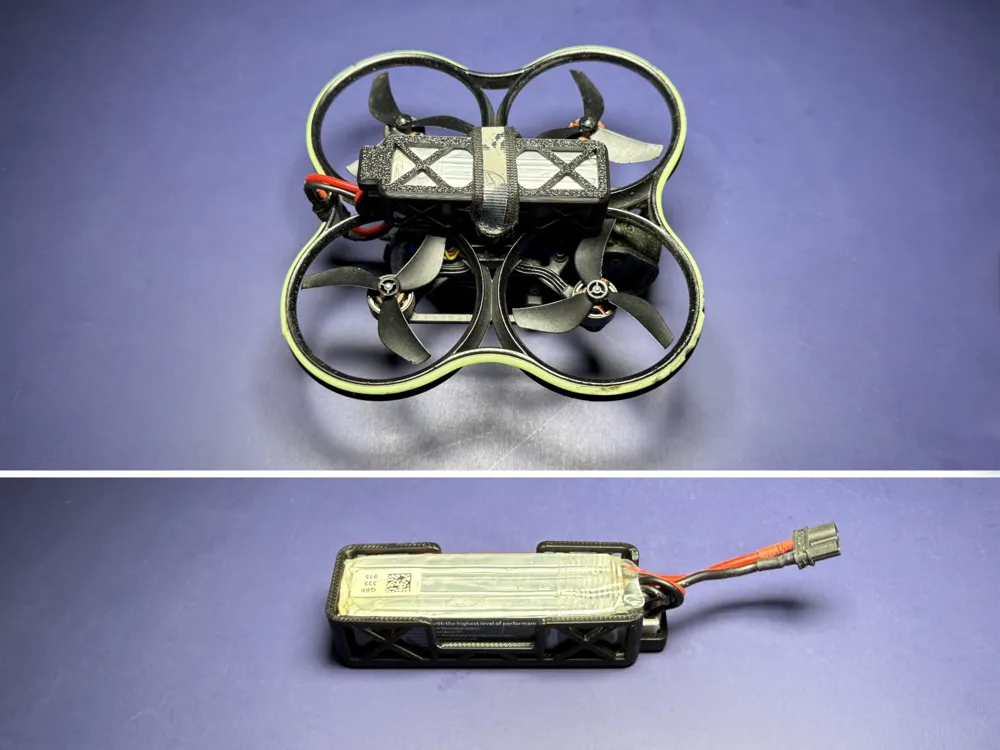

I made this cage to protect BETAFPV LAVA 550 mAh 3S Li-Po batteries mounted on Pavo20 Pro. I was going to create a part to hold the annoying 3s balance cable in place but searched here and found a cage made by @DieselSLC which has a balance cable holder already (model link). Then I wanted to create cages for multiple different batteries so I created my own from scratch. Measured everything myself and improved the parts I thought could be improved. I used variables when modeling for easy edit-ability.

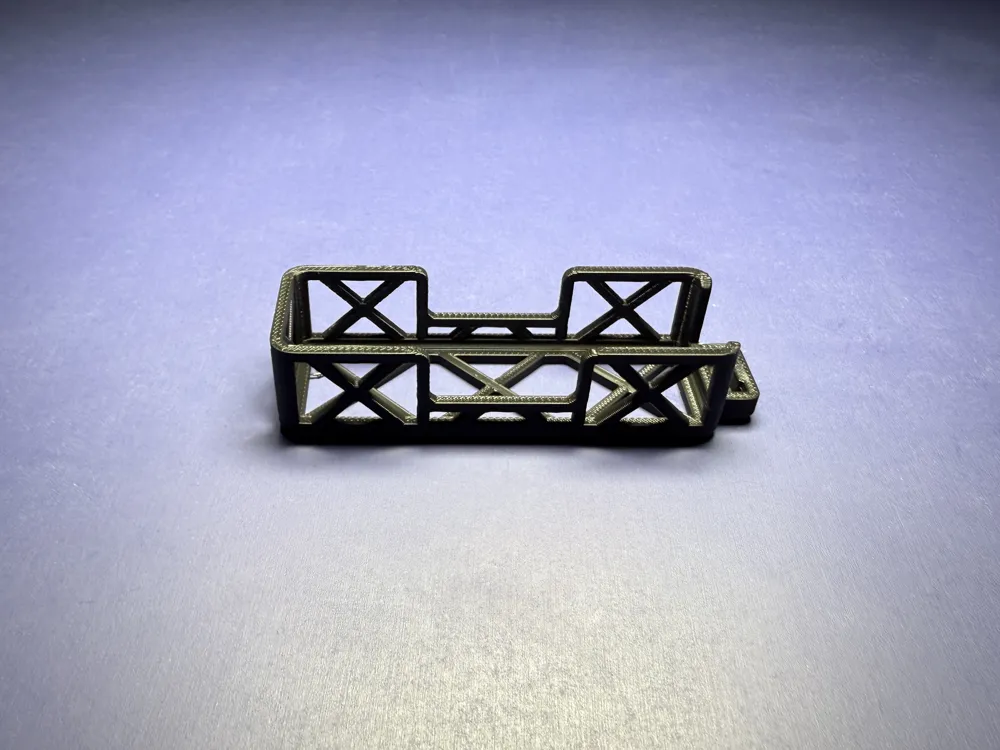

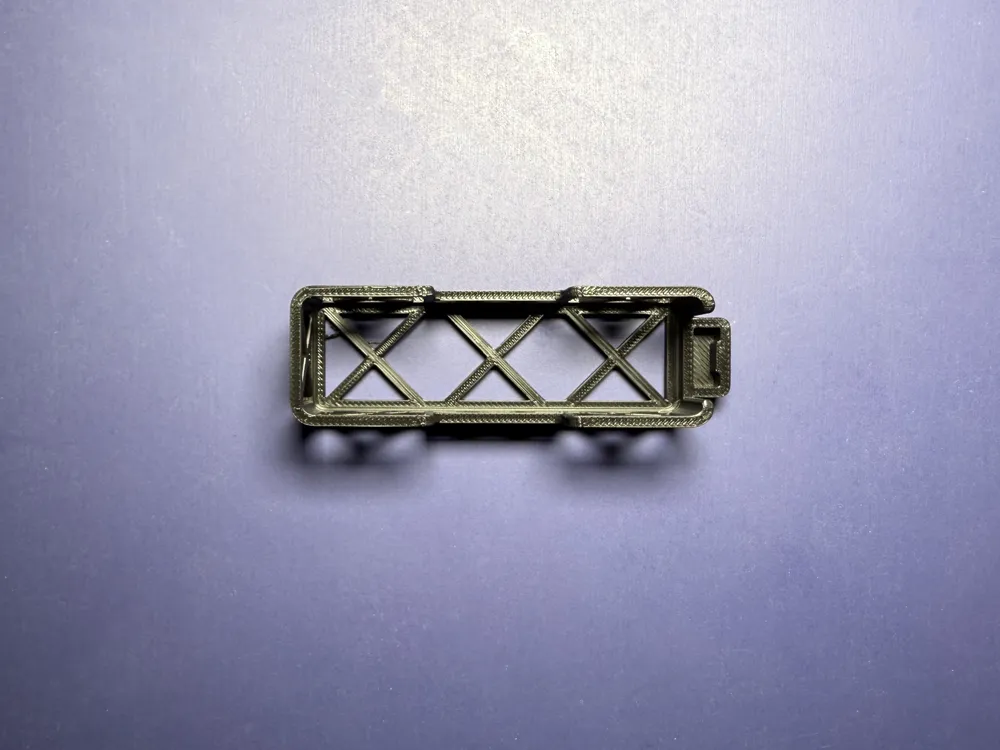

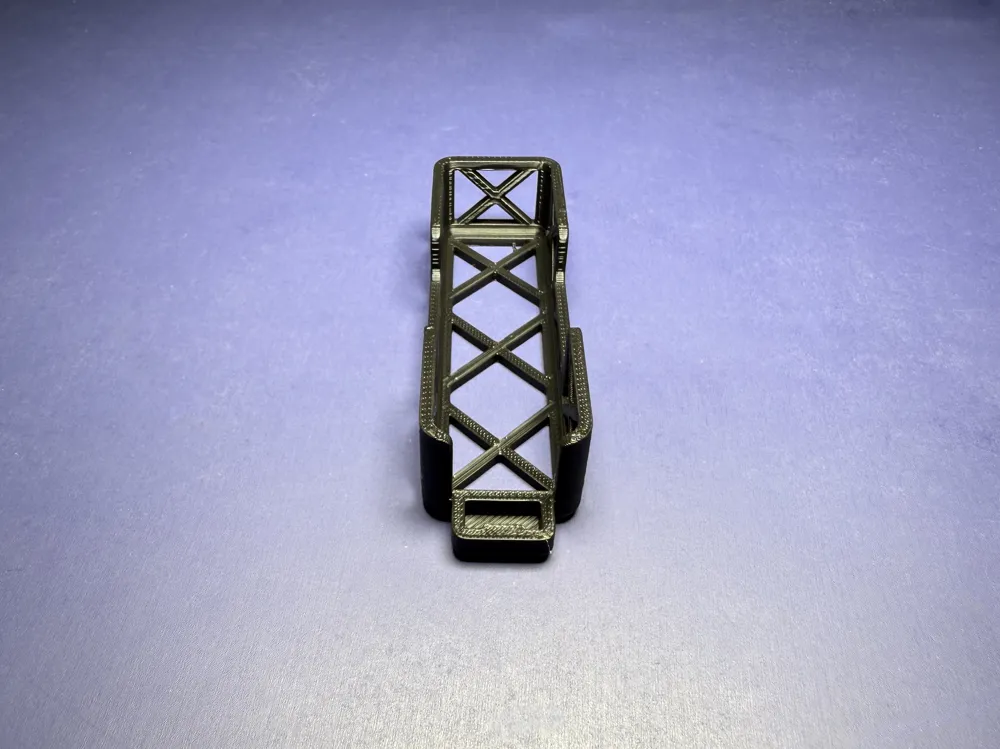

There are 2 versions, one has 2mm walls, one has 2.4mm walls. I use the 2.4mm one for TPU prints. Tried to find a good balance of durability and weight (2mm wall version is about 5.8 grams).
Boost Me (for free)
You have my permission to improve the model, share it, produce it, sell it. Just don't re-upload it without any changes (basically don't have malicious intent). I added the SolidWorks and STEP files so that you can edit easier. If you are using Onshape, you can copy and edit the entire project using the link below.

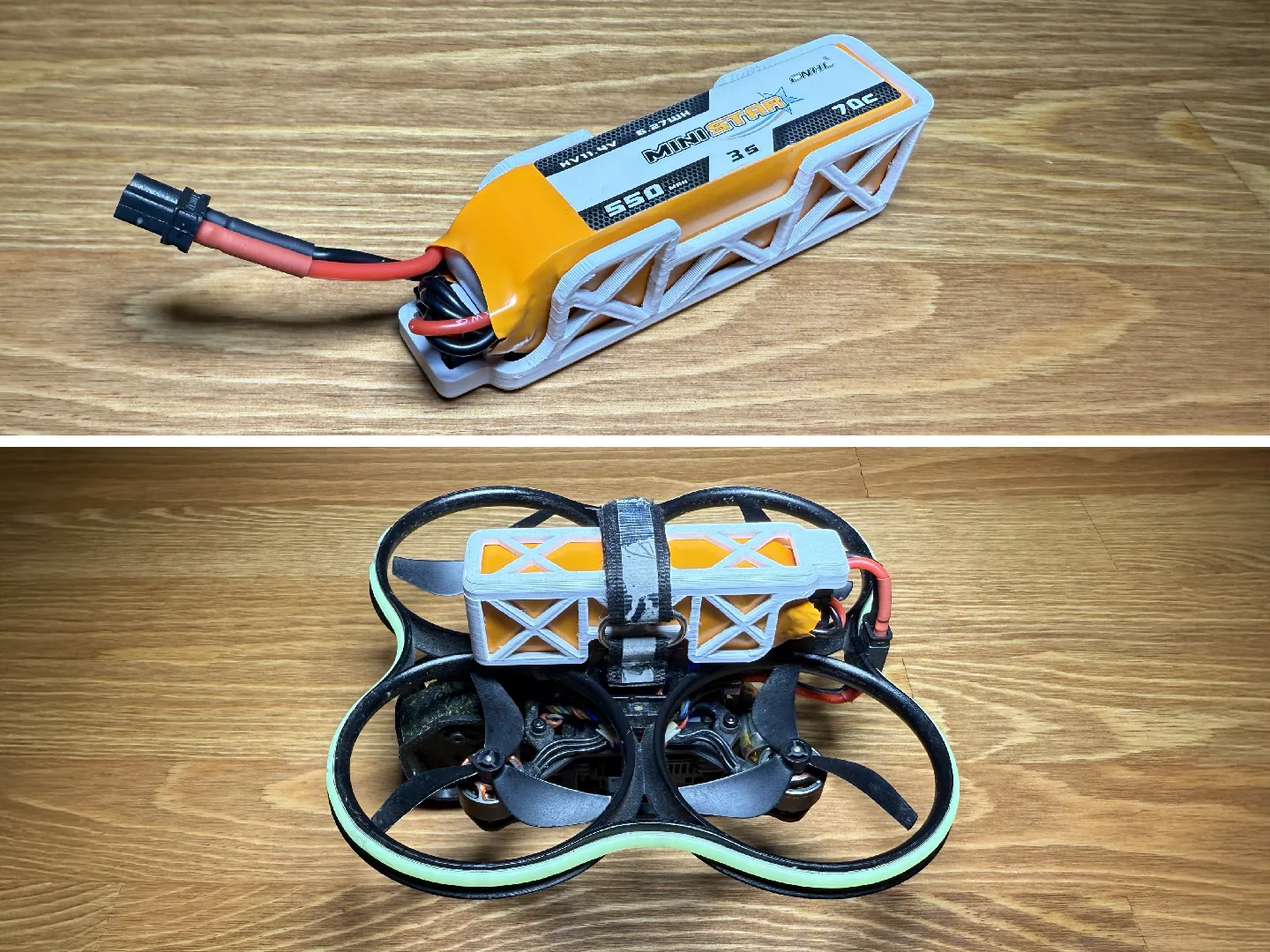

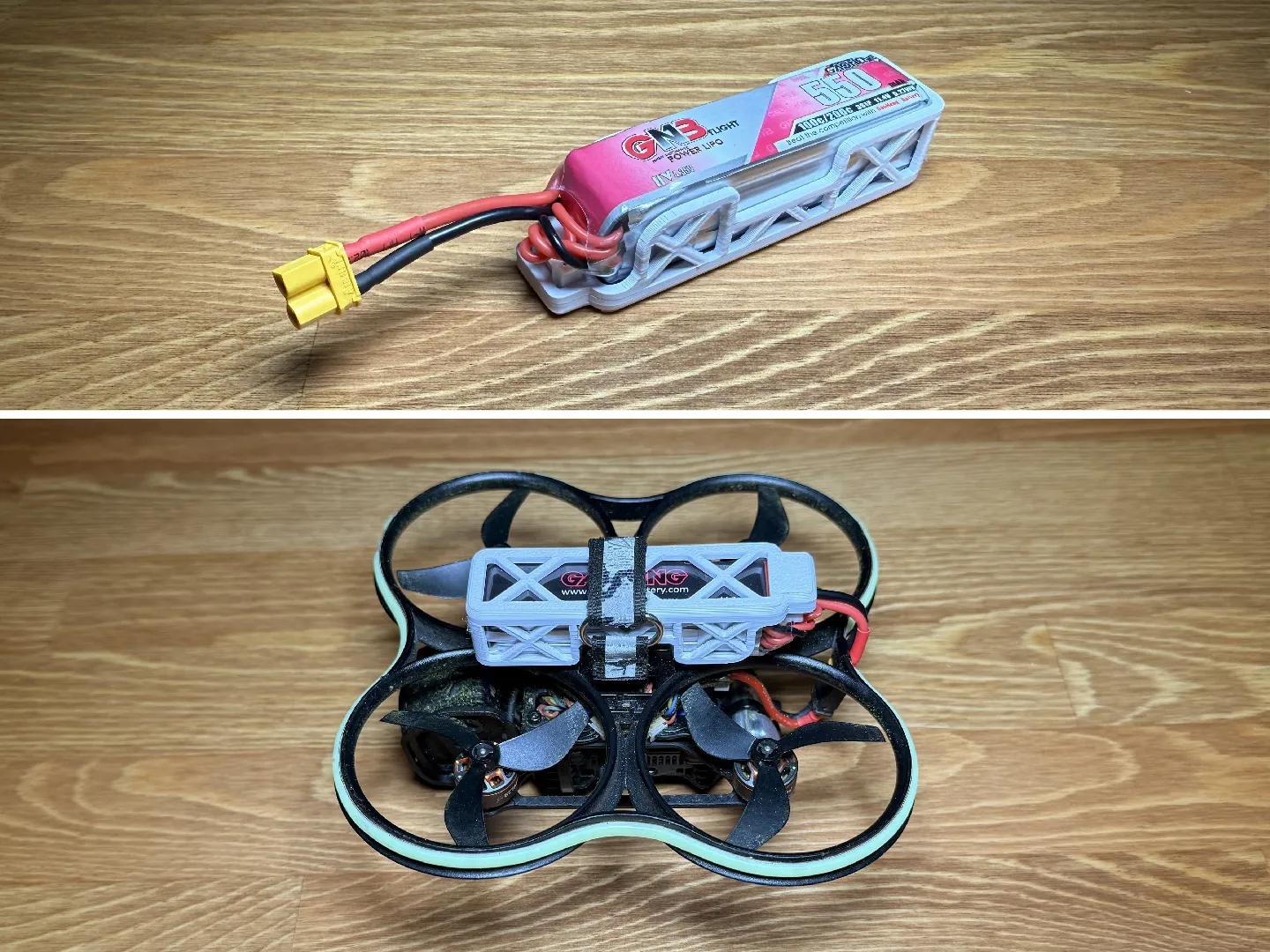

Check out my other battery cages:
