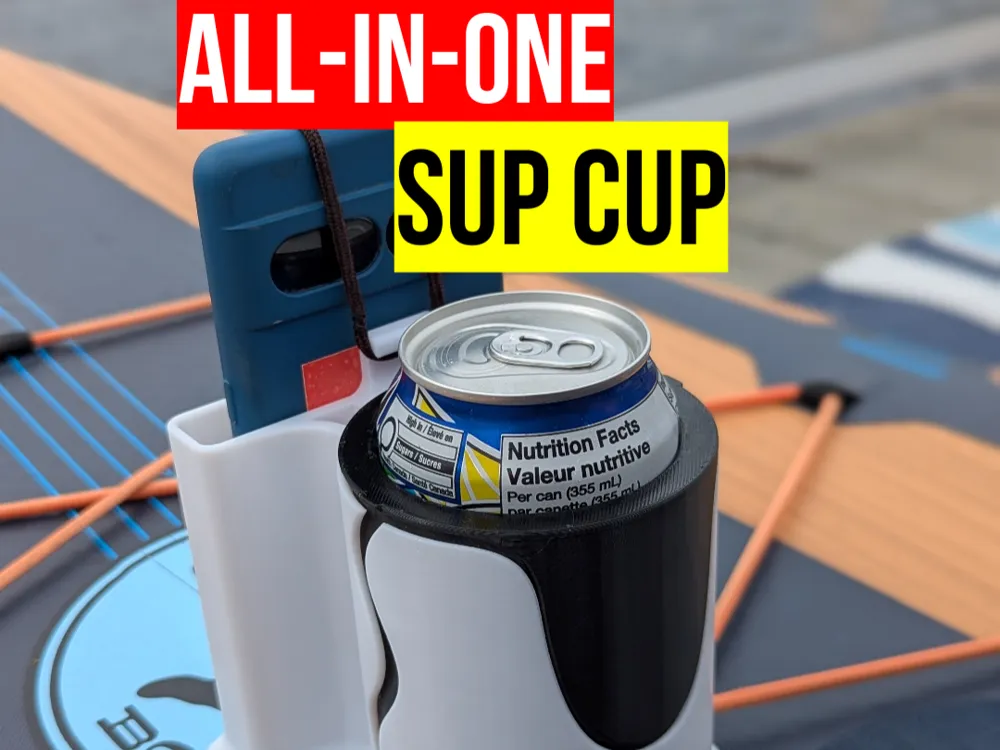

All-in-One SUP CUP

⭐You can access the parametrized design files, request custom dimensions, and obtain a commercial license for all my models by subscribing to my Patreon!

⭐Note: You can access the parametrized design files, request custom dimensions, and obtain a commercial license for all my models by subscribing to my Patreon!

If you want this but don't have a printer, you can also get it from my etsy shop!
https://www.etsy.com/ca/listing/4350886527/all-in-one-sup-cup-stand-up-paddleboard

What is it?

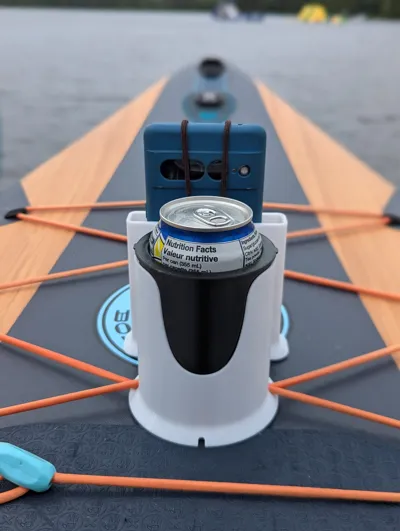

A stand-up paddleboard accessory that can hold your drink, phone, and sunglasses, all at once.

How is it different?

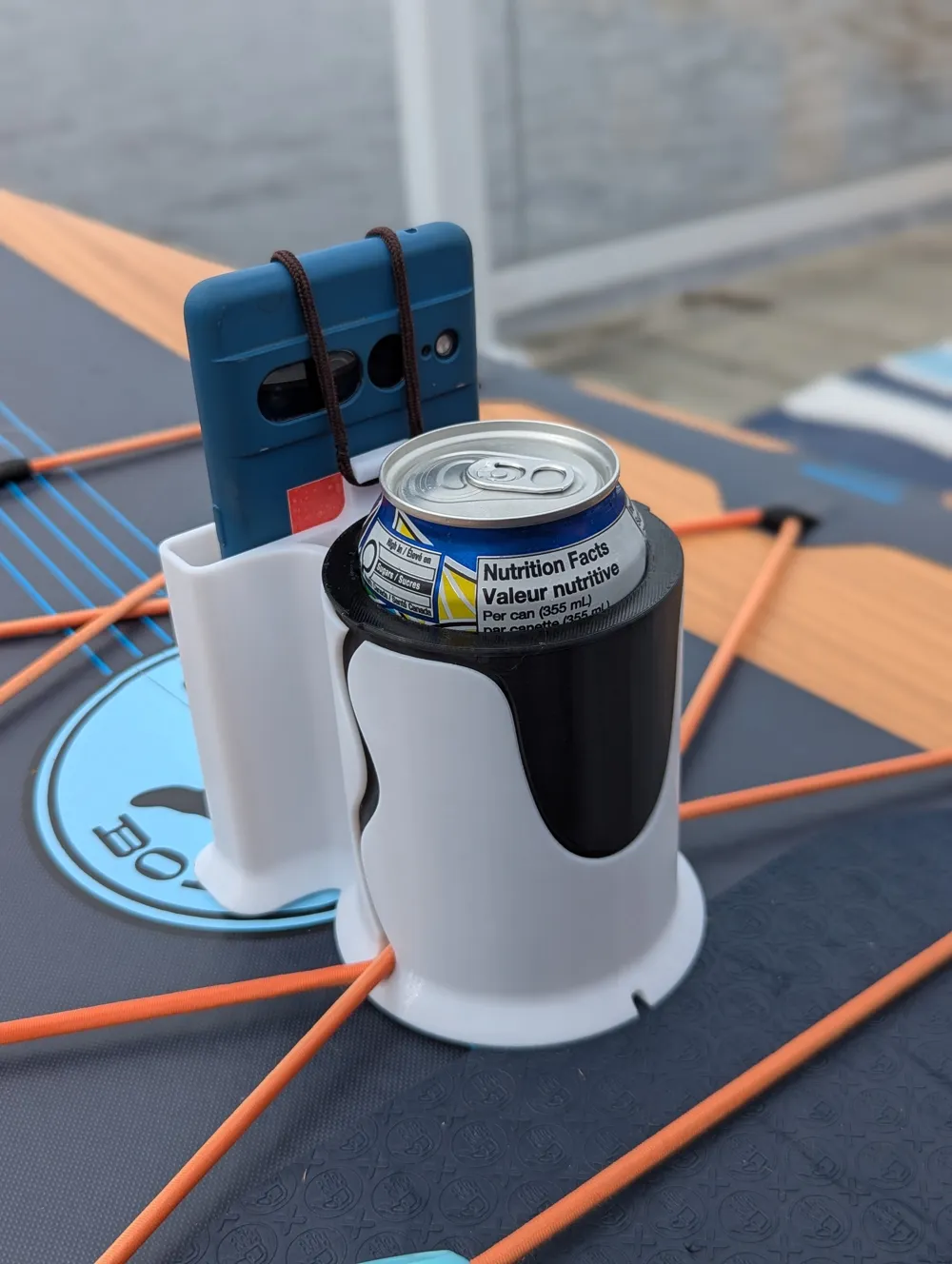

1. Compatible with cans, bottles, and coozies

• Use the 'Can Insert' for standard and tallboy beverage cans
• Use the 'Bottle insert' for standard longneck bottles and 'sleek' cans (e.g. 12oz Whiteclaws)
• Remove the insert for beverage coozies such as the YETI Rambler, High Sierra can cooler, and Brumate Hopsulator Trio

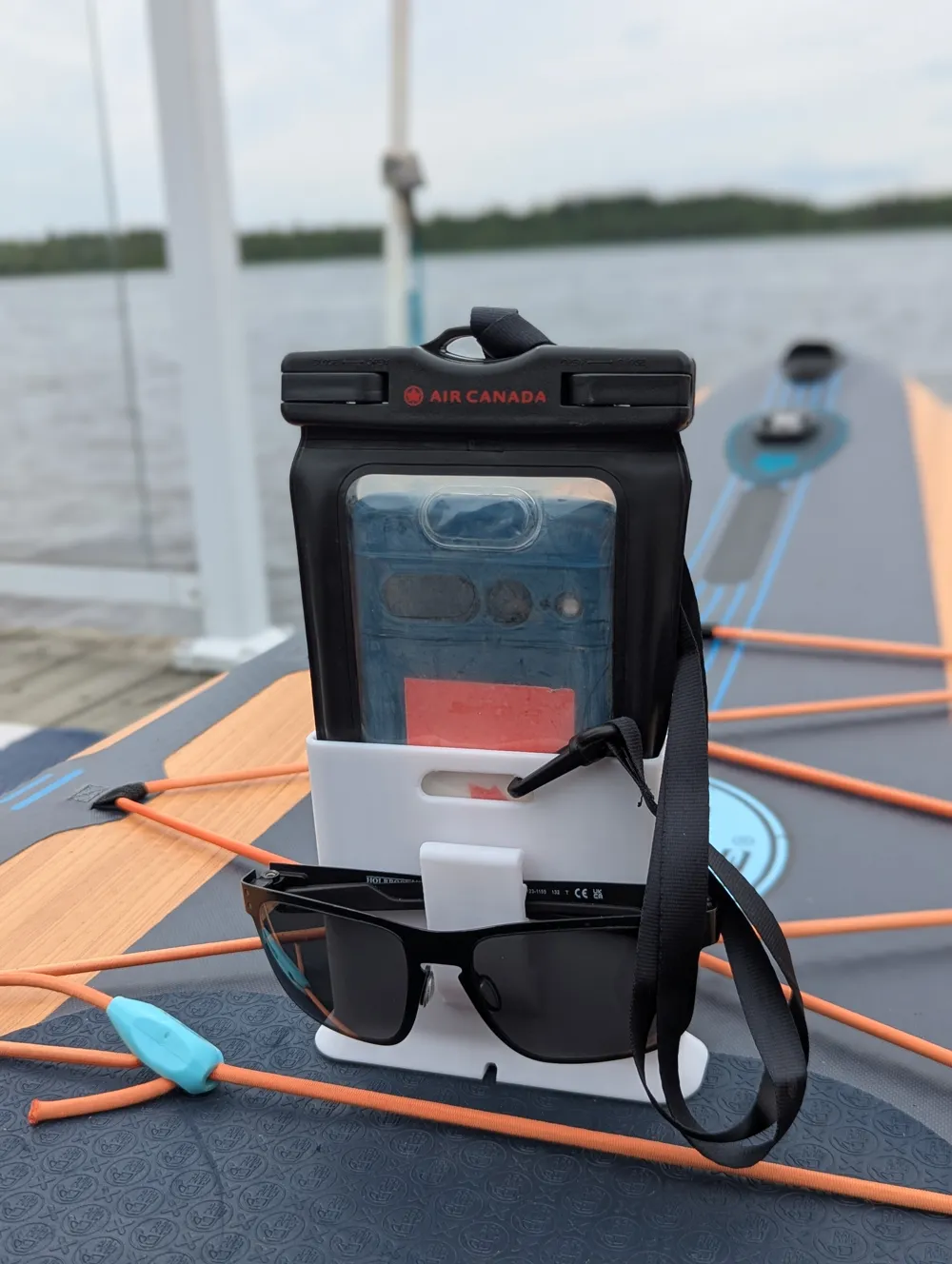

2. Secure Phone holder

• Unlike other SUP Cup designs, this one allows you to secure the phone in place with an elastic band or hair elastic.

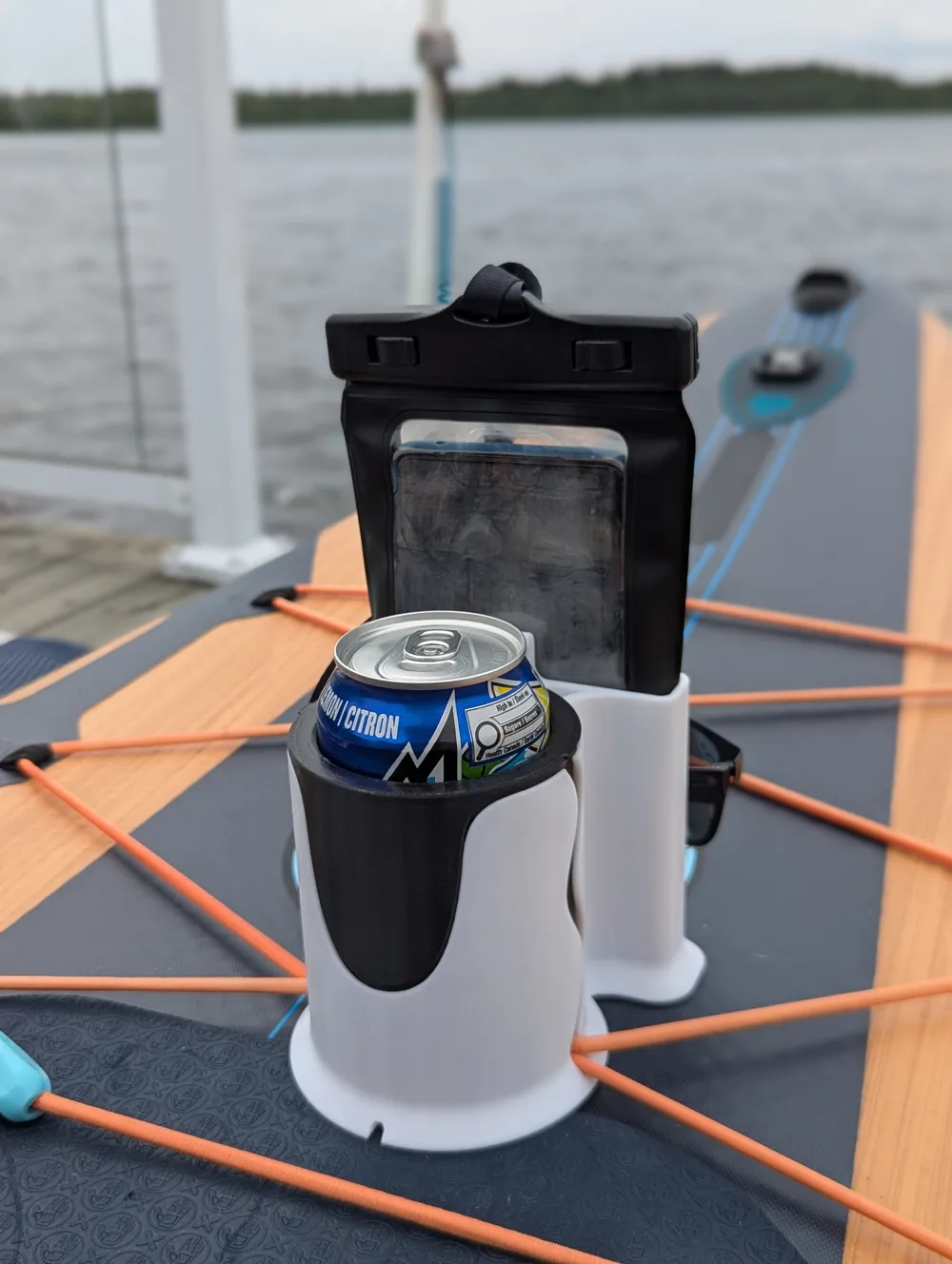

• For extra security, the phone holder is wide enough to support a waterproof phone sleeve as well.
• Fits *most* phones and cases (105mm x 15mm)

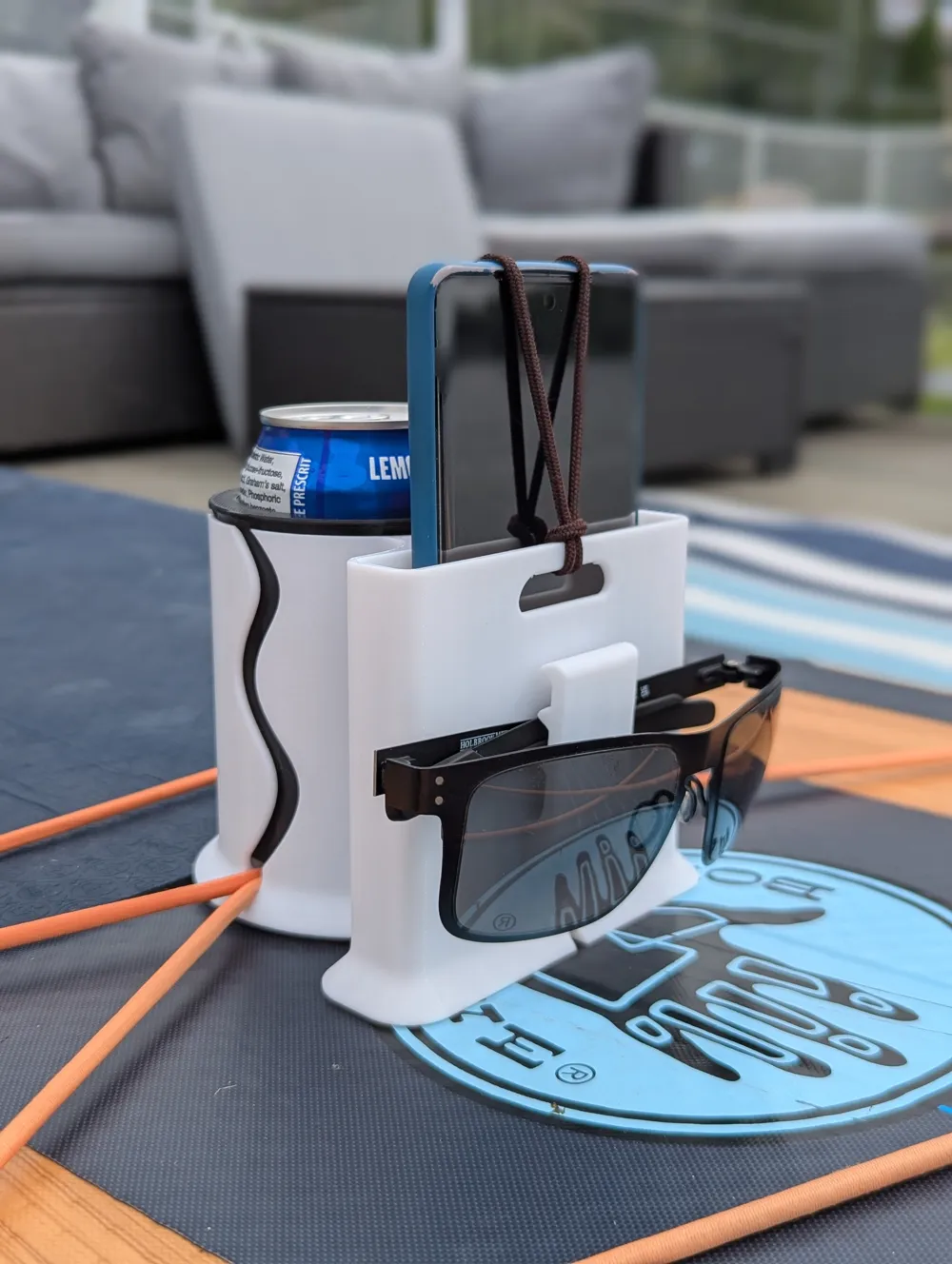

3. Sunglasses clip

• Sunglasses/glasses clip included - secure your shades and dive in!😎


Printing Guidelines

• PETG recommended temperature & UV resistance.

SUP CUP

• Supports: Tree - auto
• Layer Height: 0.20mm+
• Infill: 10%, or higher for more strength
• Be careful when removing the supports from the elastic band tie-down hook

Inserts

• Supports: None
  Layer Height: 0.22mm+
• Infill: 5%, or higher for more strength/insulation
• Print with the base of the insert on the build plate

Add-ons

• Instead of using a hair elastic to hold your phone in, you can also check out this TPU strap designed by @Housesmithson!

Improvements

• Reduced filament usage by 20%
• Widened phone holder to support waterproof phone sleeves
• Widened tie-down bridge to support lanyards
• Added nubs to make it easier to lift the insert out of the cup
• Widened bungee slot to support two cables for more stability
• Improved aesthetics and simplified design
• Improved condensation drainage system where can sits
• Improved printability and strength of elastic band hook
• Modified inserts to make them printable without supports
• Strengthened sunglasses clip

Small update: I removed the extrusion from the Can and Bottle inserts, it was annoying to need to reorient the insert before putting it back in. This change isn't reflected in the images.
