XTOOL F1 Dollar Tree Cutting Board Jig

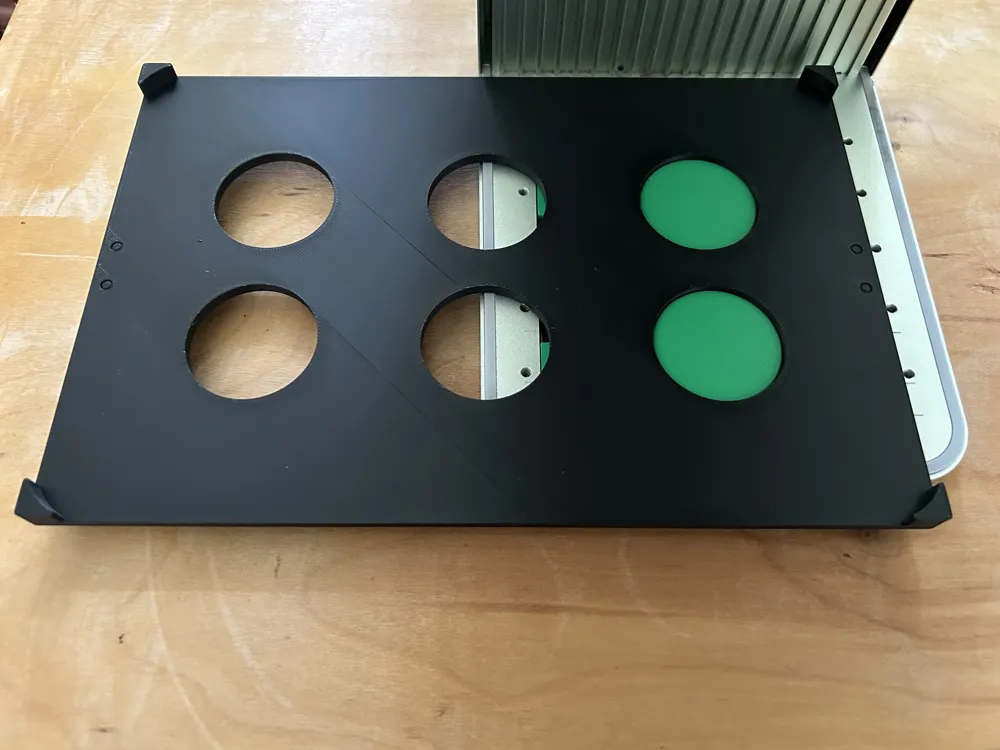

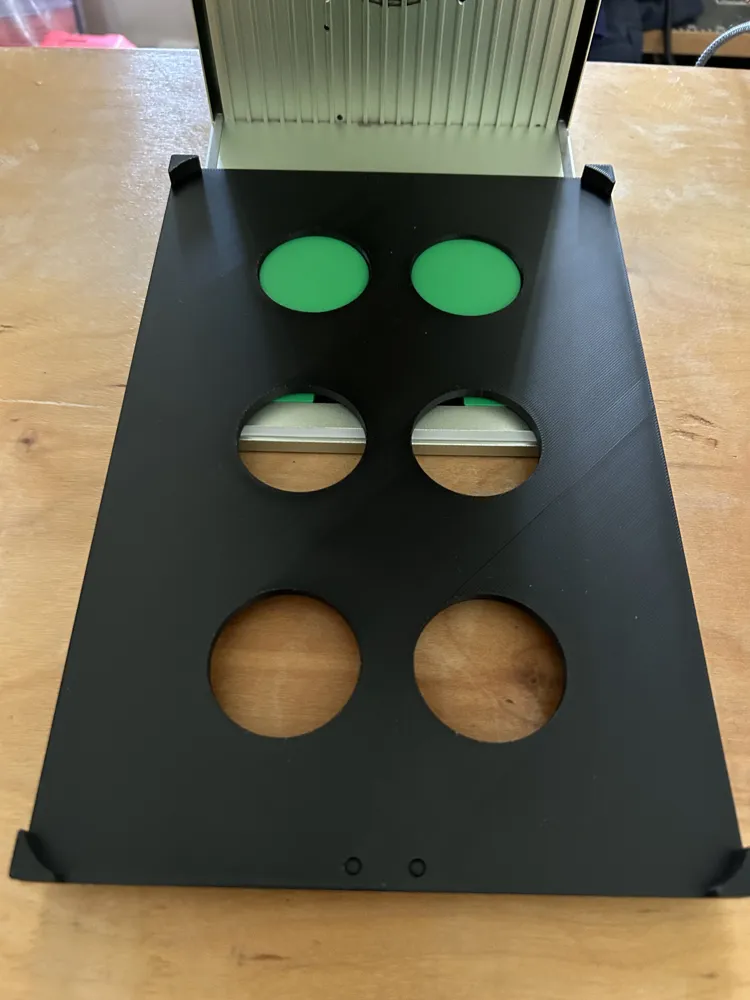

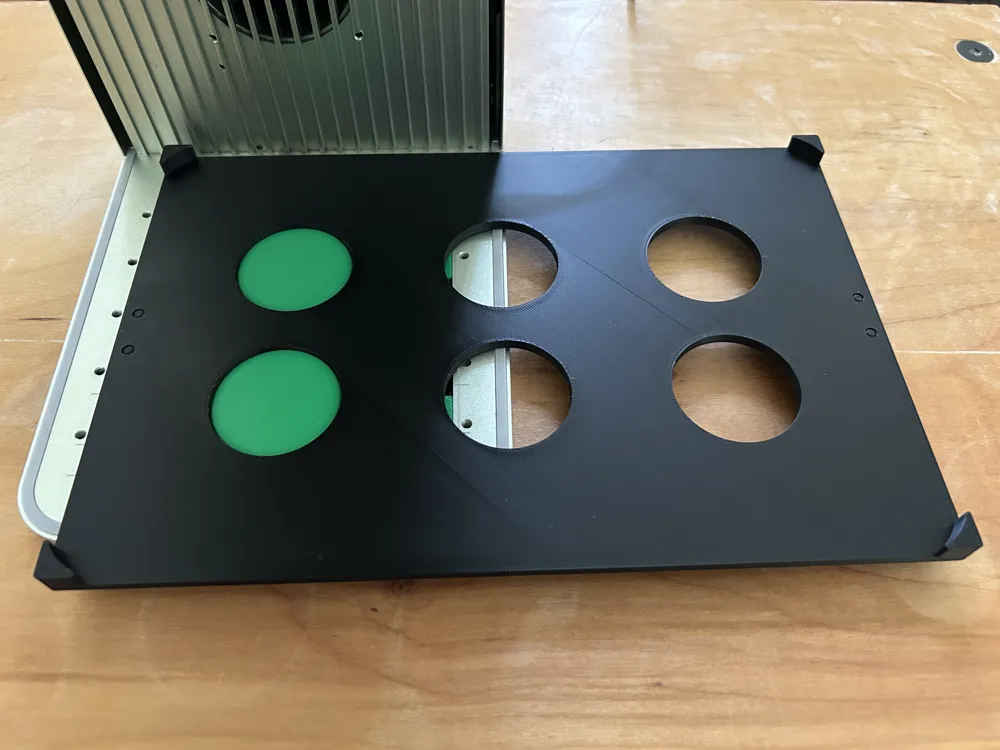

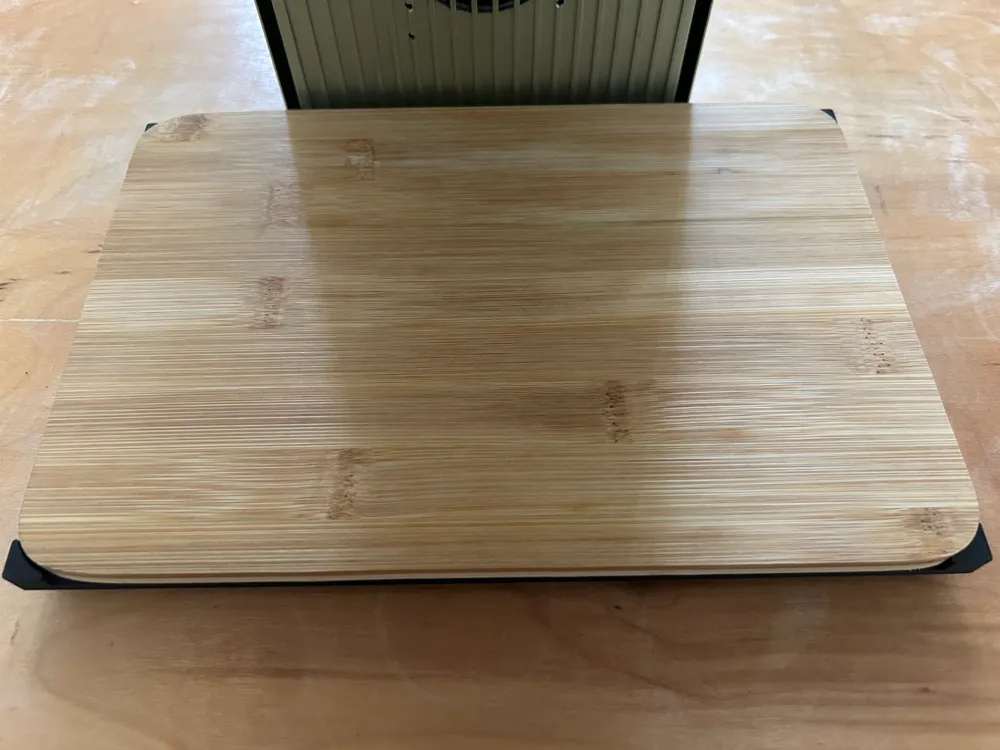

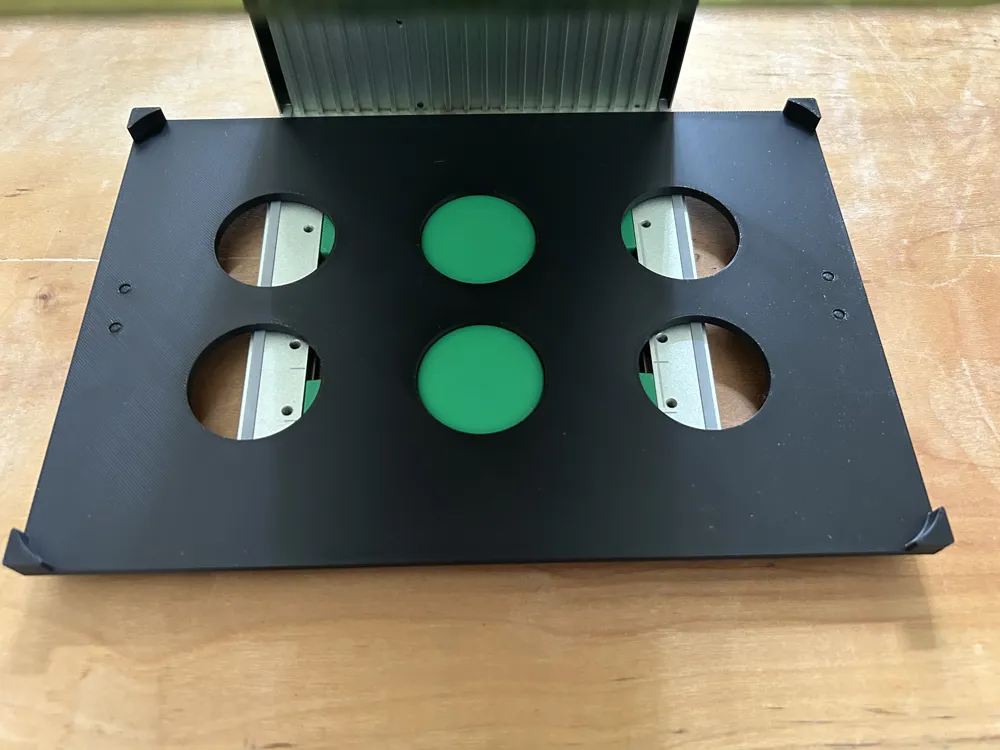

This jig keeps your bamboo cutting board perfectly aligned and secure during laser engraving on the XTOOL F1/F1 Lite.
Specifically designed to accommodate the cutting boards found here.
Print in PLA or PETG - supports not required.
This jig will be made of plastic and is not intended to come into direct contact with the laser beam.

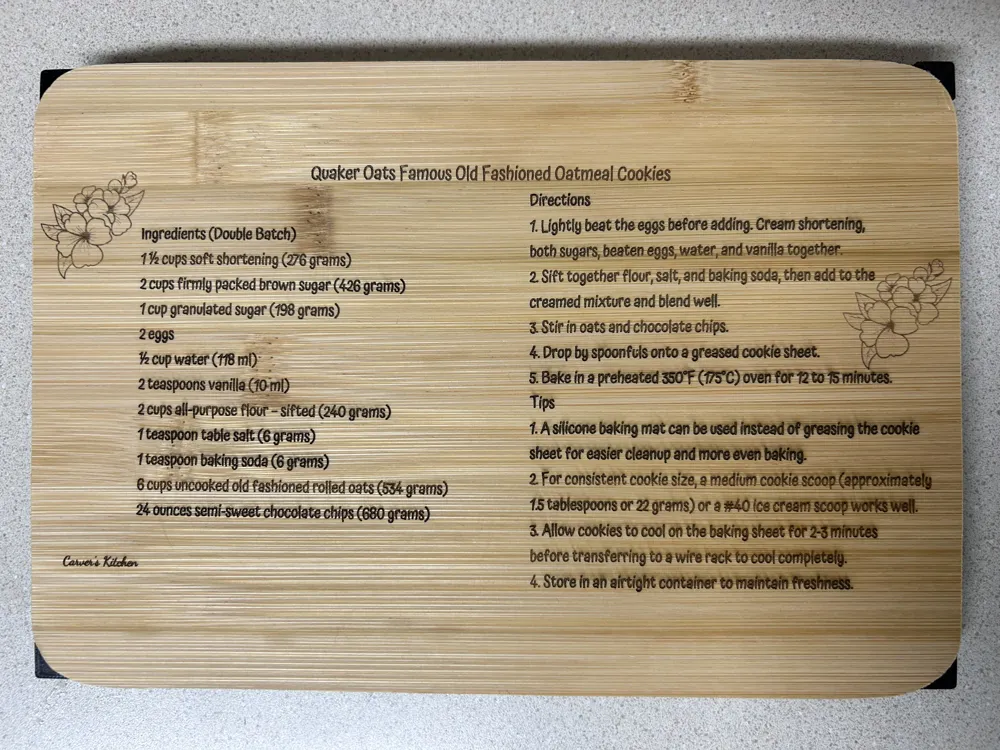

The design allows you to efficiently engrave personalized messages, logos, or designs for events, gifts, or promotional items while maintaining precise alignment every time.
I'm not affiliated with any of the mentioned companies and receive no compensation from sales or downloads.

*Safety note: this fixture does not allow the lid to close all the way. Therefore, the safety glasses found here are highly recommended.

Always follow the manufacturer's guidelines and instructions for proper use and safety procedures.

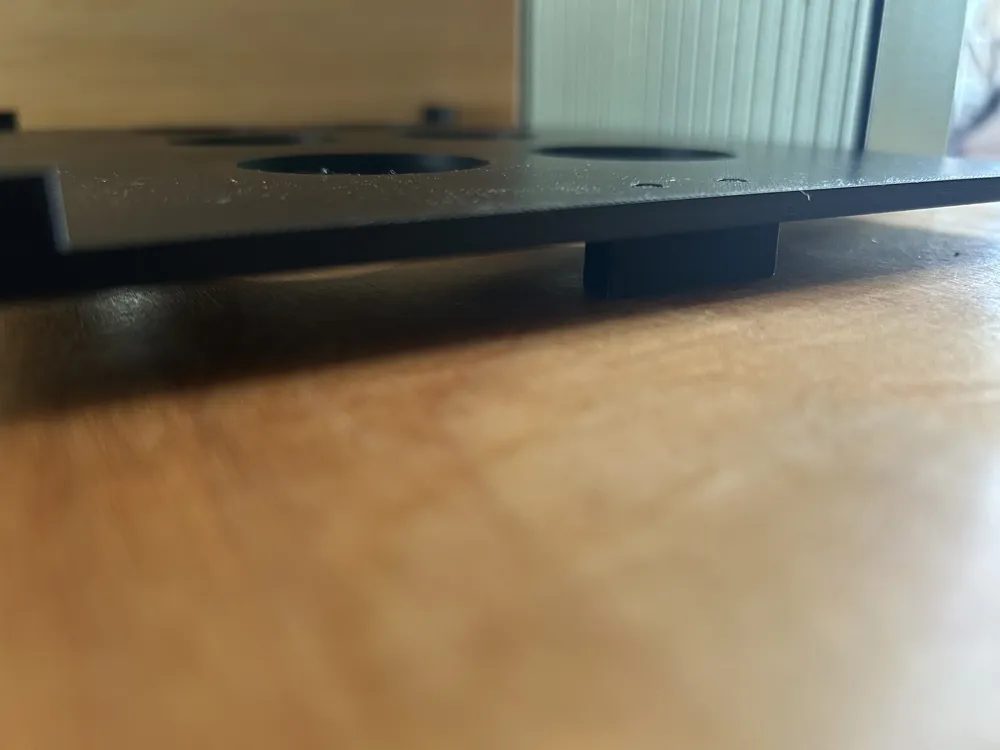

The leveling feet simply press fit into the main body, no glue required. These feet allow the fixture to stay stable when in the left or right positions and fit nicely into the cutouts on the base insert.

3 Plates: Main Body, Leveling Feet, Universal Base Insert

Main Body: ~94 grams of filament, ~ 2 hours print time

Leveling Feet: ~3 grams of filament, ~13 minutes print time

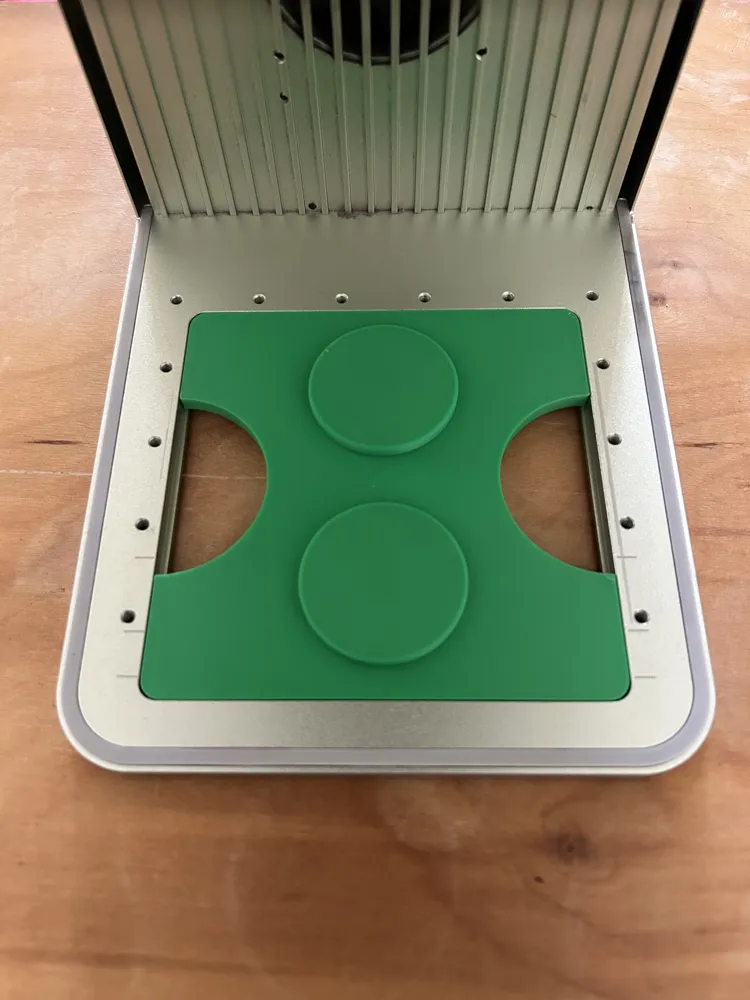

Universal Base Insert:  ~31 grams of filament, ~43 minutes print time

Total: ~128 grams of filament, ~3 hours print time
