Nintendo Switch Slim 24 Cartridge Game Case

☕ ☕  Buy Me A Coffee!  ☕ ☕ … Every coffee helps fuel new ideas. Thank you for your support!

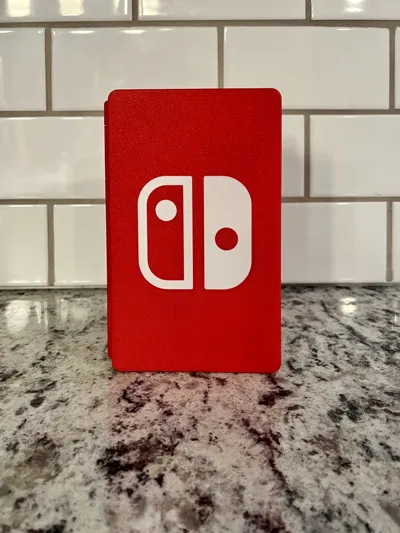

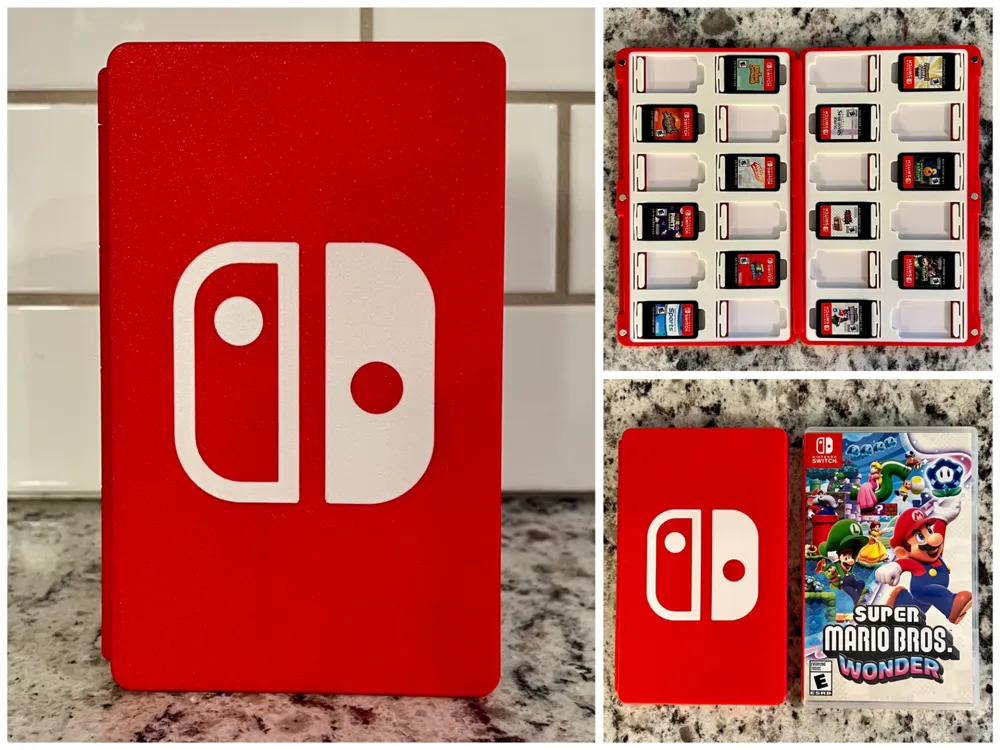

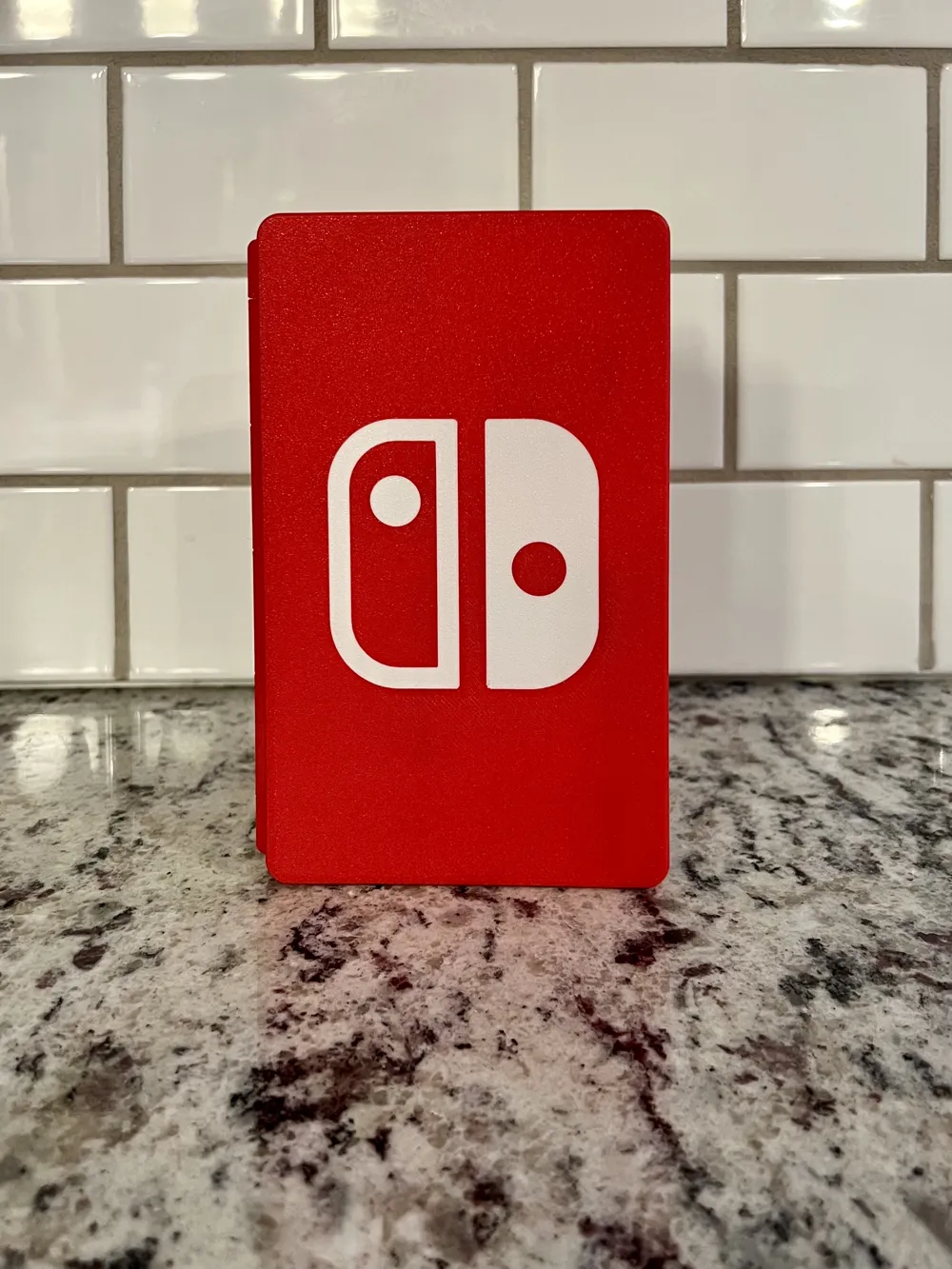

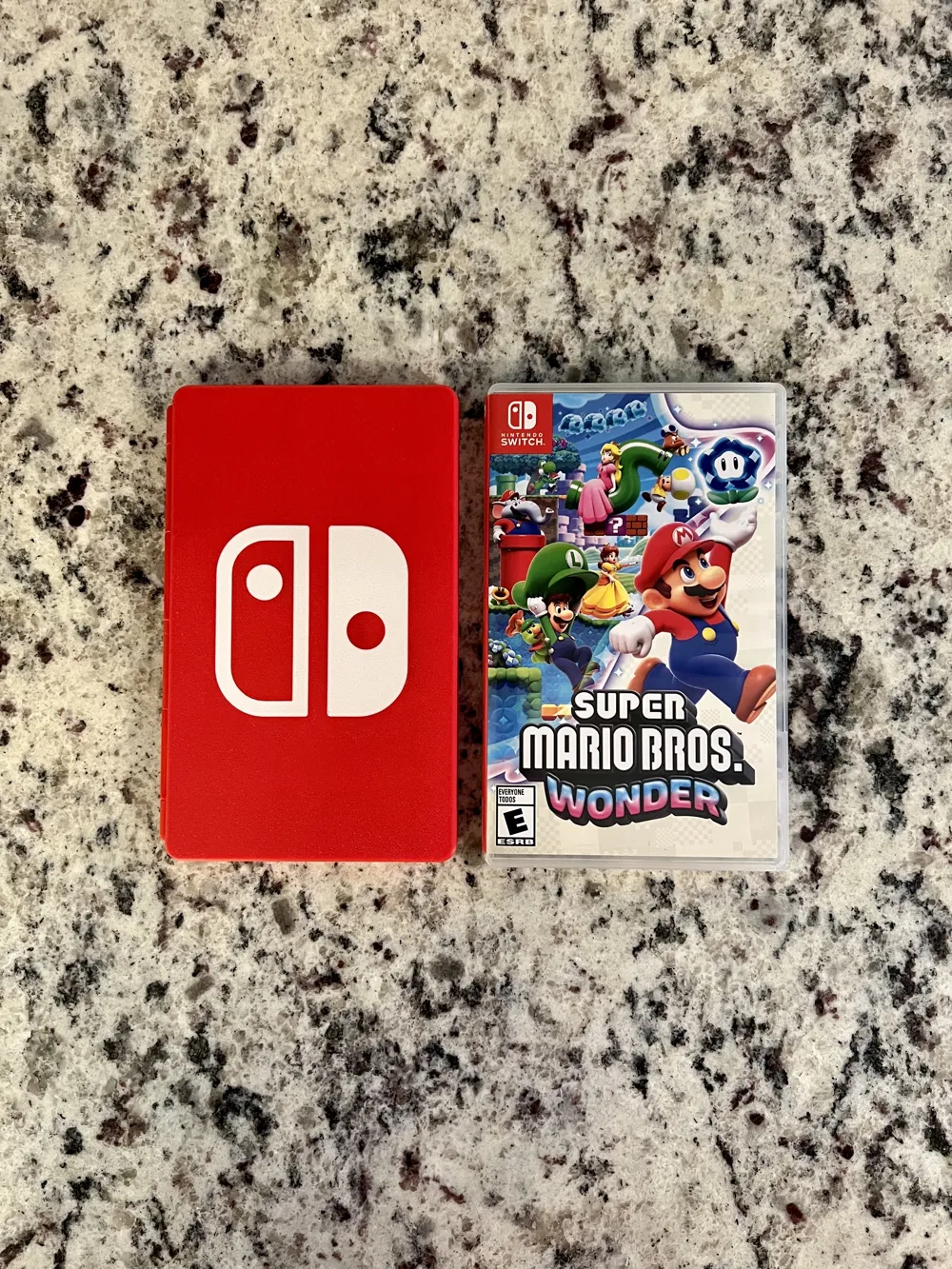

This minimalist design can hold up to 24 games and is super compact (same dimensions of a normal Nintendo Switch retail case). The only additional hardware required are six (6) 4mm x 2mm magnets to act as a clip, which are design to have a press fit and not need any glue.

• The Case: Measurements are 105mm x 168mm x 11.0mm.



• The Hinge: Designed to open the case 180 degrees (flat on a surface) and requires no supports when printing. The hinge requires no additional hardware, simply slide a piece of filament through (cut length should be around 145mm max) the shaft.



• The Clip: There are six (6) 4mm x 2mm magnets to act as a clip. This allows anyone (specifically younger children) to be able to open and close the case with minimal effort. There are notches along the right side to assist in opening.

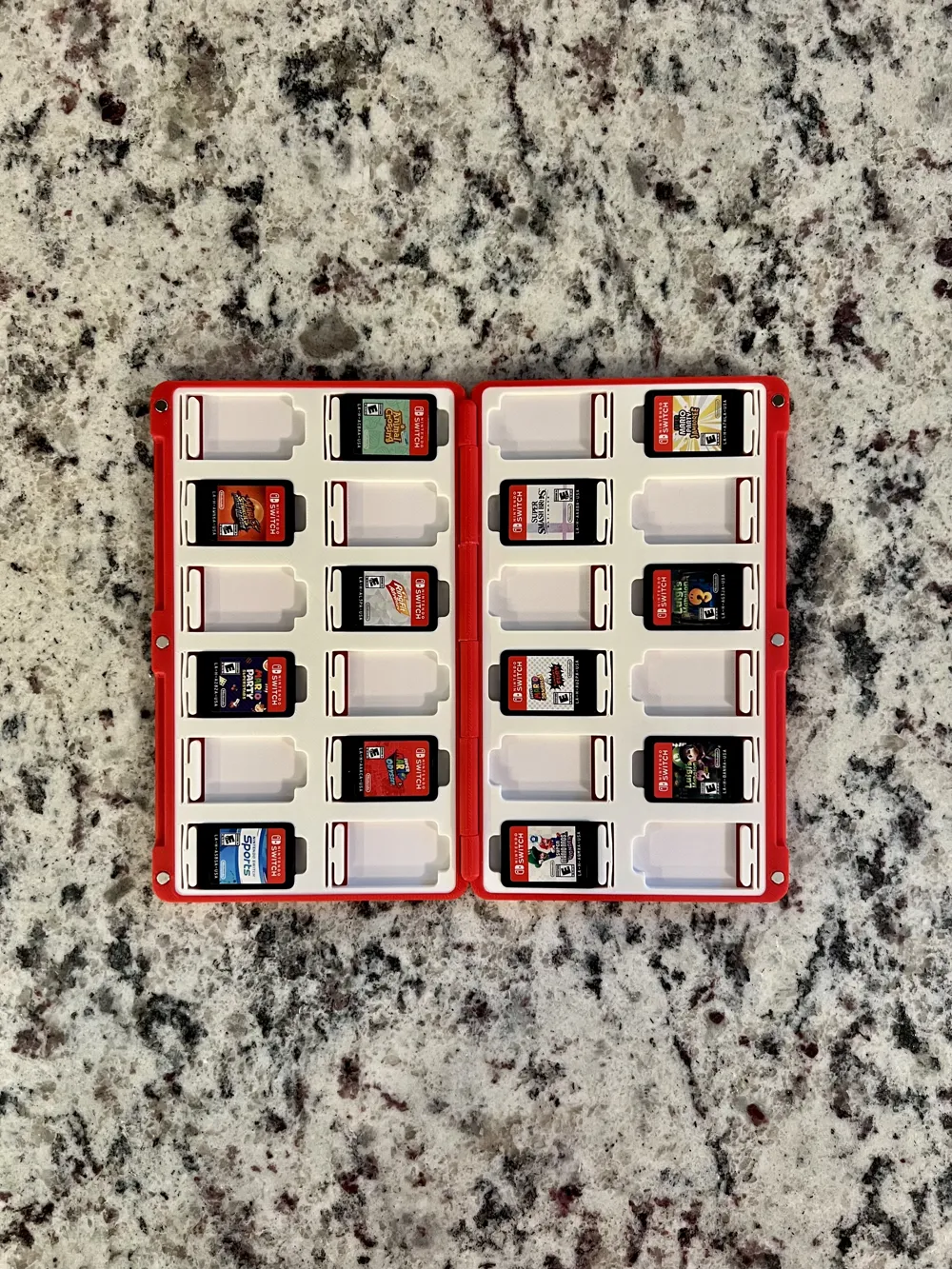

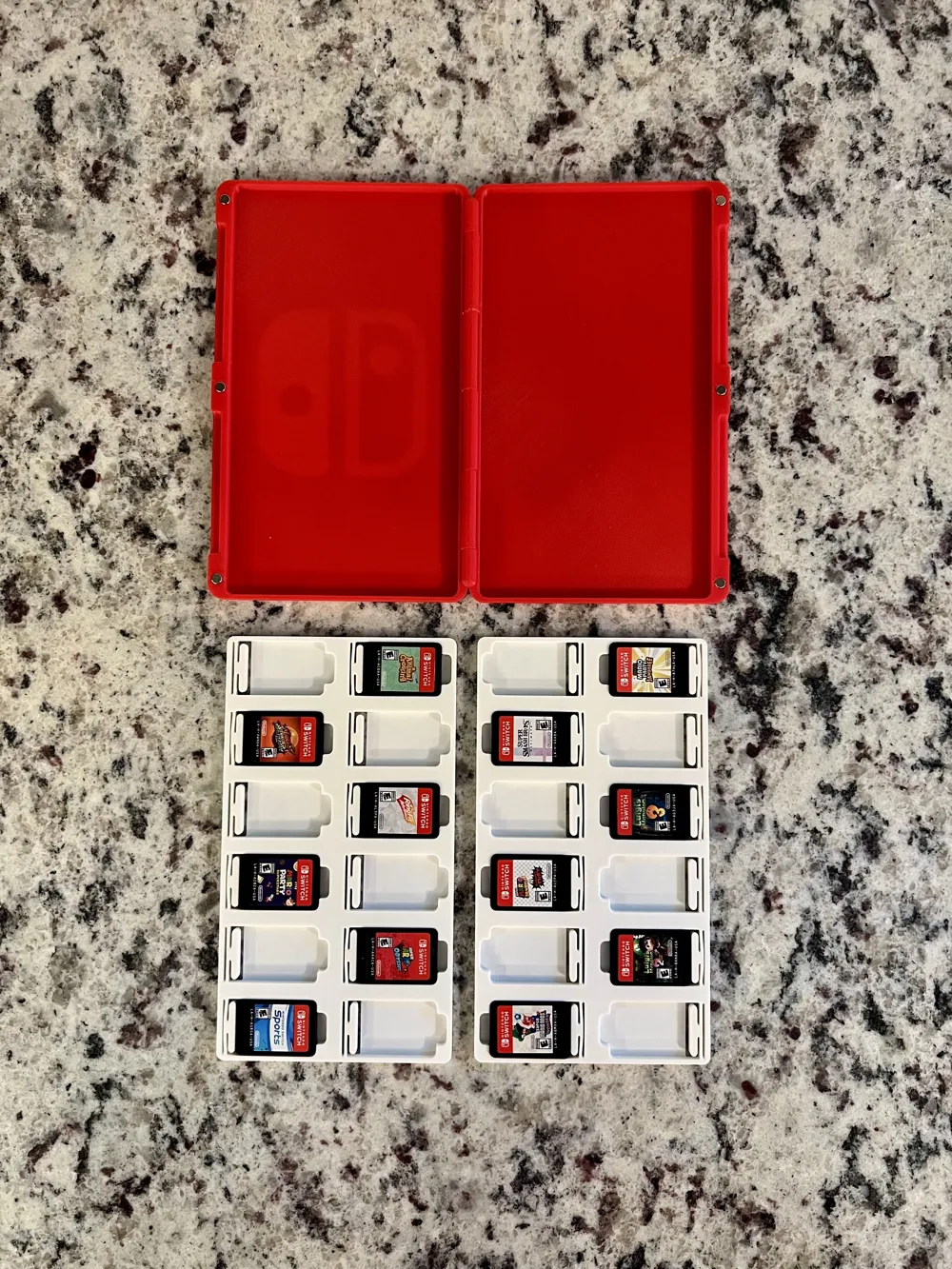

• The Cart Inserts: Designed with a spring like mechanism to keep games securely in place. These inserts should be a press fit into the case but super glue could be used for a more permanent solution.
