32140 battery pack, 32140 super power bank, FPV drone outdoor battery pack

I had 4 idle CASKY 32140 cells and thought of utilizing them to create a 0.2 kWh power pack for outdoor use, which can power for an afternoon

   With a 100W charging board, it can charge phones. I intended to power a Xiaomi fan when going out, and actual tests showed it can run at full speed material cost around 100 RMB

      Note that assembling batteries can cause short circuits and fire, not recommended for those without assembly experience

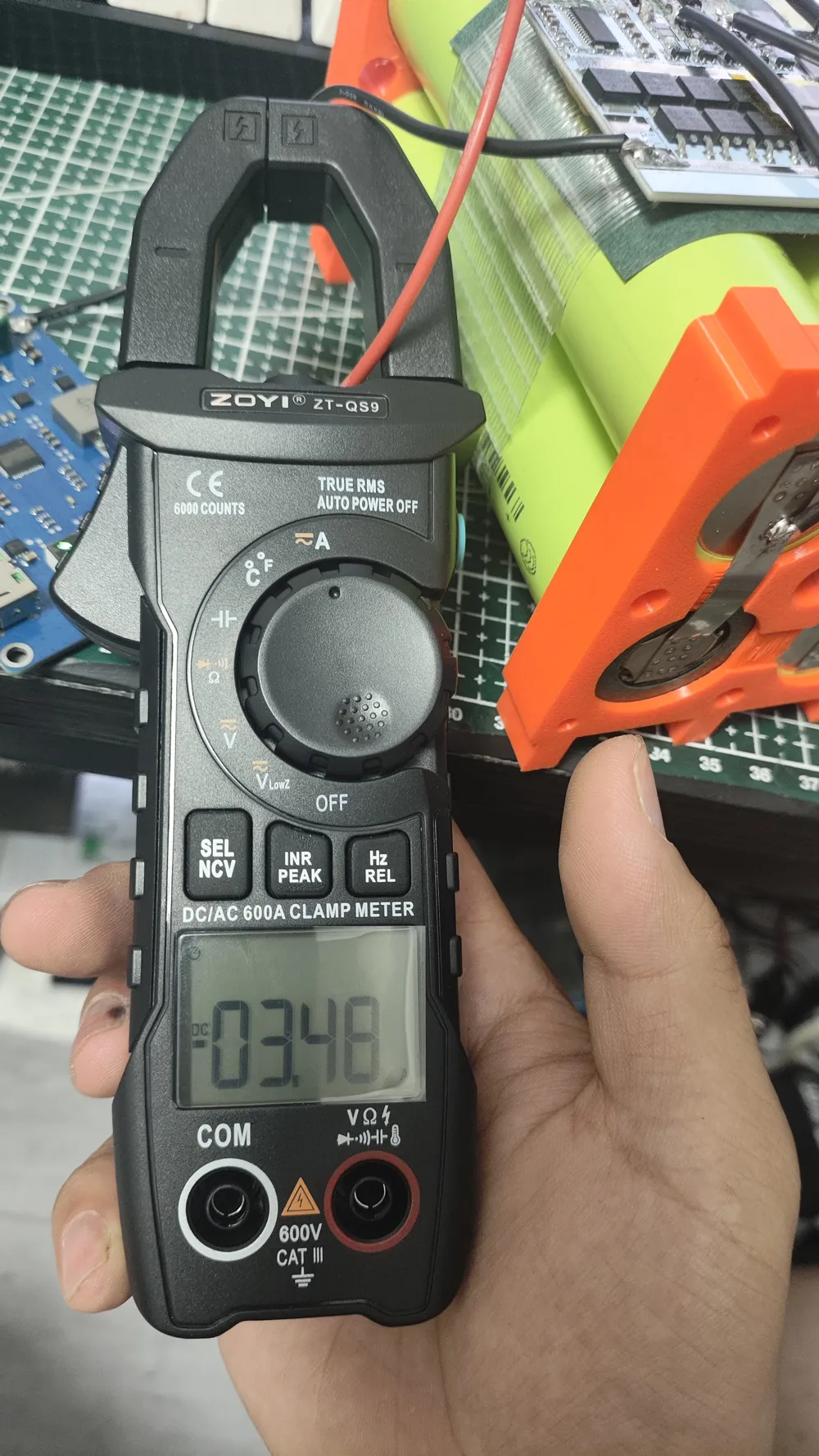

          It can be charged directly via USB-C, with a measured charging current of 3.5 Amps

    List of accessories

       6 M2.5x10 combination screws

     1 meter of 13 AWG silicone wire for positive and negative poles, preferably 1 meter each of red and black, 1 meter of 18 AWG silicone wire for protection board wiring

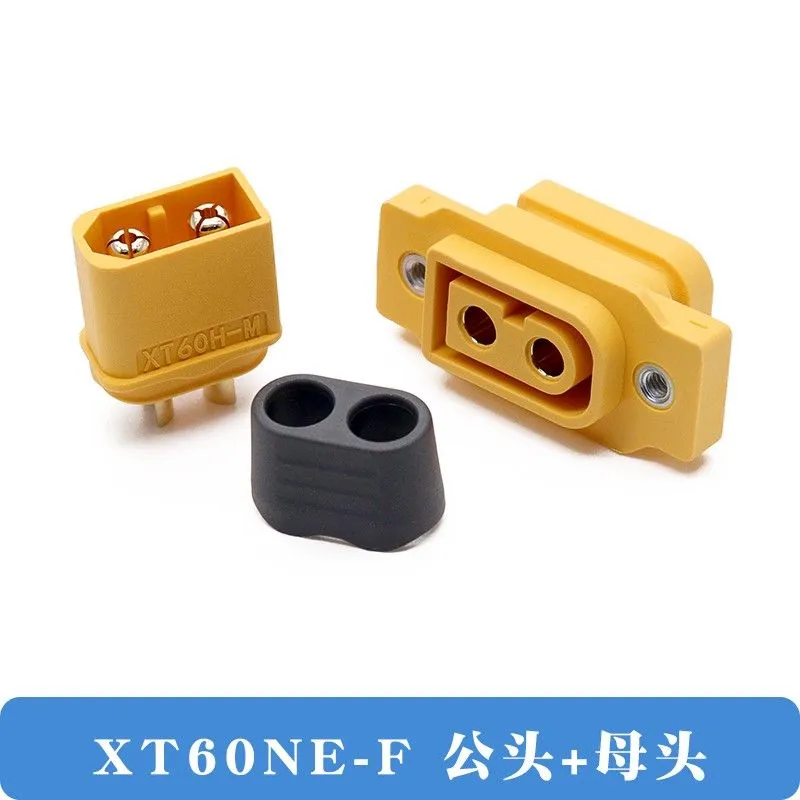

       1 XT60 female connector https://mobile.yangkeduo.com/goods.html?ps=1pglz9YNB8

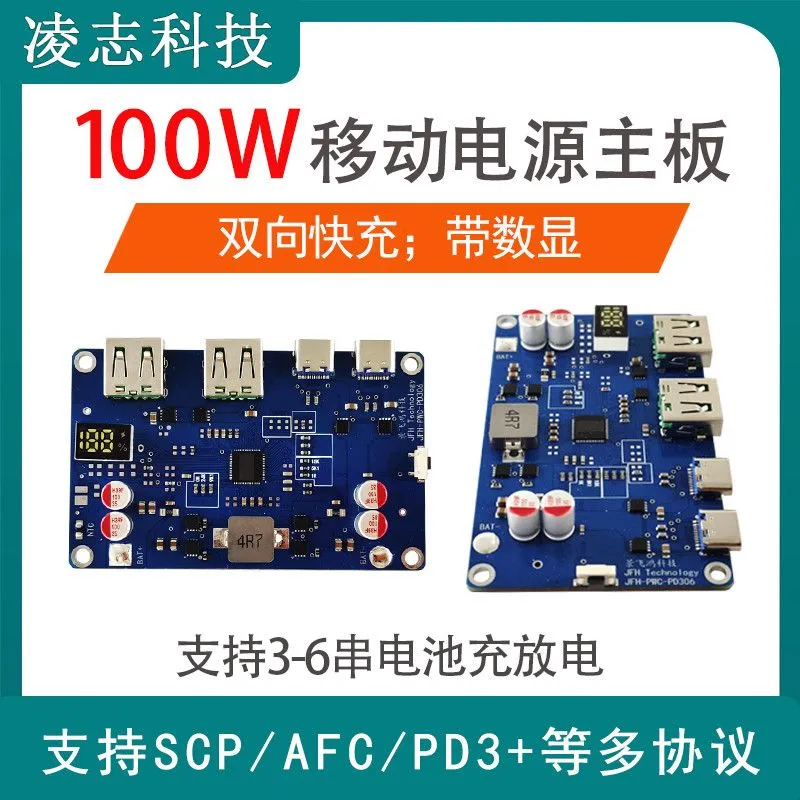

      1 100W charging board that supports 4-series lithium iron phosphate https://mobile.yangkeduo.com/goods2.html?ps=7ikjZwg3CG

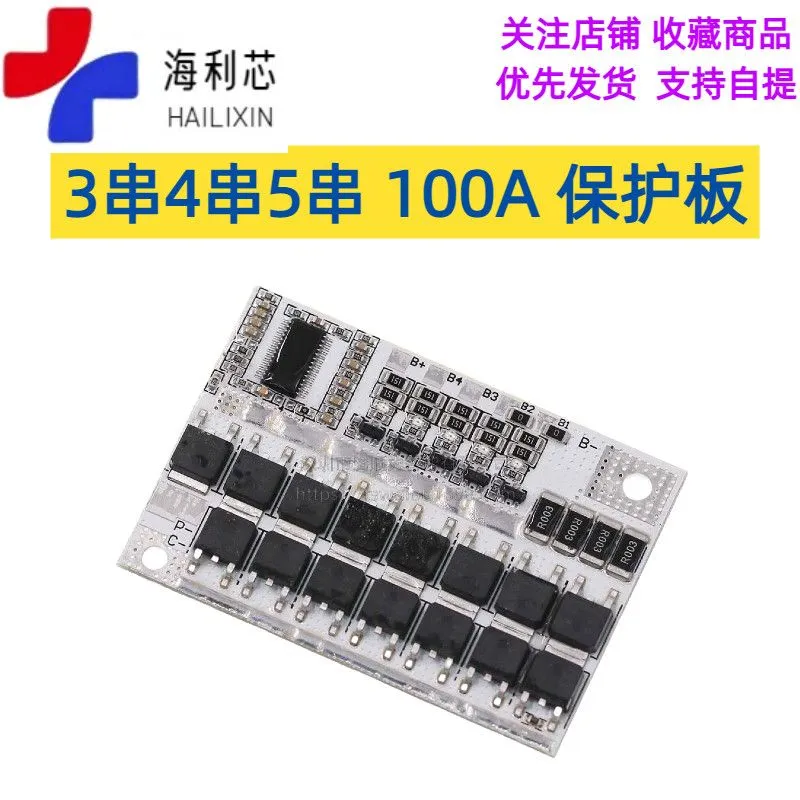

   1 4-series 100A lithium iron phosphate protection board
