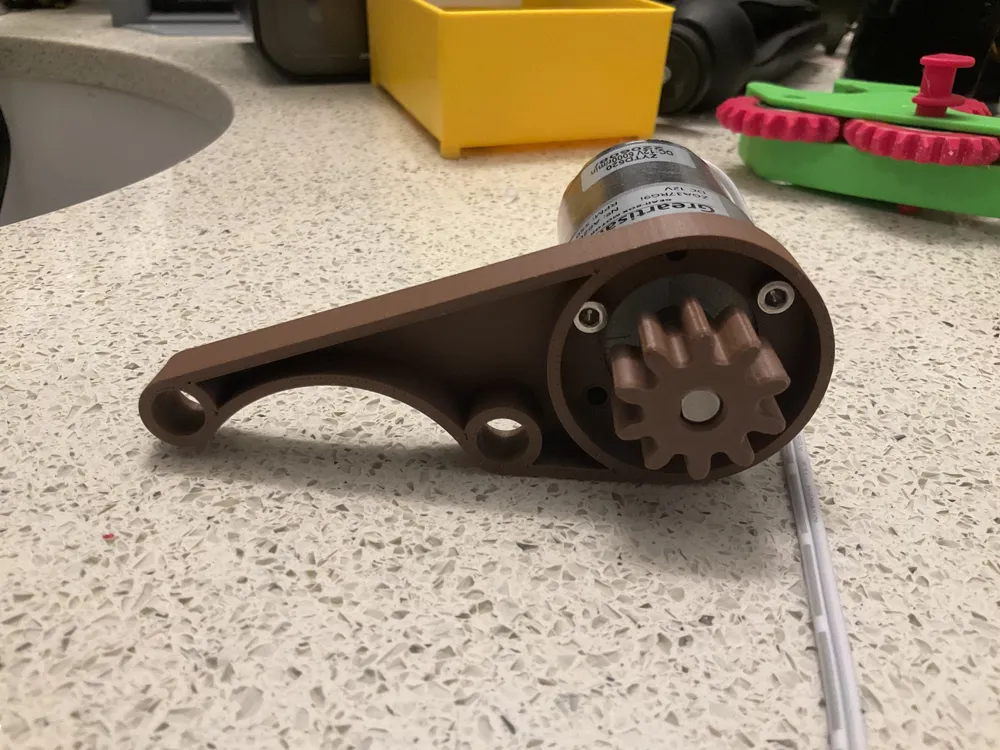

Pastamatic - 37 mm motor mount

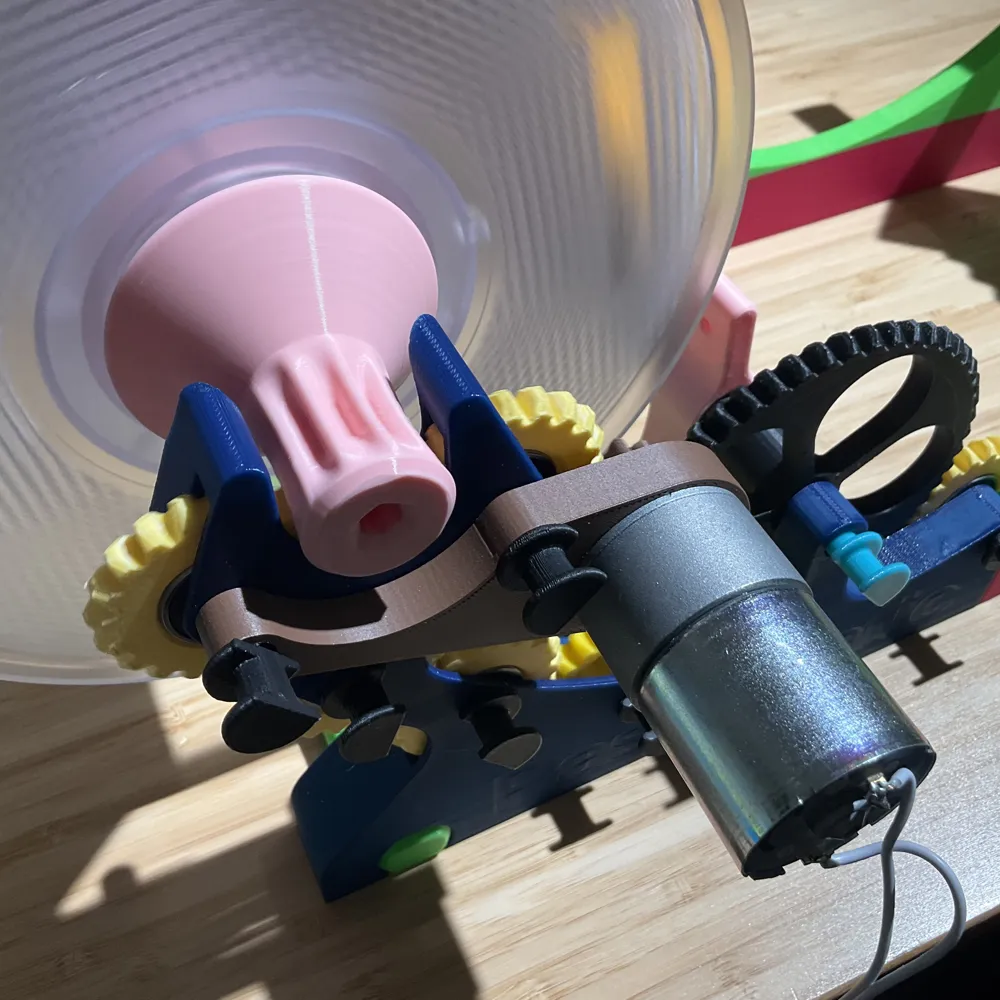

This is an barely tested mockup, it seems to work fine but I haven’t run a full spool through it

Here’s a link to the motor. I used 8mm m3 screws.

https://www.amazon.com/Greartisan-Electric-Reduction-Centric-Diameter/dp/B08D3SSG55/

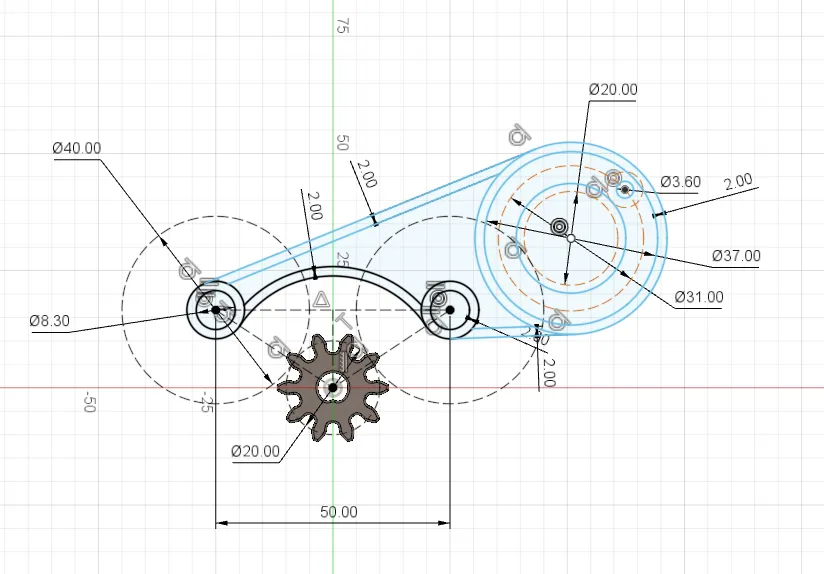

I don’t intend to develop this motor adapter further, just wanted to share the relevant dimensions in an accessible way in case someone else in the community wants to pick it up

To keep with the spirit of the project I’d suggest keeping the cost and variety of non-printed components to a minimum to make the model accessible to as many people as possible.

M3 screws, M3 hex nuts, and 608 bearings are preferred
