Easy Transport System for PVC Floor Tile/Pads
Print Profile(1)
Description
⚒️ No 3D printer? No time to source components?
I just opened my own e-shop where you can buy physical, ready-to-use versions of my models! Designed with passion, printed and assembled with care ⚙️.
📦 Shipping across the EU: 👉 Get it at NautilusForge.shop
Boost Me (for free)
Like this model? A free Boost is always appreciated! It supports the time that goes into designing and testing. Thank you so much! 😊🙌

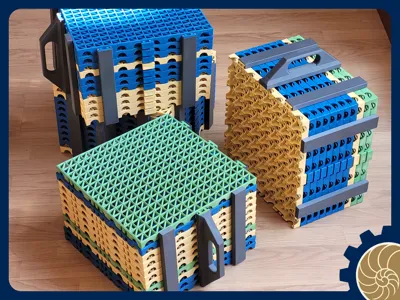

I have those pads/ caoutchouc floor tiles at home and I “needed” a way to transport/store them easily when not being used… So here we are.
1 Tile dimension: 33cm x 33cm x 2cm
Print:
- I used ABS, 3 walls, 10% infill
- 1 handle can carry 11 tiles no problem (ABS)
- For the handle, supports are required (see 3mf file) (bridging would be 80mm which might be too long)
- Sides need no support
Use:

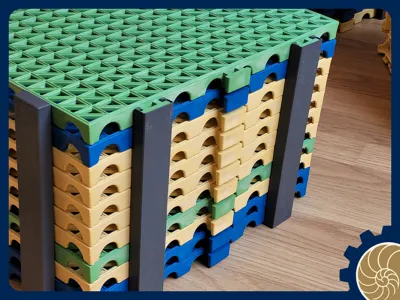

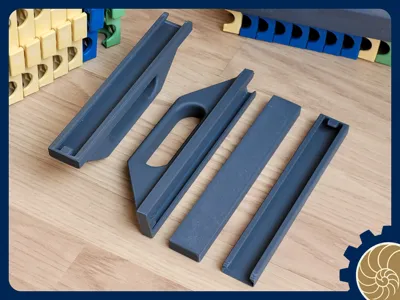

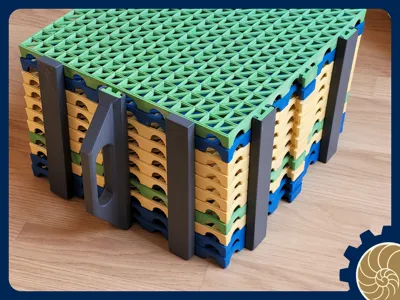

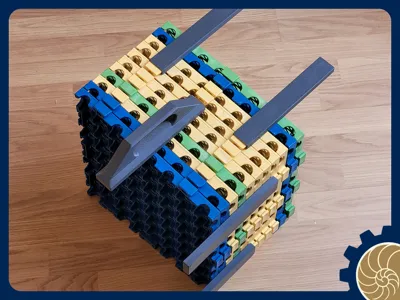

Slide the adaptors on two sides and add one handle. Its a tight fit by design so the adaptors don't quite on you during transport.
Scaling:
Current scale accommodates for 11 tiles grouping, but you can scale the length of the model in the slicer for your prefered grouping.
Here is a “conversion” table
Tiles | Scale in mm (long side only) |
|---|---|
11 | 220 |
10 | 200 |
5 | 100 |
15 | 300 (maybe 2 handles are needed ?) |
1 | 20 (you get the idea) |
More info:

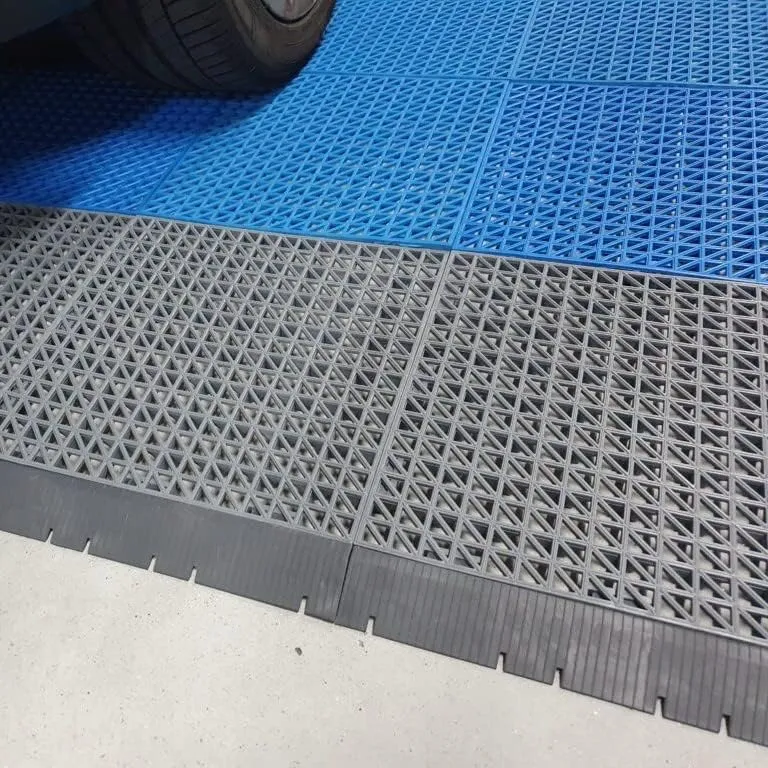

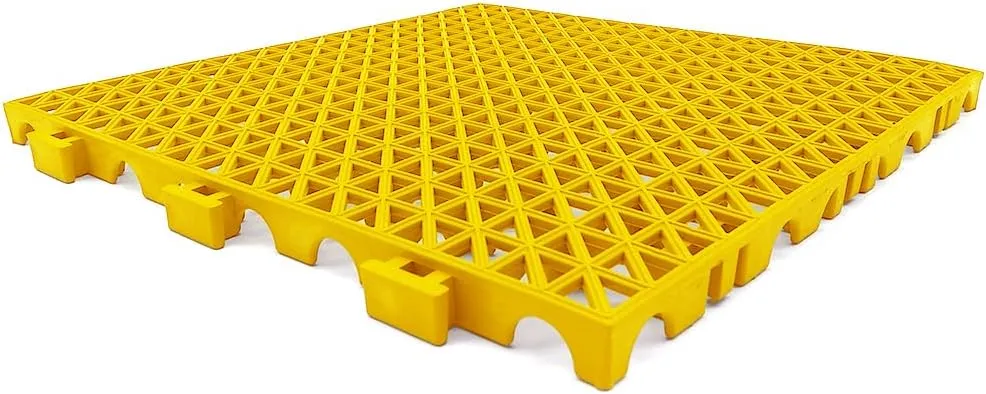

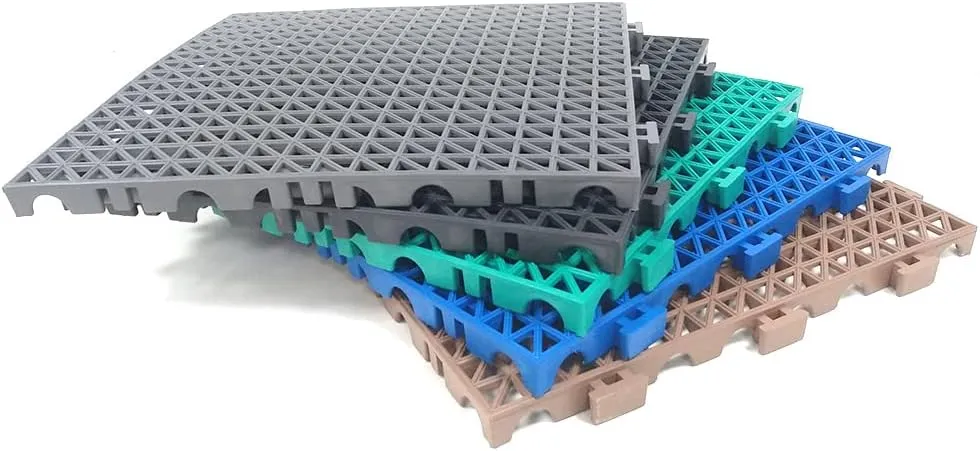

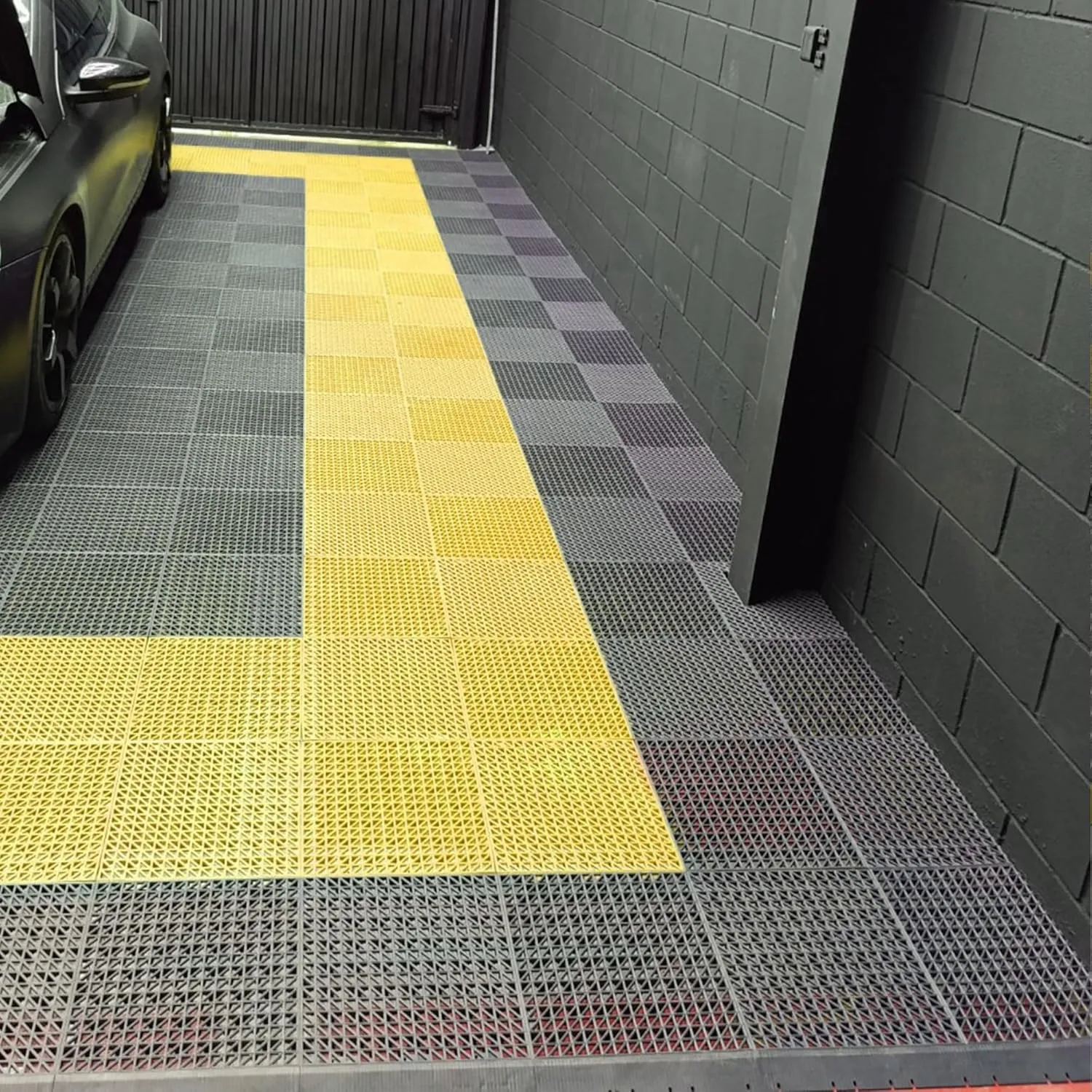

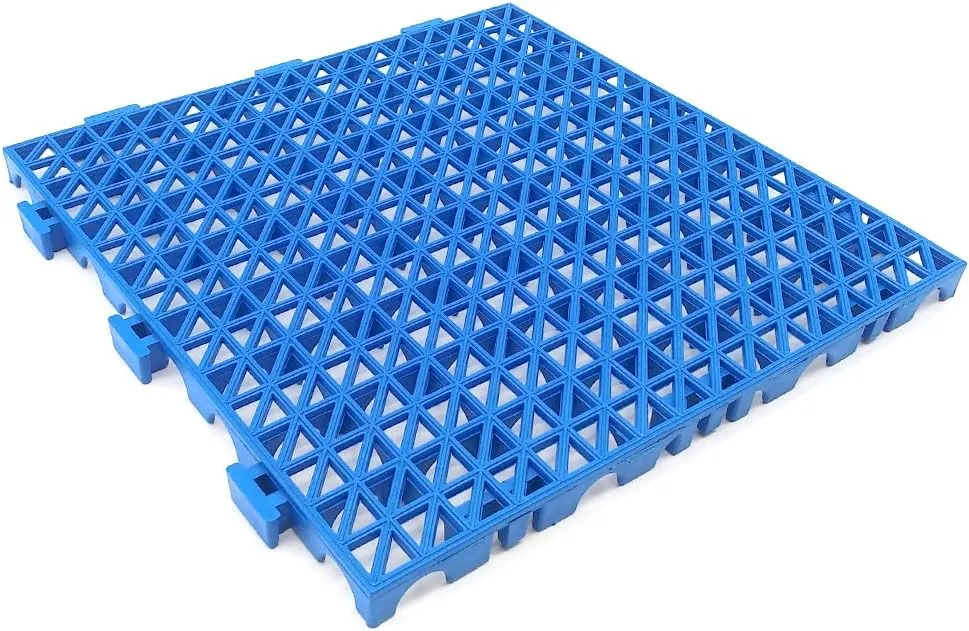

For dimension and references here are vendor pictures of the exact pad/tiles I have. It seems to be a pretty generic chineese model available in many store (aliexpress, amazon, temu, etc)
keywords: “PVC Reinforced Tile (33cmx33cmx2cm) - Floors of garages, car washes, warehouses. Work and High traffic areas”
 |  |  |
 |  |  |

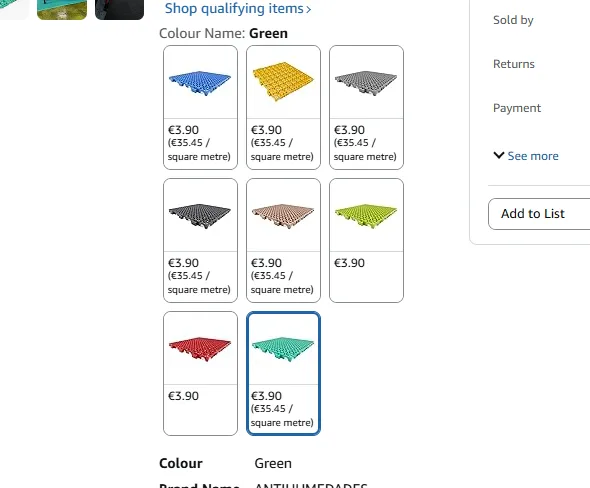

Available in various stores, seems quite generic:
Hope it helps !!
