Snap-Lock Phone Box
Print Profile(1)
Description

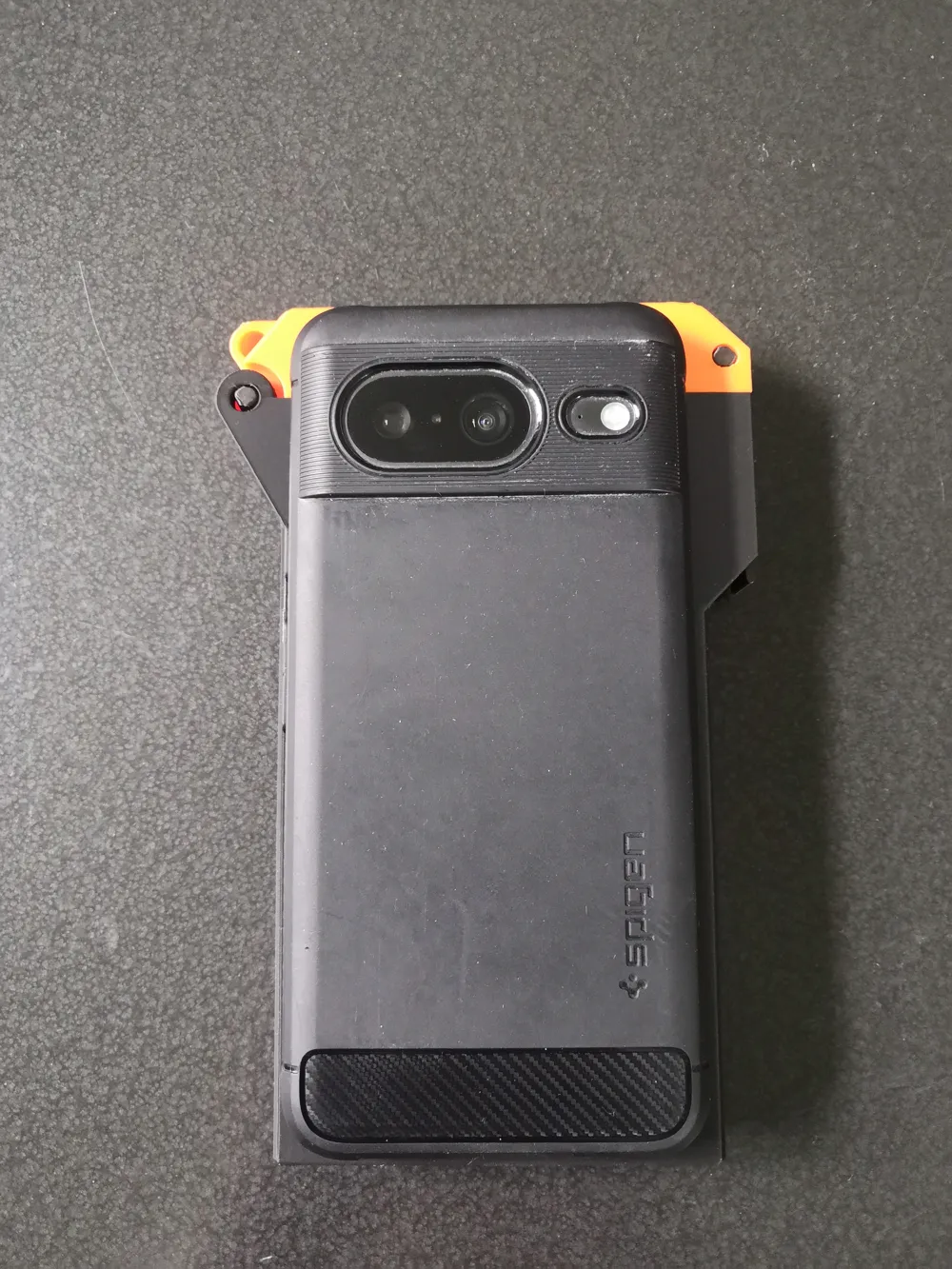

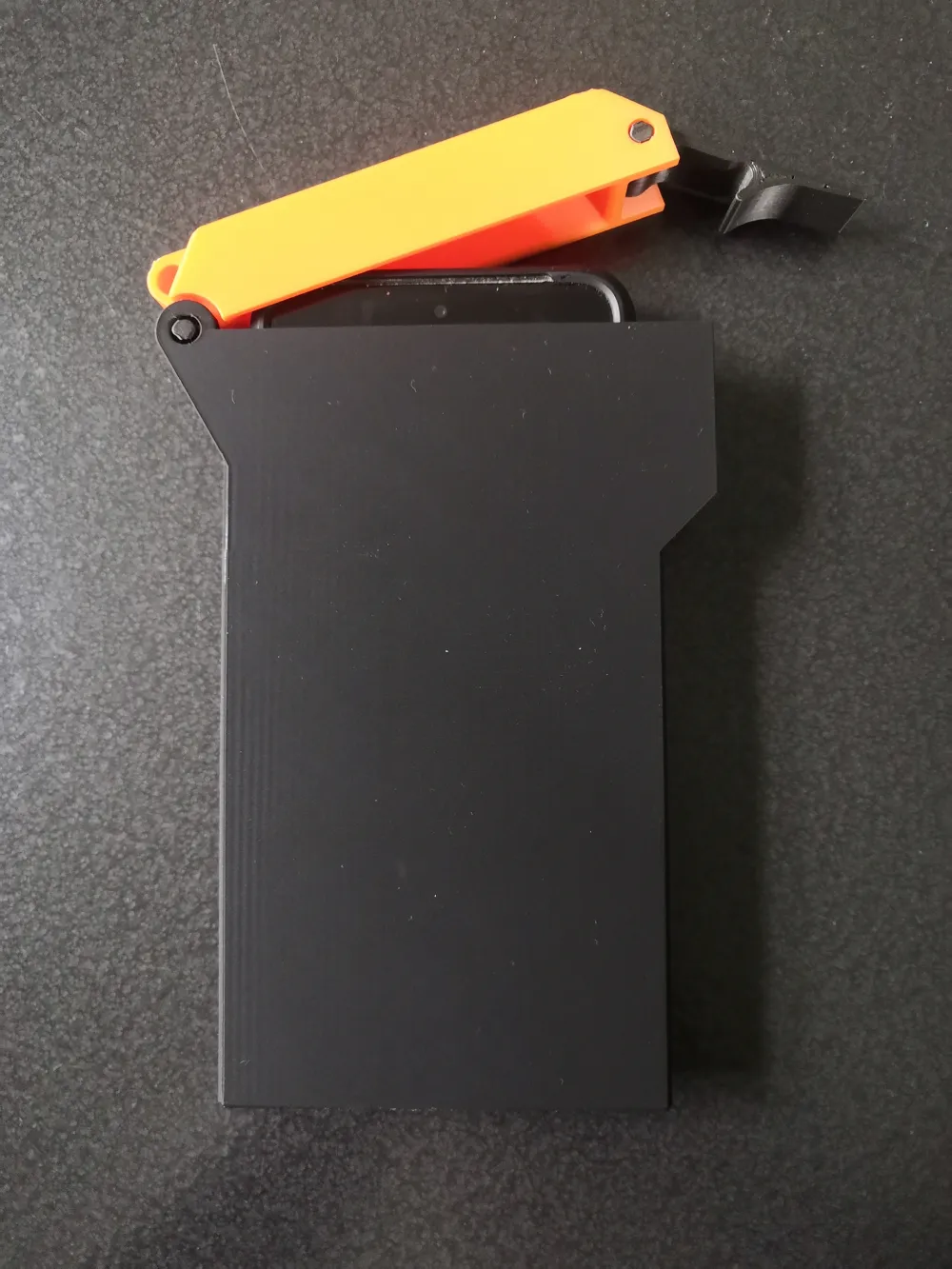

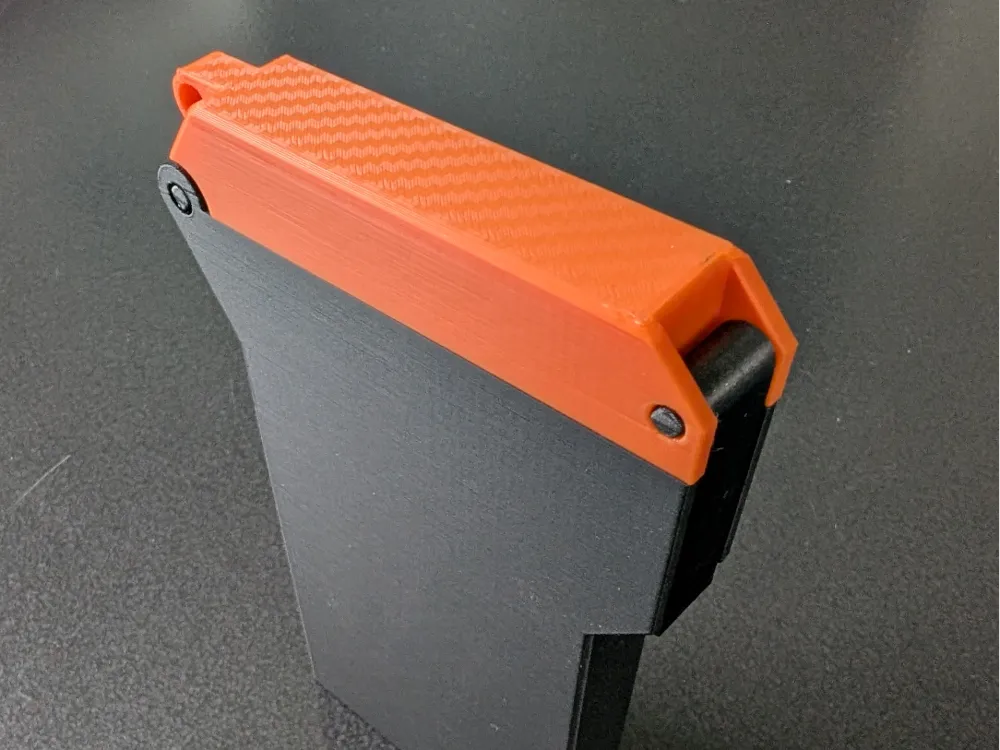

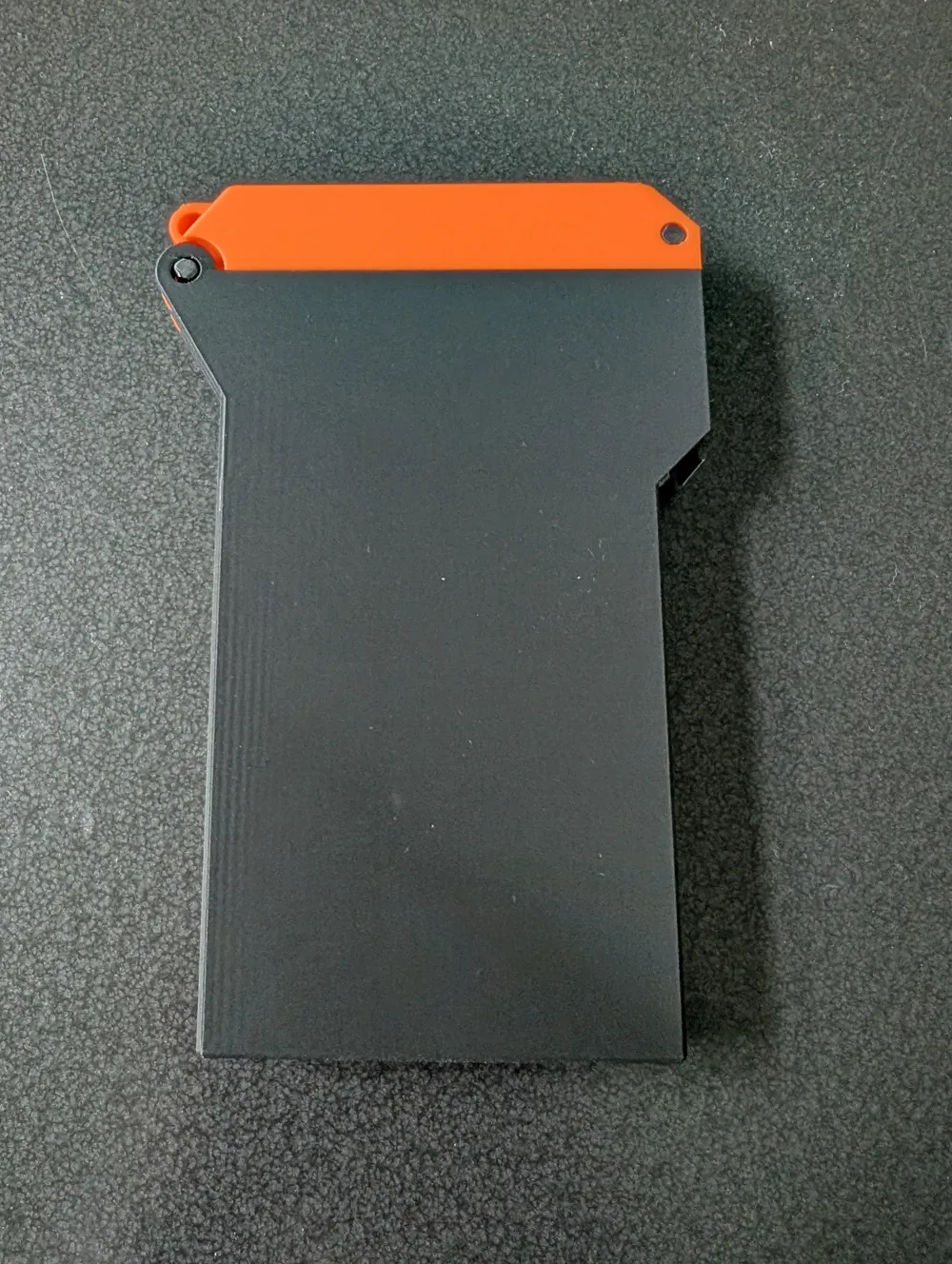

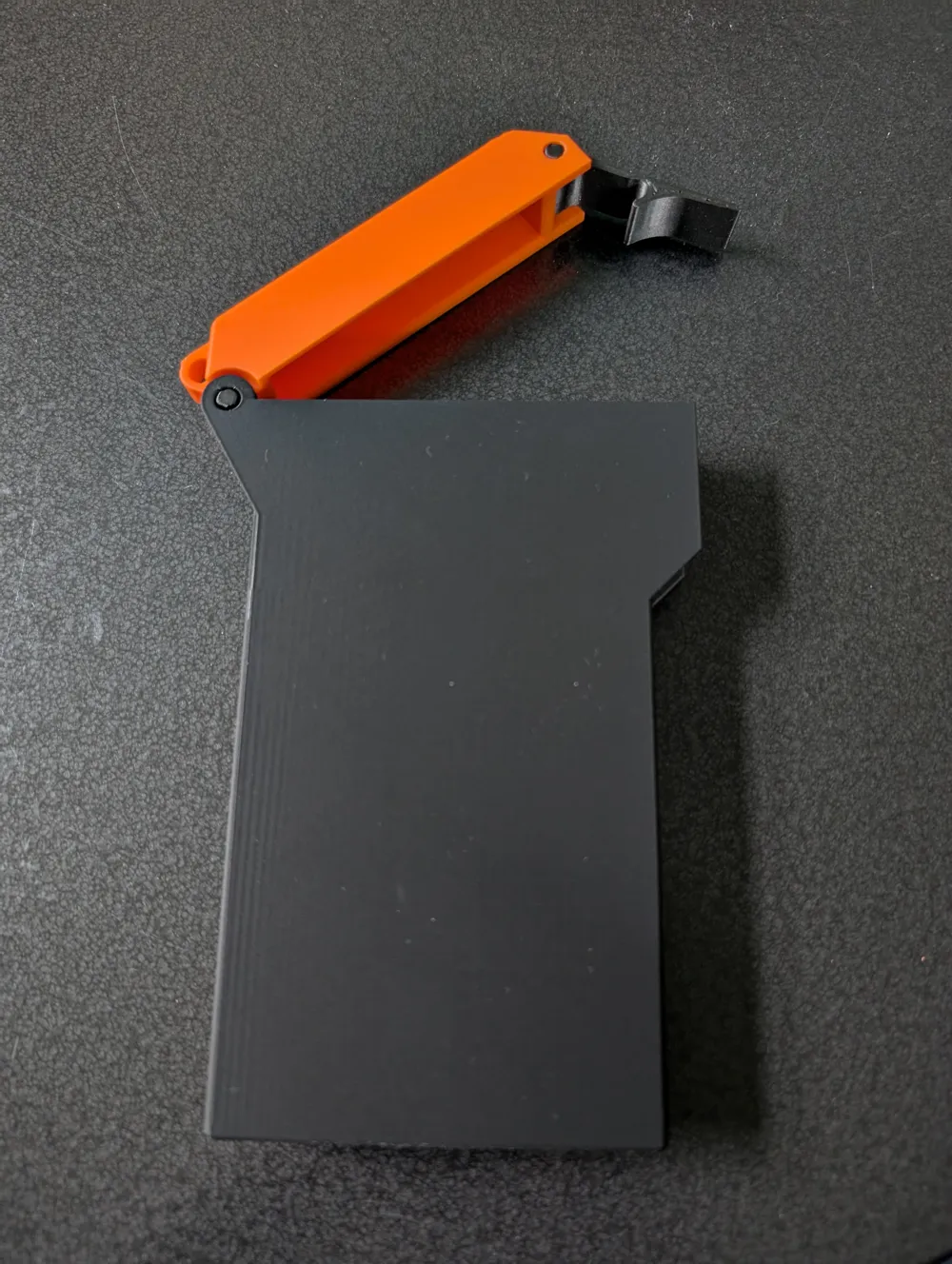

A simple snap-lock phone box for your phone. In my case for a Pixel 8 with a 3rd-party protective case, resulting in a very snug fit. The inner dimension are: 157mmx76mmx12.5mm (15mm depth where the camera starts). So if your phone fits into these dimension, it should work as well. A small hole for some cord is added at the top cover. No additional parts are necessary, as both pins are printed.
The pins for the hinges have a very tight fit but work for me. Should they be too tight/loose in your prints, adapt their size in ~2% steps in the slicer accordingly and try again. Sometimes rotating them also does the trick, as one side is flat which might better fit the slightly oval hole (due to omission of support structures). Step-files are included if you want to adapt sizing to fit to your phone.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
