Dry & Dry Lid + Pour Spout

Remixed by

Print Profile(2)

All
P1S
A1 mini
X1
A1
P1P
H2D
X1E
X1 Carbon
H2D Pro
H2S
P2S
H2C
X2D
A2L

Lid/Spout - 0.2mm layer, 3 walls, 15% infill, support block
Lid/Spout - 0.2mm layer, 3 walls, 15% infill, support block
Designer
1.2 h
1 plate
5.0(3)

Gasket - 0.2mm layer, 3 walls, 100% infill
Gasket - 0.2mm layer, 3 walls, 100% infill
Designer
14 min
1 plate

Open in Bambu Studio
Boost
13
49
3
0
28
13
Released

Description

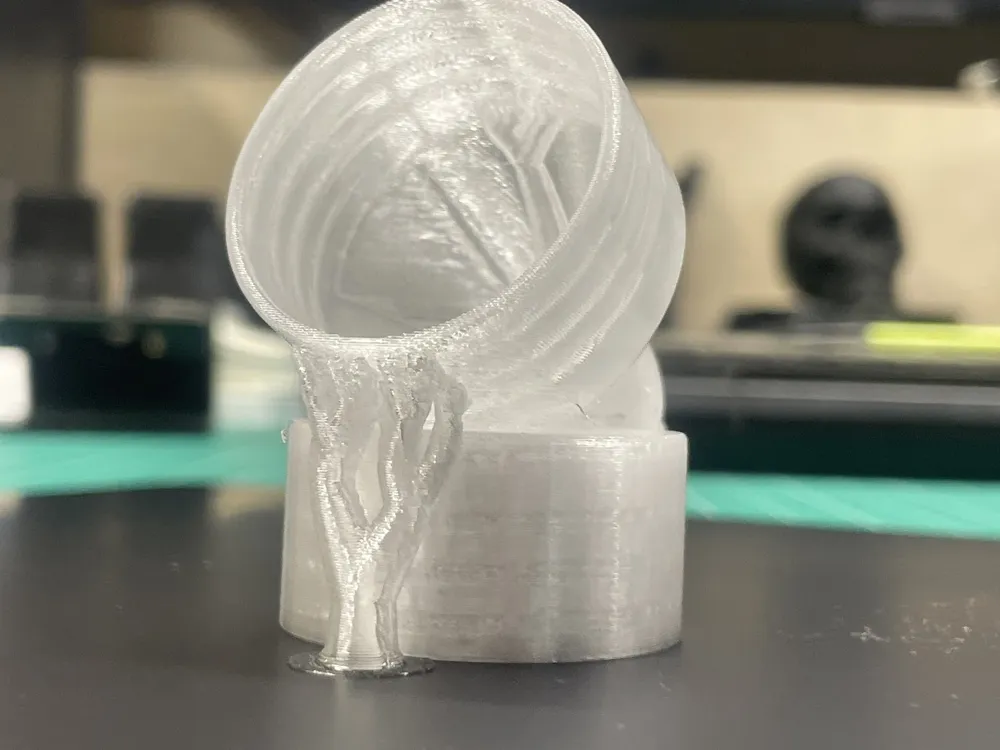

Warning: do not speed up the print. The default profile has a support block going through an overhang in order to avoid supports messing up the threads. Higher speeds could cause layer sag or print failure.



The spouts and pour cups that exist are great, but I wanted something that stayed with the jug so this was my solution.

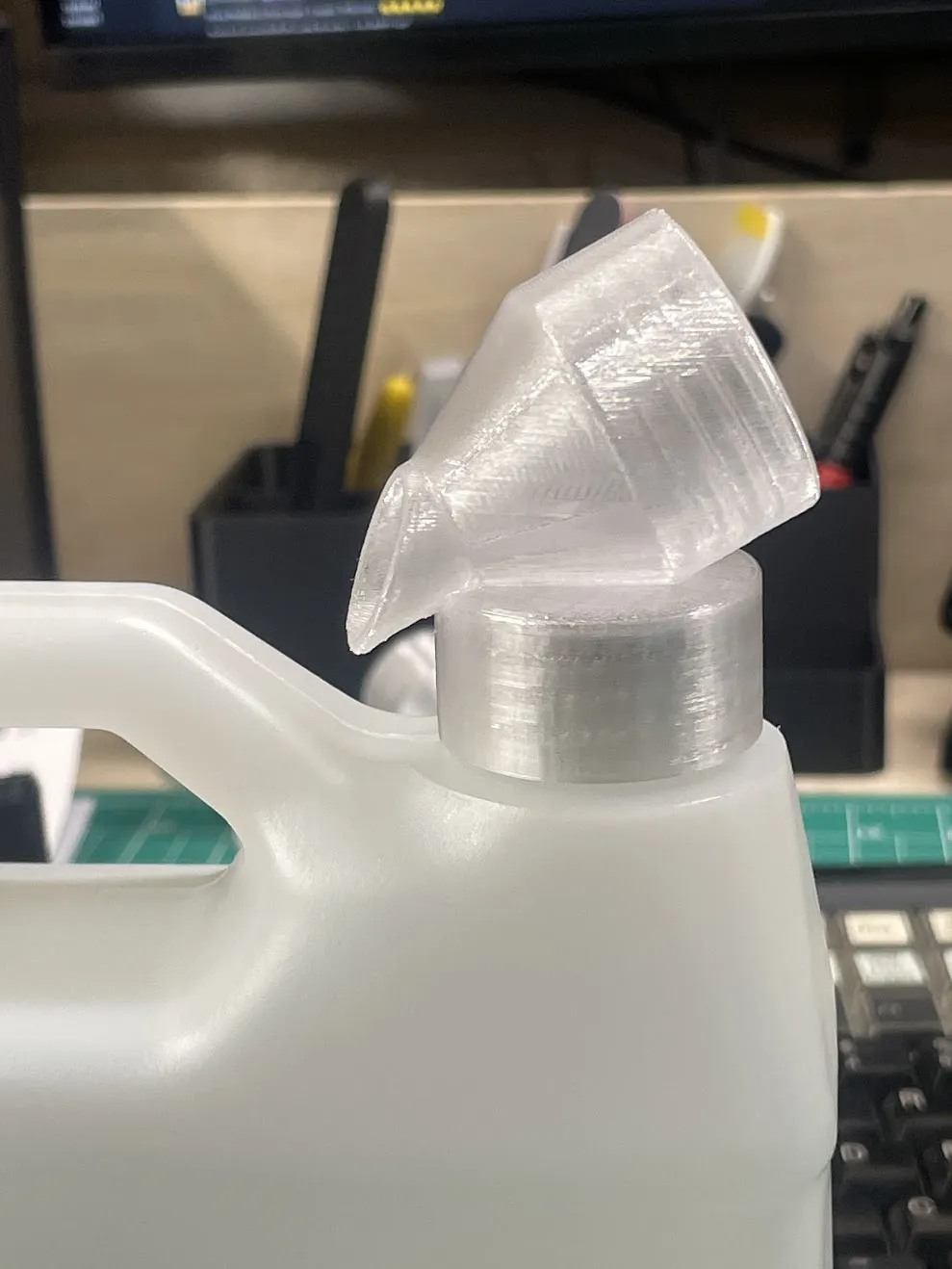

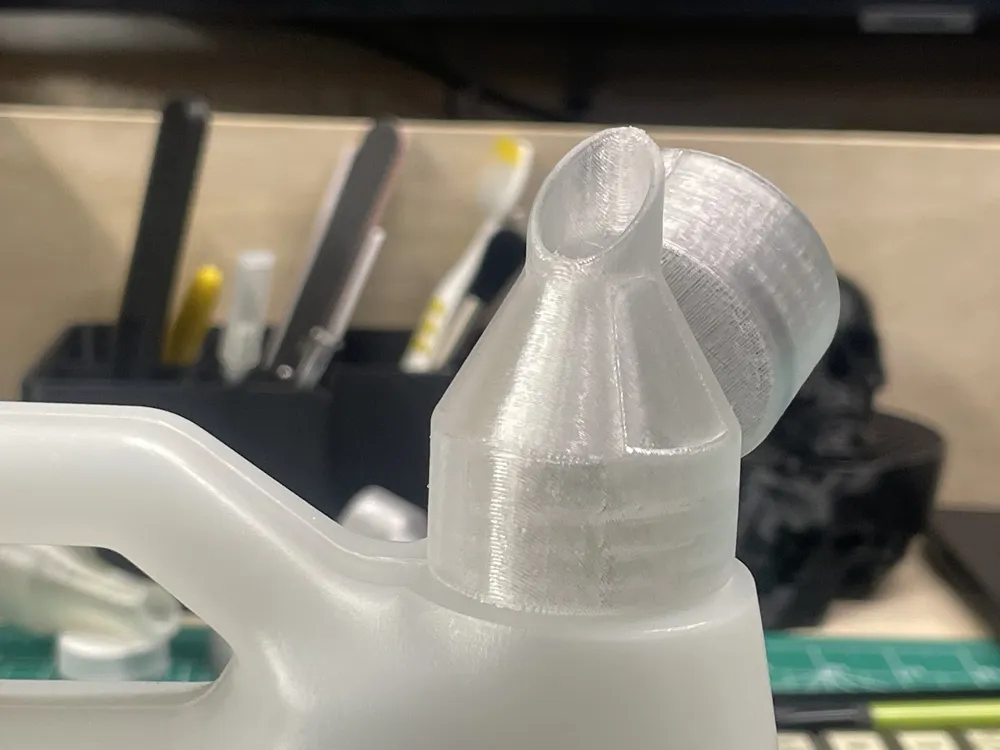

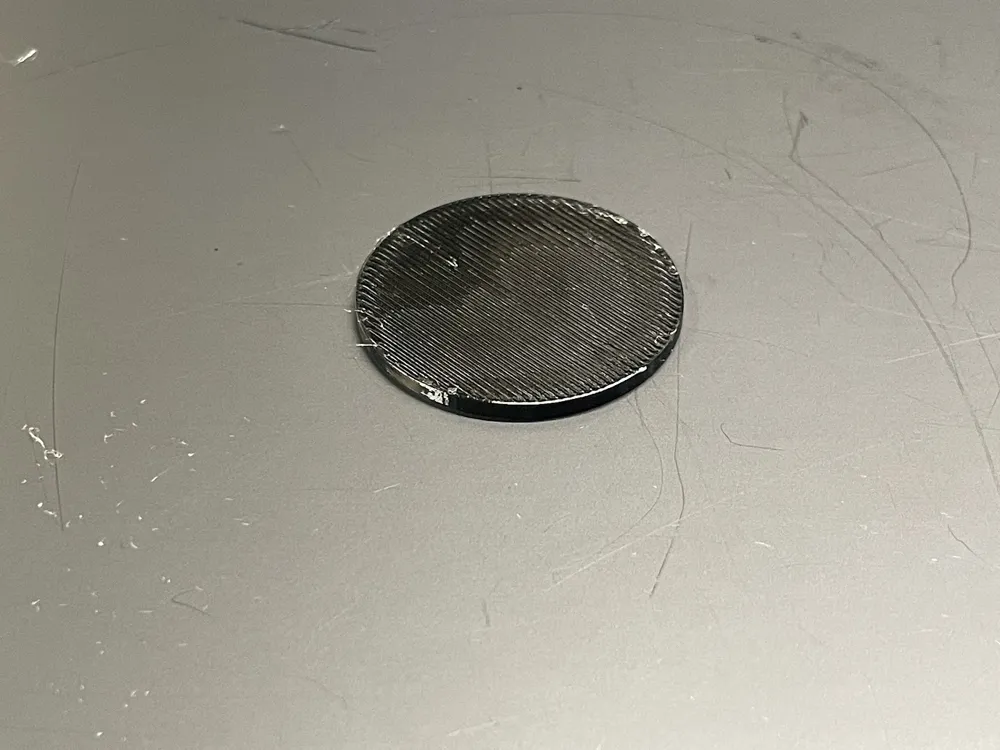

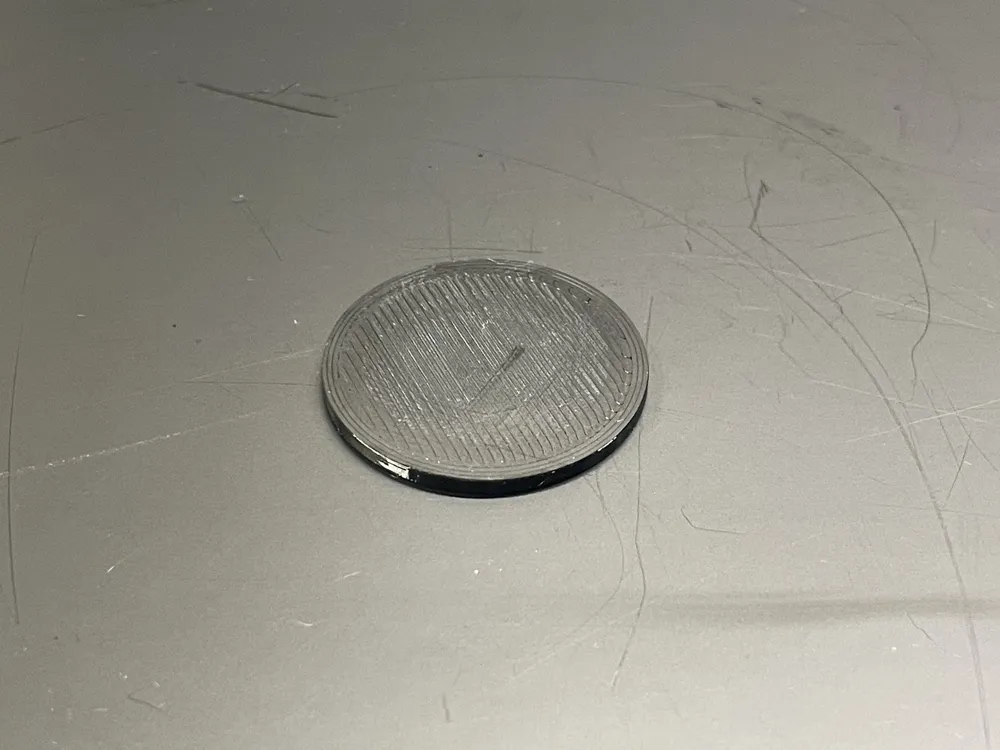

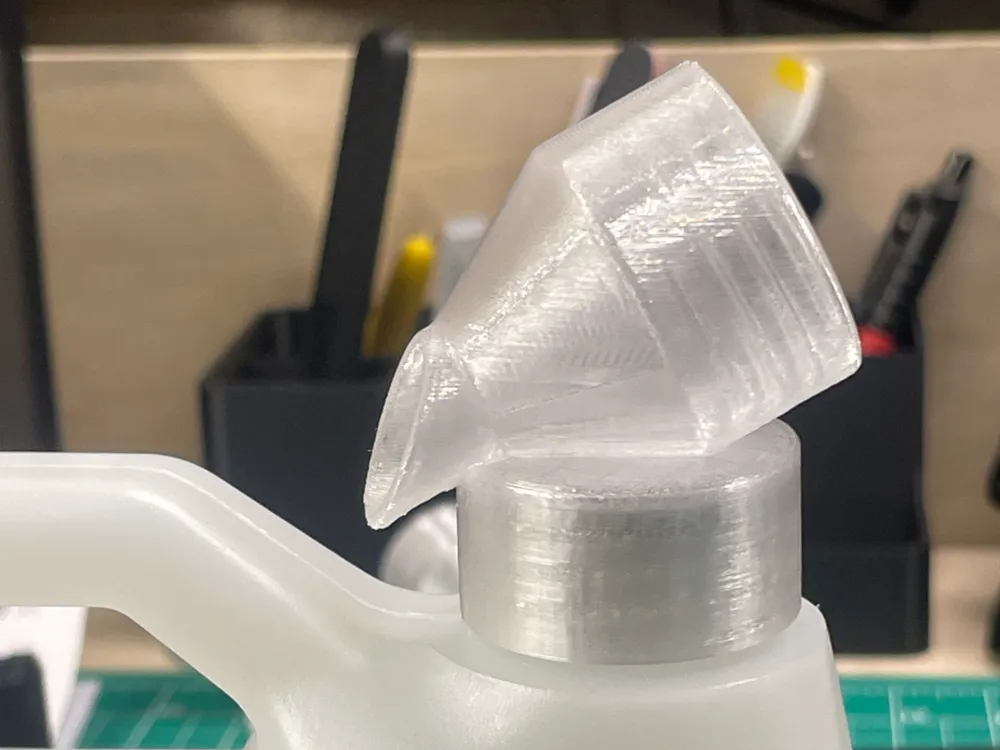

Lid and pour spout for 1 quart / 2 lb jugs of Dry & Dry desiccant, including gasket. Gasket is recommended but not necessary, lid has a better seal without the gasket than the stock lid.



If you squeeze an empty jug with the stock lid, you'll notice that air escapes. That will not happen with this lid along with the gasket.



I printed mine in PETG, gasket in TPU. PLA would probably be fine for the lid/spout, but I'd skip the gasket if you don't have TPU.



This is a remix of one item from Verbatim_T's Dry & Dry Desiccant Funnel + Spout
