Mini Hinge - No supports Fast Print

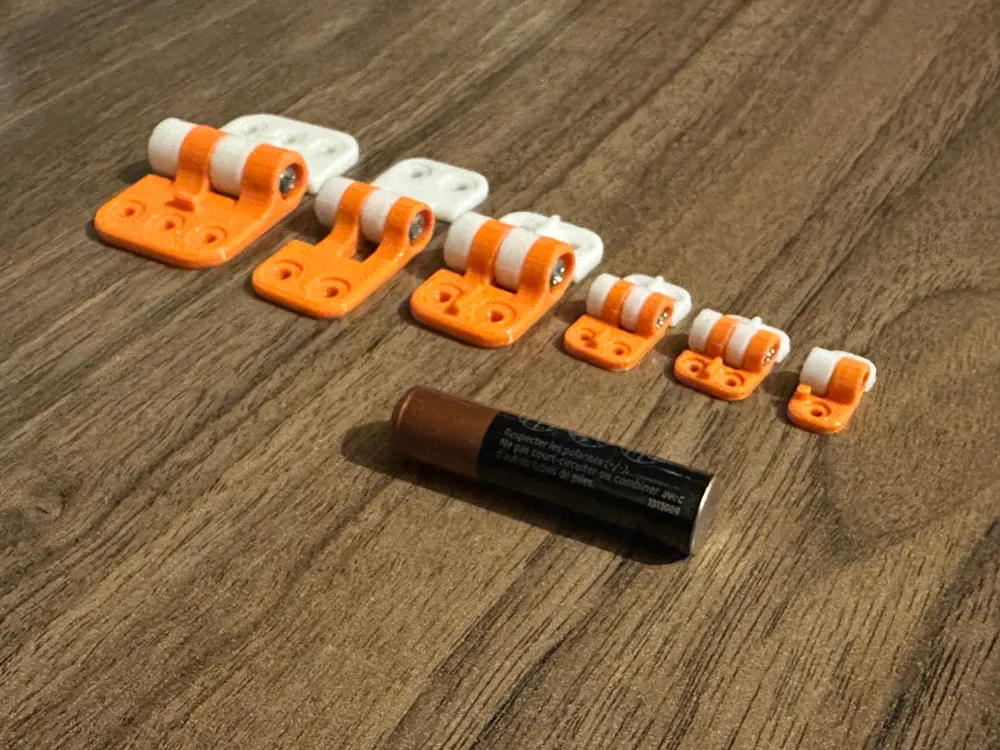

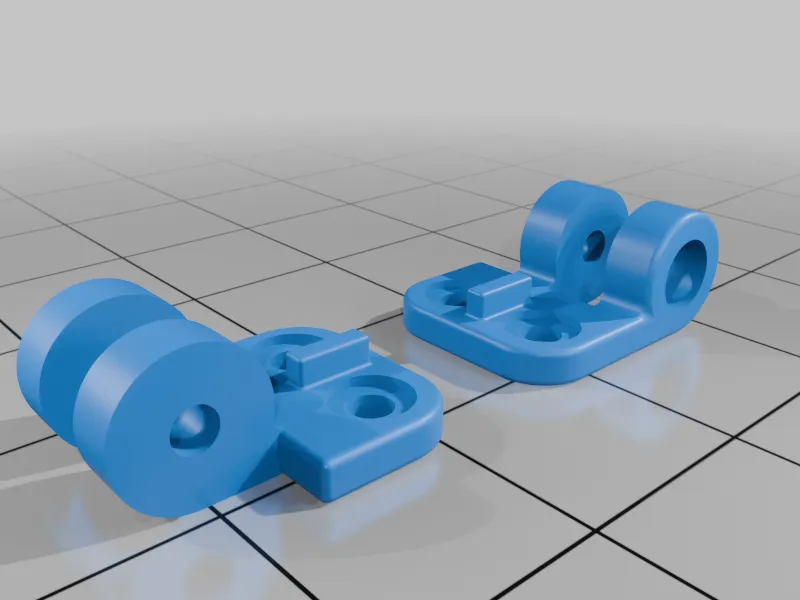

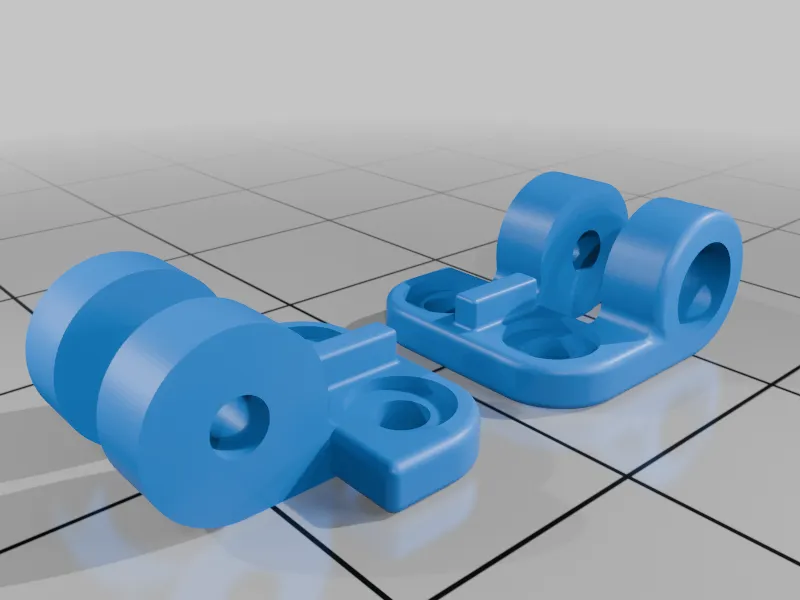

I designed two versions of a compact micro hinge (V1 & V2) .

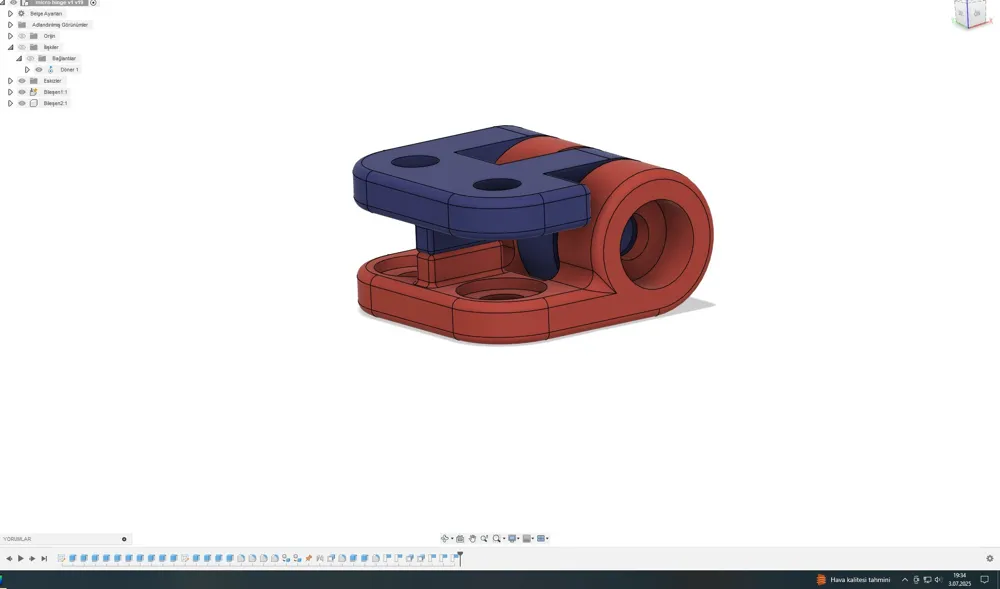

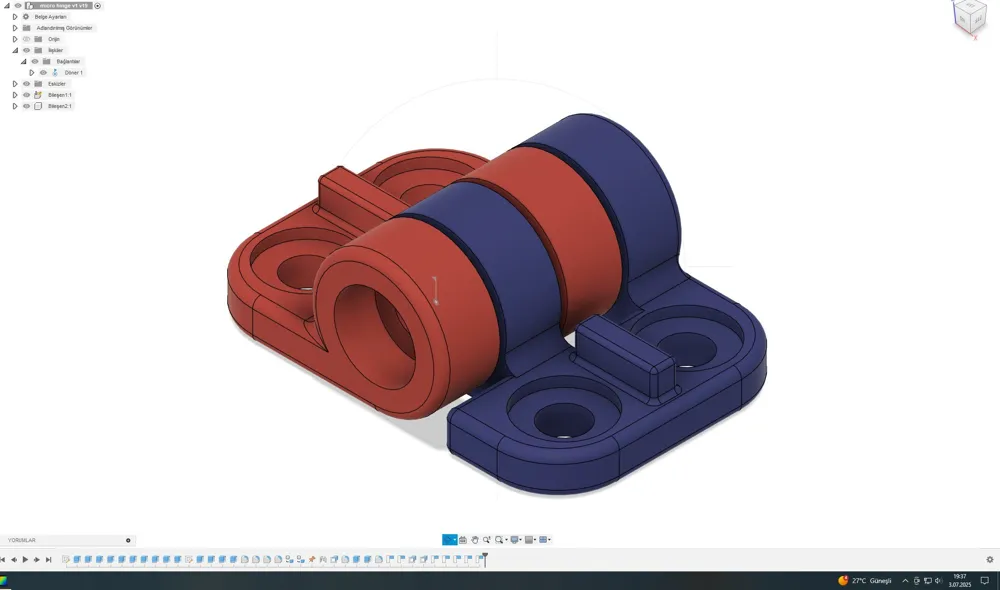

🔄 Movement:

• Closing direction: 180° (with a built-in stop block to prevent over-rotation)
• Opening direction: 90°
• Total range of motion: 270°

📏 Dimensions:

• V1: 18 × 12 × 6.6 mm
• V2: 23 × 12 × 7 mm

🖨️ Printing Tips:

• Infill: 100% for maximum strength
• Supports: Not required

🔧 Hardware Needed:

• 1 × M2 × 10 mm bolt
• 1 × M2 nut
