Electric Guitar Effects Pedal Tone Selector
Print Profile(1)
Description

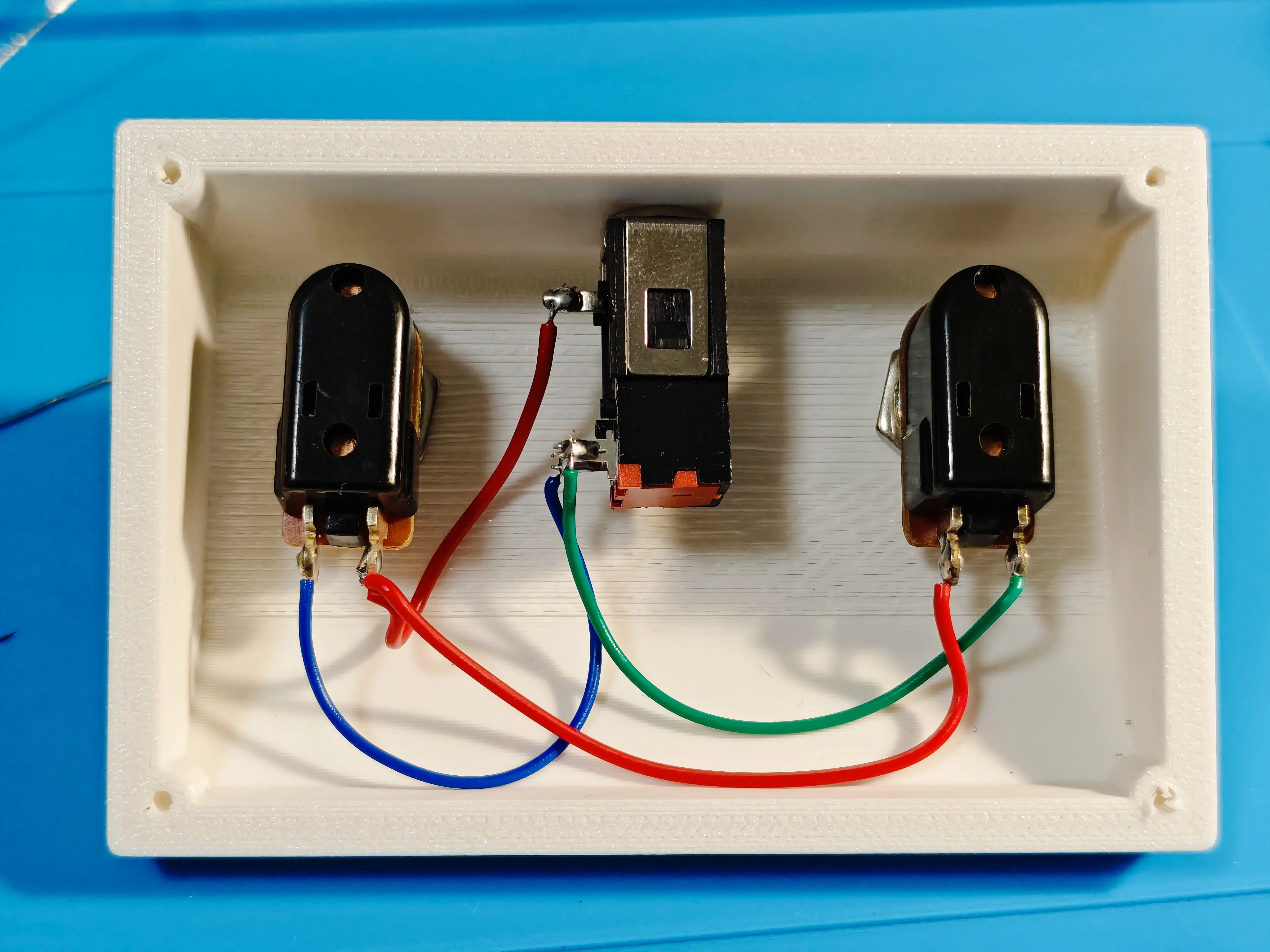

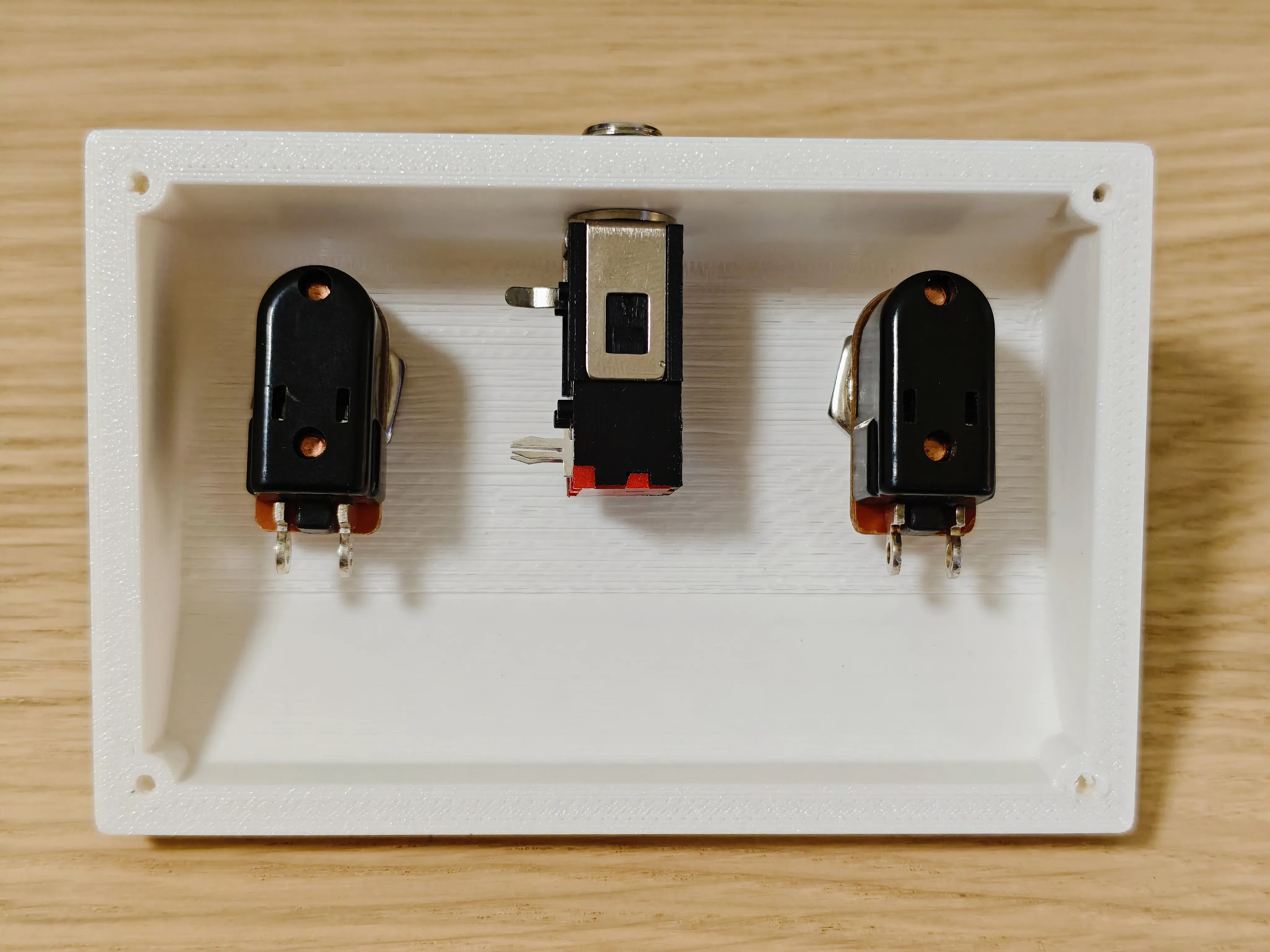

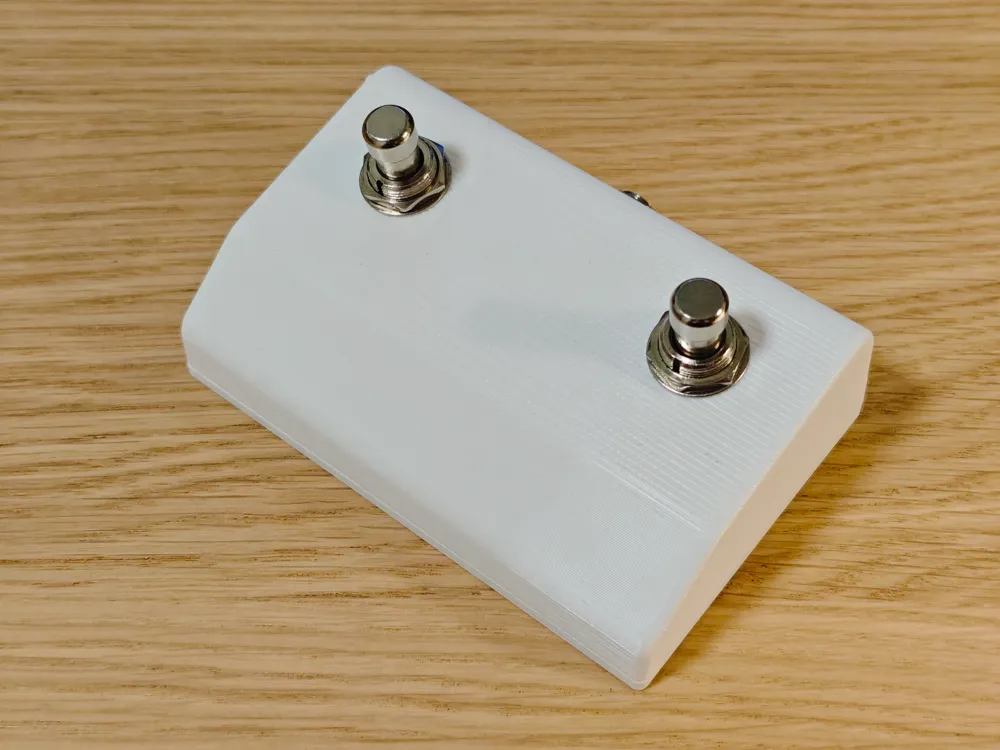

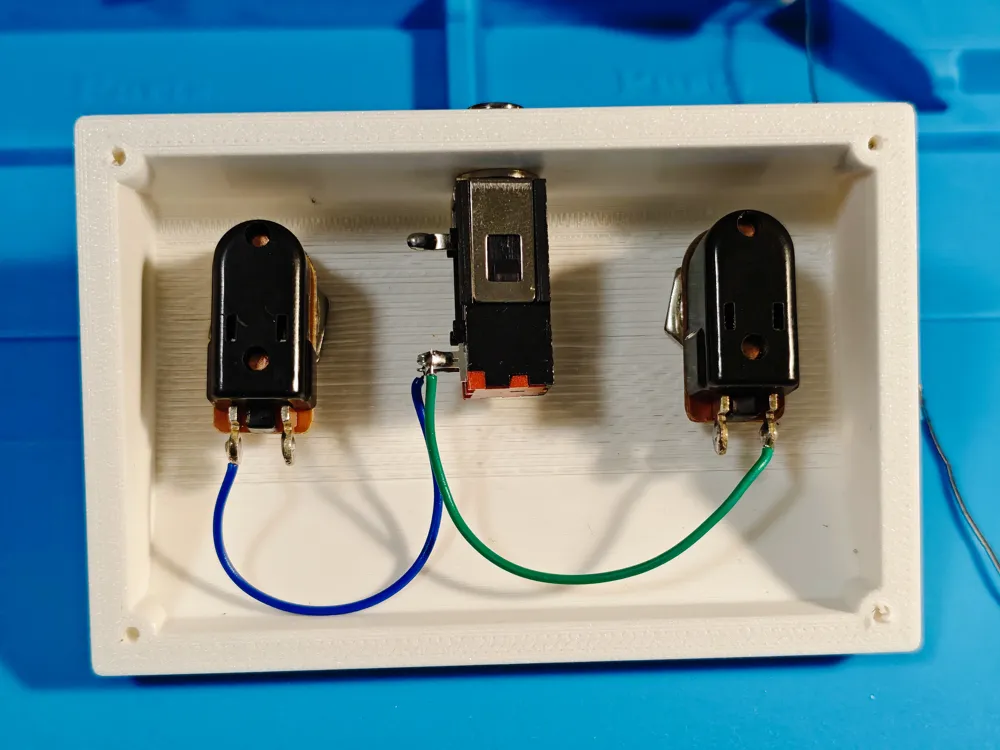

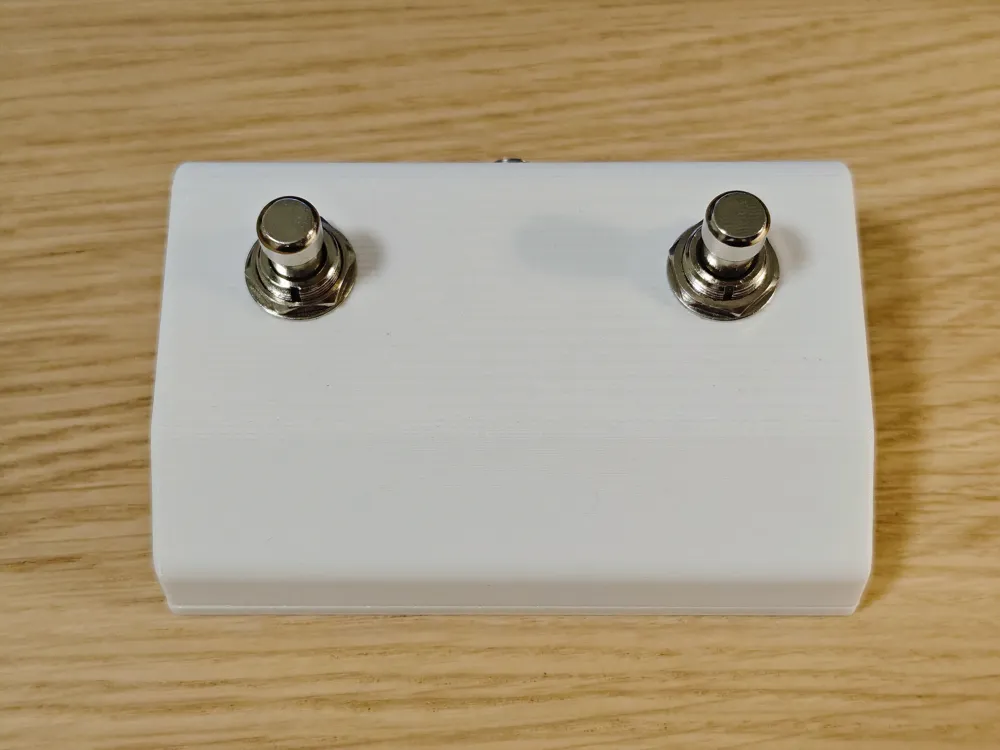

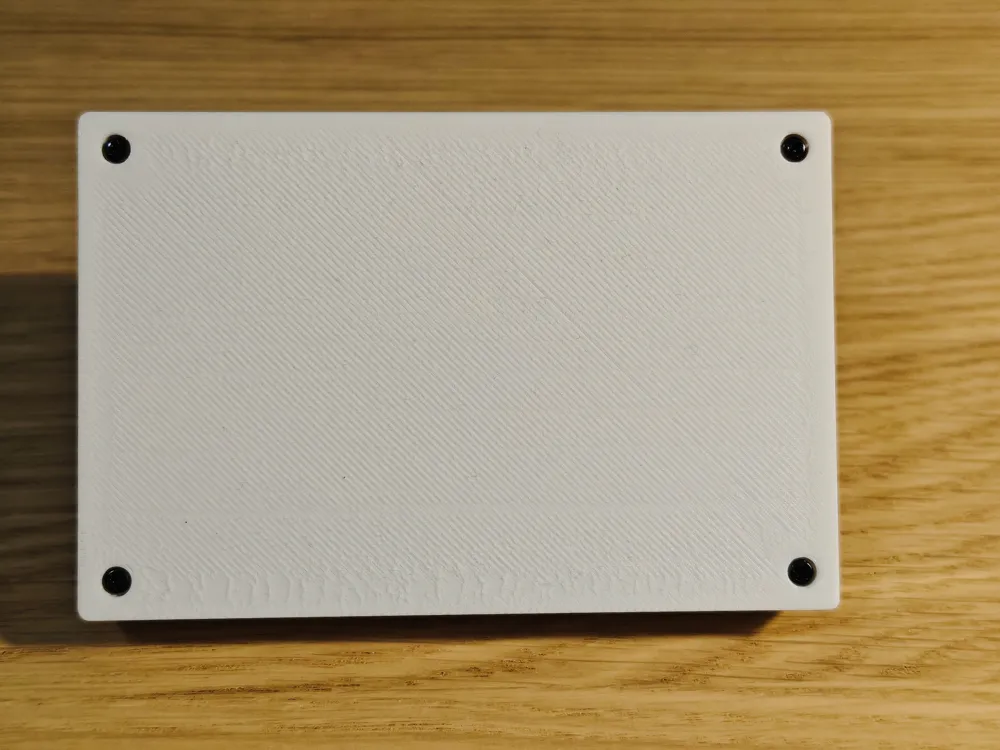

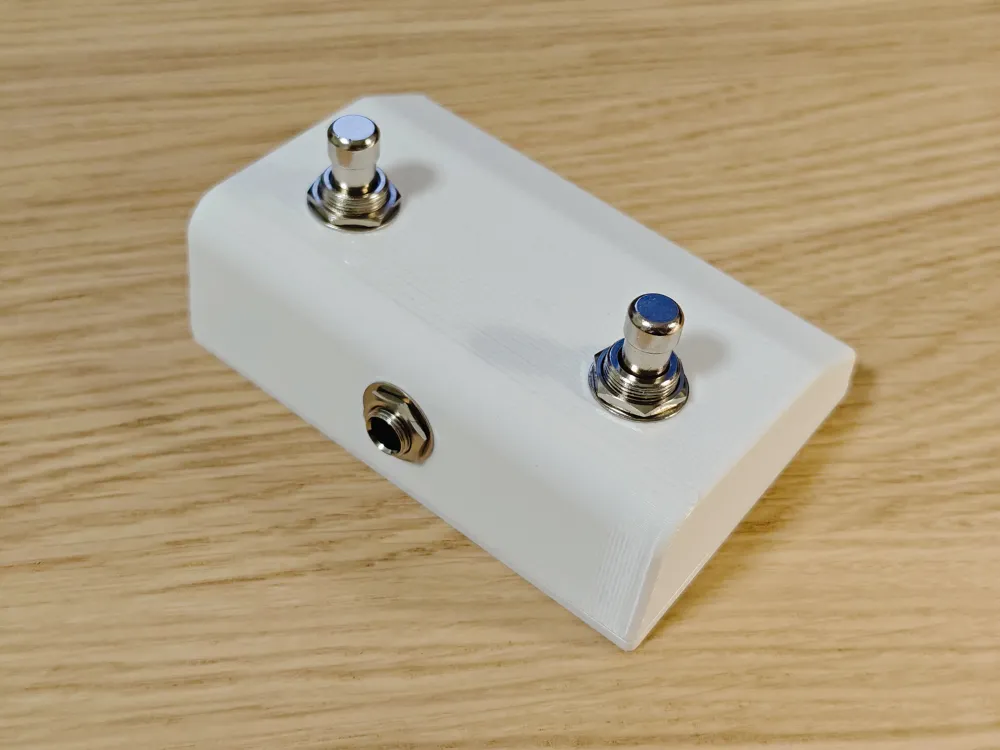

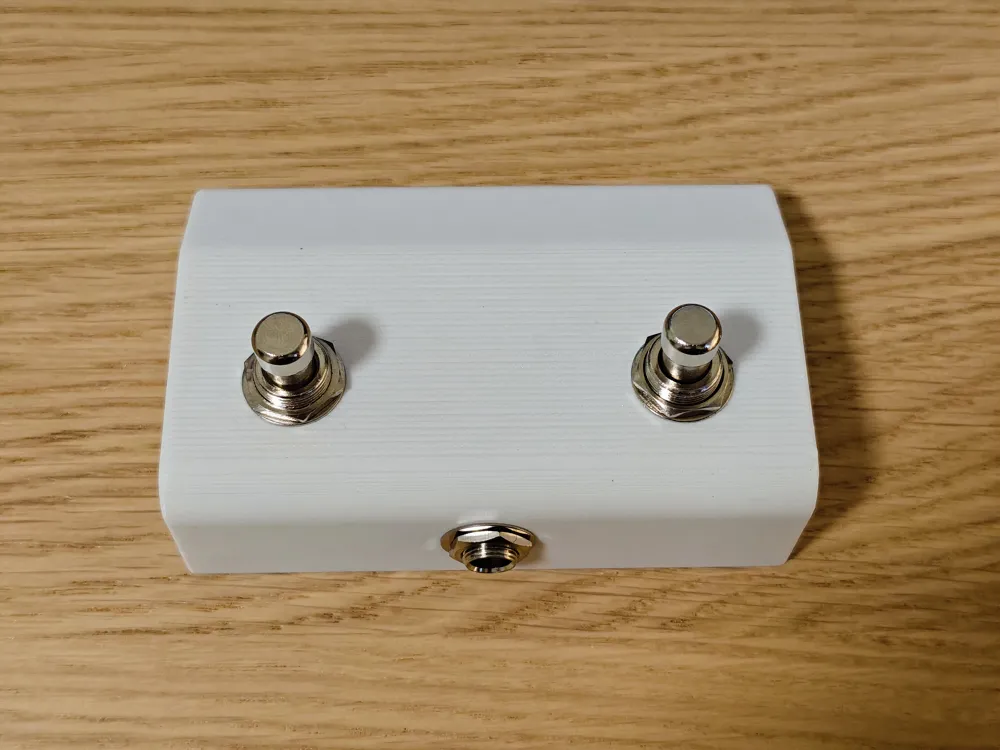

A dual-channel momentary footswitch designed for modern multi-effects processors, enabling precise switching of device channels/presets via dual footswitches. No complex programming required, compatible with mainstream brands such as BOSS, LINE6, Hotone, and more. 3D printed casing with a perfect curved design, offering a cost-effective alternative to products costing hundreds of dollars.

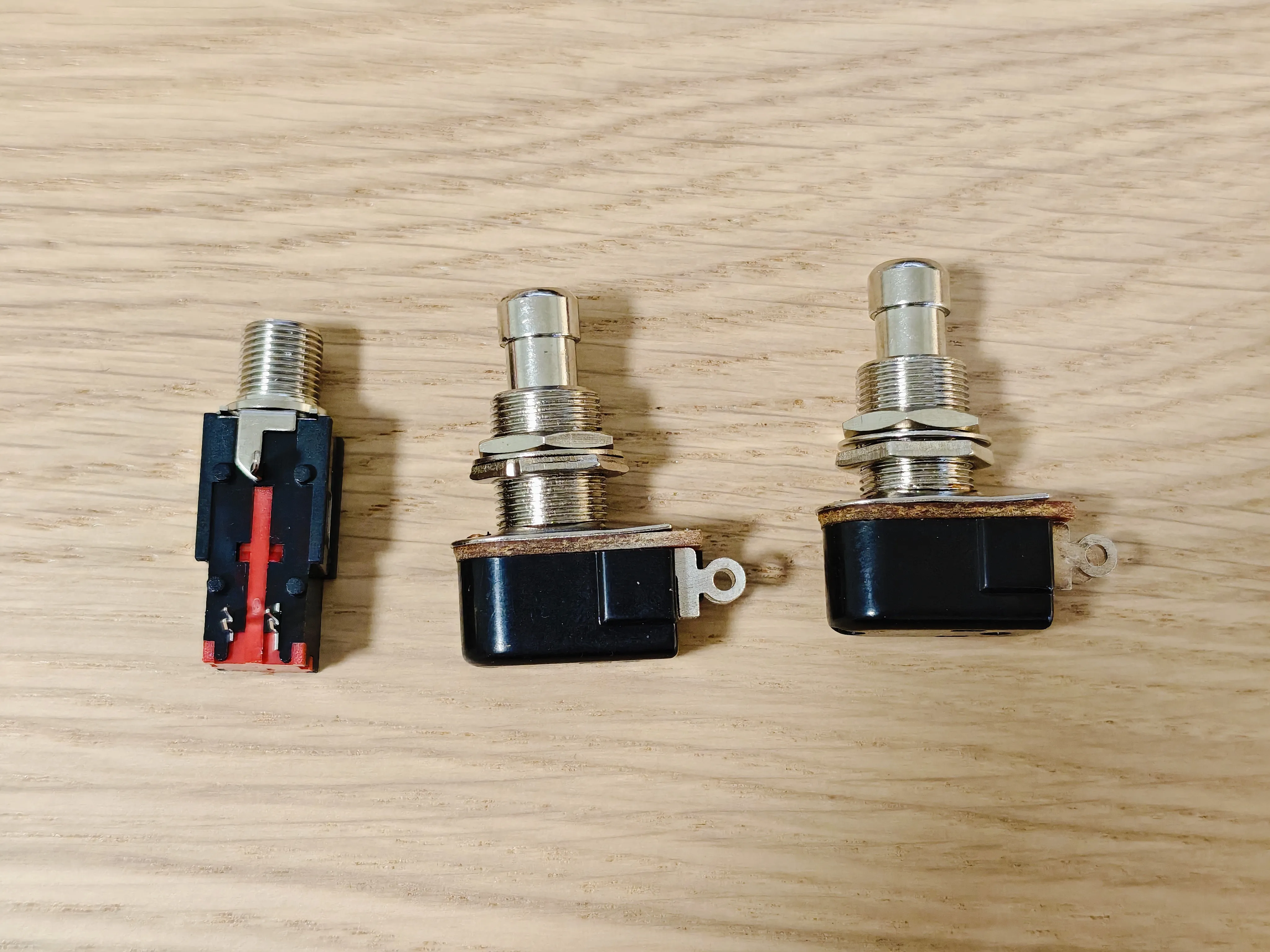

Bill of Materials:
Momentary Switches: PBS-24B x 2 Latching Foot Switches
Audio Interface: PJ-610B x 1 6.35mm Dual-Channel Stereo Jack

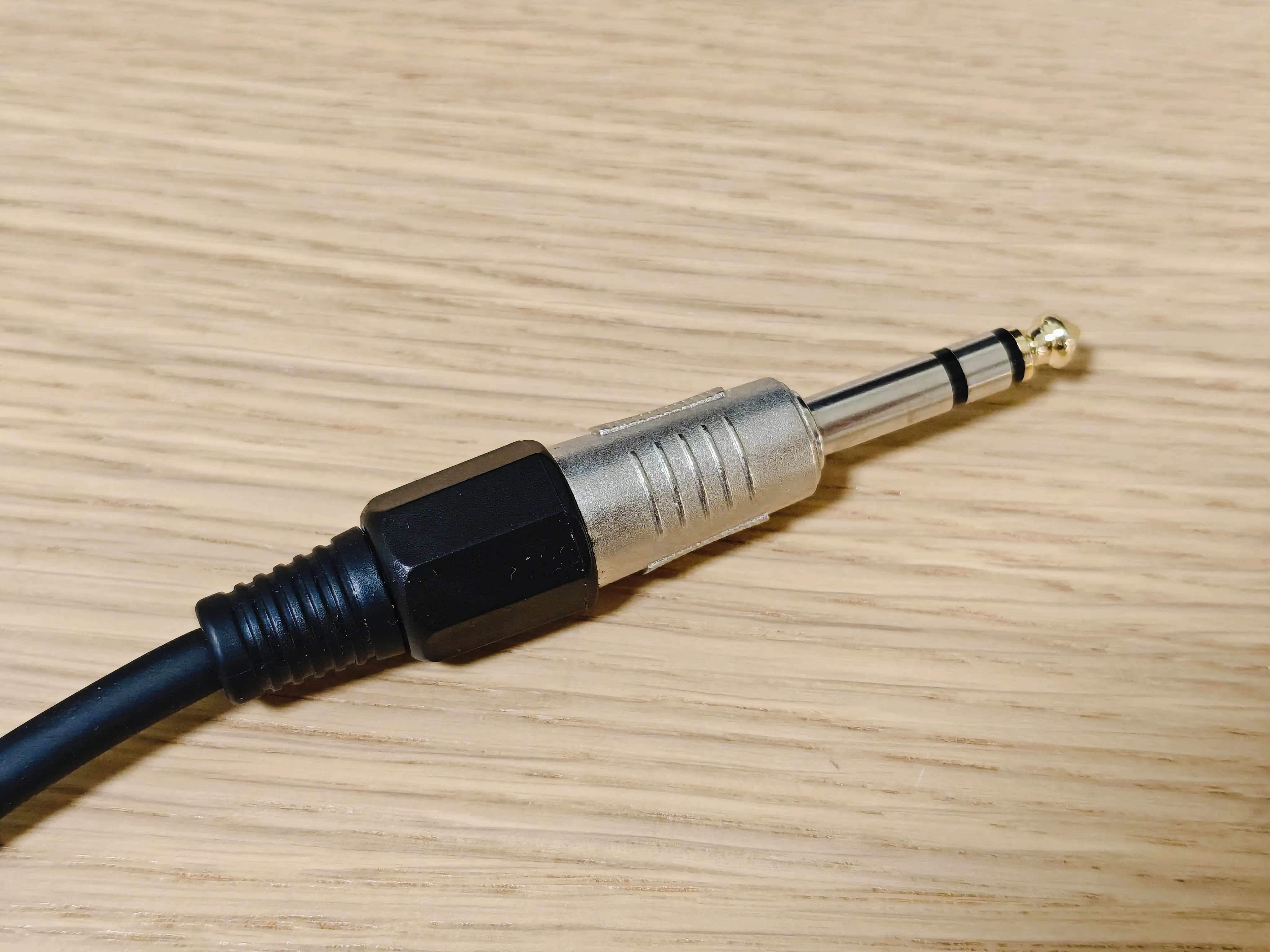

Signal Cable: 6.35mm TRS Cable x 1 A three-section TRS cable, not a standard guitar cable
