VoCore 4,3" Simracing dashboard & Carbon Imitation

Hello,

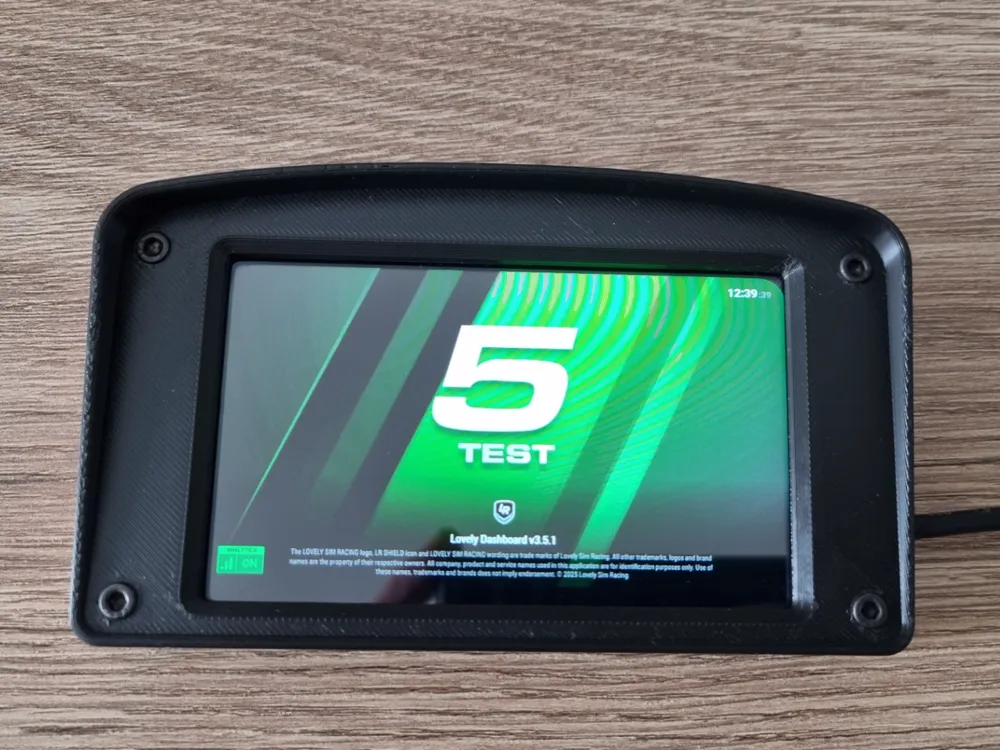

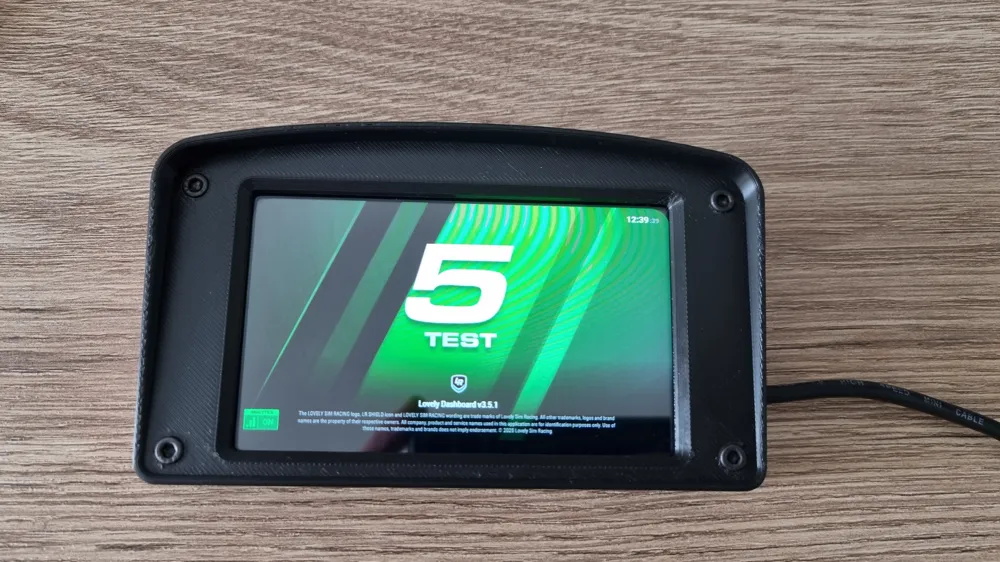

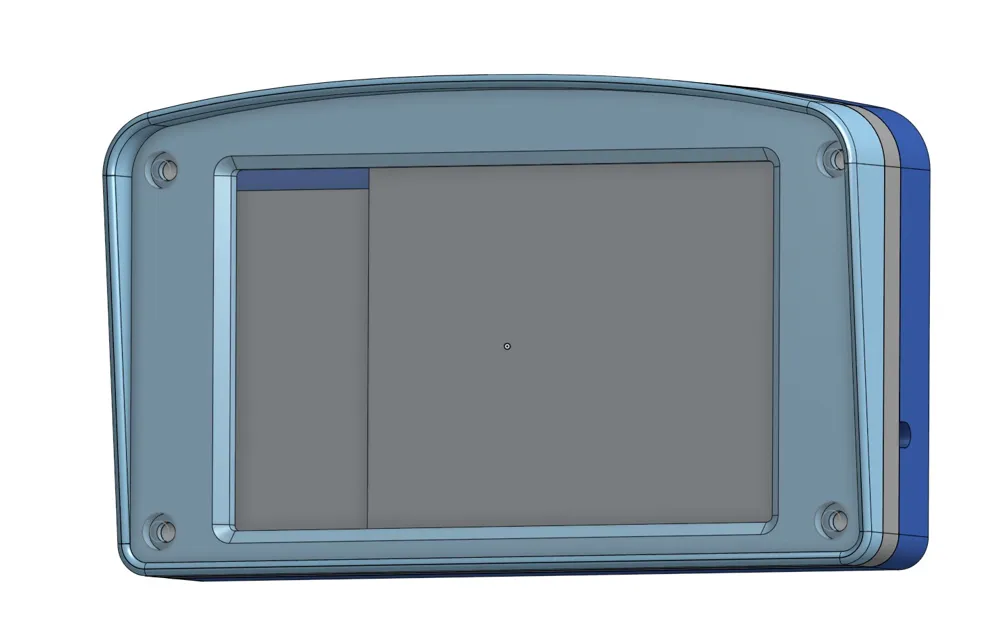

this is my first attempt to make small dash with VoCore 4,3" screen. (https://vocore.io/screen.html). I found some with LEDs, but I want to make it little smaller.

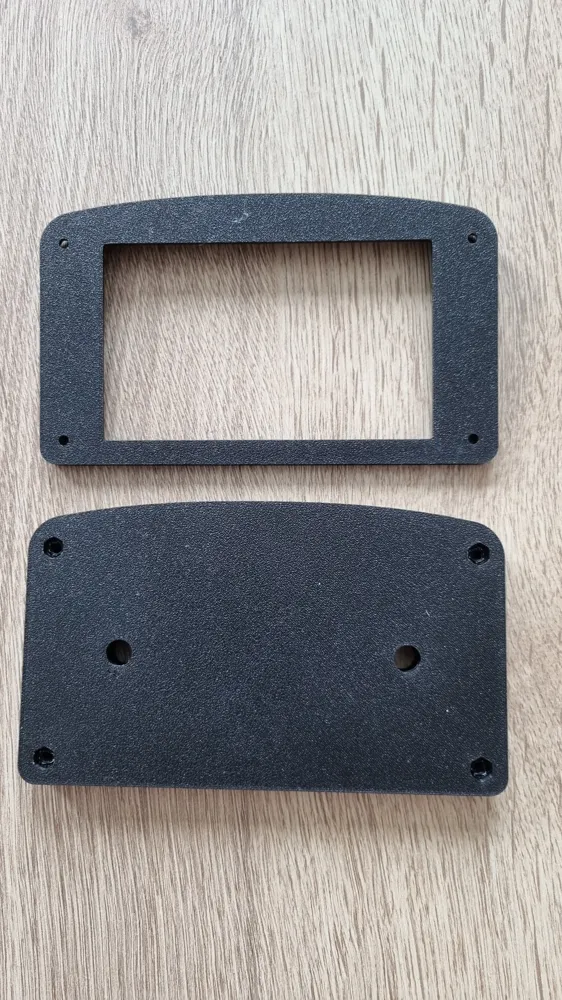

Assembly is simply.

You will need:

4x M3x18 cylinder head screw

4x M3 Hex nut

2x M5 threaded insert

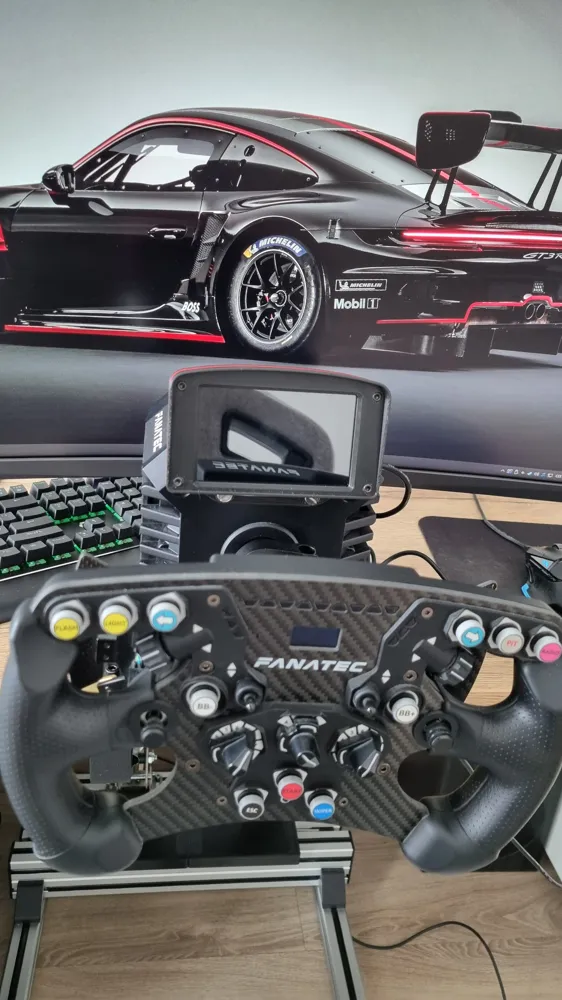

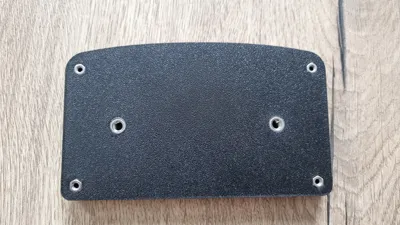

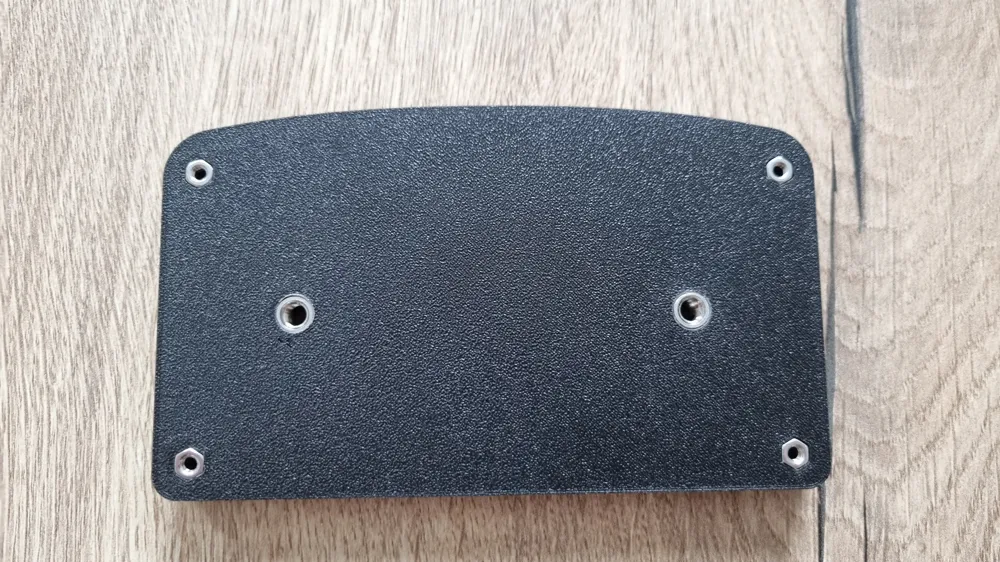

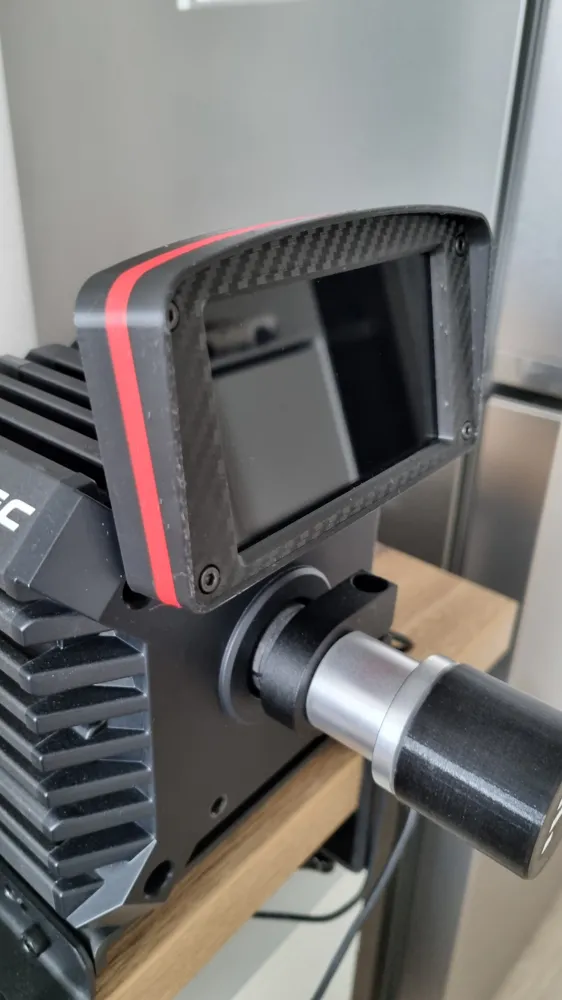

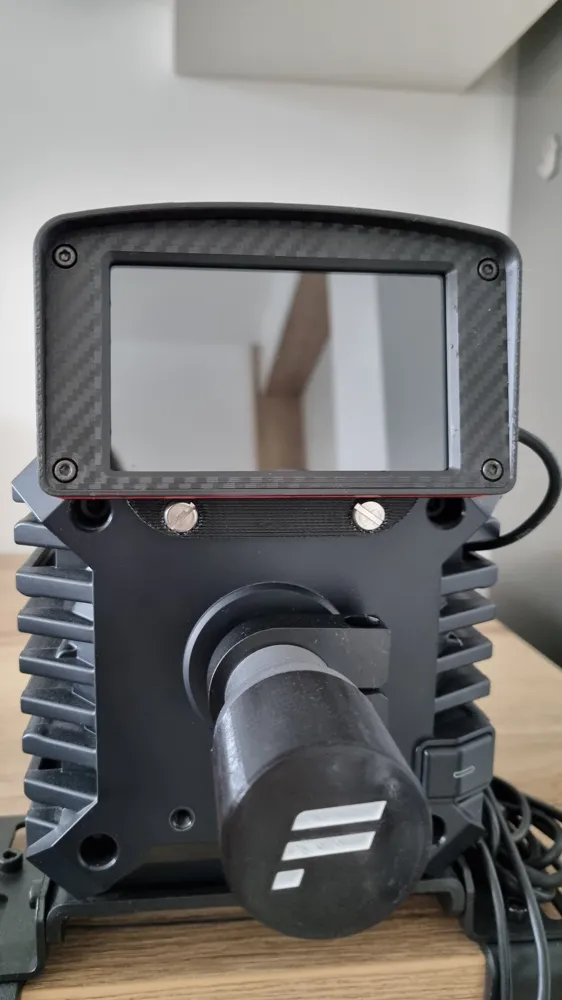

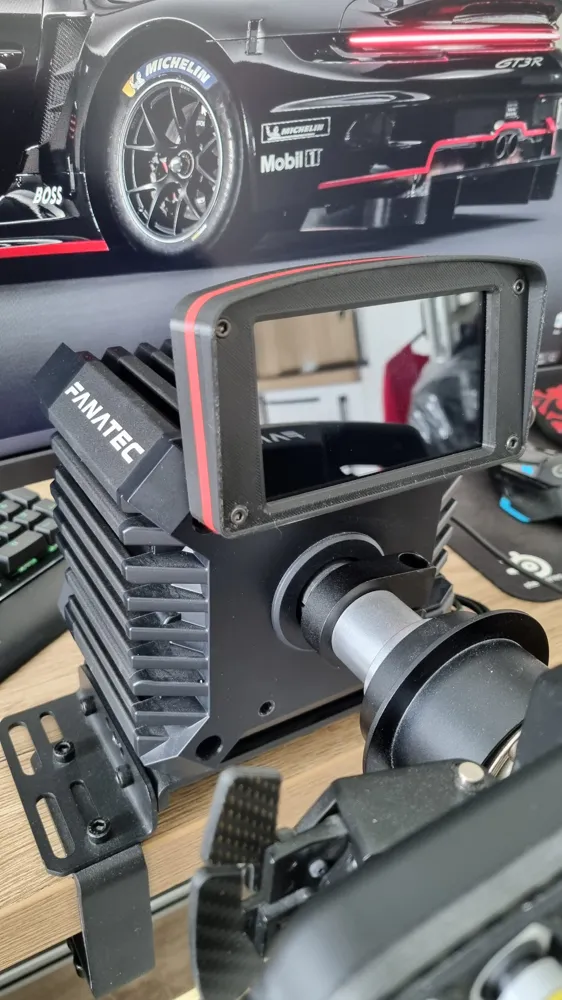

To mount it to my base Fanatec CSL DD I use my old mount, but I will work on new one and upload it here too. The distance between the holes on back is 77.5 mm. If you already have some, it could fit.

UPDATE 1:

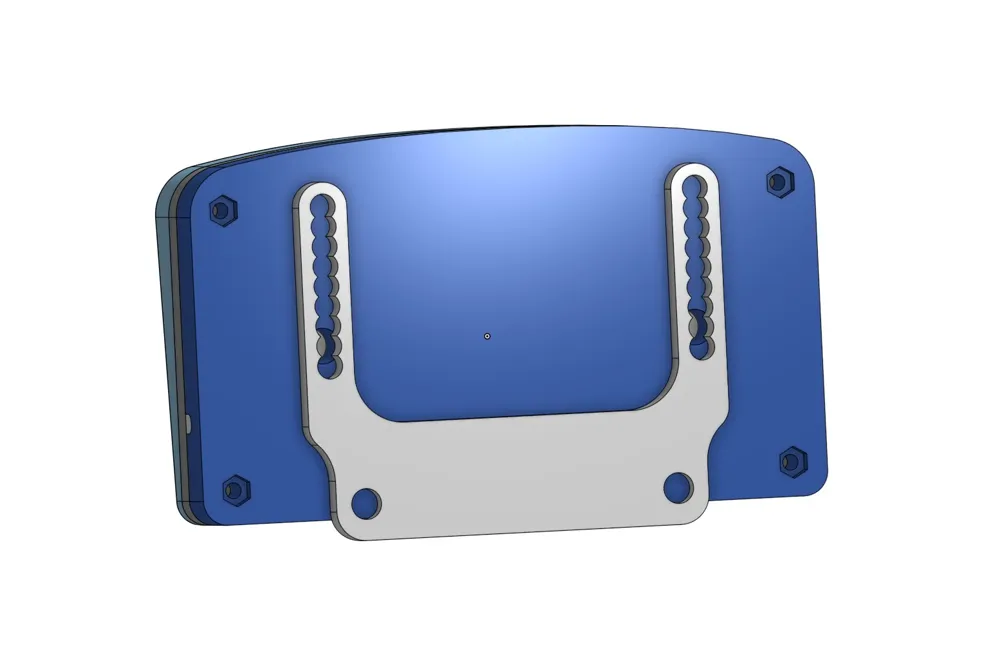

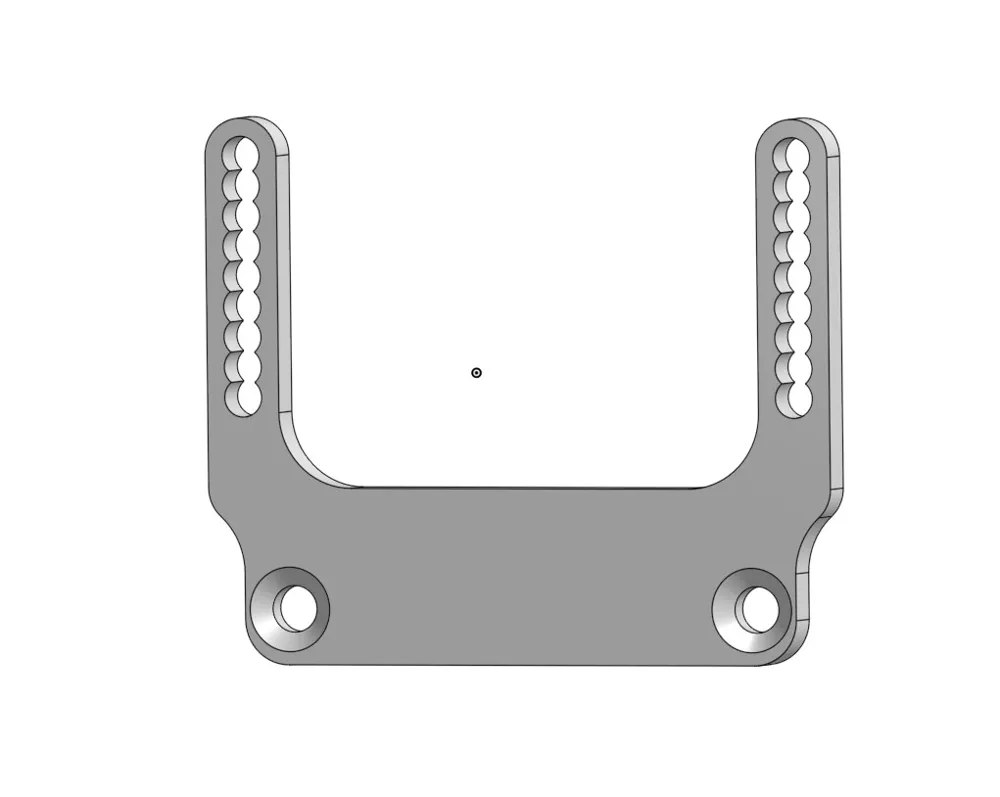

Holder for Fanatec CSL DD. I didn´t print it, but if measurements on internet are right - it will fit. - Print it with standard settings 0,2 layer.

UPDATE 2:

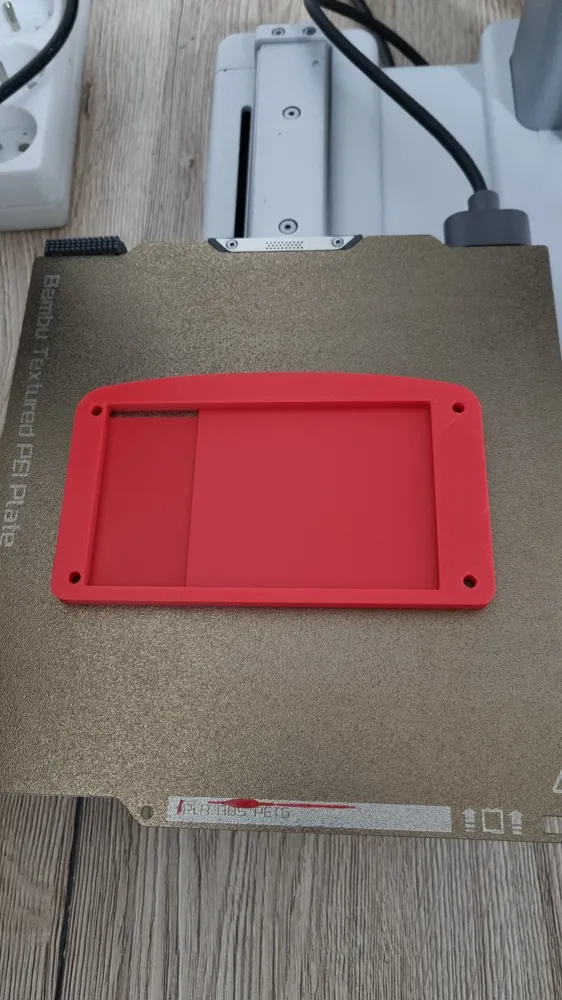

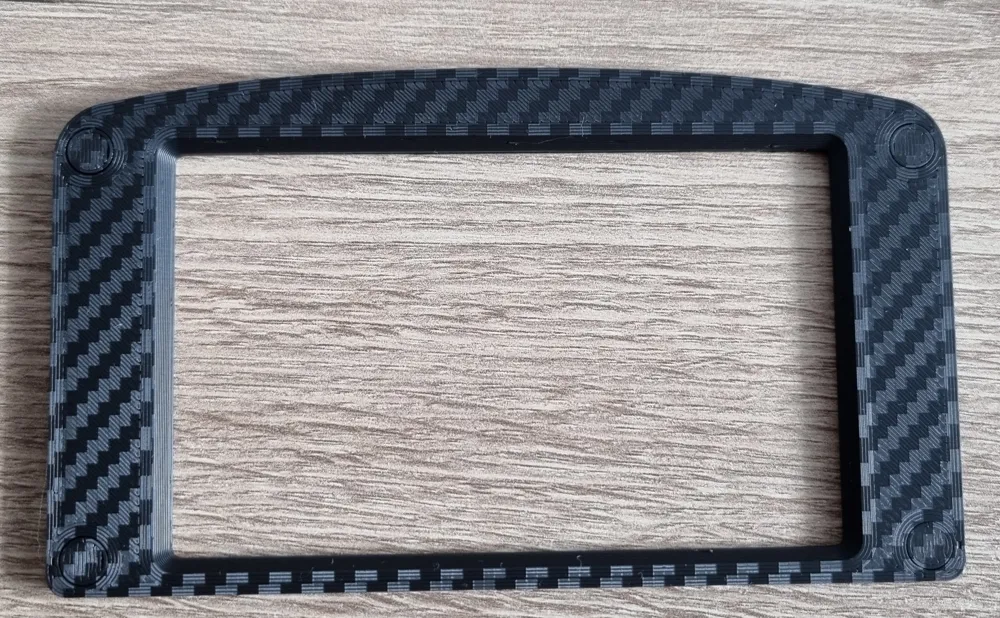

If you have 3D Effect Plate Surface Sheet I make version where frame around is part of middle part and it requires filament change, If you want different color middle part. Just add pause in 30 layer, change filament and then resume. I also add printing profile for that. Back part remain same.

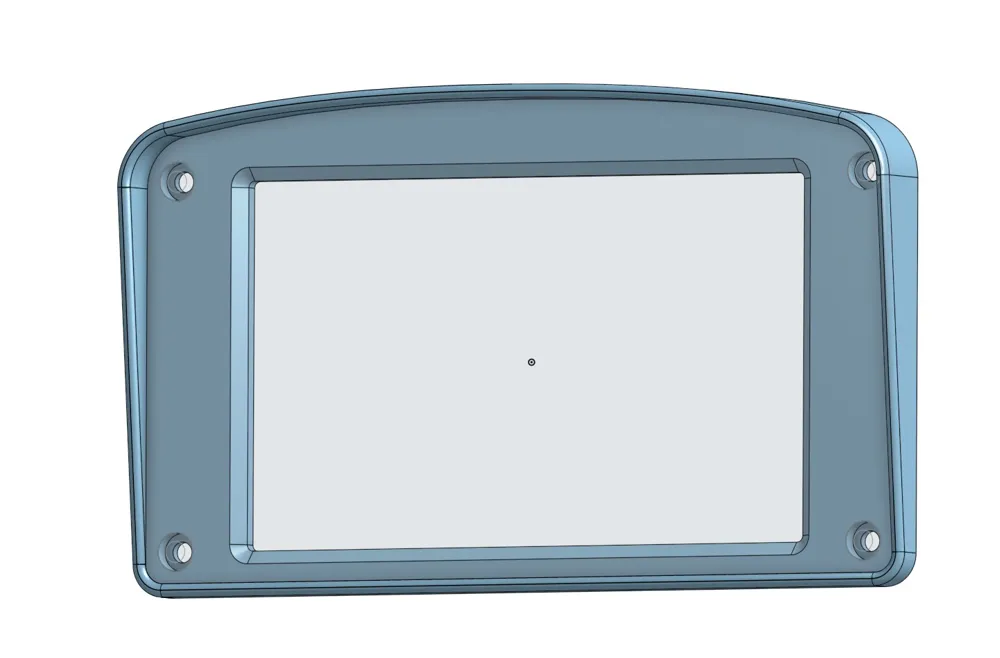

If you need, dm me. I can make some changes to your liking. As a beginner in 3D modeling I am happy with the model.

Have fun, share photos leave a LIKE and send some feedback.

Thanks
