SOVOL COMGROW SH02 Filament Dryer Base Riser Stand
Print Profile(1)
Description

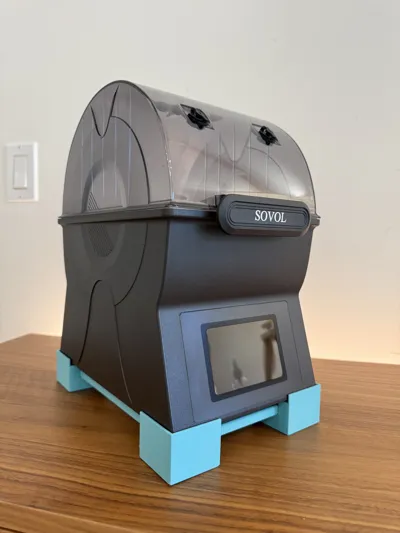

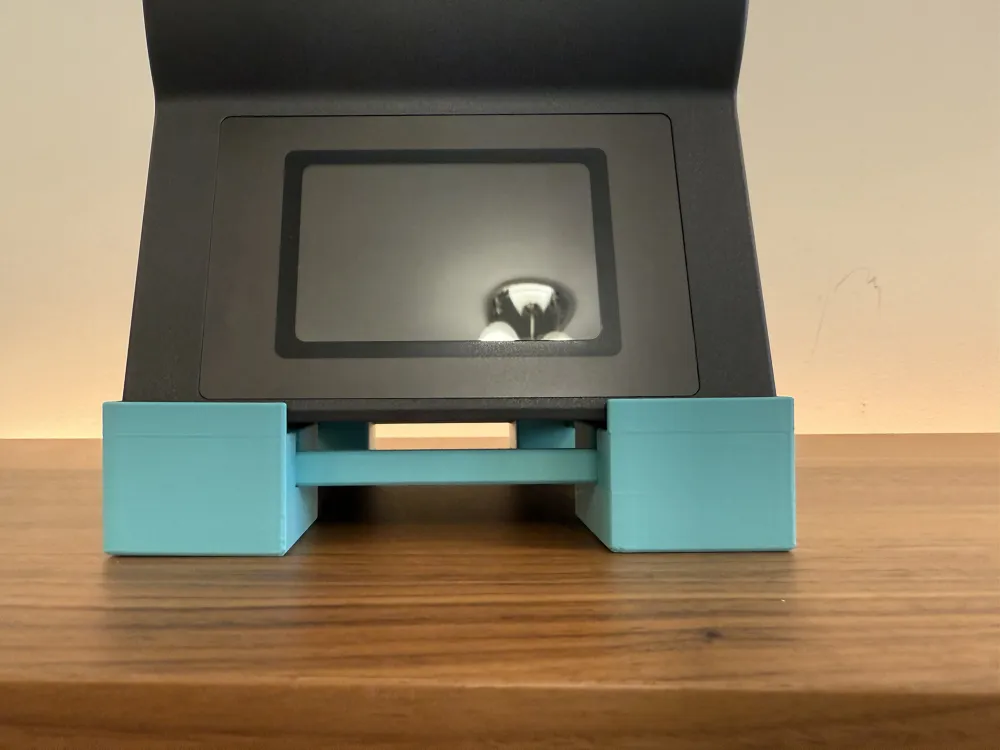

This is a riser stand for the SOVOL / COMGROW SH02 two roll filament dryer. I noticed the included legs doesn't lift the unit high enough for the heat to dissipate under the unit and has the potential to damage my table. This riser will raise the unit by 30mm / 1.18" inches and I found this to be the ideal height dissipate excess heat. I designed this to be strong, easy and fast to print and easy to assemble. I hope you find this useful.
MATERIAL
PETG is recommend to withstand the heat coming from the filament dryer.
ASSEMBLY

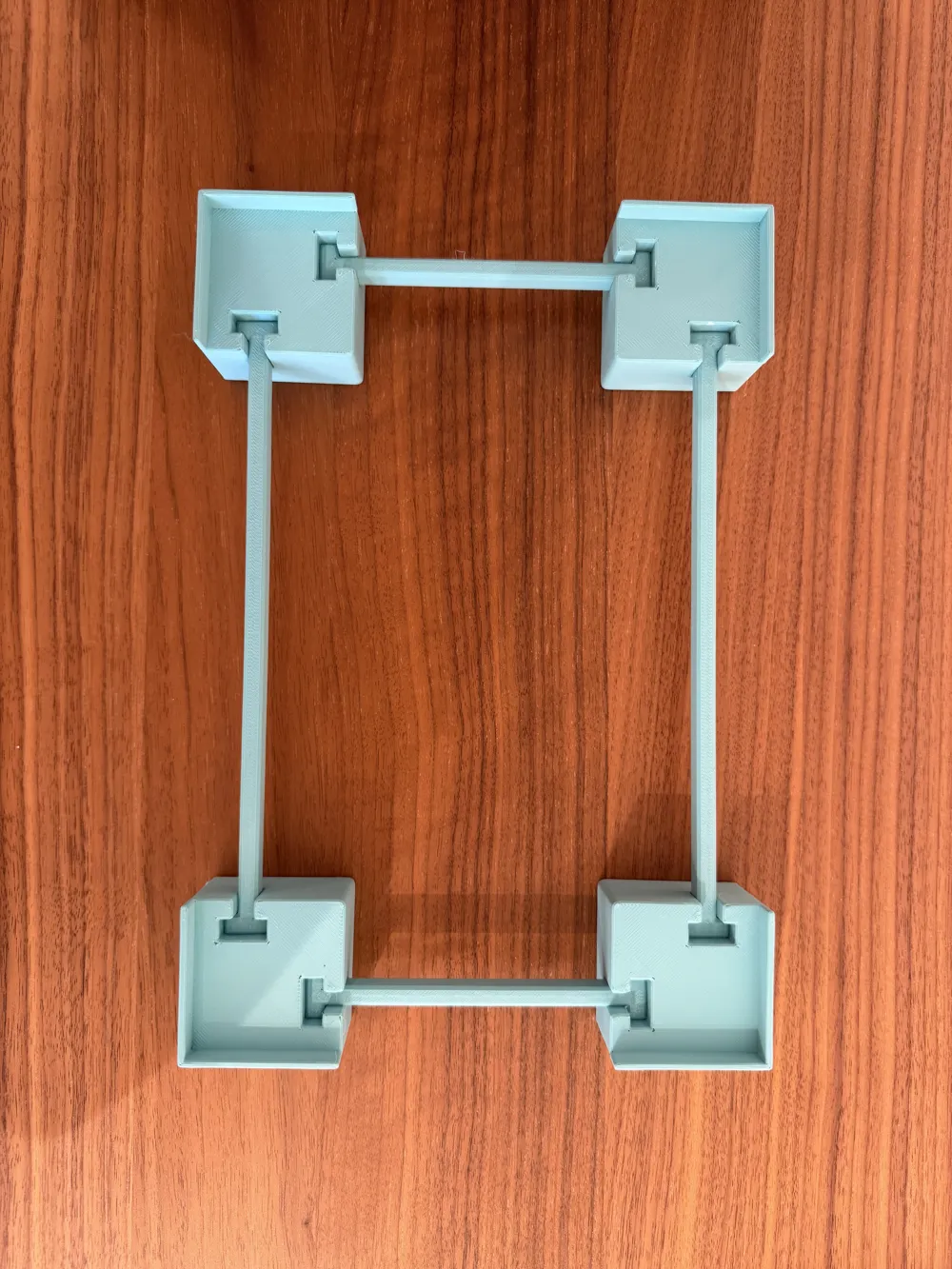

The side bars are press-fit into the T-shaped slots. They should fit easily but in case they are too tight, you can use a large flat head screwdriver and put pressure on the T-shaped end of the bar into the slot.
DESIGN NOTES
The side bars are to keep the 4 blocks in place and are not load bearing. The 4 square blocks take on all the load.
RELEASE NOTES
1.0 - Initial release
