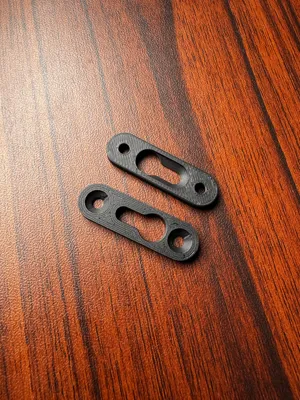

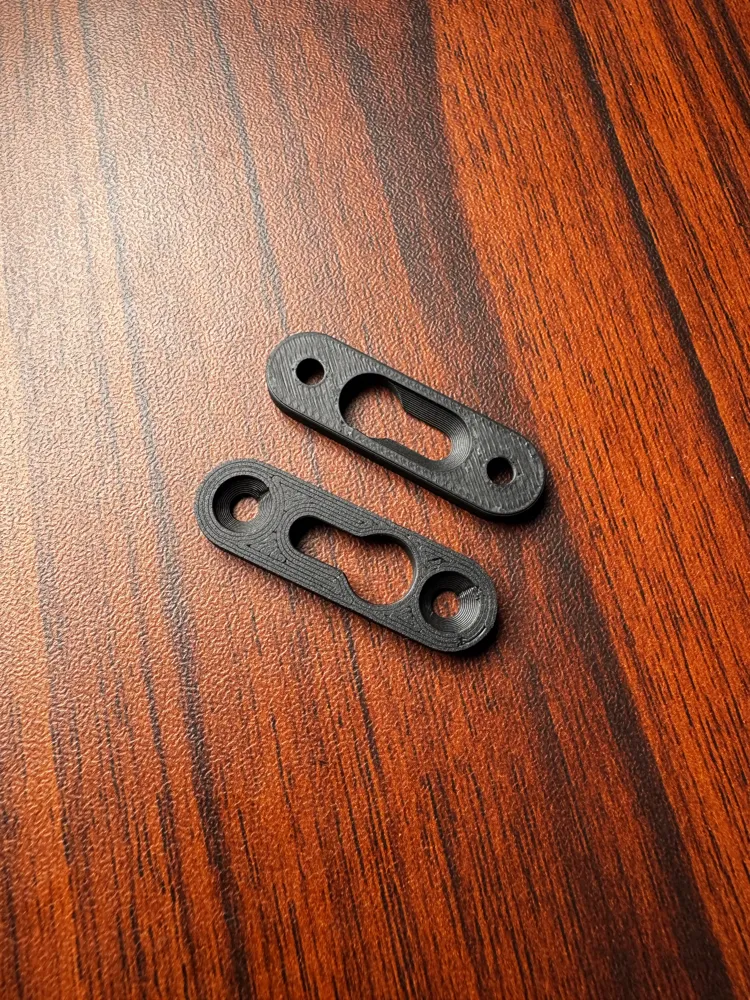

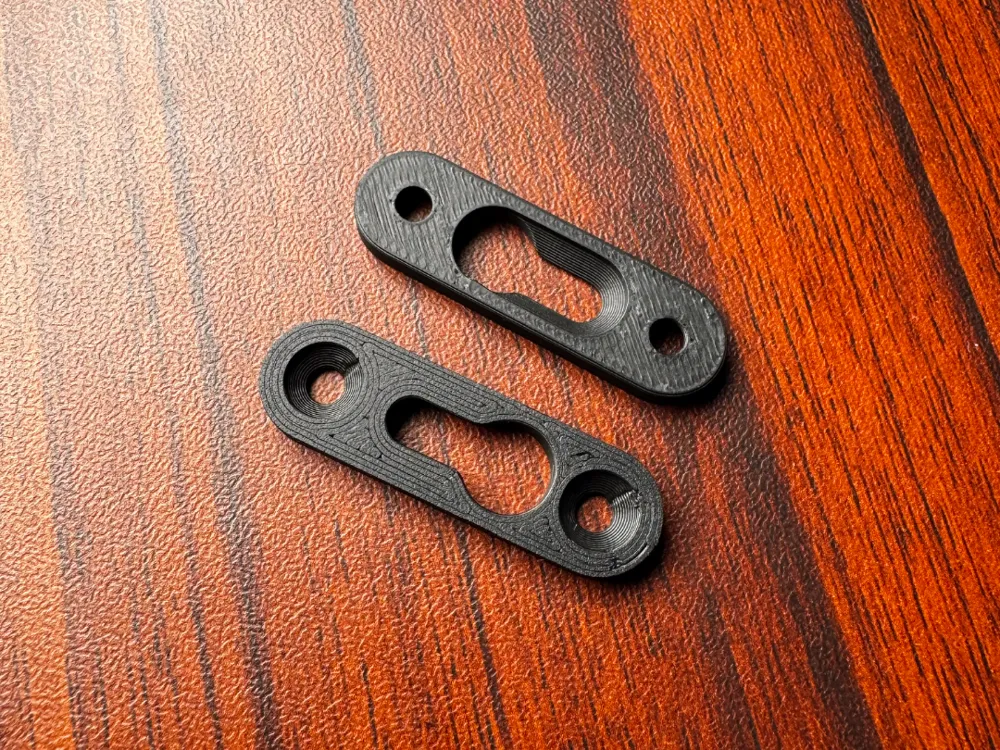

Flush-Mount Hanger 40×12 mm

This compact and clean flush-mount hanger is designed to fit into a 40 mm long groove made with a 12 mm router bit. It allows for easy and invisible wall mounting of panels, boxes, or small furniture pieces.

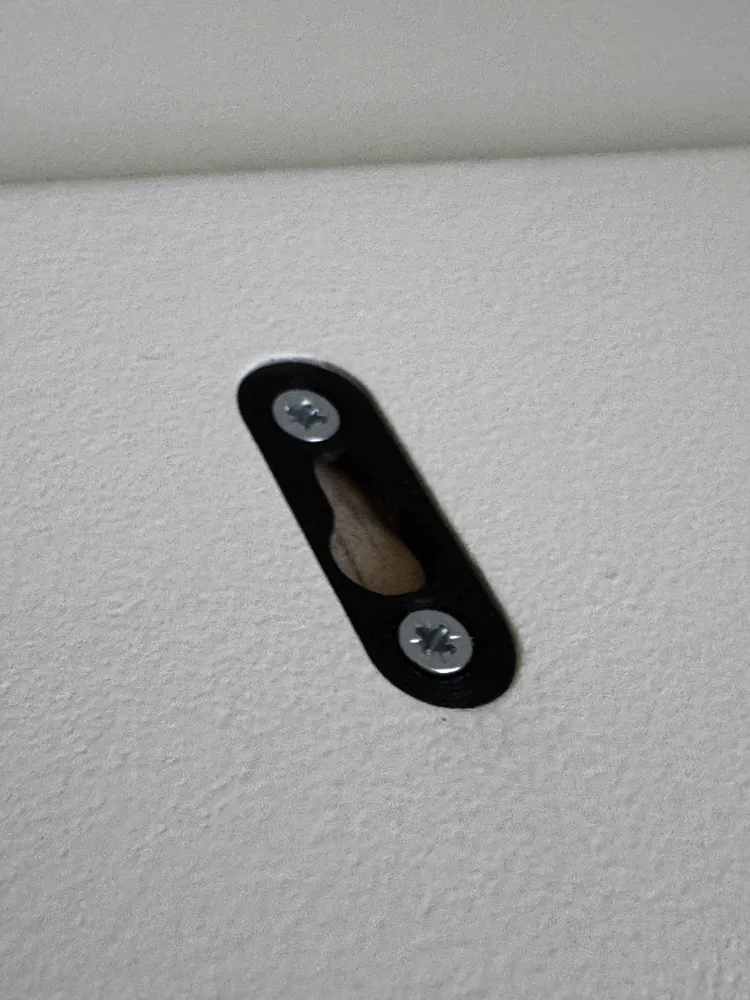

The hanger is fixed into the wooden part using two 3.5 mm wood screws, and it mounts to the wall via a single 4 mm screw. The head of the wall screw is recessed in a way that does not require a double-depth slot—keeping everything flush and low-profile.

Key Features:

• Designed for a 40×12 mm routed slot (use a 12 mm round bit)
• Flush mounting – nothing sticks out from the surface
• Fastened to the wood with two 3.5 mm screws
• Hangs on the wall using a single 4 mm screw
• Compact and strong solution for hidden mounting

Tip:

If you have trouble routing both slots at the exact same height, make one groove slightly longer. You can then slide the hanger into the ideal vertical position and fix it in place perfectly straight before screwing it down.
