Degree Wheel for 4-Jaw Lathe Chuck (K12-160)
Print Profile(0)
Description

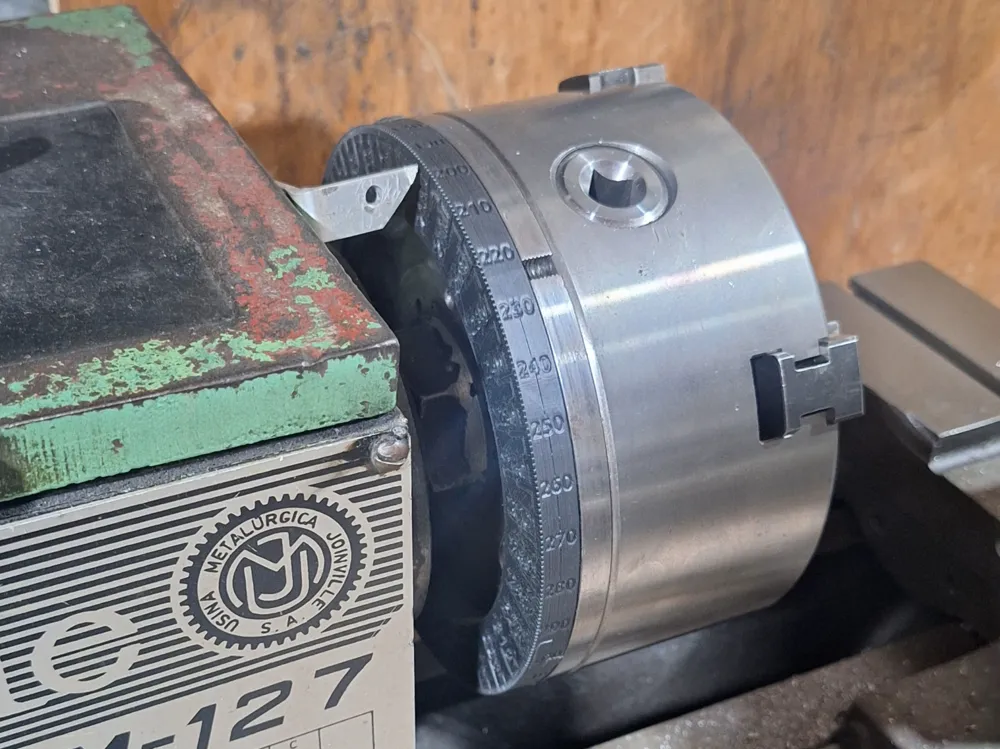

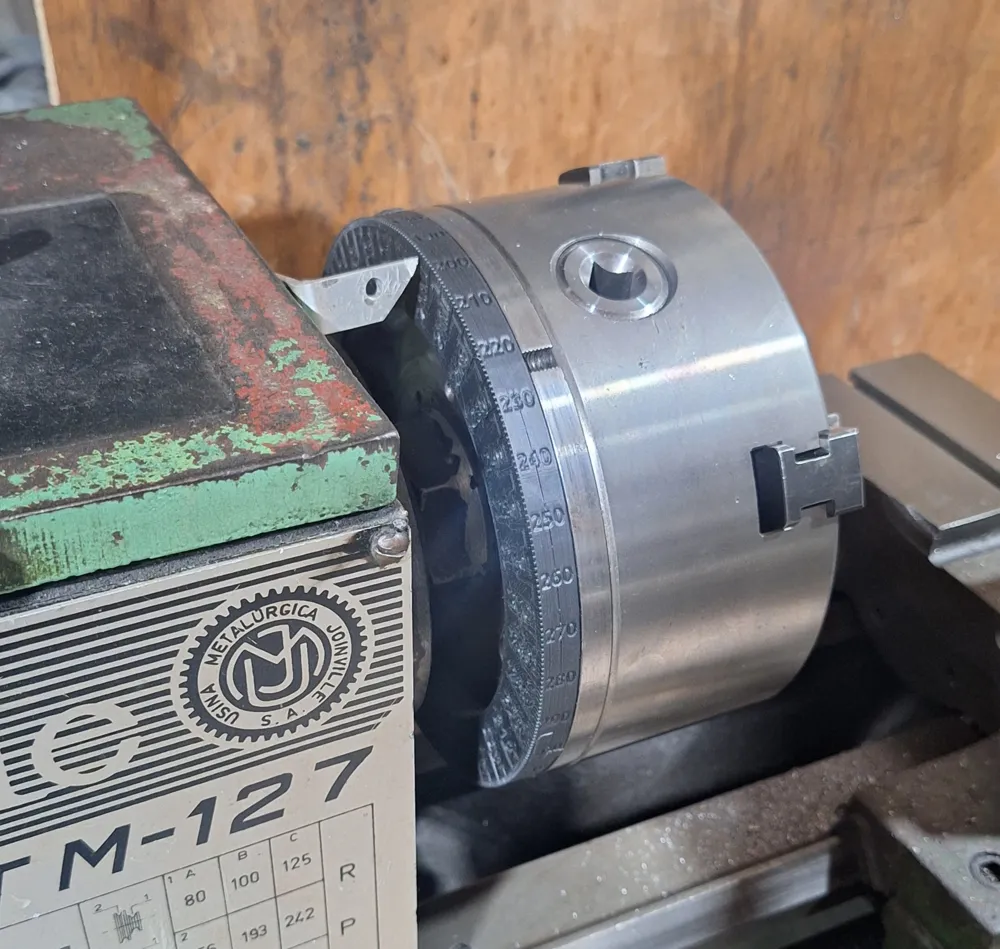

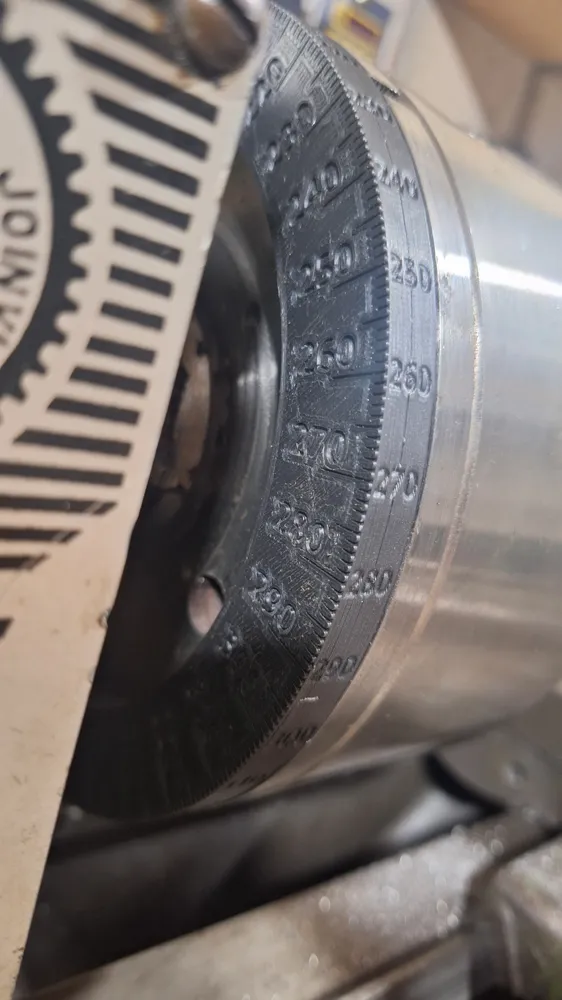

This is a 3D printable degree wheel adapter designed to fit onto a K12-160mm 4-jaw self-centering lathe chuck. It allows you to measure and reference spindle rotation angles directly, which is especially useful for precise machining tasks such as indexing or setting angular positions manually.
The adapter fits around the chuck body (not on the jaws) and is intended for use in a manual lathe. It's a practical tool for hobbyists and machinists who need quick angular referencing without expensive digital equipment.
Designed for:
- Chuck model: K12-160mm
- Type: 4-jaw self-centering chuck (monoblock jaws)
Original CAD file: https://cad.onshape.com/documents/1e753bcef5b7e88ef887997f/w/e37c3a35083b0018a50b0ee0/e/720bbdb23f35e1f4c9664a30?renderMode=0&uiState=68881c3f8d80a8451db78074
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
