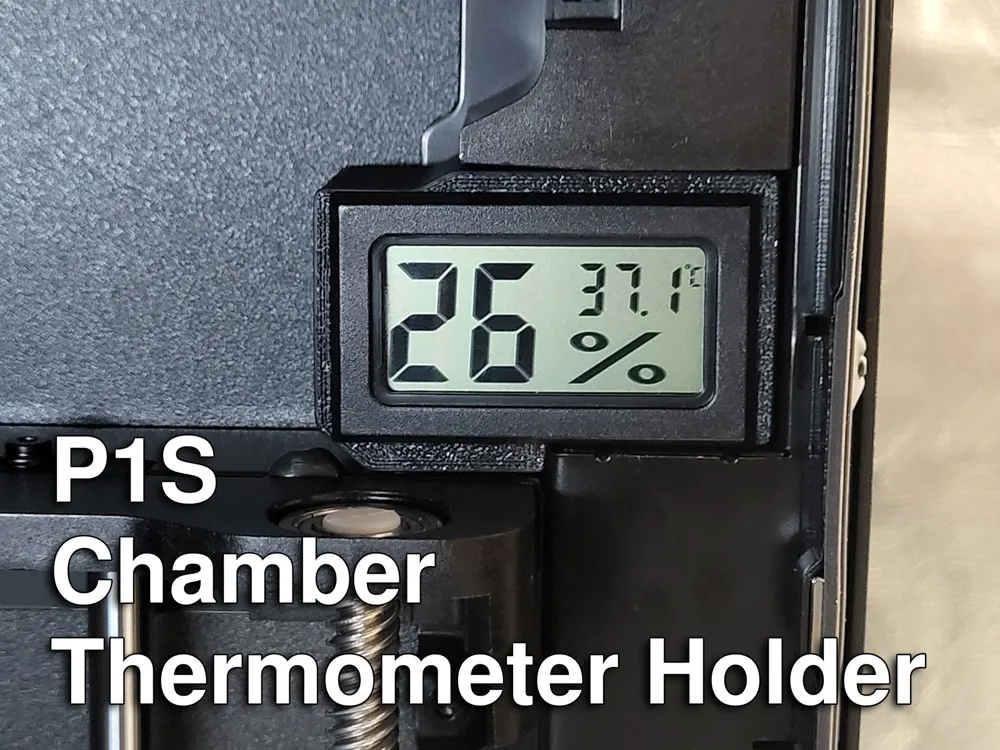

P1S Chamber Thermometer Holder - Free 3D Print Model

Search models, users, collections, and posts

Paw85

3D Printer>3D Printer Accessories

IP Report

Print Profile(1)

All

P1S

P1P

H2D

X1 Carbon

A1 mini

X1E

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 3 walls, 15% infill

Designer

36 min

1 plate

5.0(96)

Open in Bambu Studio

Boost

217

526

127

515

402

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

Rectangular Embedded Electronic Digital Thermometer Hygrometer

Description

Attention: To make it very clear: Only use for P1S.
DO NOT USE FOR X1C or X1E, The lidar sensor will crash into it.

Description:

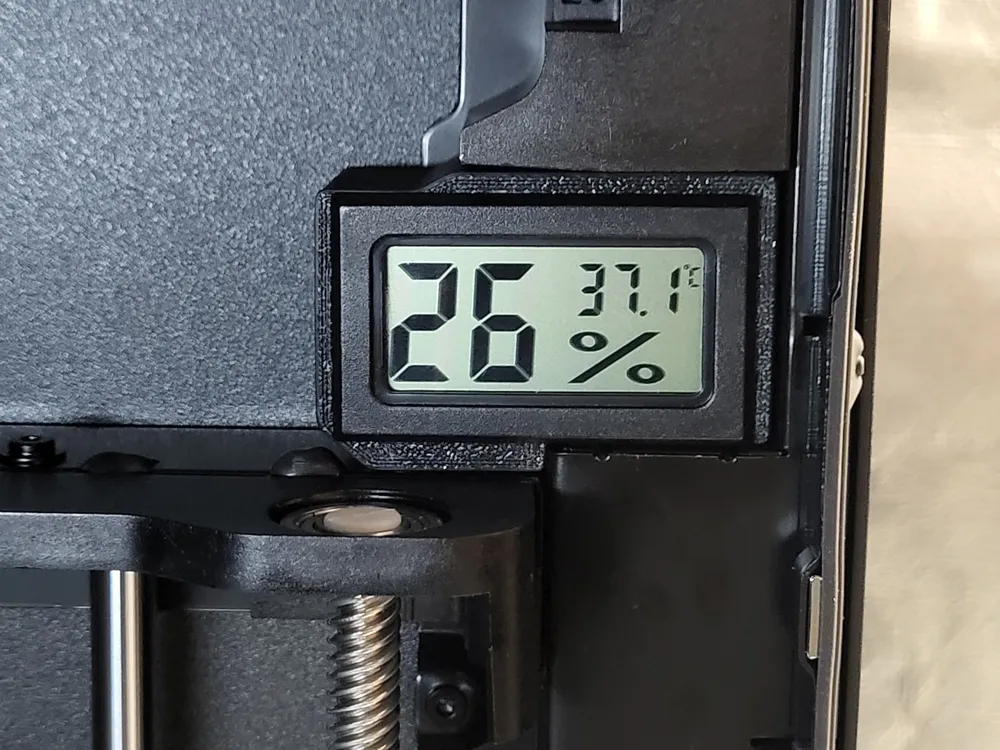

This item will allow you to monitor the temperature of the print chamber of the P1S printer.
It allows you to check when the chamber has been “heat soaked” enough to start a print with ASA/ABS,

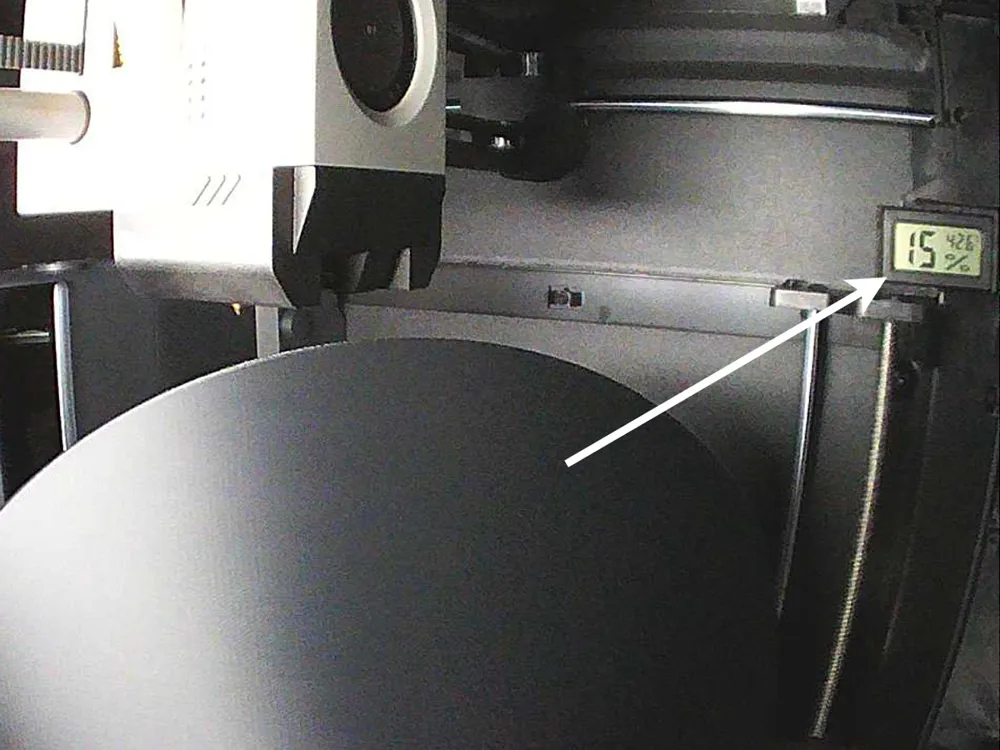

as well as monitoring the chamber temperature and humidity during printing.
This housing is made for Bambu Lab “XF002 Rectangular Hygrometer” and other Thermometers of equal size.

Mounting:

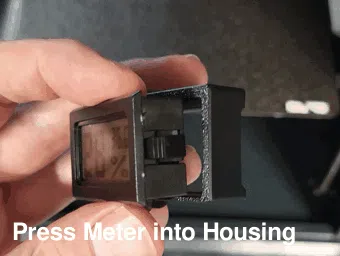

1) Push the thermometer into the housing.

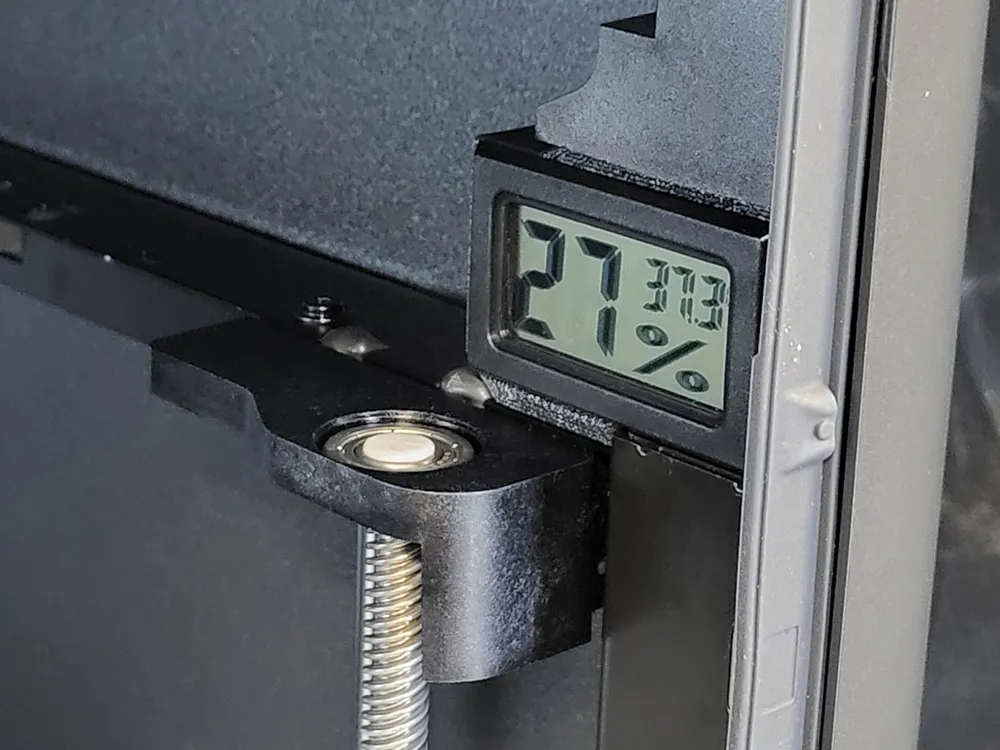

2) Slide the housing into the P1S frame, it'll snap fit into place.

Material:
Preferred filament is ASA/ABS, but PETG works as well if you print lower temperature filaments.
Avoid using PLA for this item.

Background:
As I print mainly ASA on my P1S, I wanted to be able to monitor the temperature in the chamber before I start a print, to make sure the chamber was "heatsoaked" enough to give a good print result.
The other similar item I found here on MW, had a very loose fit on my machine, but also interfered with gantry motion (crashing).
This made me take the time to design it in a completely different way to address those issues.

Boost Me (for free)

Quite a lot of iterations were printed in ASA, and a boost will help to cover some cost of the development of this model.

temperature and humidity

Comment & Rating (127)

@Dan86

Boosted

Absolutely fantastic! Just a simple thing that works really well. Thankyou!

The designer has replied

@Paw85

Thanks for the nice comment and pictures, happy to hear that you enjoy it! :)

@simonaitis.mant

Love the design. Found it because of your Reddit post!

The designer has replied

@Paw85

Thanks for the comment and glad it can be helpful! Also nice nightclub you have going in the printer, is it UV leds? :) (curious as of why if it is?)

@simonaitis.mant

Replying to @Paw85 :

Thanks! They are just standard purple 5V LEDs (120LEDs/m) from aliexpress. No UV, but they are brighter than stock light bar from Bambulab and I could wrap them around the whole metal chasis of my P1S for better lighting around the whole build plate.

@ollithe1

Boosted

Excellent design! Printed in black ABS, it slots in nicely. Good visibility of the readout with the panda lux mount in the front. (lights on and off)

(Edited)

The designer has replied

@Paw85

Thank you very much for the comment! Also appreciate the boost, it helps cover some of the filament cost for all the prototyping I did for this housing to make sure it worked and fit well in the frame :)

@user_3811906878

Boosted

Fits so good it could easily pass as a factory part!

The designer has replied

@Paw85

Thank you for the kind comment! :)

@IM_011

Boosted

Best design for this function. I have added small mount for thermometer sensor. Visible during the printing. 👍🏻

@user_2076689067

Print Profile

0.2mm layer, 3 walls, 15% infill

Printed in PA6-GF, the bridging was a bit ambitous, but it fits nicely.

@D4rkRec0n

Print Profile

0.2mm layer, 3 walls, 15% infill

fits very well, made of ASA

Show original

@Derakkon

Print Profile

0.2mm layer, 3 walls, 15% infill

Helps me monitor my chamber temp and humidity. Fits perfectly. I printed mine in PETG HF and haven't had issues with it so far while printing ABS or ASA. Thank you!

(Edited)

@CBailey629

works perfect! print lost bed adhesion prior to finishing, but was done enough to still work.

@Cool_Park

Boosted

Print Profile

0.2mm layer, 3 walls, 15% infill

Great I'm printing with PLA and it works well Thanks to the creator

(Edited)

Show original
