Description

⚒️ No 3D printer? No time to source components?
I just opened my own e-shop where you can buy physical, ready-to-use versions of my models! Designed with passion, printed and assembled with care ⚙️.
📦 Shipping across the EU: 👉 Get it at NautilusForge.shop

Boost Me (for free)

Like this model? A free Boost is always appreciated! It supports the time that goes into designing and testing. Thank you so much! 😊🙌

Discover all my other hot‑swap storage projects!

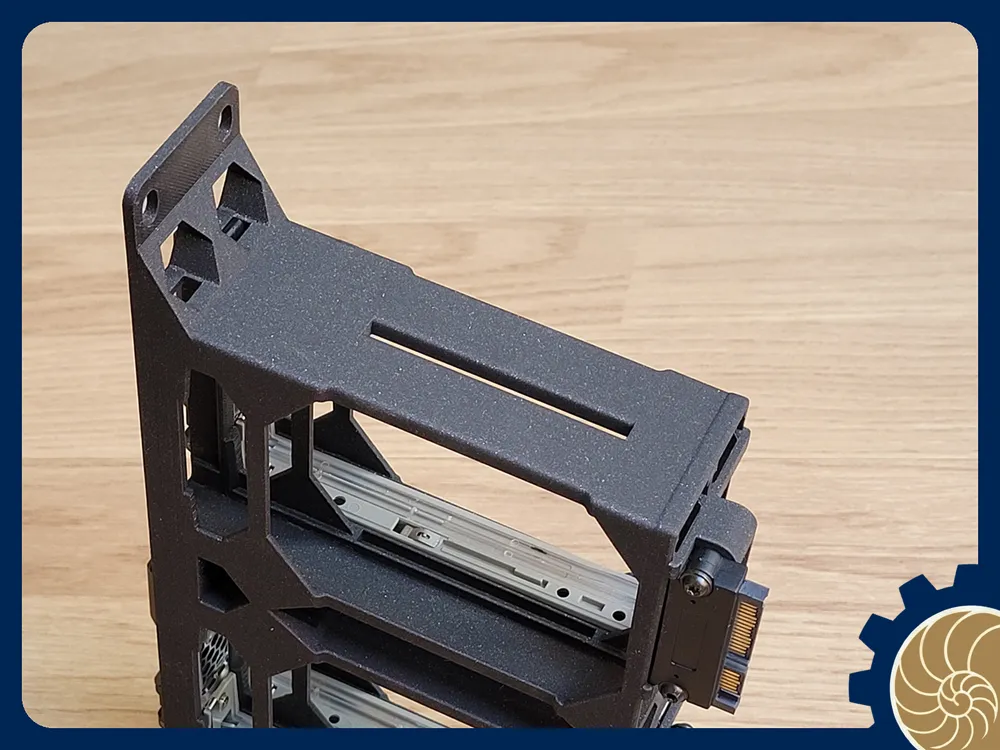

Design:

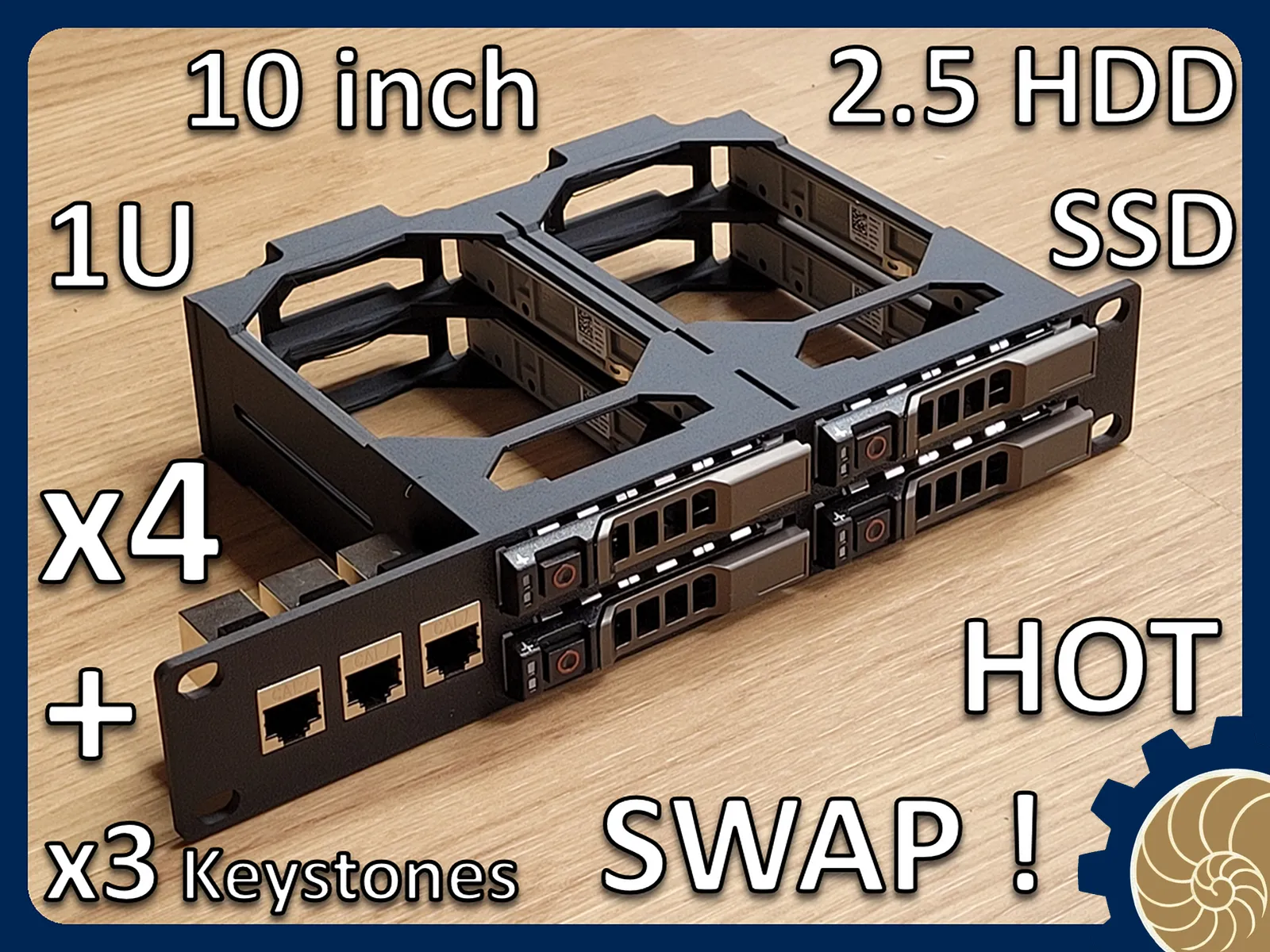

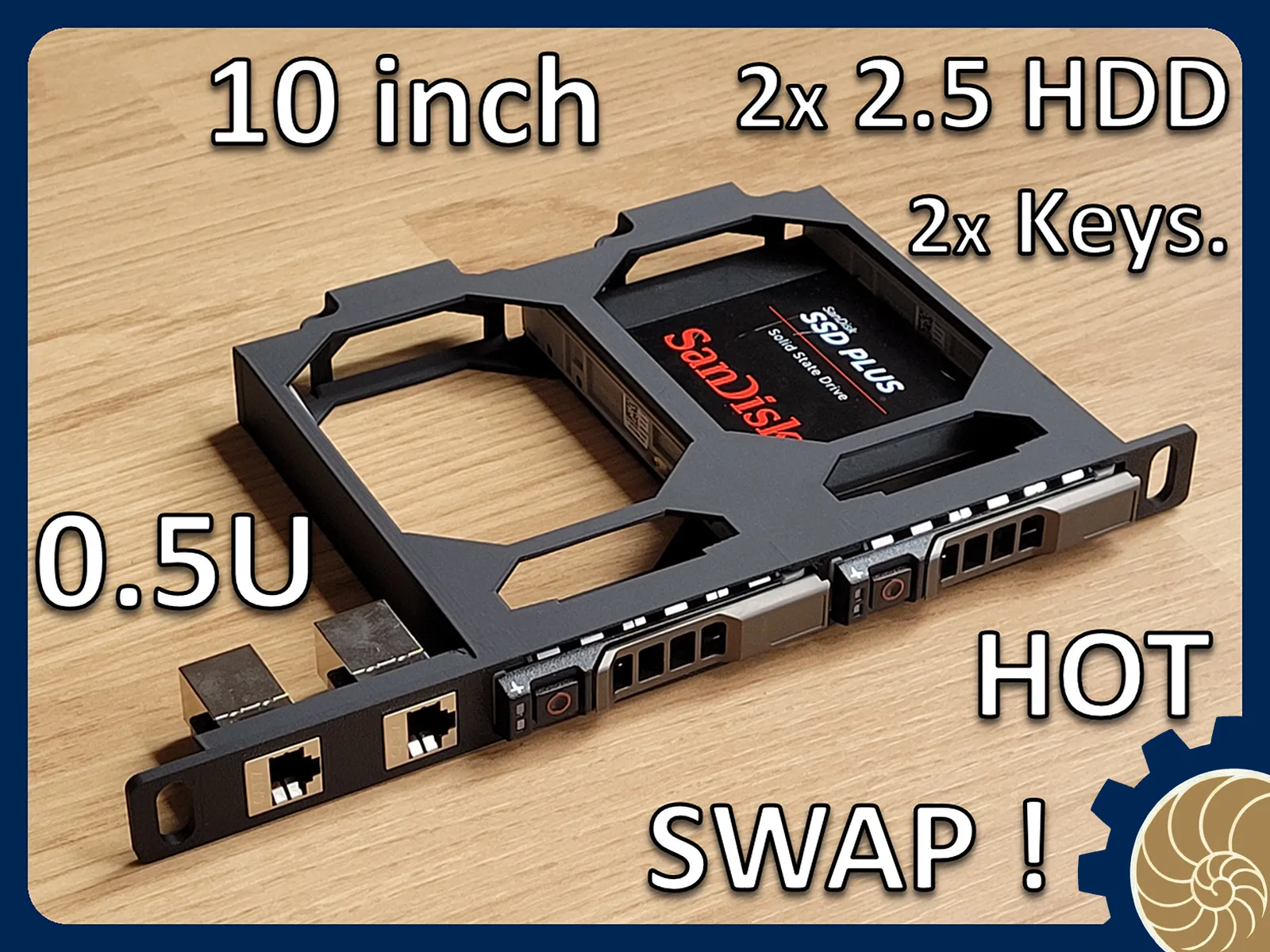

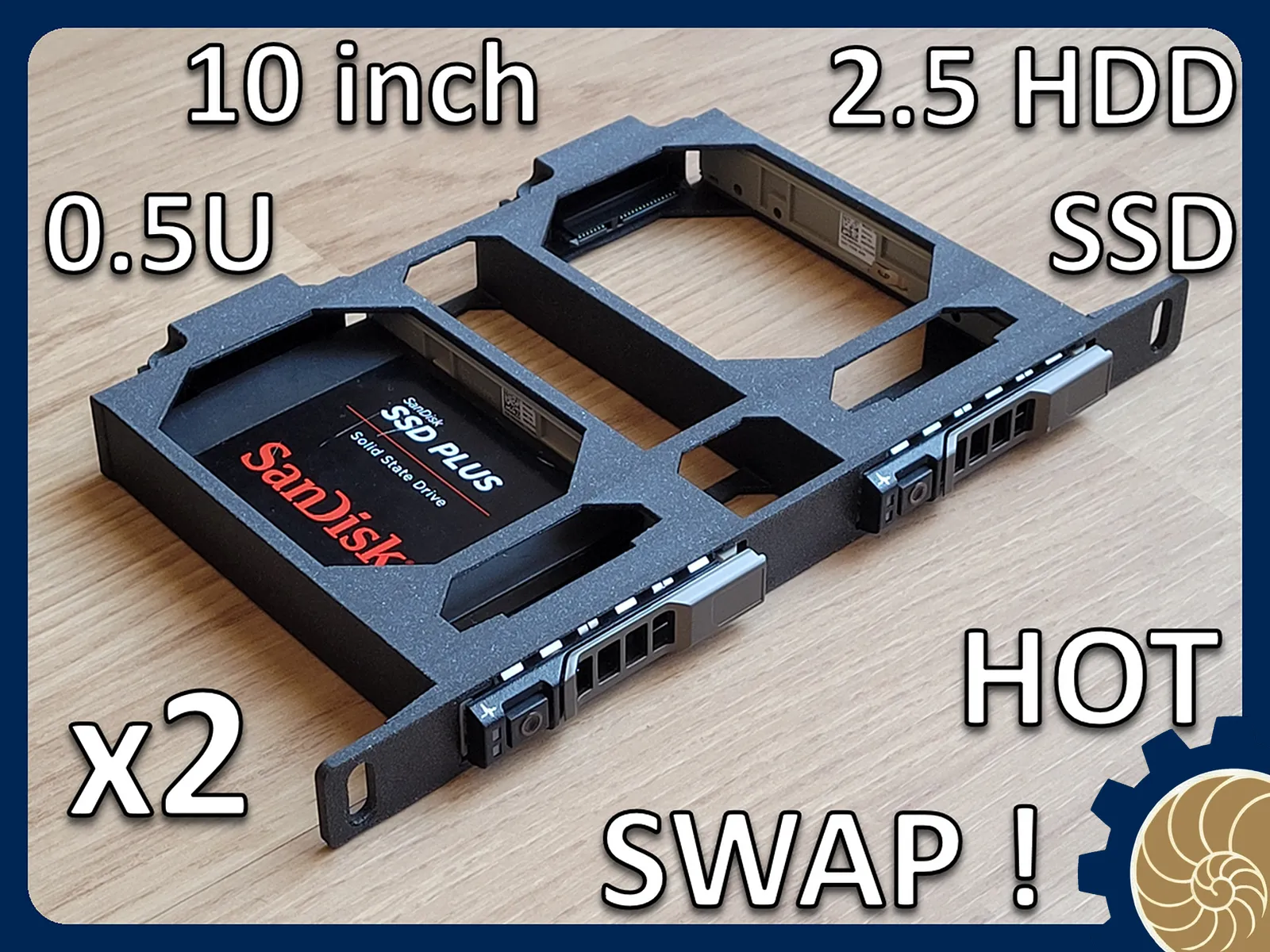

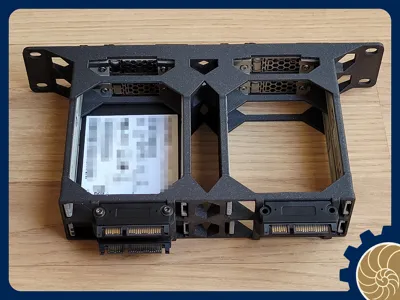

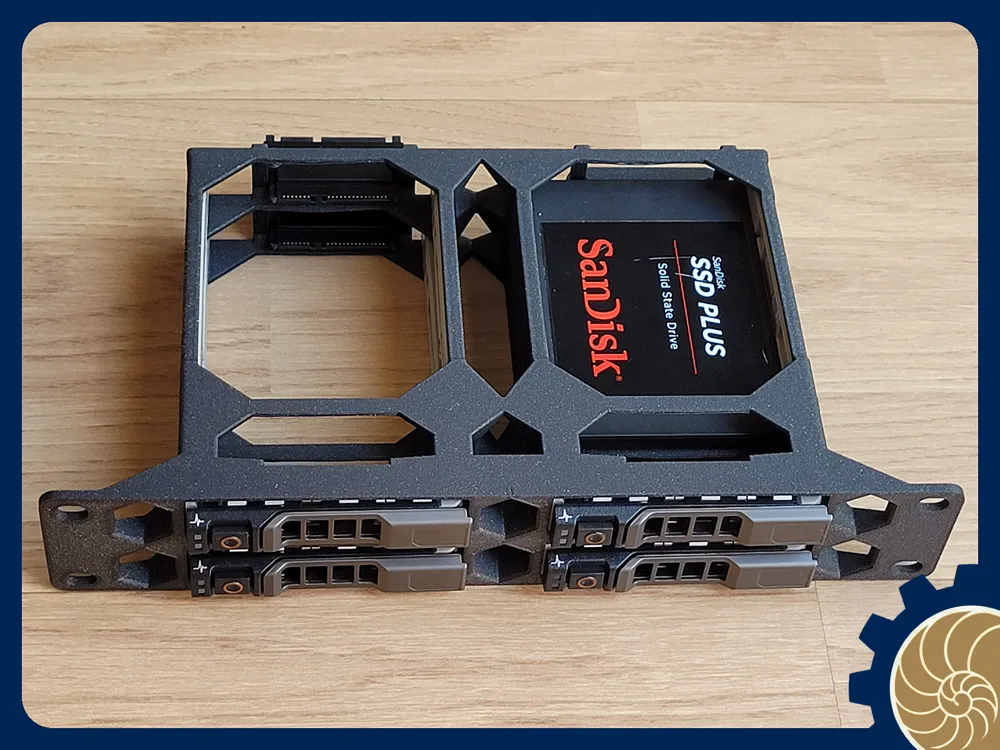

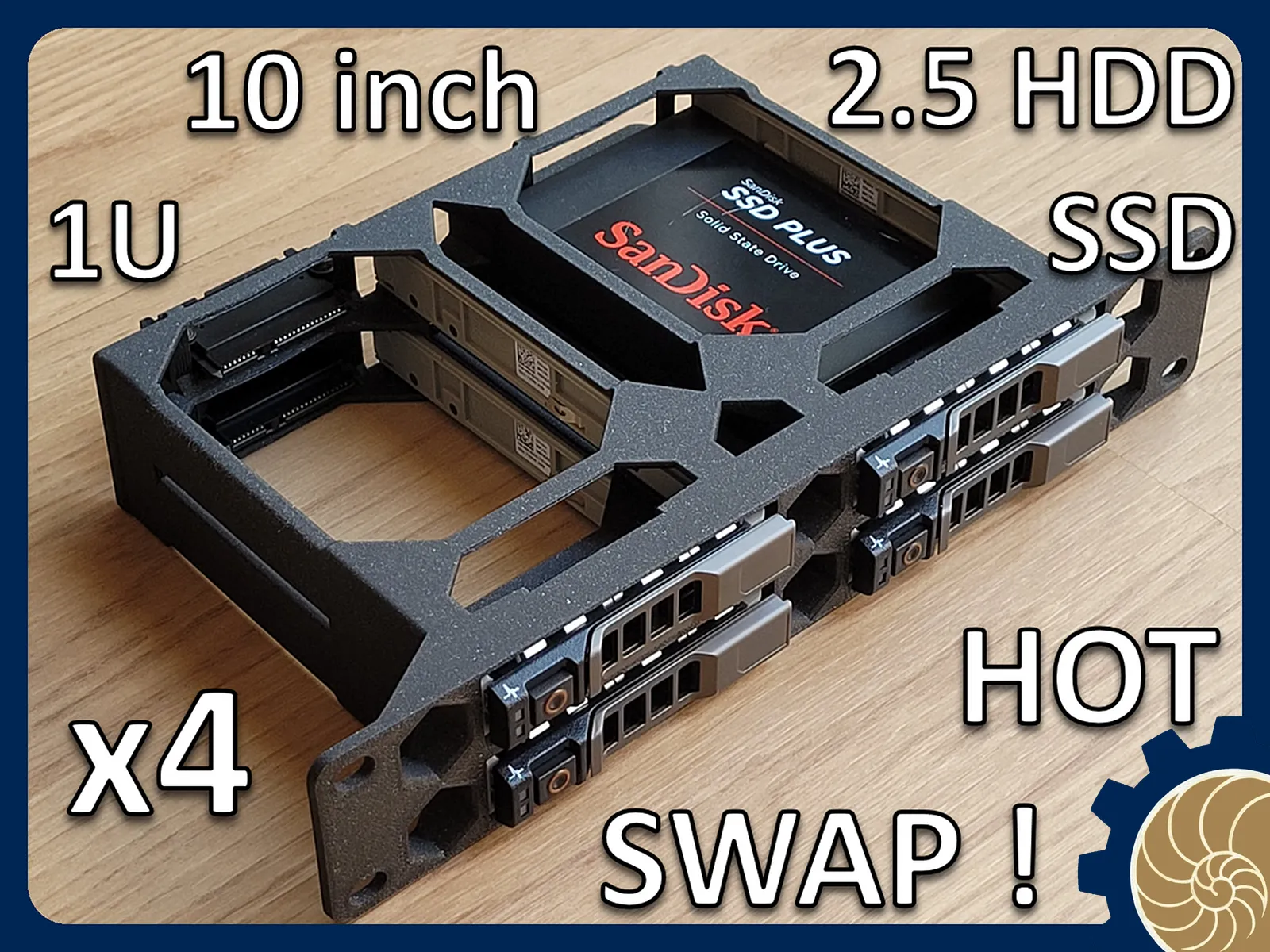

for 4x 2.5 HDD/SSD
HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld
maximum airflow

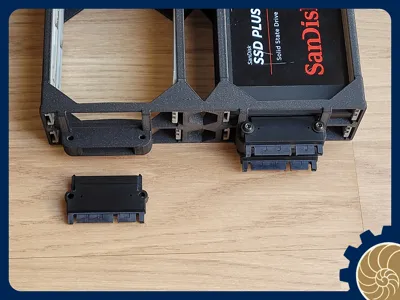

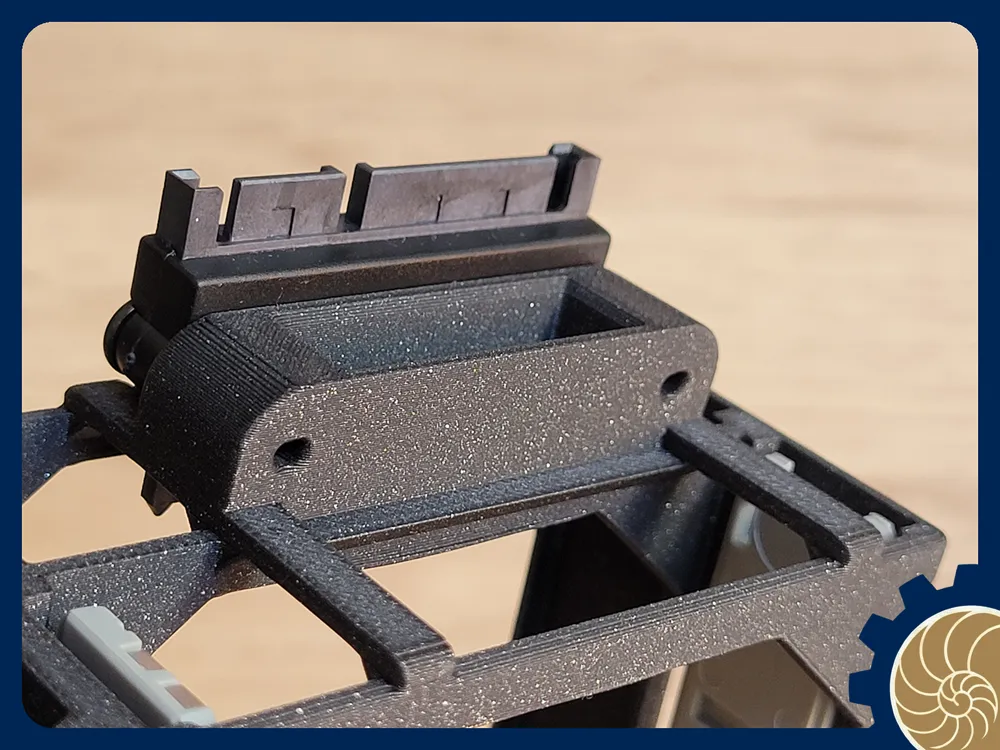

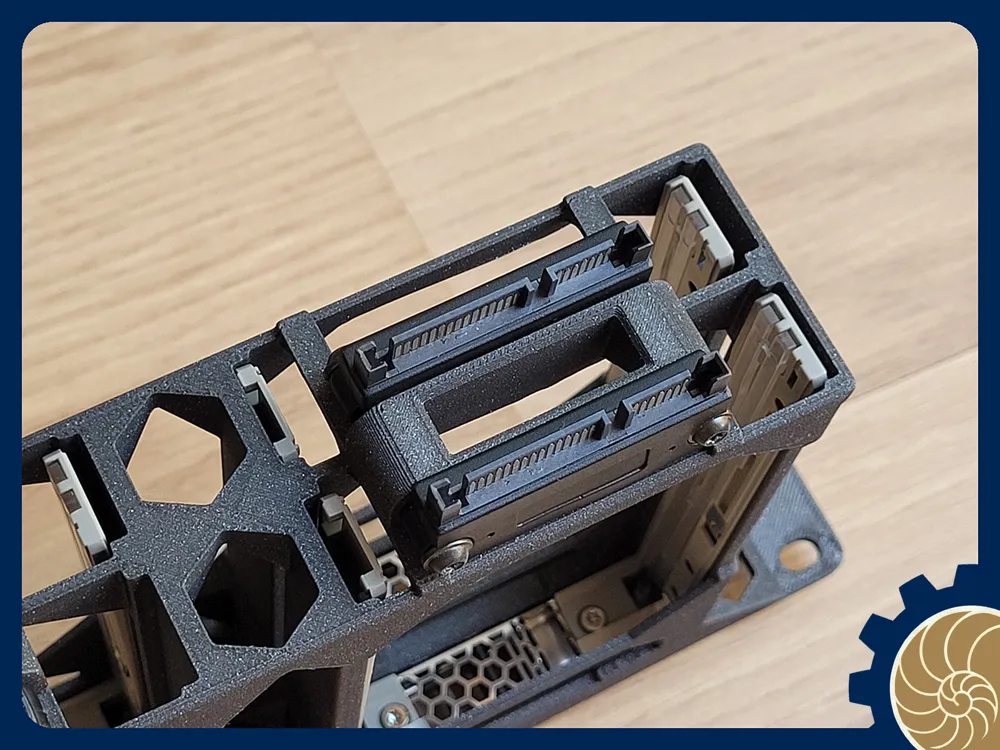

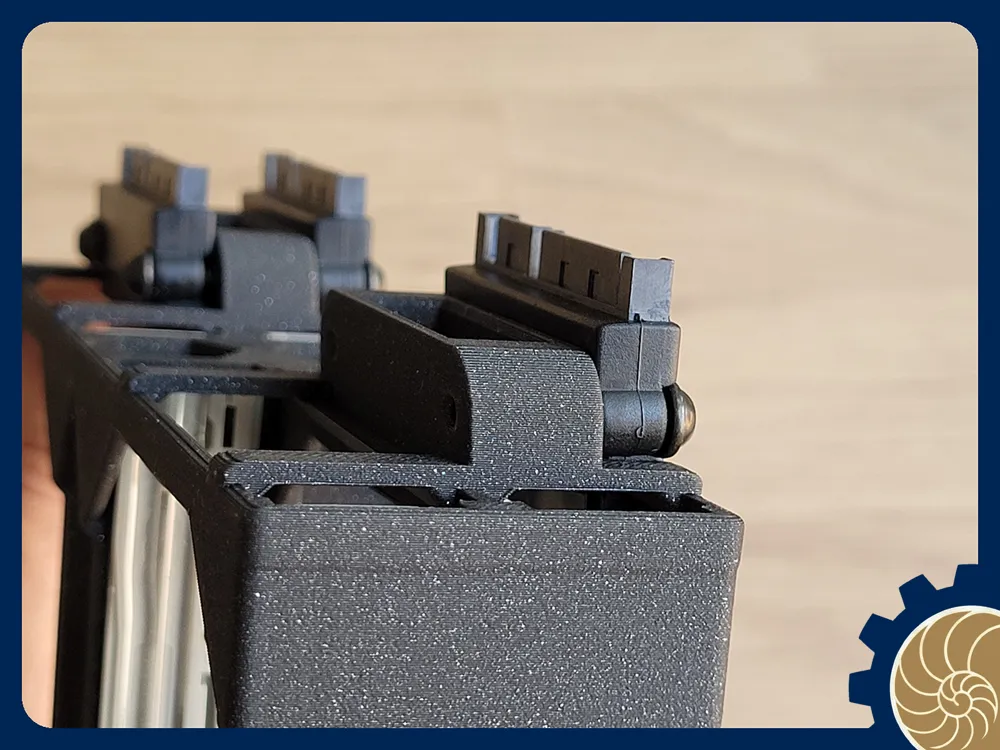

yes, SATA connectors face/screw holes are angled in purpose; to keep the connection as parallels as possible with the SSD/HDD connector

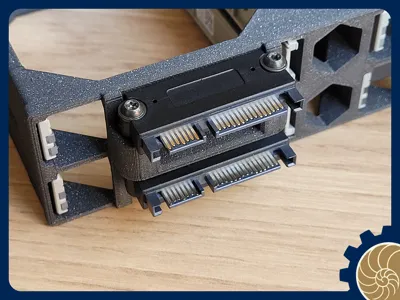

pro tip: When screwing the SATA connectors: let them have a fair bit of wiggle, don't fix them tight. The wiggle will account for the last 0.5mm of potential misalignment between connector and SSD/HDD. Perfect fit guarantee.

Print:

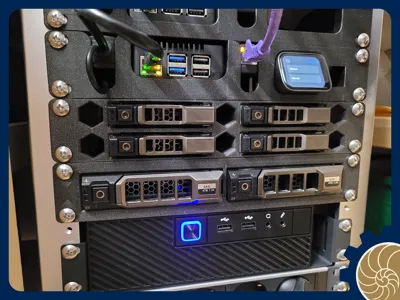

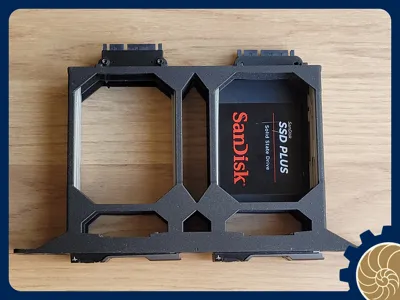

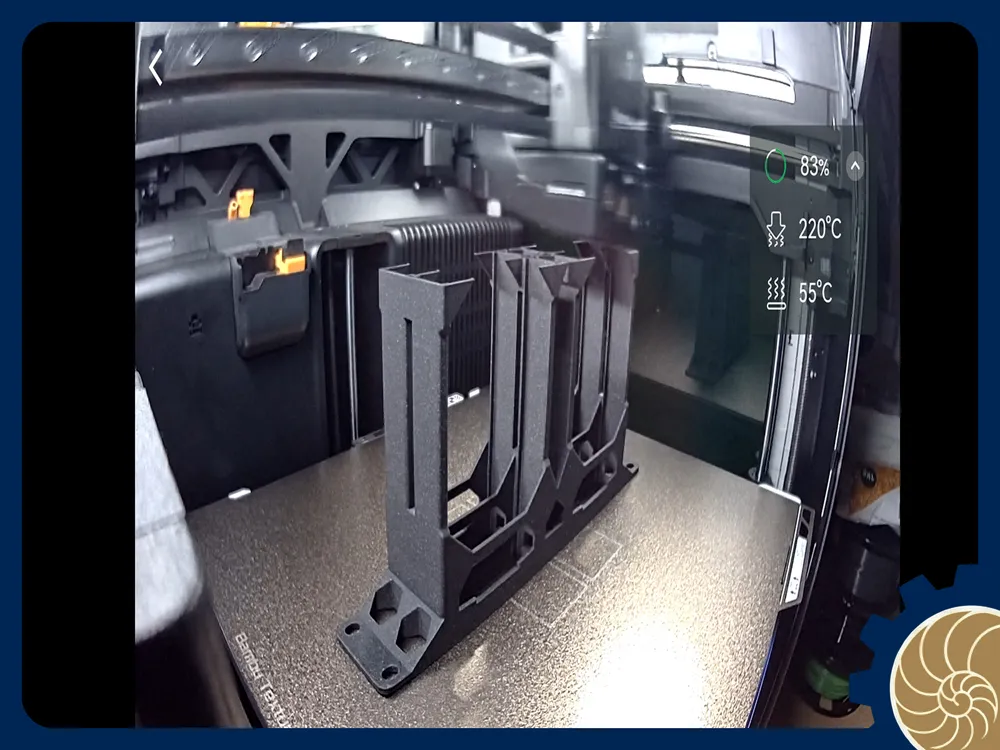

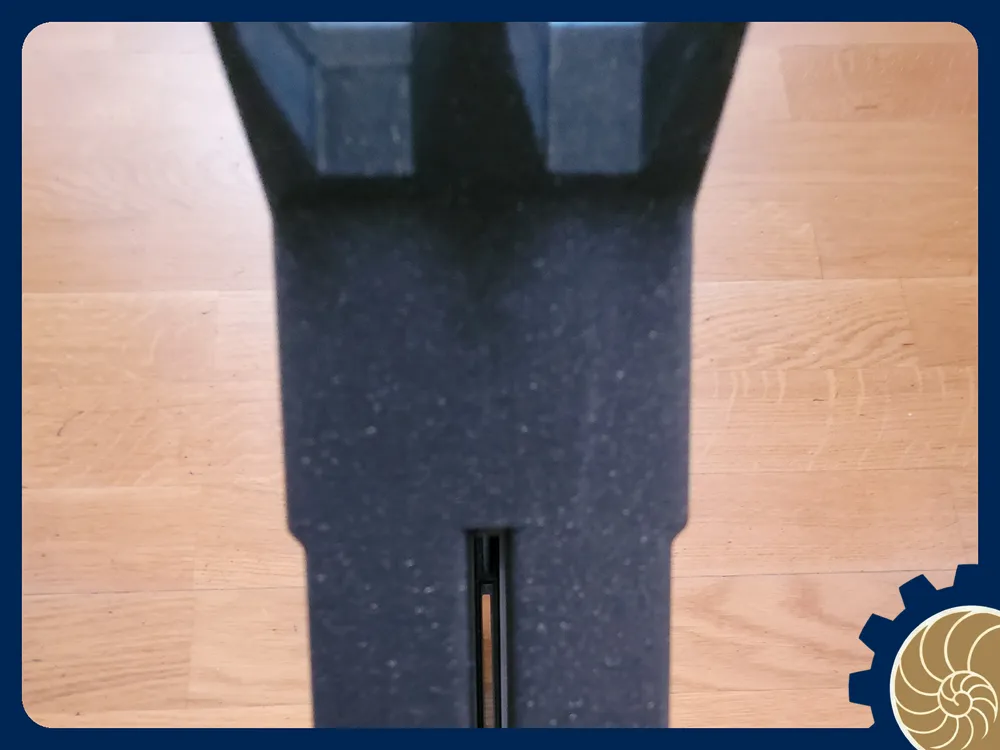

No support ! Print face down see picture.
Tolerance are quite tight, make sure to take your time to print it (I used 0.4mm nozzle, 0.2mm layers)

Other Material:

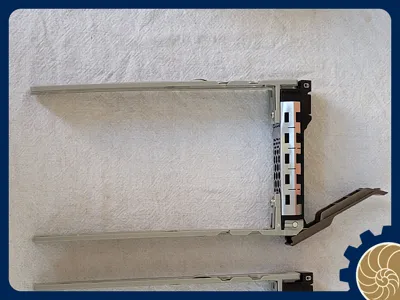

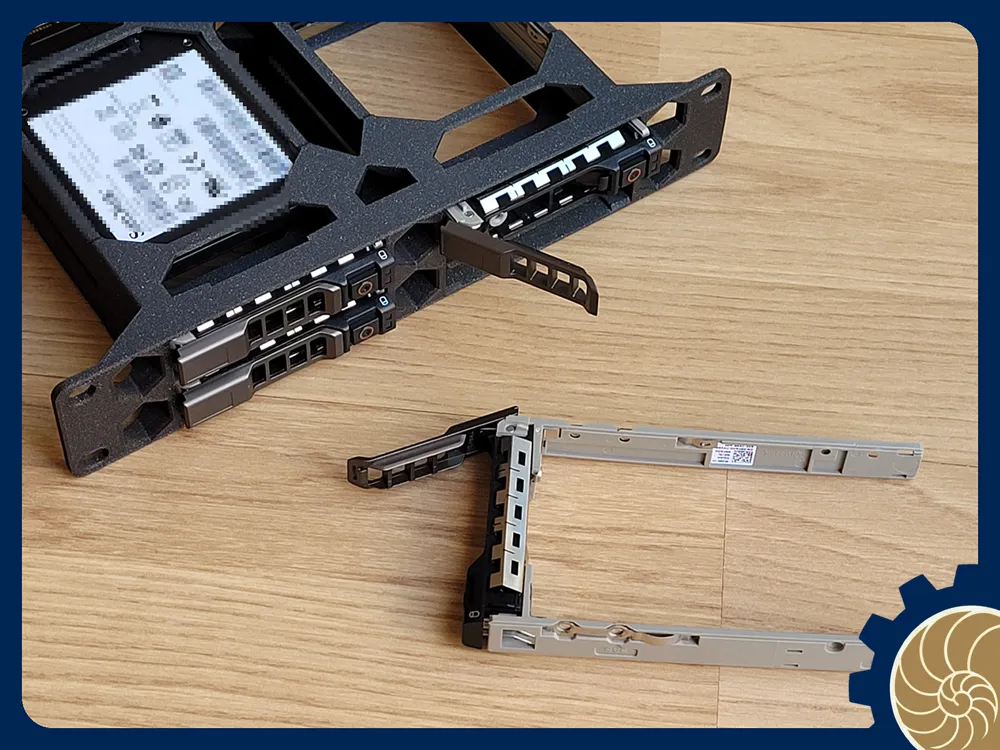

I use those refurbished caddy from Aliexpress:

keywords:

“NEW 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HARD DRIVE Bracket 8FKXC”
"2 PCS NEW 2Pcs/Lot 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HDD Bracket Drawer 8FKXC G176J"

2pack tray sells for about 7eur:

here in Aliexpress or
here in Aliexpress too

For the Hot swappable connection:

I used those:

keywords: SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter

Currently 5eur for 5:

Here on aliexpress

Hope it helps !
