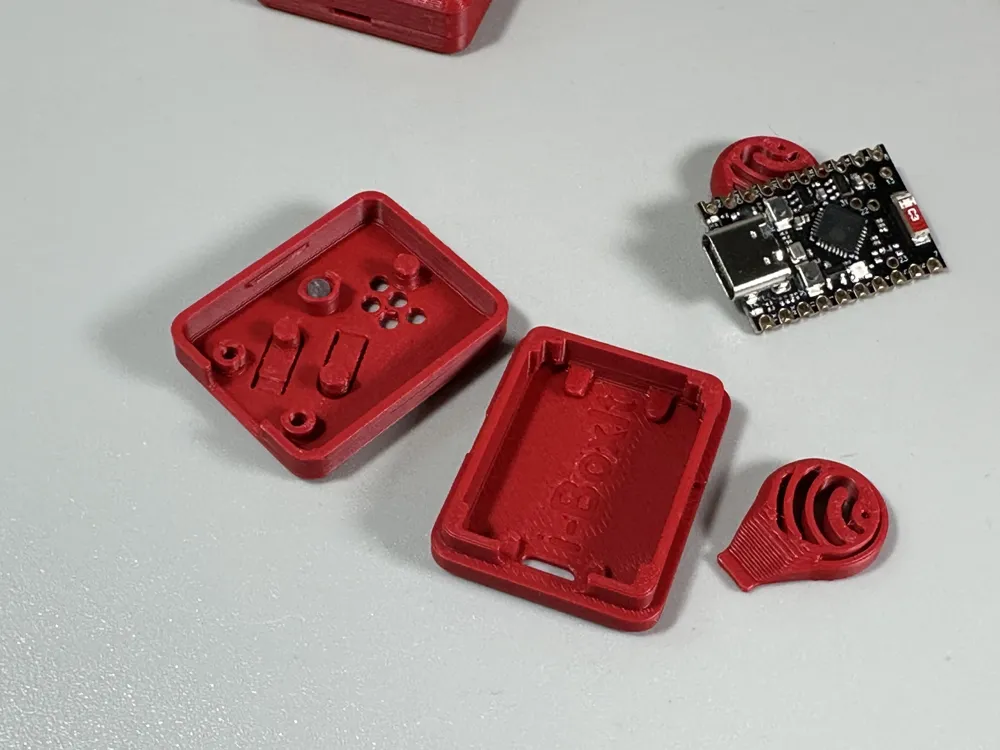

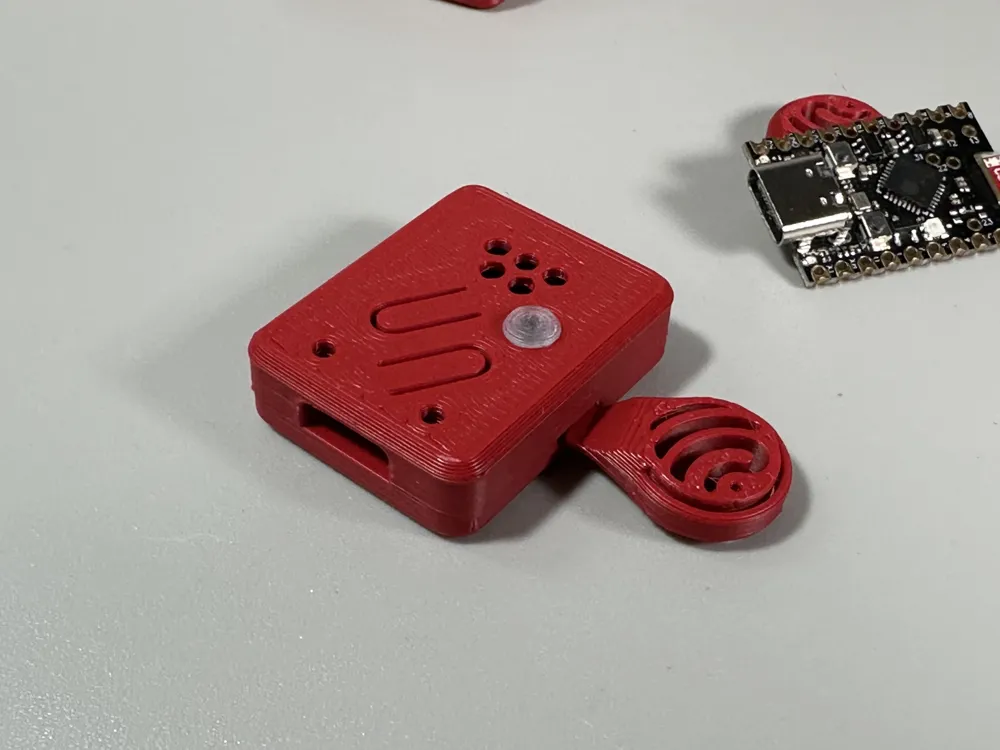

ESP32-C6 Super Mini Case | USB-C | Options
Print Profile(2)
Description

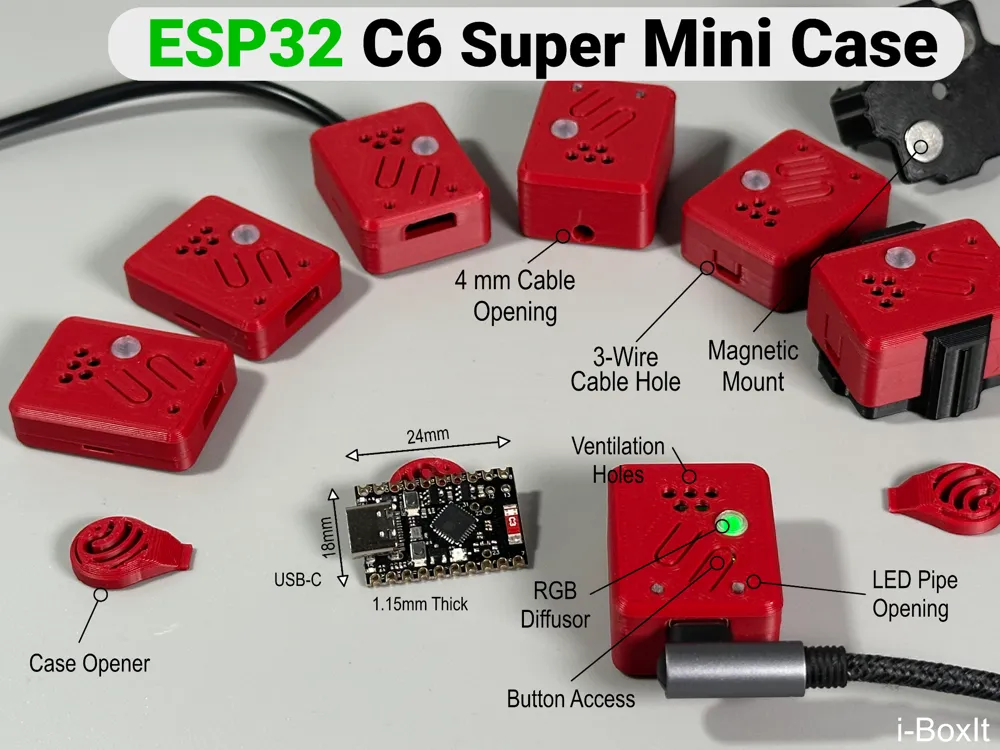

🔧 Features

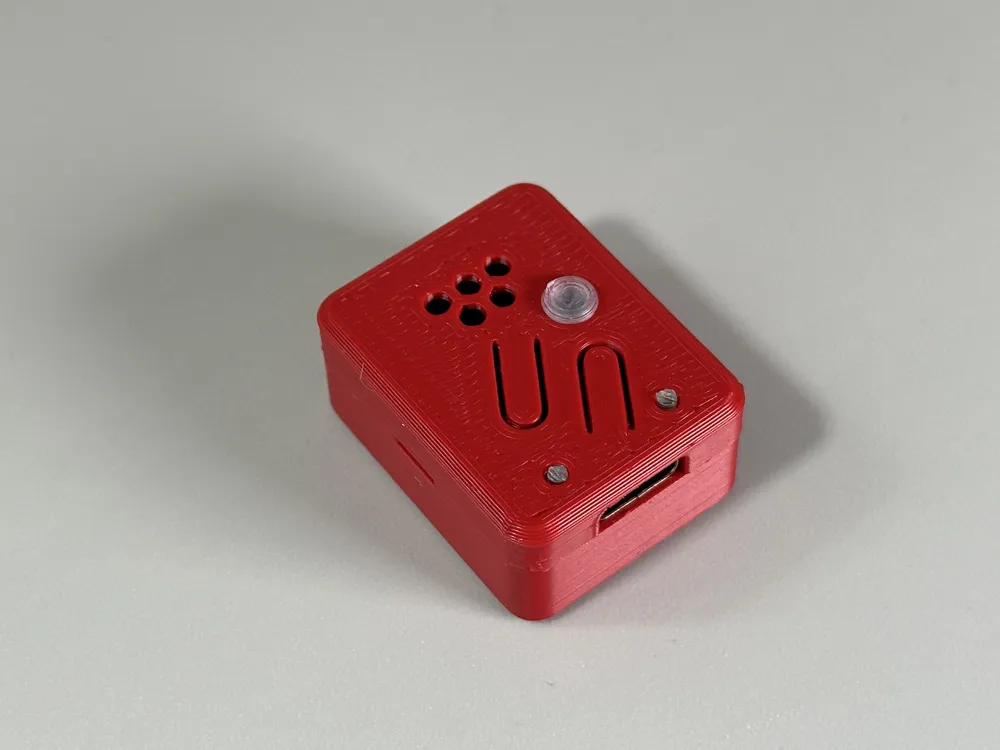

- Snap-Fit

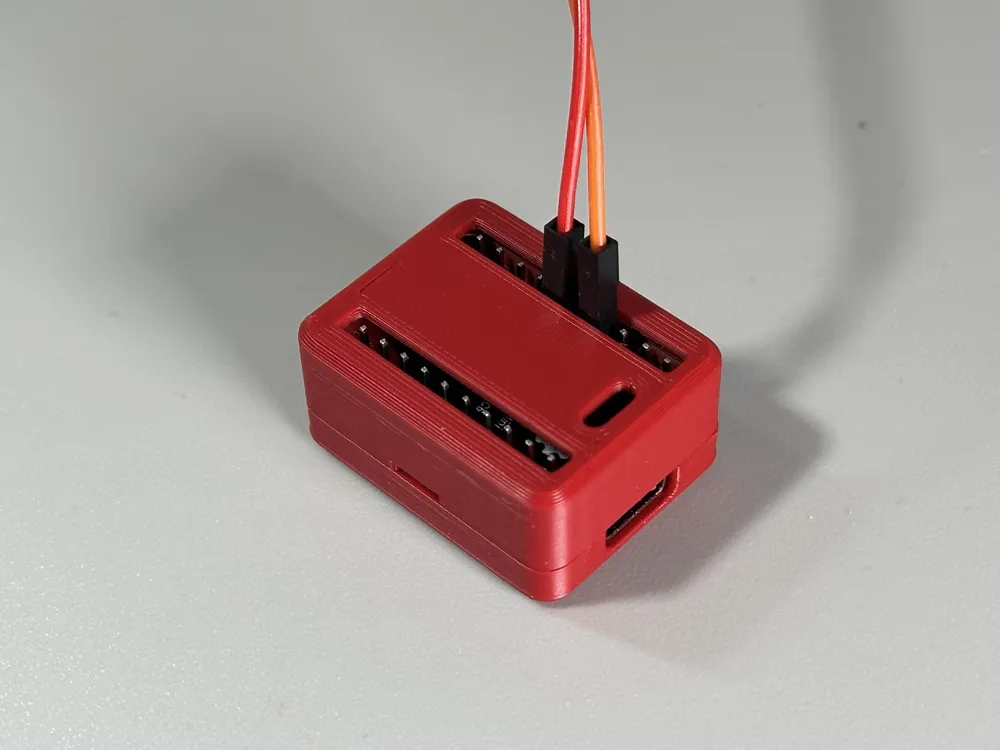

- Cable Hole - 4 mm or 3 Wire Hole (2.0 x 5.5 mm)

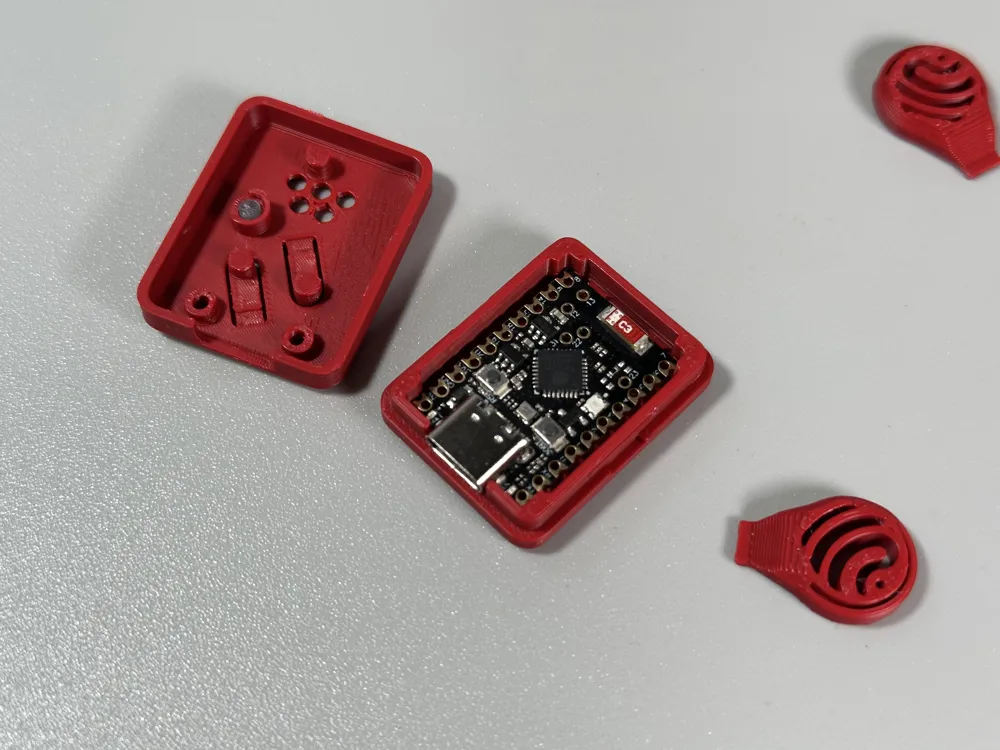

- Opener

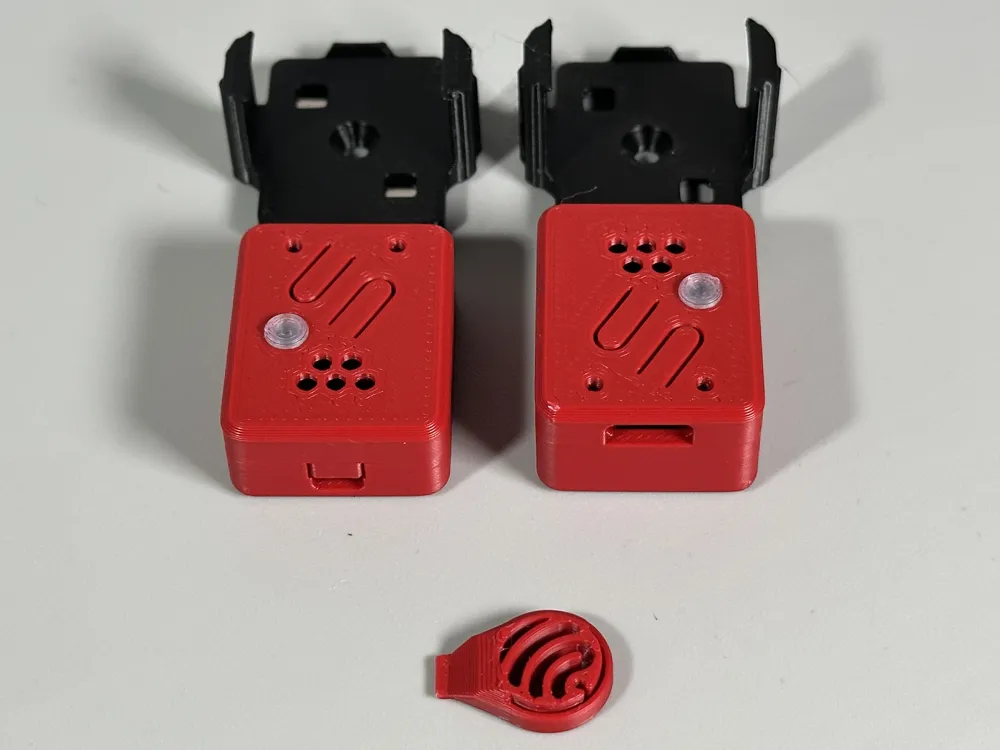

- Wall Mount - Screw or Magnetic (8x2mm)
- Accessible Buttons

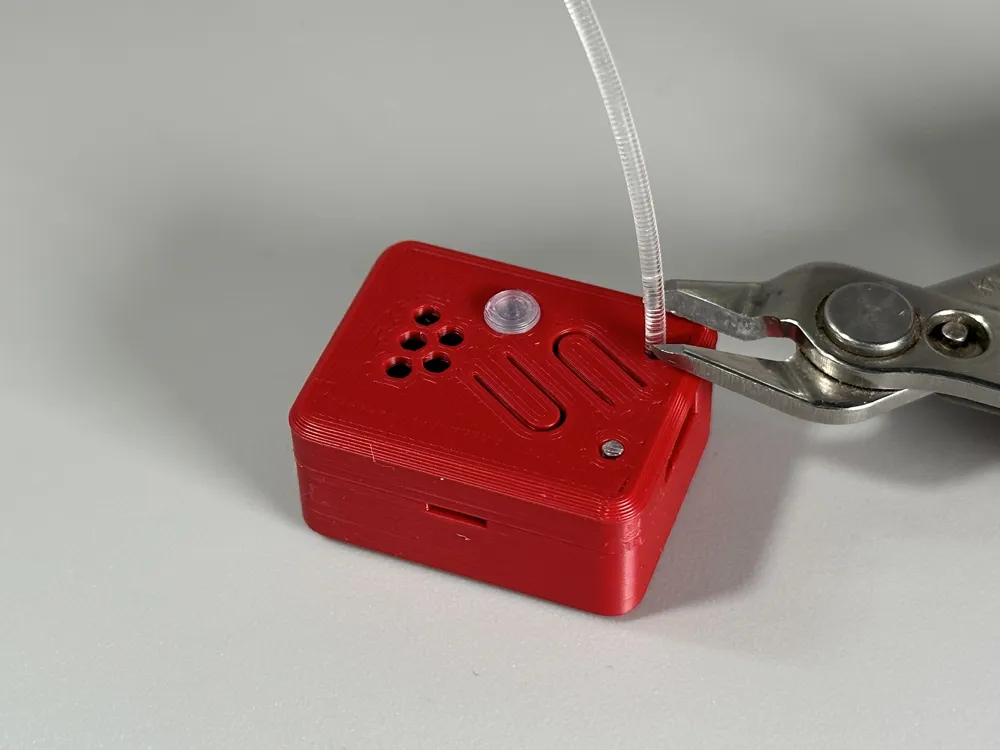

- Led Openings - Use PLA as a light emitter
- RGB Light Diffuser

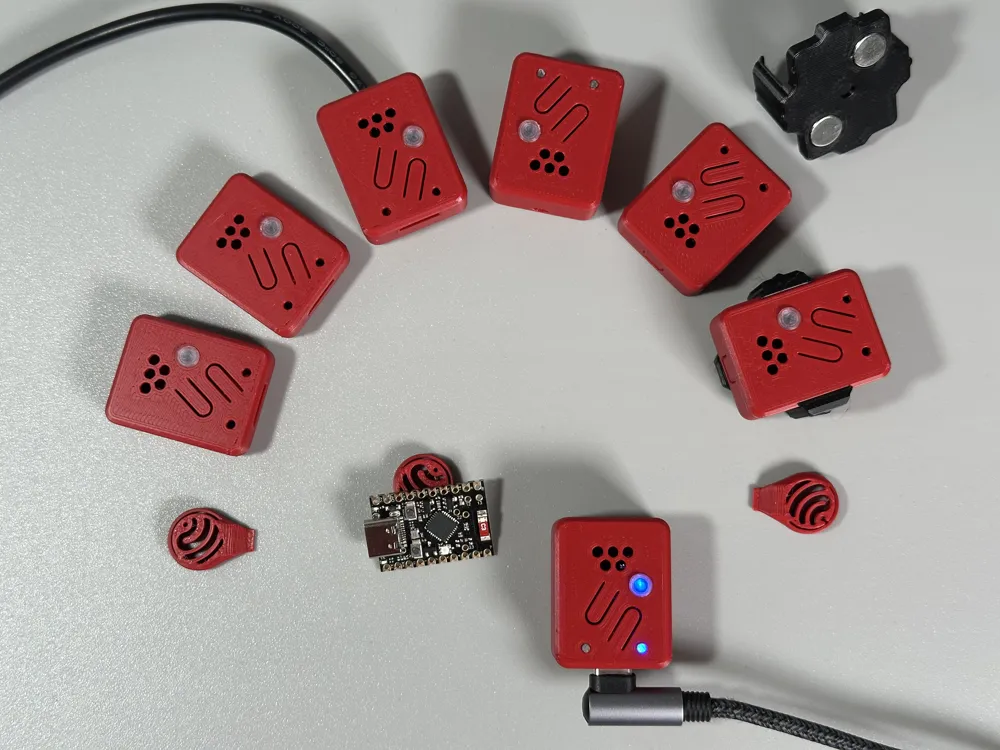

- 7 Size Variants

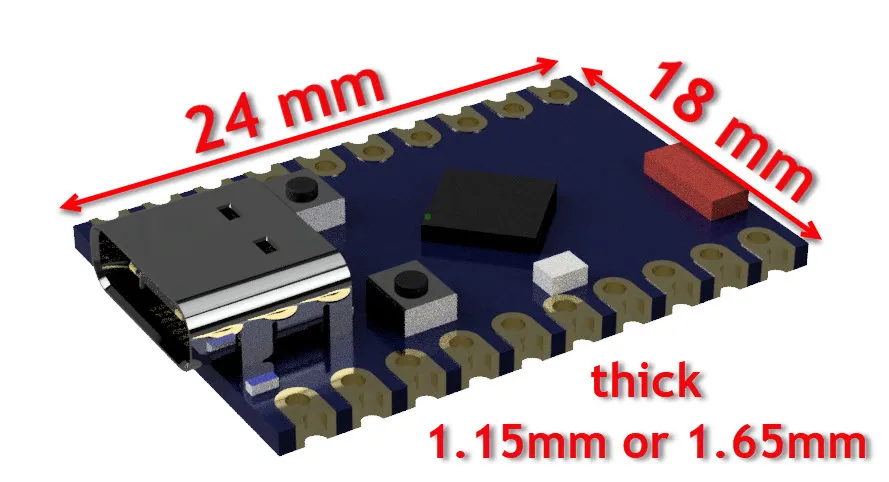

- Support for board thickness 1.15mm or 1.65mm
Links
- Universal MCU Header Soldering Jig
- ESP32-C6 Super Mini board
Source Code

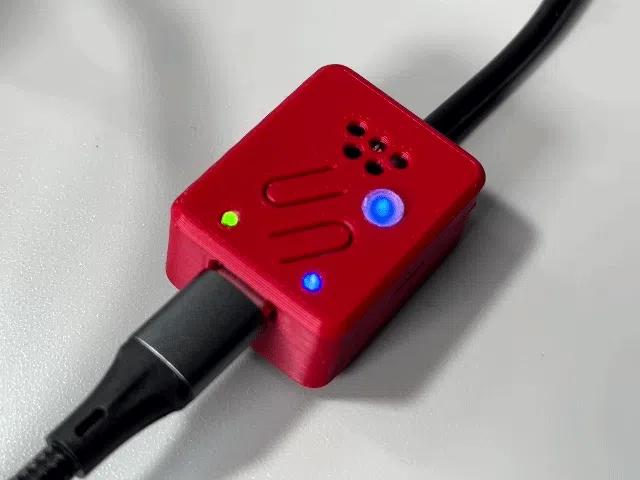

Accessing RGB Led via MicroPython and toggle the blue Led:
from machine import Pin
from neopixel import NeoPixel
import time
# RGB LED
np = NeoPixel(Pin(8), 1)
# Status-LED (Blue LED)
status = Pin(15, Pin.OUT)
statusValue = False
def set_color(r, g, b, brightness=1.0):
np[0] = (int(r * brightness), int(g * brightness), int(b * brightness))
np.write()
while True:
statusValue = not statusValue
status.value(statusValue)
set_color(255, 0, 0, 0.1) # rot, 10% Brightness
time.sleep(0.5)
set_color(0, 0, 255, 0.1) # blue, 10% Brightness
time.sleep(0.5)
set_color(0, 255, 0, 0.1) # green, 10% Brightness
time.sleep(0.5)
