Tripod Bipod Support
Print Profile(1)
Description

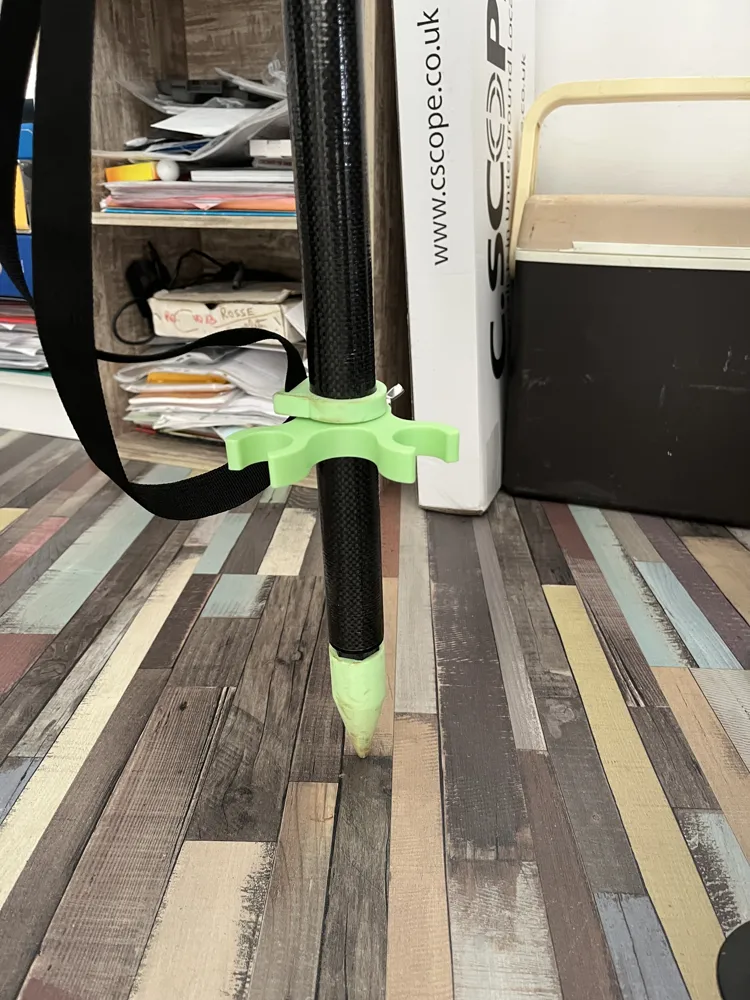

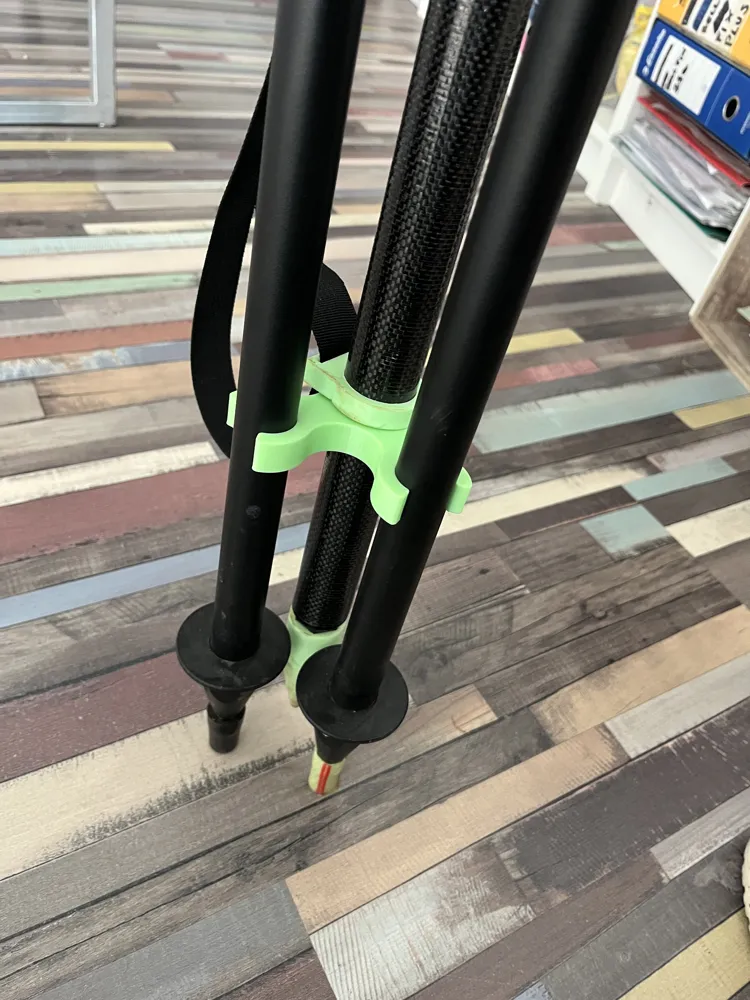

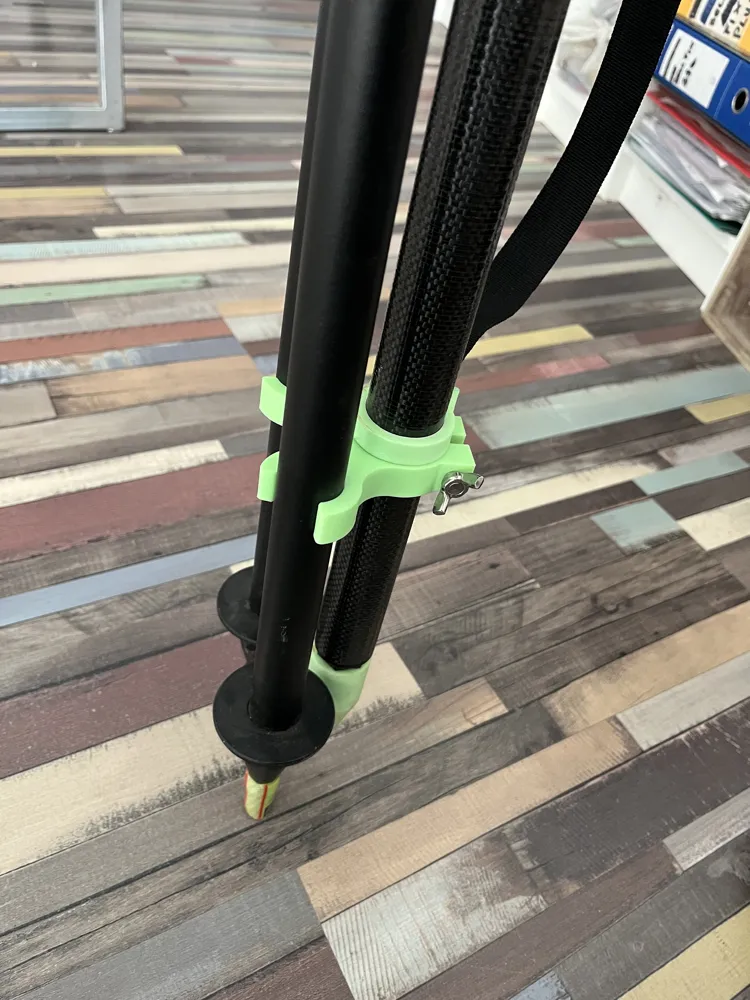

After breaking the one I had, I decided to print my own… This is the support that comes with the bipod to keep the two legs of the bipod fixed during transport to the GPS pole and thus avoid getting in the way during movement, allowing us to always leave the bipod attached to the pole.

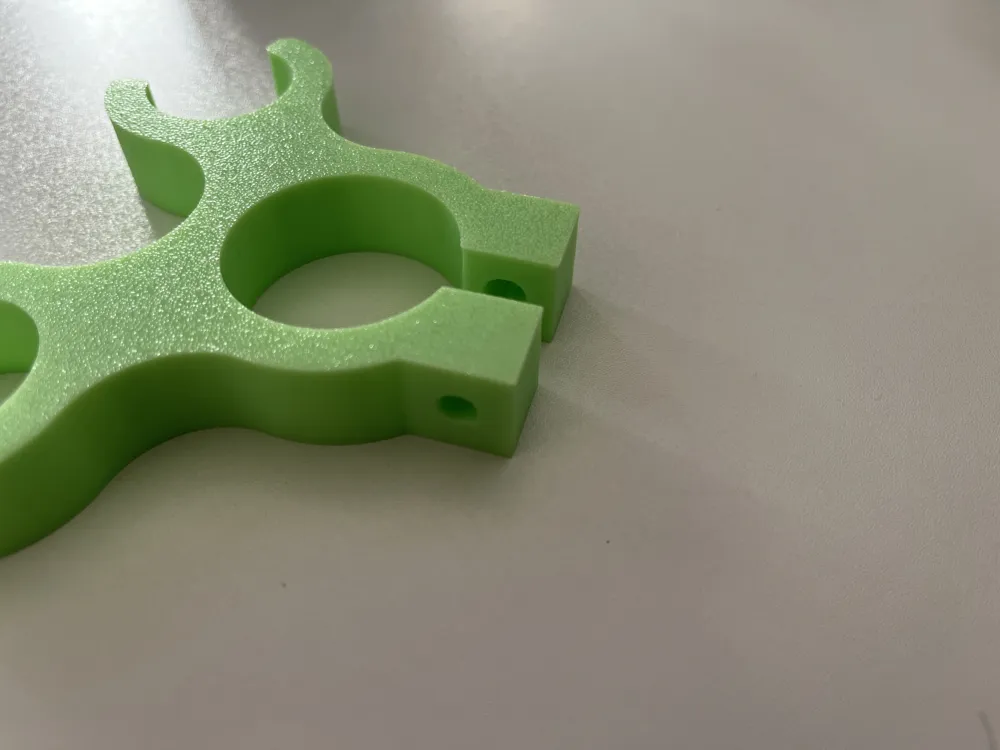

There are two holes, one larger at 6mm and one smaller at 5mm, so that in the 6mm hole the screw remains pass-through while in the 5mm hole it screws and tightens onto the pole and remains firmly secure.

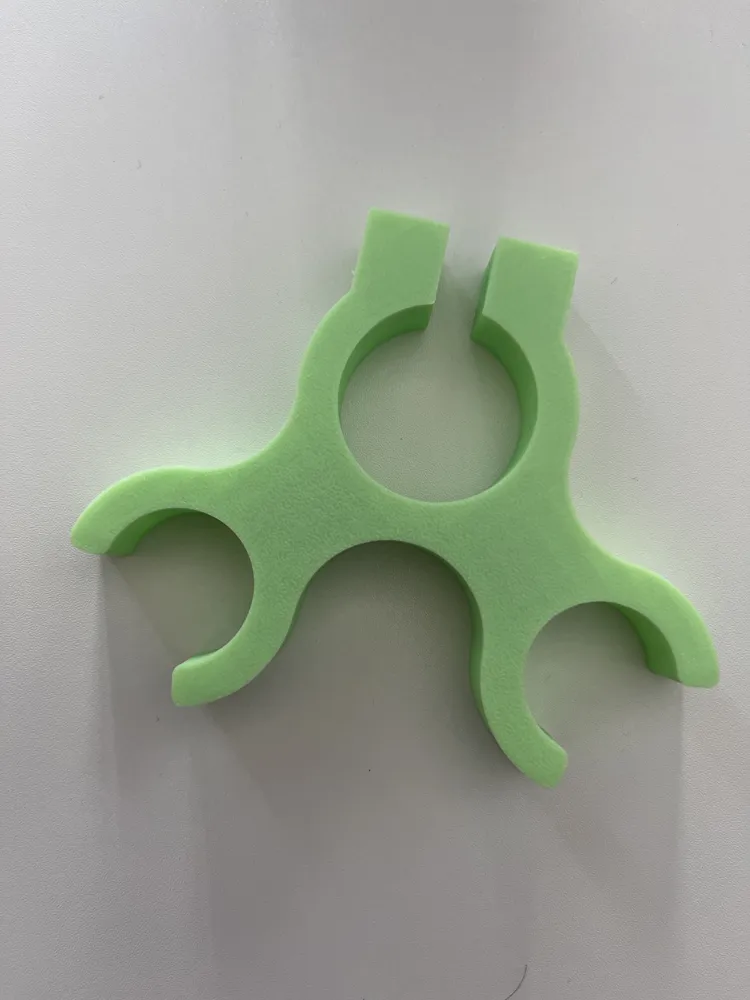

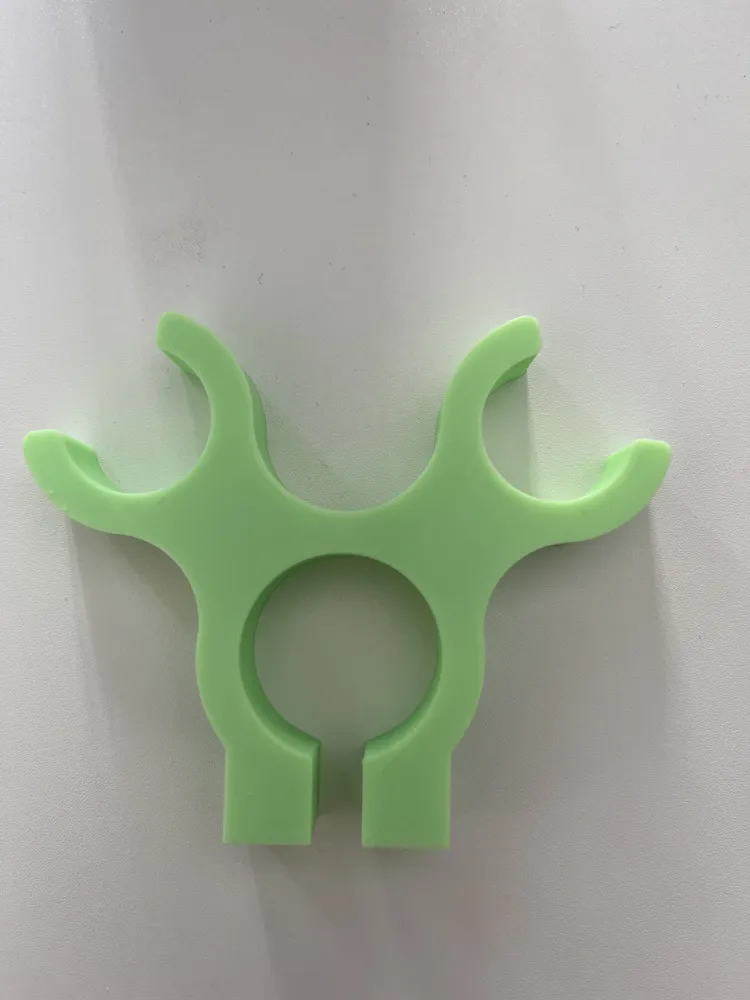

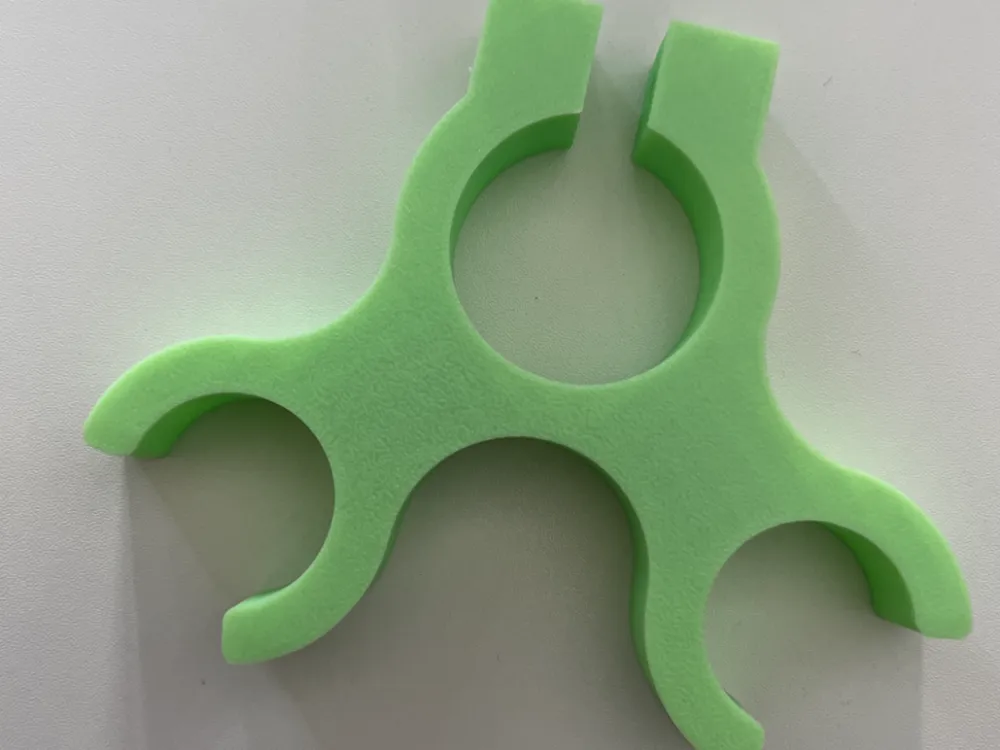

Designed for a 32.5mm pole (but having a screw system, larger or smaller poles can also be used as a central pole), and 25mm bipod poles that snap into place.

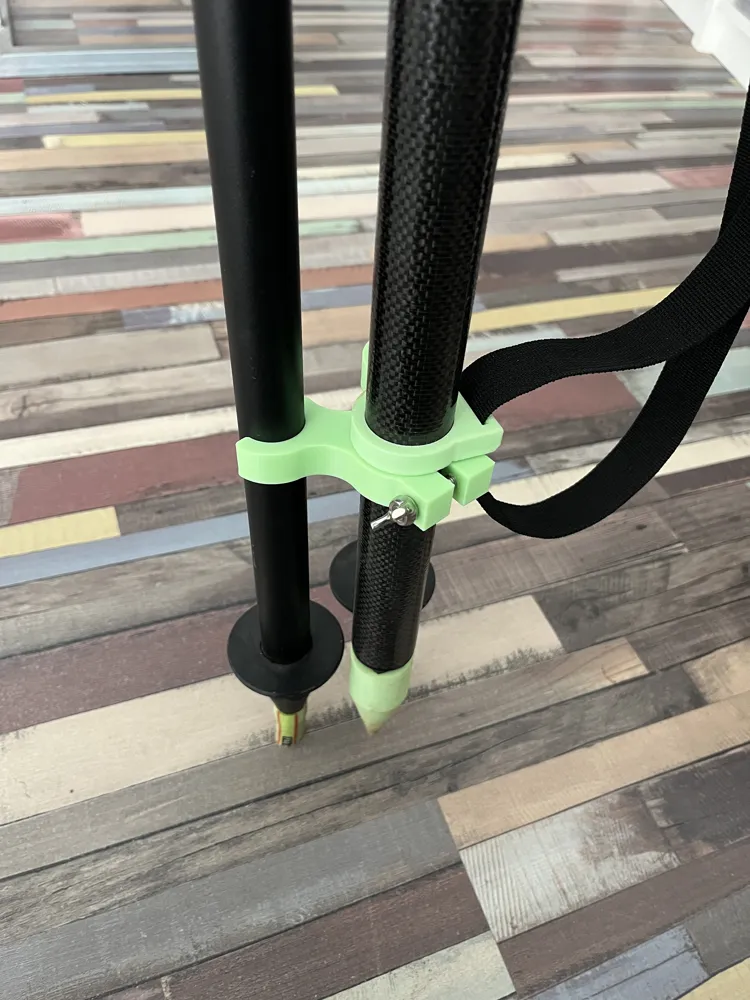

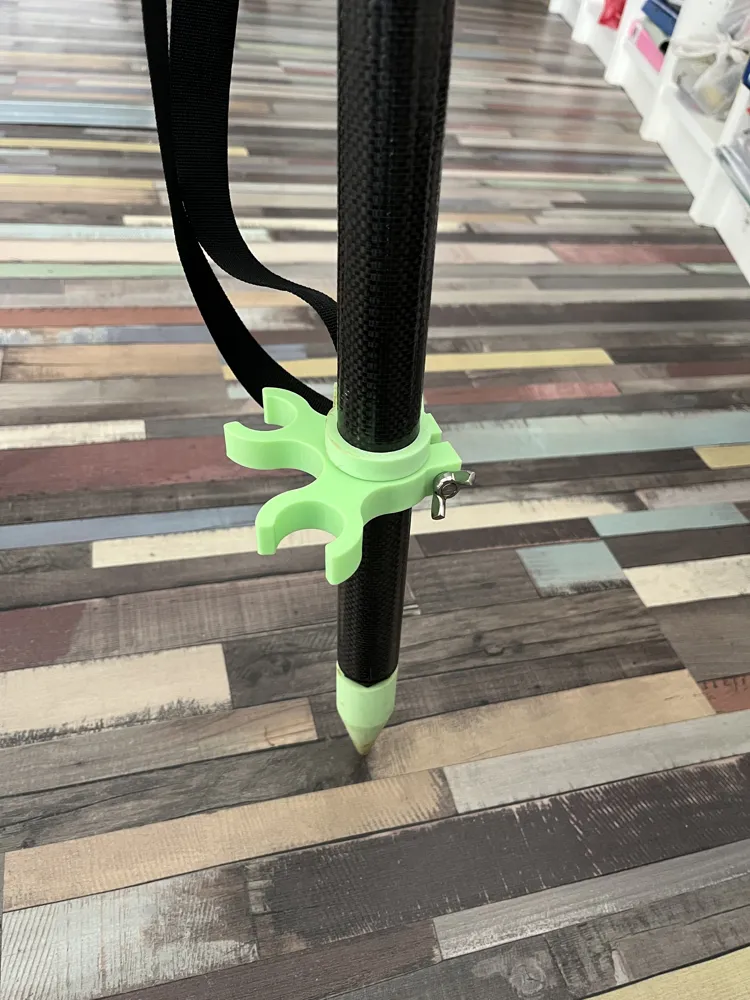

For the screw, I used a butterfly head screw to allow for hand tightening, measuring 5.5mm.
