Housing X1P-Expander LED Addon Module

X1Plus Expander Addon – LED Housing (Model X1P-005)

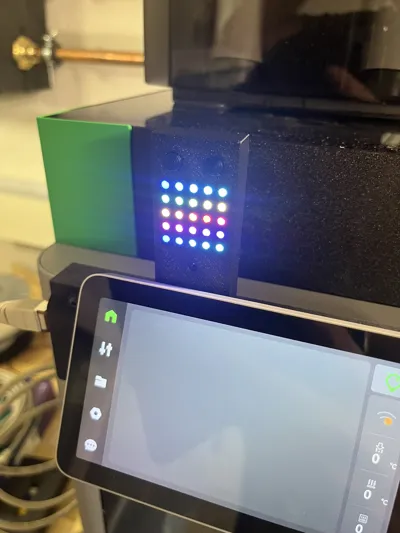

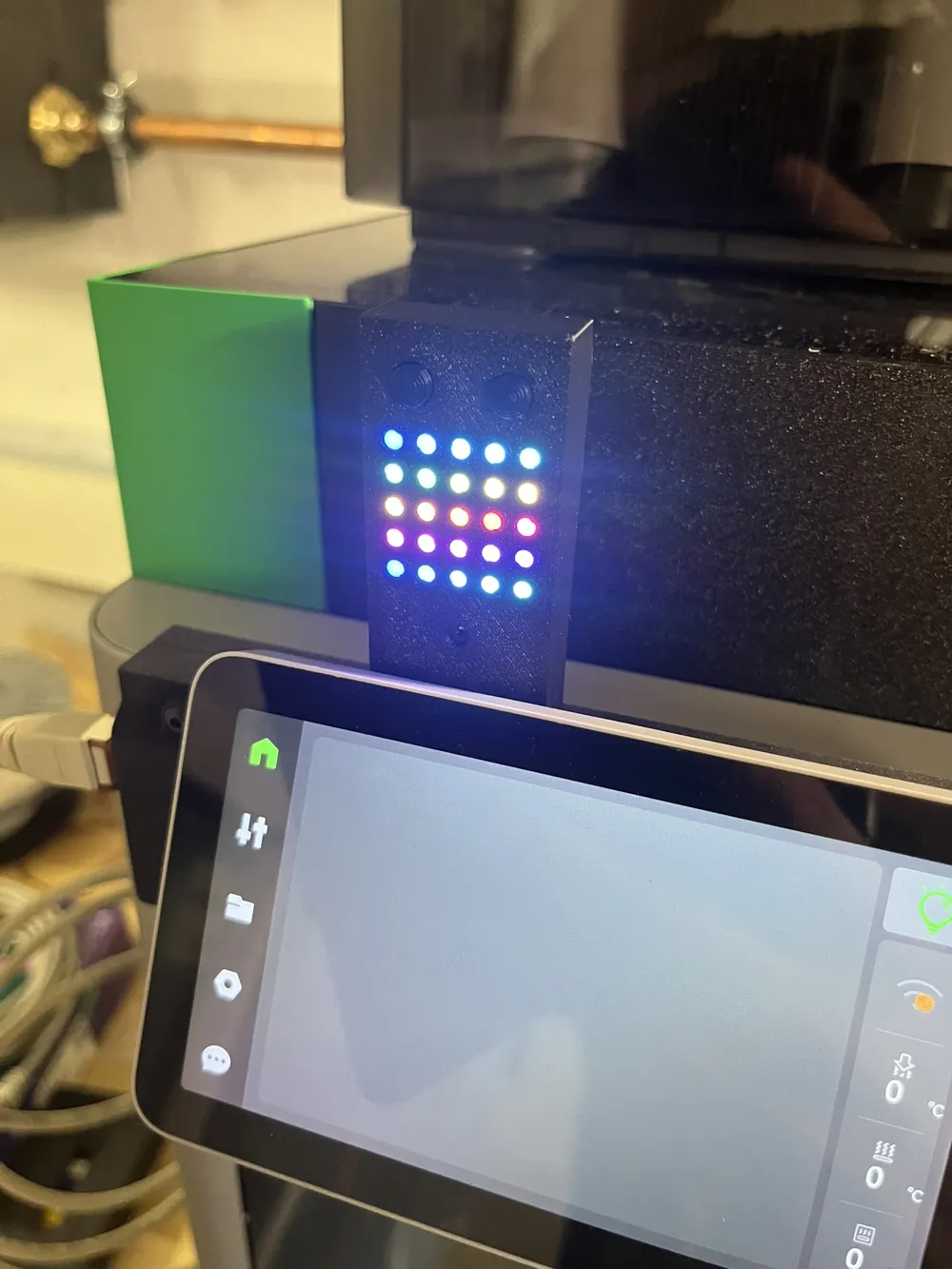

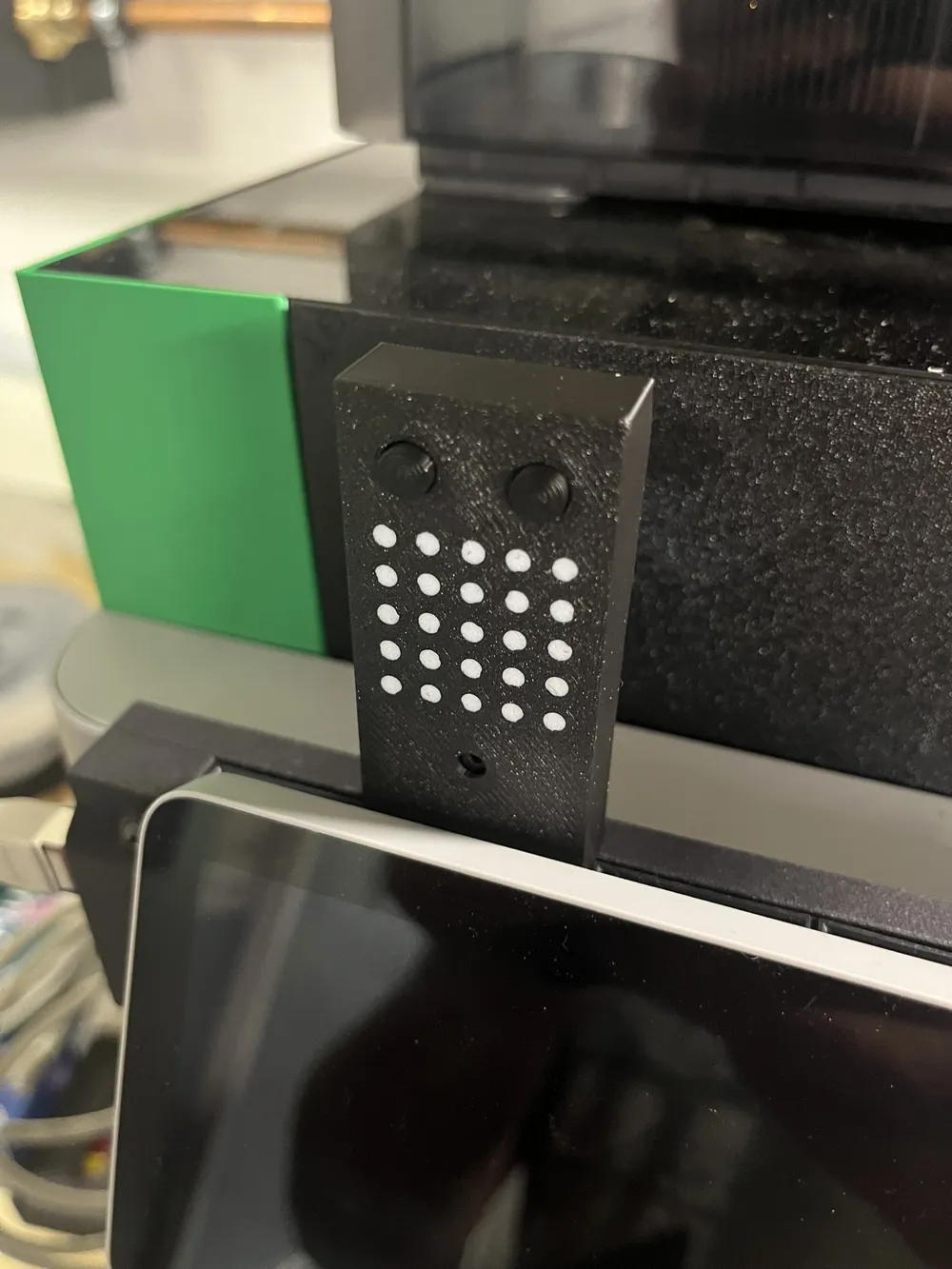

This custom 3-piece housing is designed specifically for the X1Plus Expander Addon Module and includes integrated support for an optional LED indicator. The modular design consists of a top cover, push button, and bottom base, enabling clean integration into enclosures or printer frames.

Parts included:

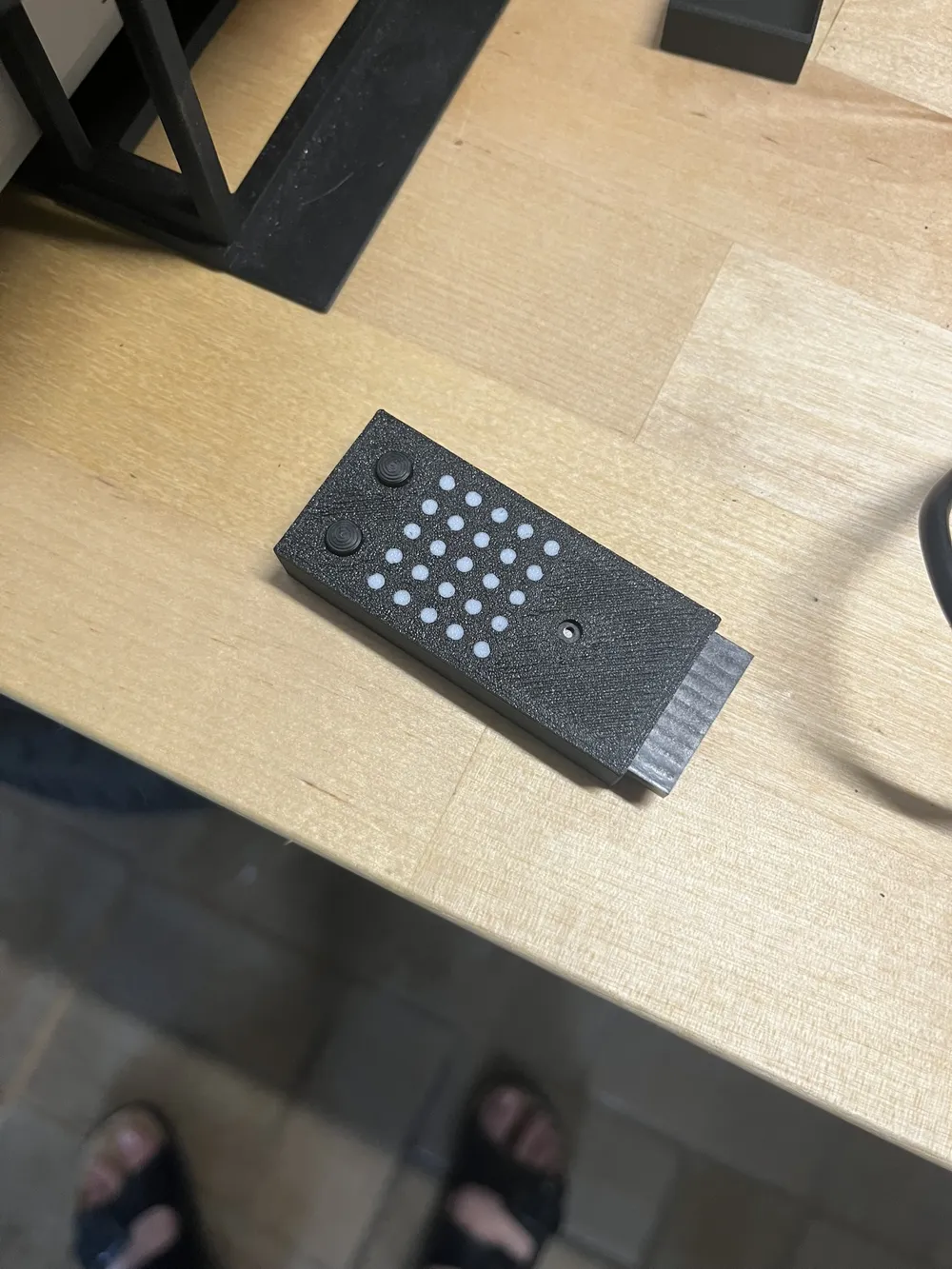

• Top Housing – Features a precision opening for LED light visibility and secure fit with the button module.
• Button Housing – A central actuator piece, designed to be pressed manually; allows for LED backlighting if desired.

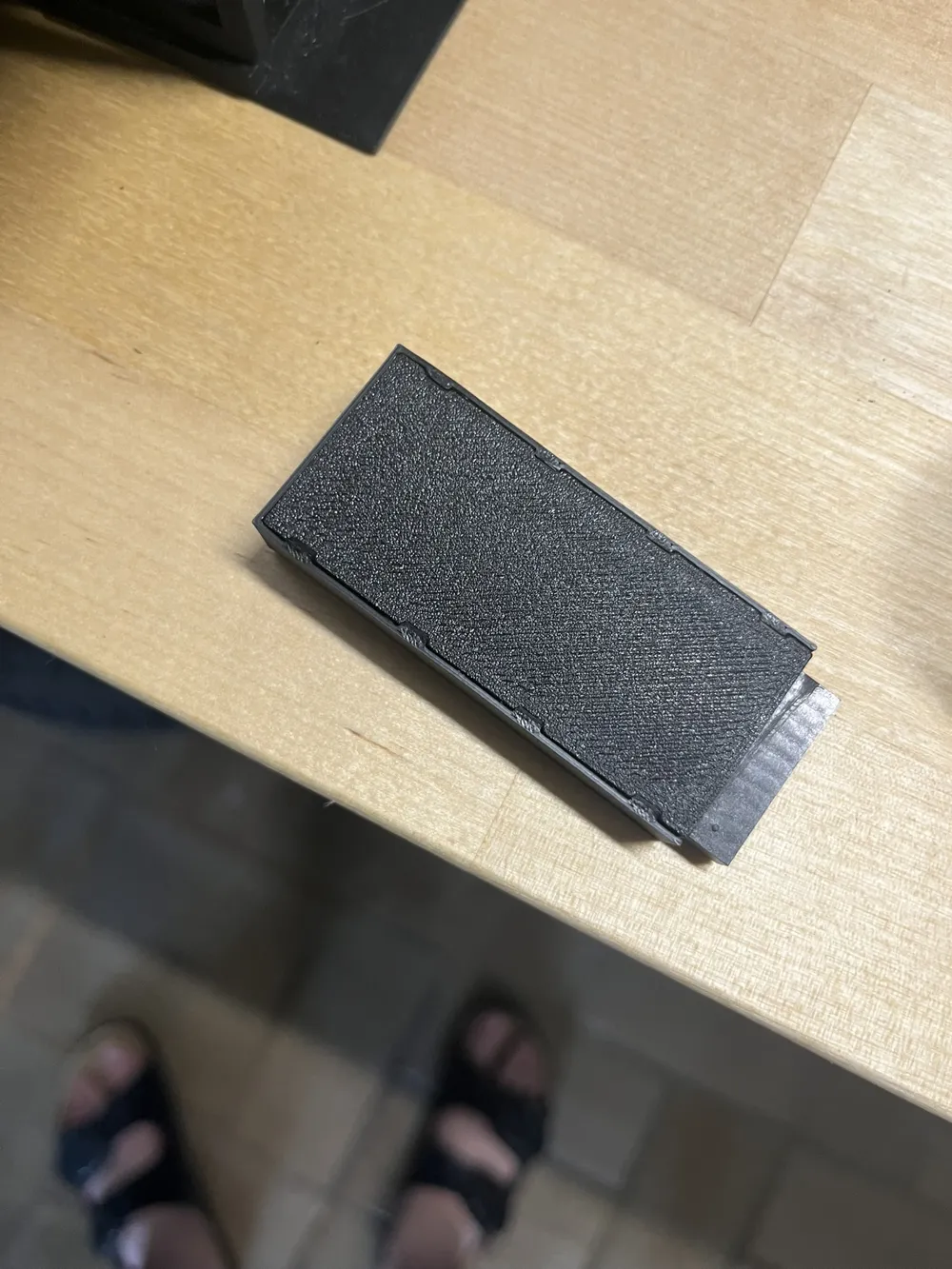

• Bottom Housing – Serves as the structural base, with space for wiring, fasteners, or PCB mounting.

Key Features:

• Tailored fit for the X1Plus Expander Addon Module
• Designed for 3D printing (FDM or resin-compatible)
• Compact and clean layout for easy installation

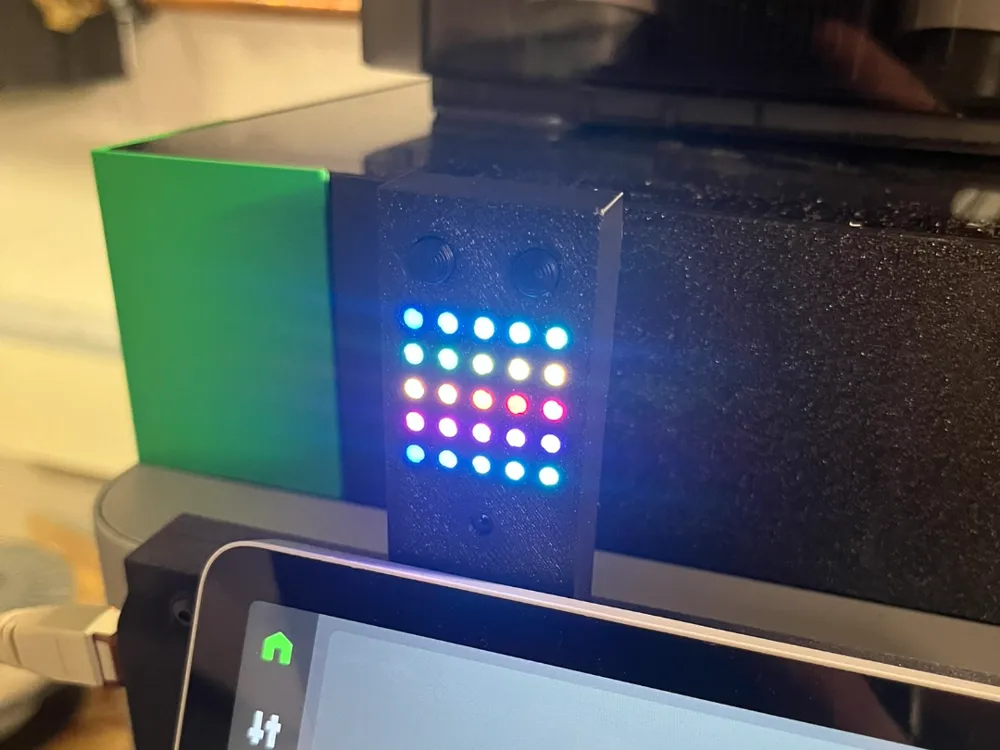

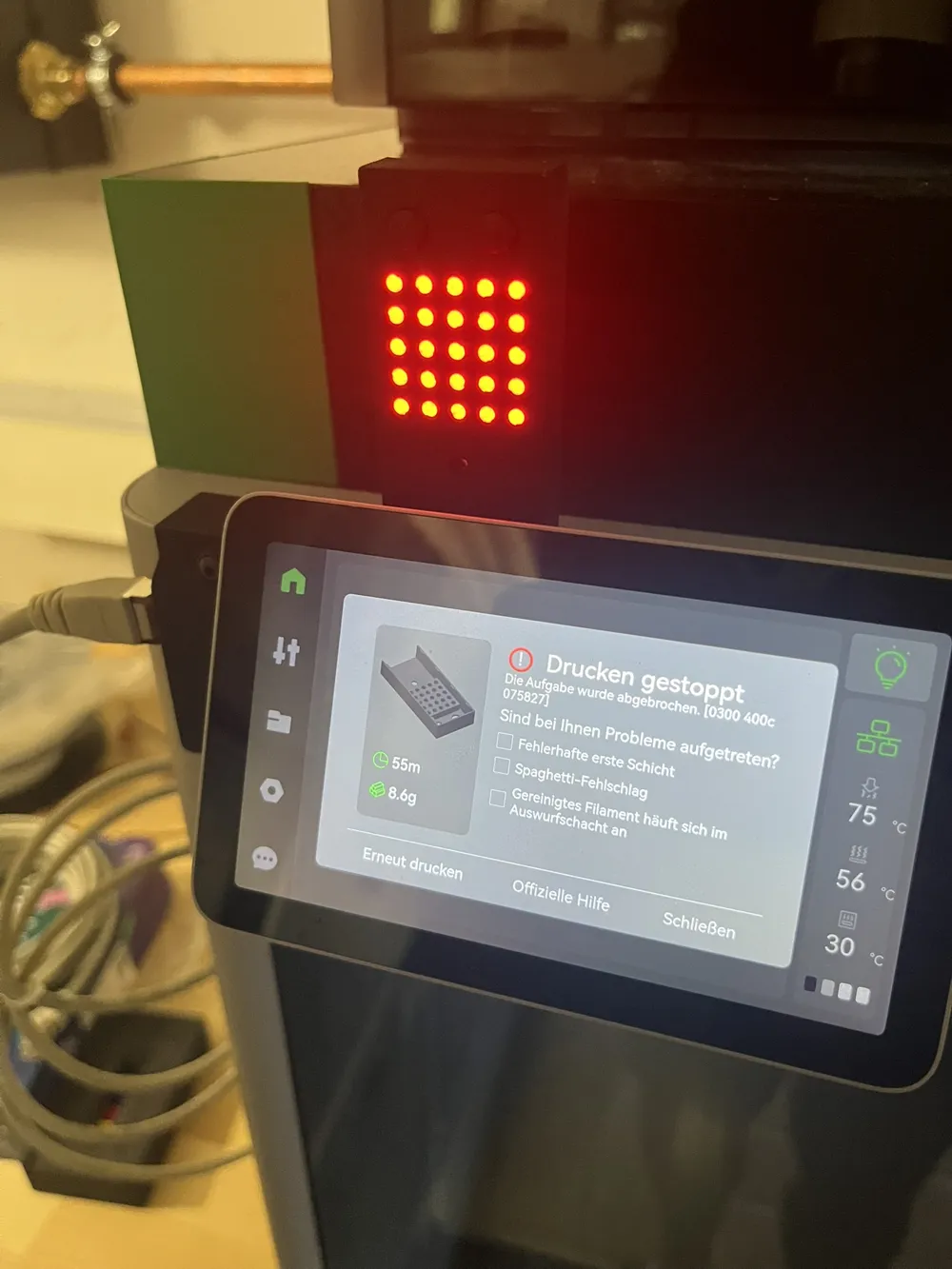

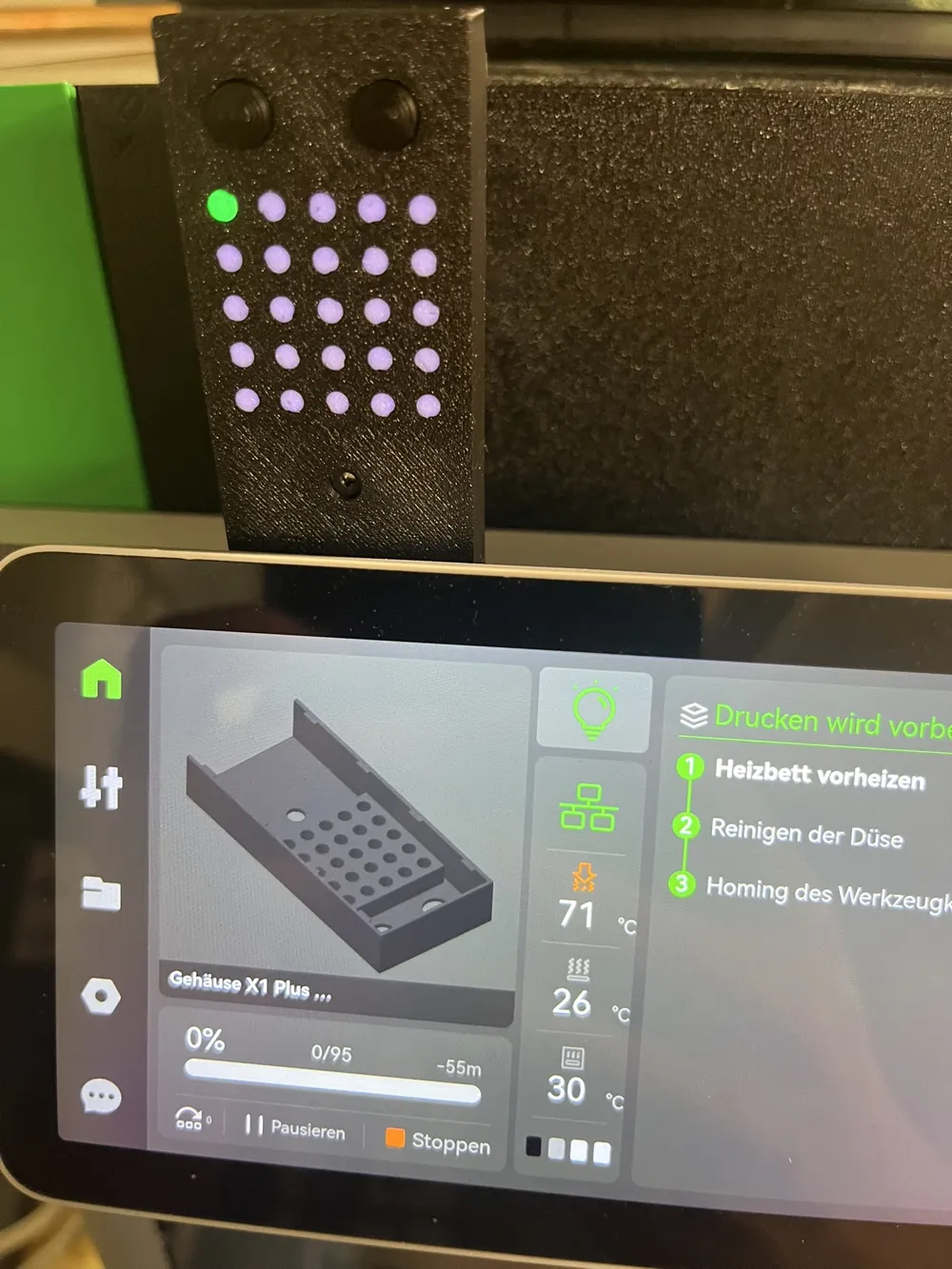

• LED support for enhanced visual feedback (e.g., status indication)
• Assembly-friendly: Snap-fit or screw-compatible (depending on user preference)

This model is ideal for users looking to integrate functional controls into their X1Plus ecosystem, with a sleek and user-friendly interface.
