Electric Water Gun
Print Profile(1)
Description

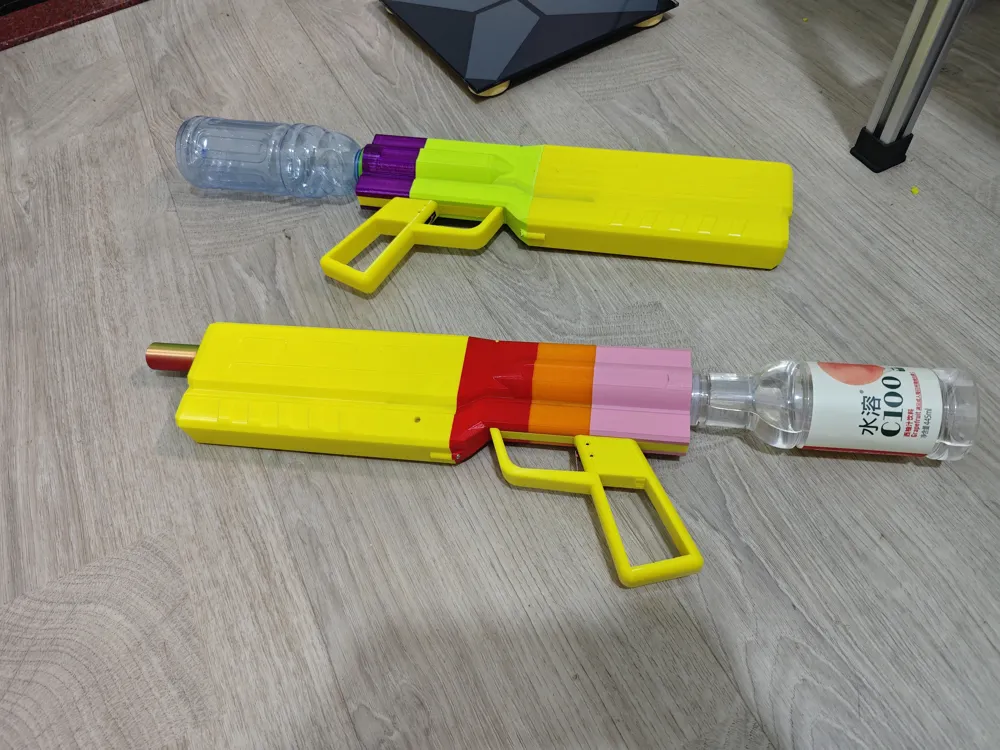

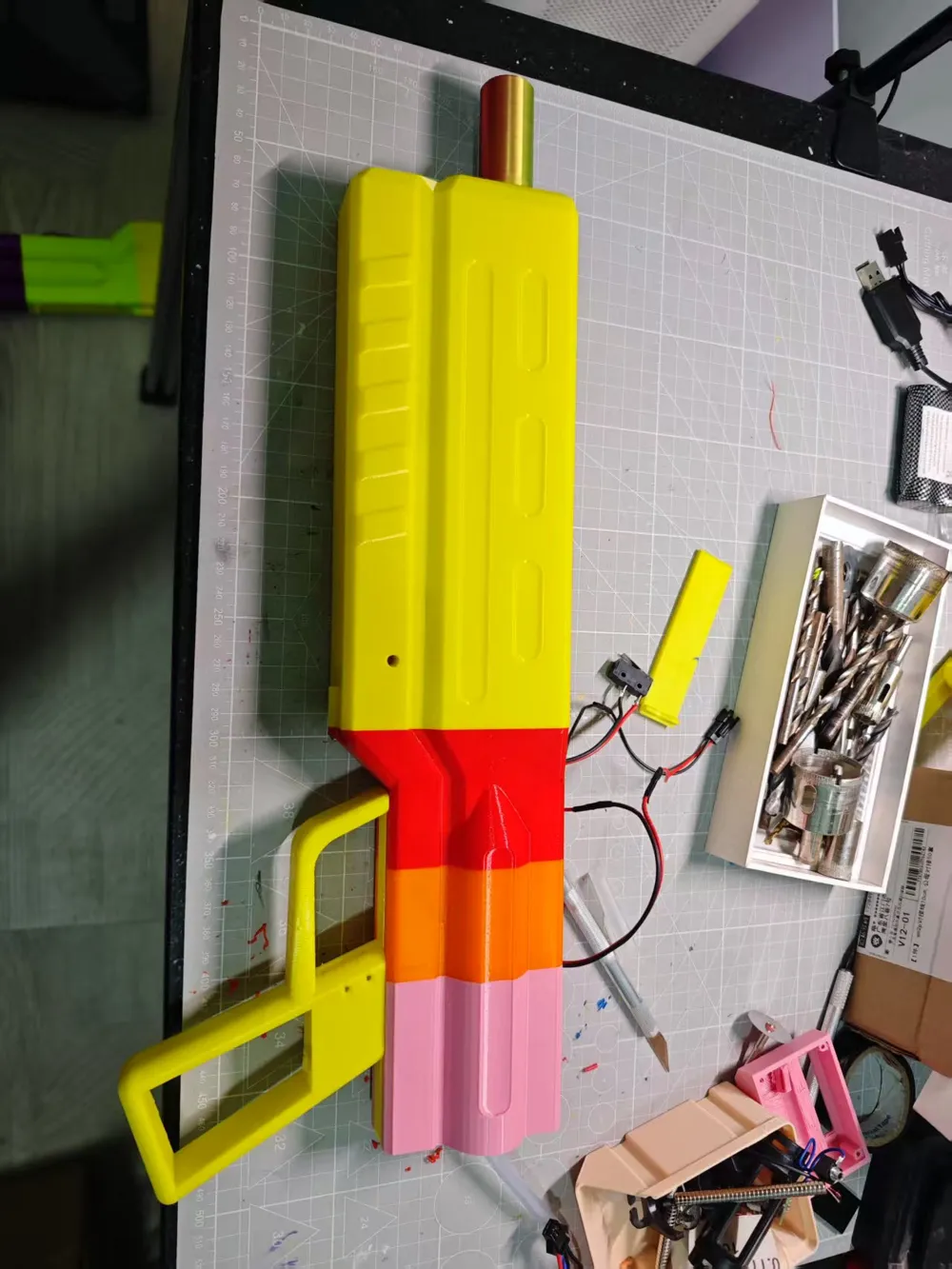

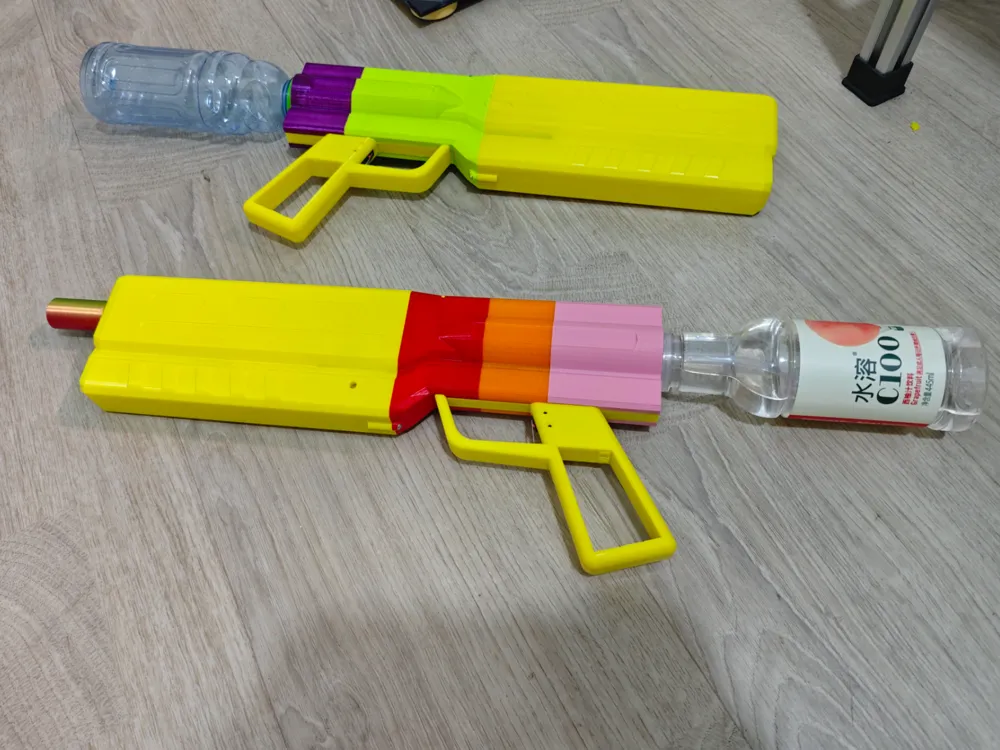

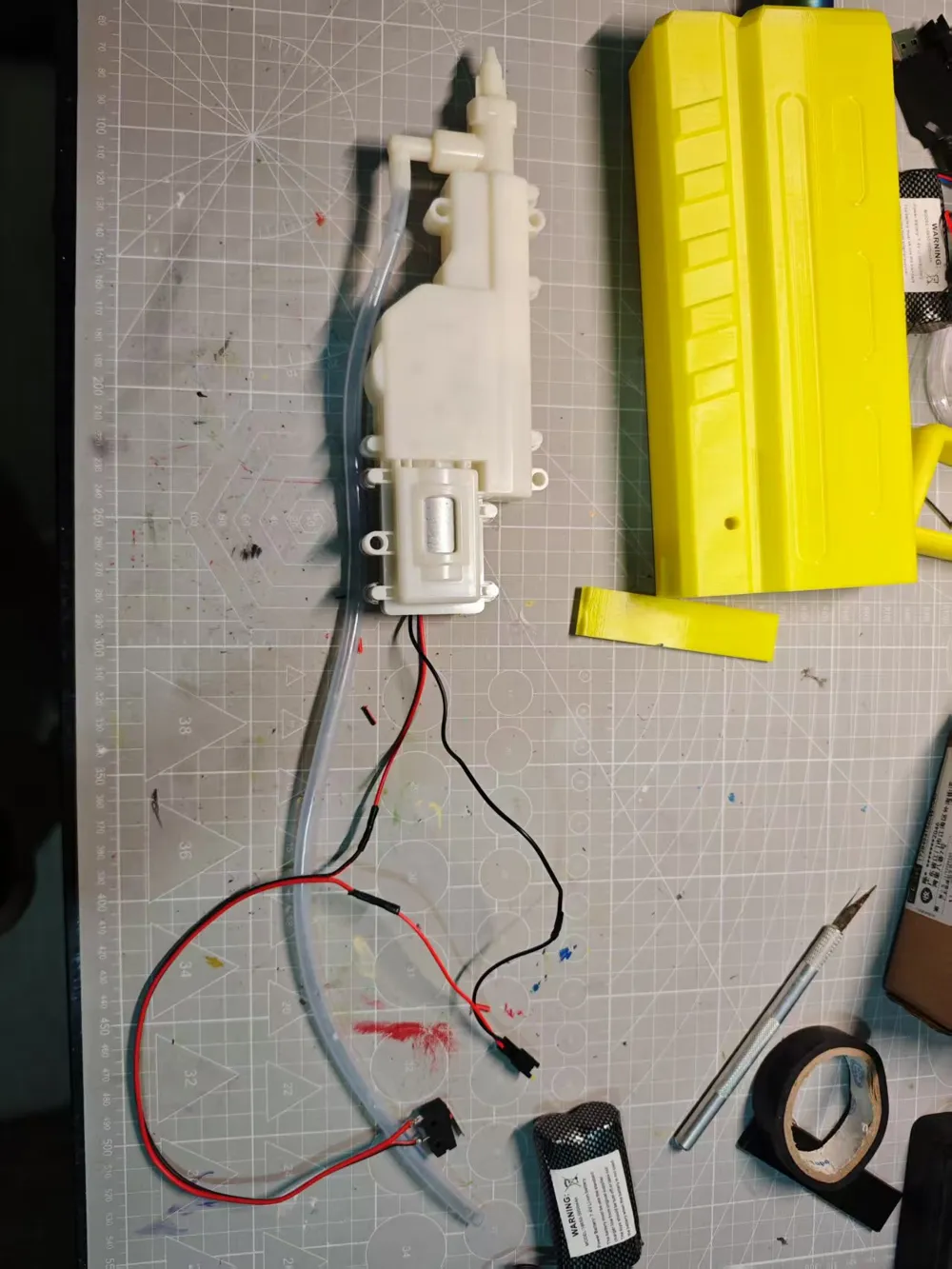

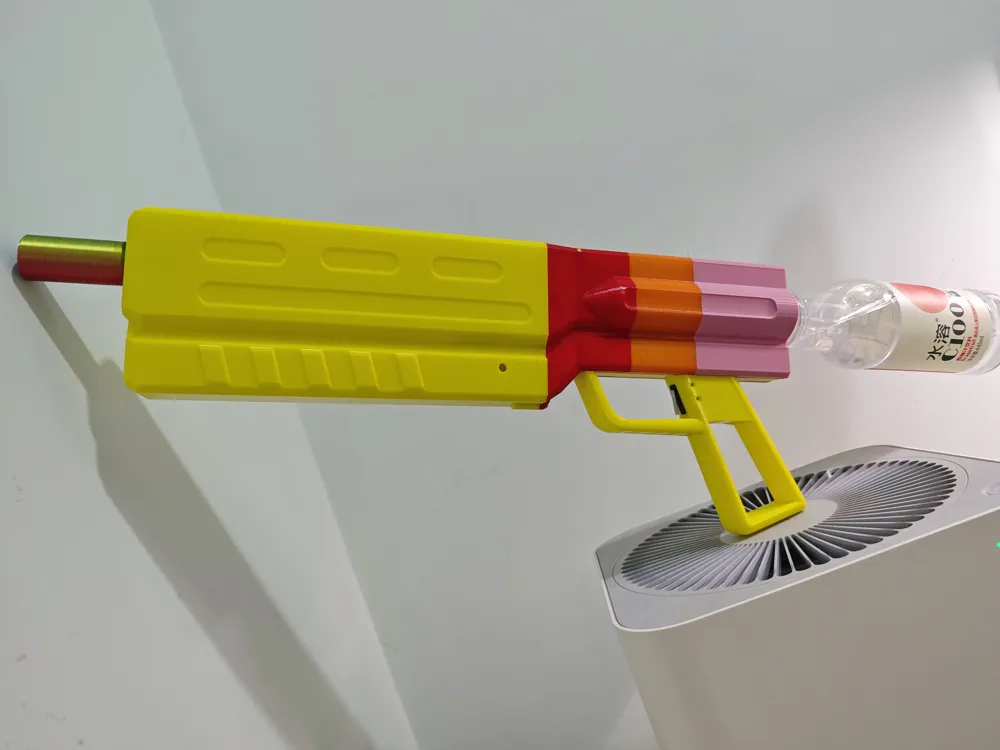

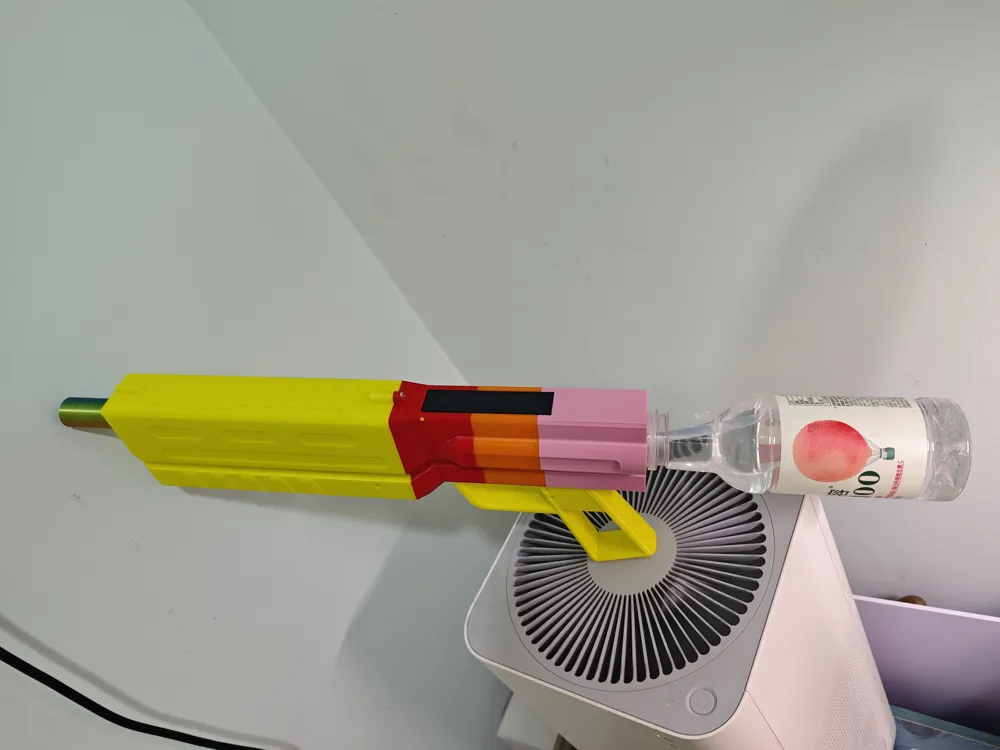

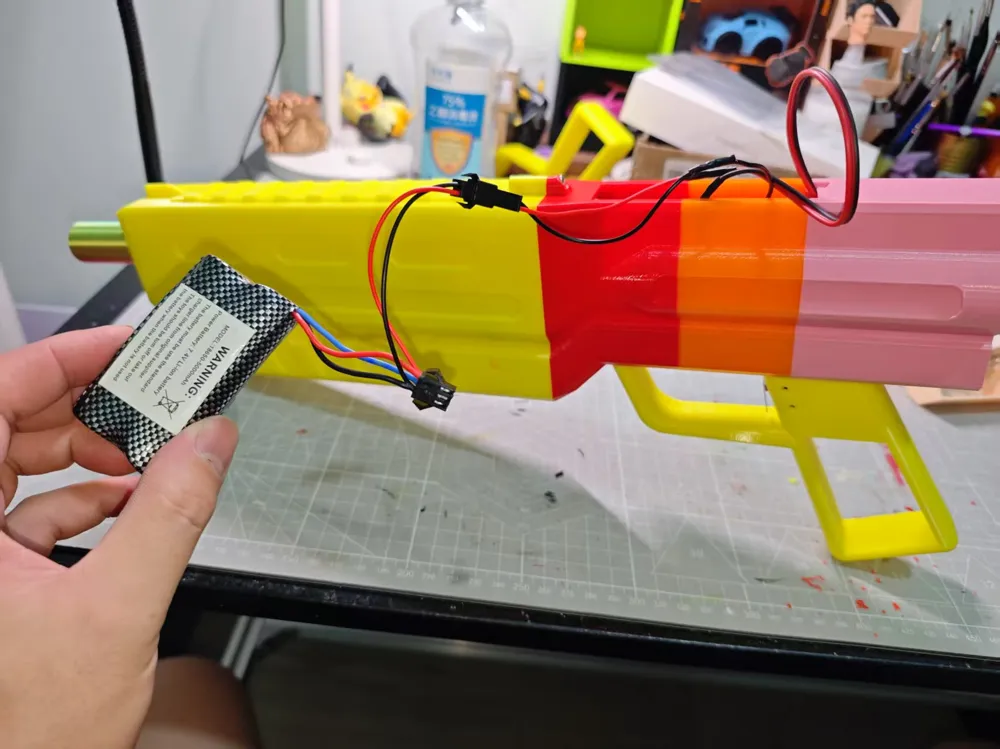

The accessories utilize a Hengli Guan SQ-01 large-pulse motor gearbox; the switch aperture measures 19.8 x 6.4 mm, allowing for direct installation of a similarly sized waterproof switch. A 7.4v battery is required. The rear reservoir is a large-diameter water bottle, specifically those with a pulsating bottle opening.

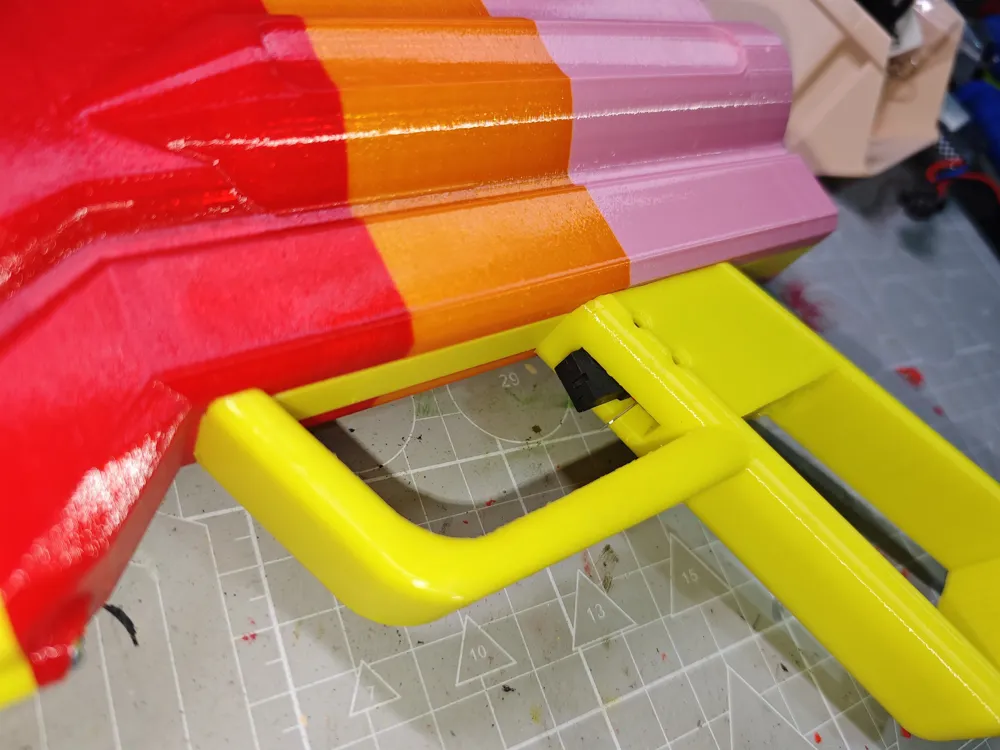

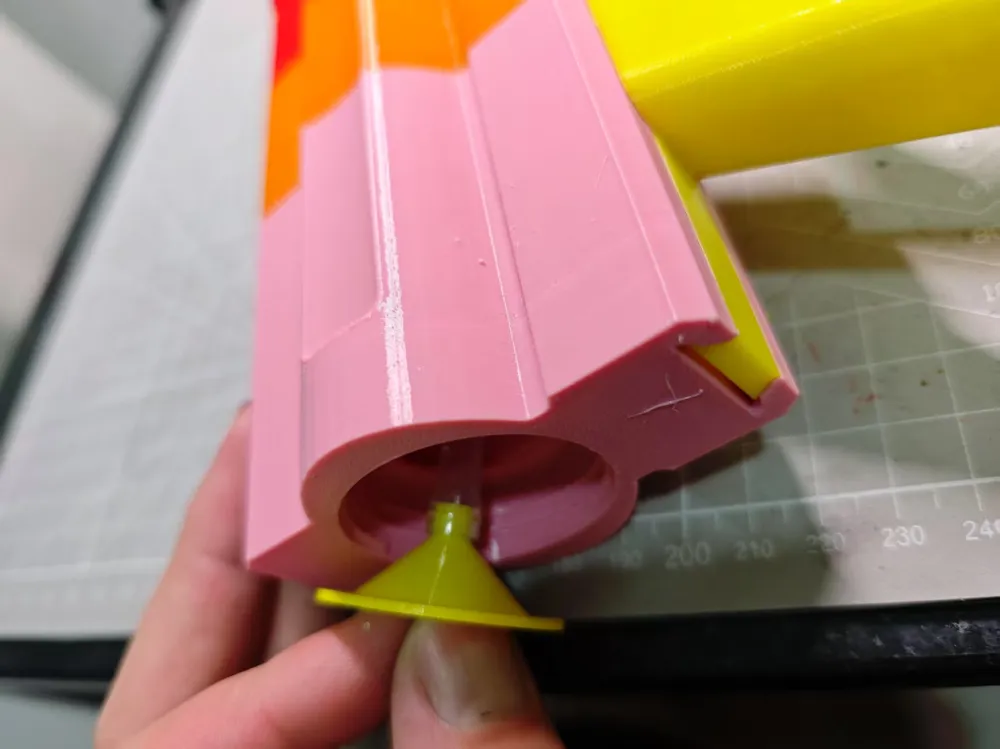

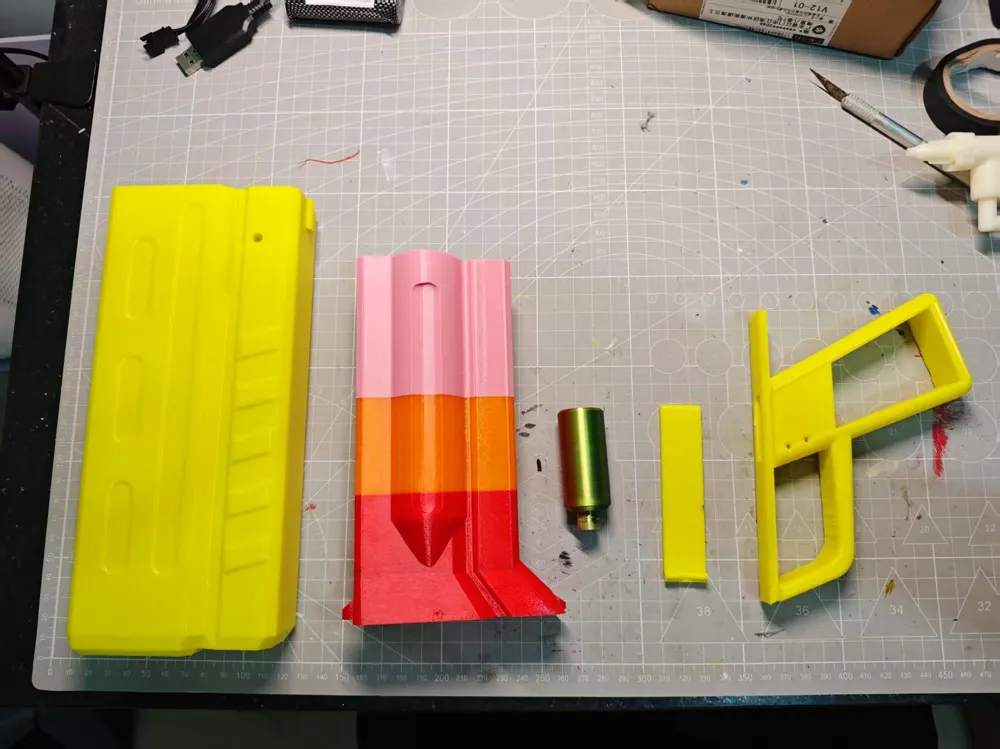

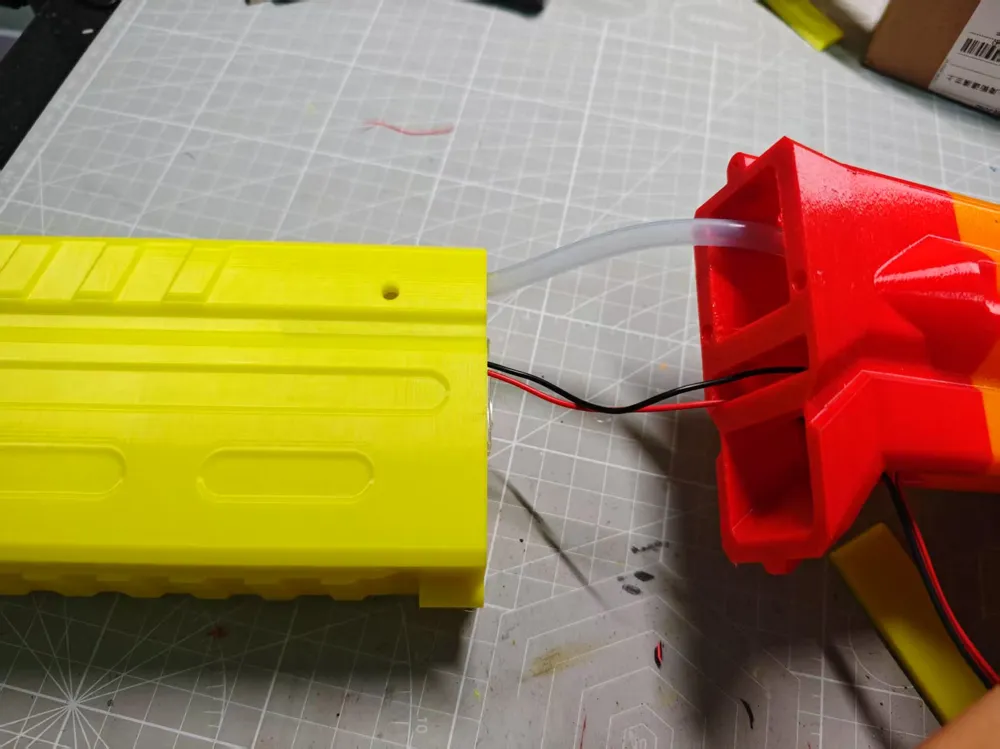

The gearbox is directly installed into its designated position. If loose, a spacer can be added during the rear assembly to secure the gearbox. The switch requires handle installation prior to threading it through the central aperture. Two 2mm screws suffice for fixation. A rubber gasket is essential for the reservoir opening to prevent leakage.
