DJI Action 2 Diamond Mount

PLEASE SEND PICTURES!!!

MakerWorld wants REAL model pictures and there is no way I can print 20+ different mounts… I release these for free and even include the raw .step file so please do me a small favor and take a good picture after you print it and post in the comments!

Designed by ScreaminFPV

THIS IS JUST THE BASE FOR PEOPLE TO CONVERT TO THEIR FRAMES AS THEY WISH

SEE THE FULL CATALOG OF FRAMES I'VE ALREADY MADE CONVERSIONS FOR.

After pushing the DJI Action 2 through countless freestyle sessions, I realized one thing: the mounts out there just weren’t cutting it. Some had great ideas, others fell short but none gave me everything I needed in a single, "bombproof" design. So I decided to build my own.

Countless prototypes later tuning airflow, dialing in the FOV for both 4:3 and 16:9 Ultra Wide… I ended up with something I’m proud to call mine: a mount that doesn’t just hold the Action 2, but protects it, keeps it secure and cools it.

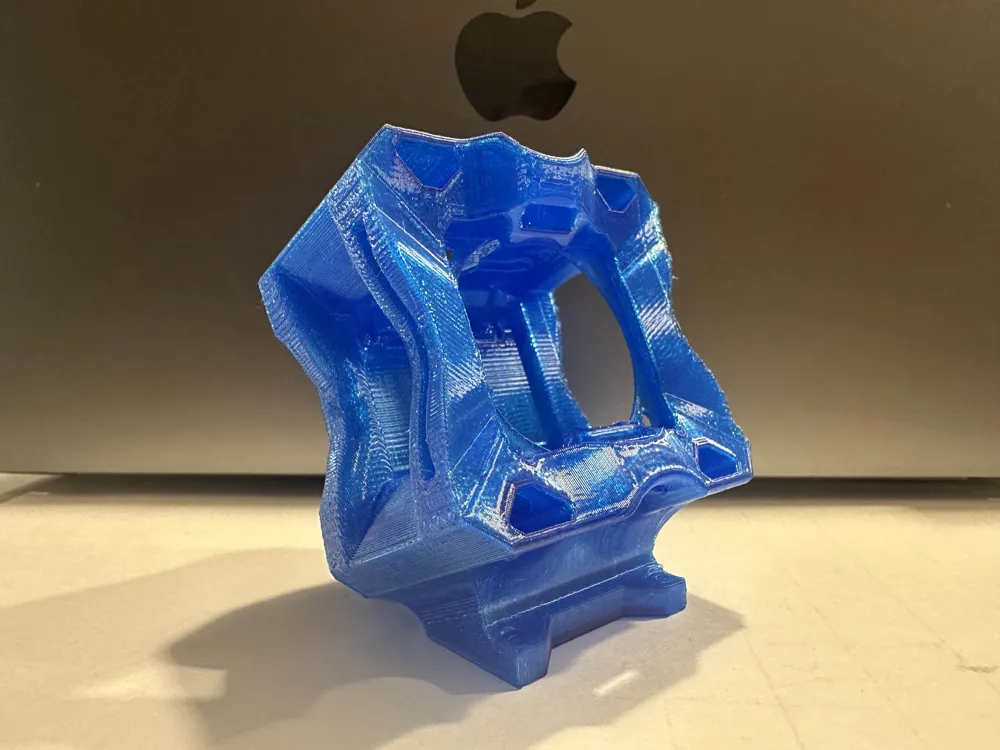

This is the Diamond Mount. A form-fitted fusion of function and durability, built to send it hard and survive.

The Diamond Mount wasn’t rushed it was chipped, carved, and refined until it was the way I wanted it.
Give it a go. Your Action 2 will thank you for it.

===================================================

 TBS/Camera Butter ND Filter REQUIRED

If you do not use an ND filter, the camera mount will be in view in the corners, top & bottom of the recording, the mount is designed this way to protect the ND Filter as much as physically possible. Please see examples below:

                                                4:3 w/ ND Filter                                                                                         4:3 w/ out ND Filter

                                                16:9 w/ ND Filter                                                                                         16:9 w/ out ND Filter

Key Features

ND Filter Slot
Compatible with TBS & Camera Butter filters, held securely and protected with a face airbag.

Airflow Chambers & Intakes
Designed to channel cooling air around the camera, no more shutting off mid-pack.

Recessed Screen Pocket
Adds breathing room behind the rear screen for air to flow through while helping prevent pressure damage on hard crashes.

Diamond-Cut Airbags
Four iconic corner buffers shaped like a cut diamond absorbing impact from all sides.

ND Filter Airbag Zone
Extra shielding around the ND filter area to help prevent shattering on those dives/smacks into concrete.

Rear Battery/Screen Cushioning
A dedicated rear air pocket absorbs direct impact and spreads force away from the back screen and battery, along with the iconic Diamond shape.

===================================================

Printing requirements/recommendations:

PRINT ON THE SIDE THAT THE CAMERA INSERTS INTO.

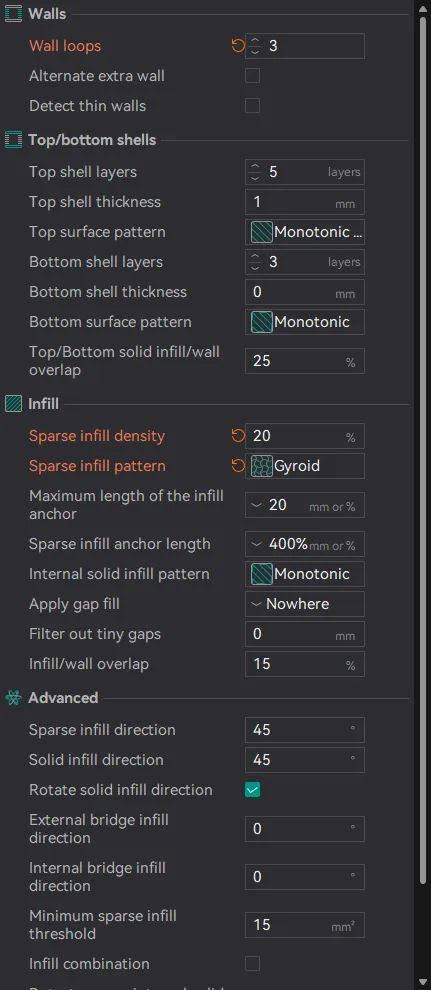

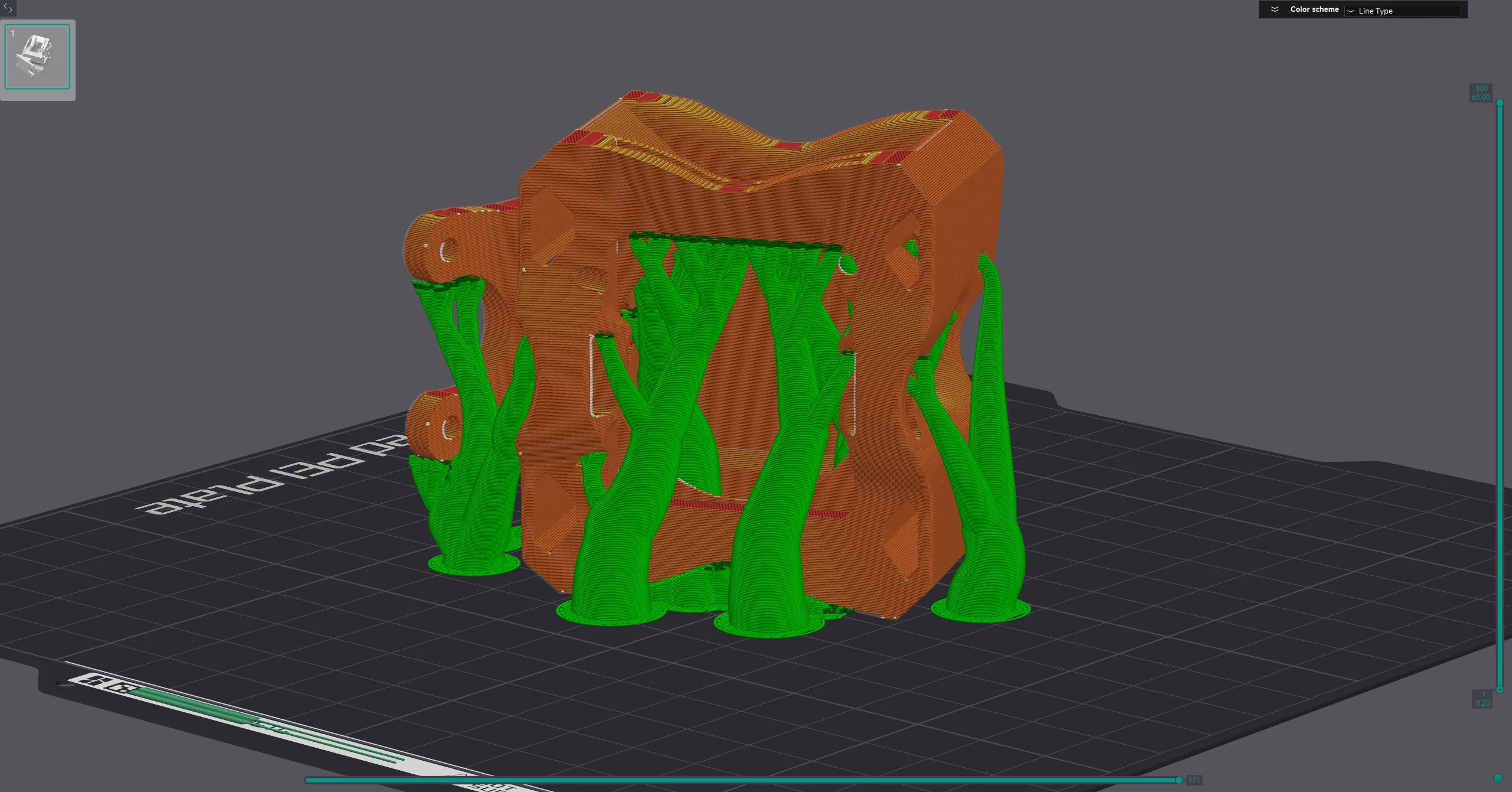

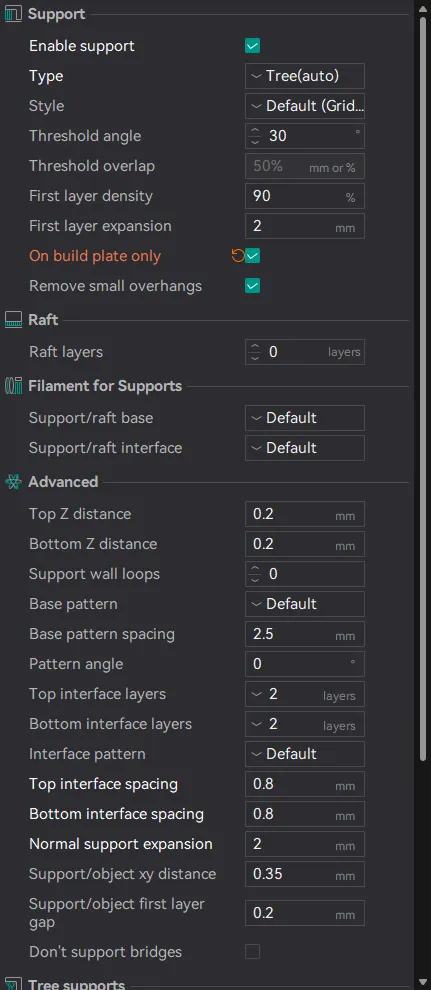

I strictly use Sainsmart TPU, I use the default 0.20MM Standard preset, infill will vary but I use 10-30% depending on the color of TPU as transparent tends to be harder than solid color. I did make two minor support setting changes as seen here:
