Sonic Pad Vibration Compensation Sensor Mag Mount

Summary

I wanted a magnetic mount that didn't need to be glued in. So just pause at the open layer and drop in the magnet. Model uses a 8x16 round magnet:https://www.apexmagnets.com/magnets/16mm-x-8mm-disc-neodymium-magnet

Inspired by Z-made's magnetic mount but I didn't have any epoxy on hand so made a magnet embedded mount.

Sorry about the previous version. Thought I would do a quick mesh model for this but it was a mess. I created another in Fusion. It's so much cleaner.

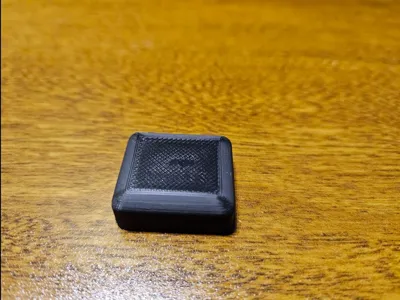

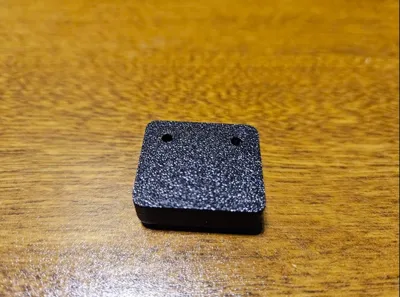

I would probably print it holes up for a nice surface finish(I didn't in the pic). Also you could put a drop of super glue on the magnet before you drop it in the hole so that there's no movement possible.

Final version has been posted no more weird mesh issues. Also posted my Fusion Archive incase you want to edit it for a different magnet.
