Meshtastic Car Antenna Mount SMA & Type N

Print Profile(3)

All
X1 Carbon
H2S
H2C
H2D Pro
P1P
A1 mini
X1
P1S
H2D
P2S
A1
X1E
X2D
A2L

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
55 min
1 plate
4.8(8)

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
1.1 h
1 plate
5.0(2)

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
1.1 h
1 plate
5.0(2)

Open in Bambu Studio
Boost
237
713
18
3
343
124
Released

Description

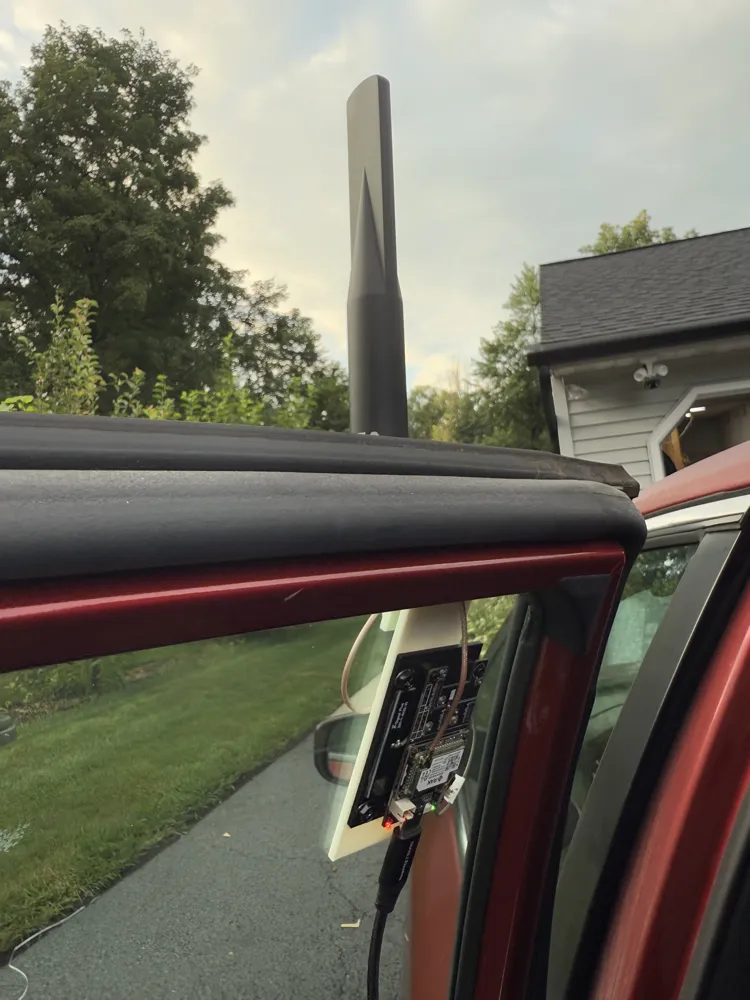

I got the idea of this model from a video I saw online. The only problem is that his model lacked many simple fixes that would make it easier to use, so I started from scratch and fixed them. This can be used for both N-type and SMA-type antennas, and an adapter plate can be made for any meshtastic device. The angle that your window sits might be different than mine, so you might need to modify the angle to get your antenna to truly be vertical. To screw my meshtastic adapter plate, which I have included for the Wisblock, I used computer chassis screws. I would recommend an 8-inch antenna cable. I would also recommend using a filament that can withstand heat. AKA not PLA.

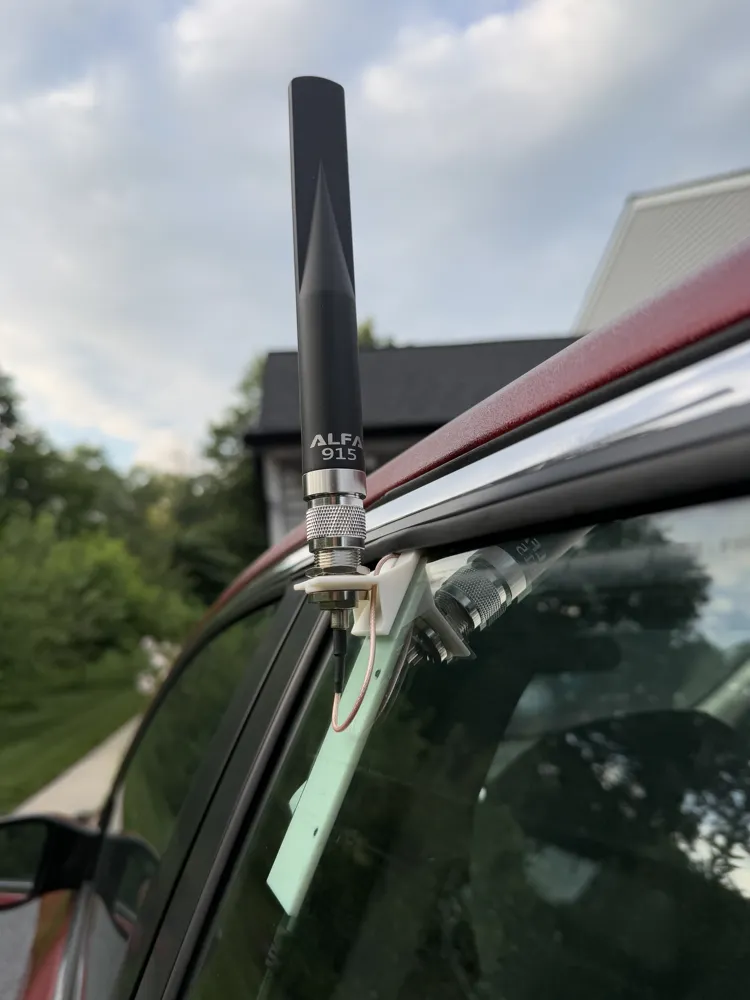

Just an update: in PETG, this has survived on my car nonstop for over 6 months, through hot summer and cold winter, driving at over 70MPH at times. Thanks for all the support!
