Stormbreaker – Thor’s Axe - Full size
Print Profile(2)
Description
Boost Me (for free)
⭐ Enjoying my oversized Marvel-inspired projects?
A free Boost is the best way to support my work and helps me create even more giant builds like this one. Thank you! 😊
📢 UPDATE V2 (IMPORTANT)
An improved version of the model is now available!
🔧 Fixed an issue with printing the small branches at the top of the axe (plate 11):
- Optimized supports
- Redesigned small branches
- Better stability
- Much more reliable printing
👉 Use the "V2" print profile for best results (at least for plate 11)
🙏 Thanks to @jamesmilroy for identifying the issue!
🧱 Overview

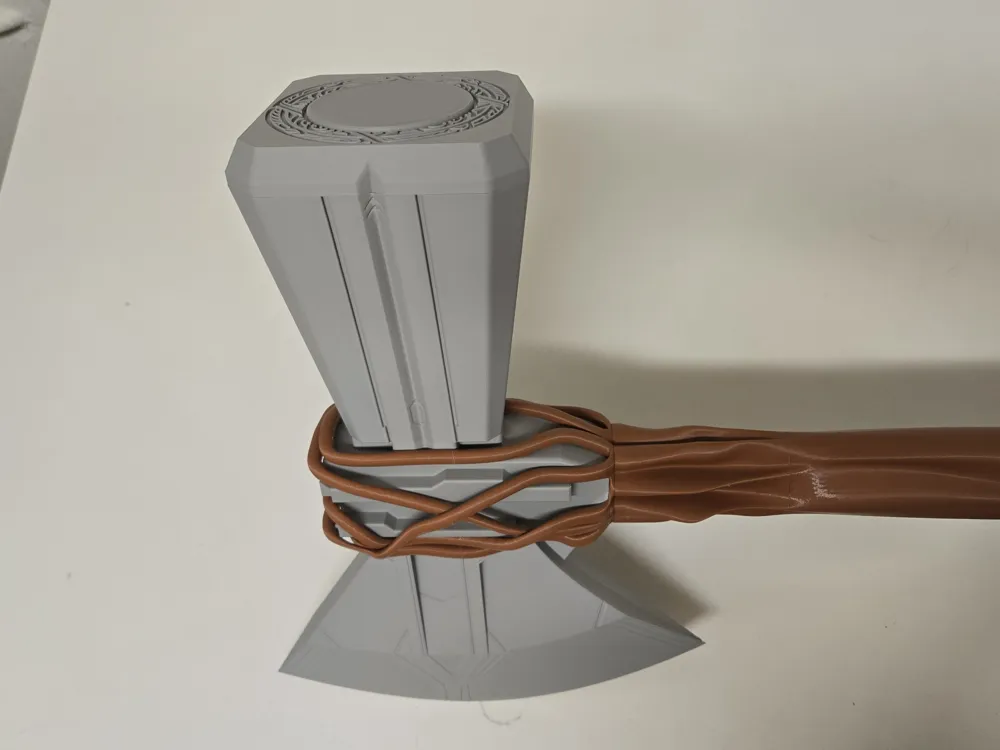

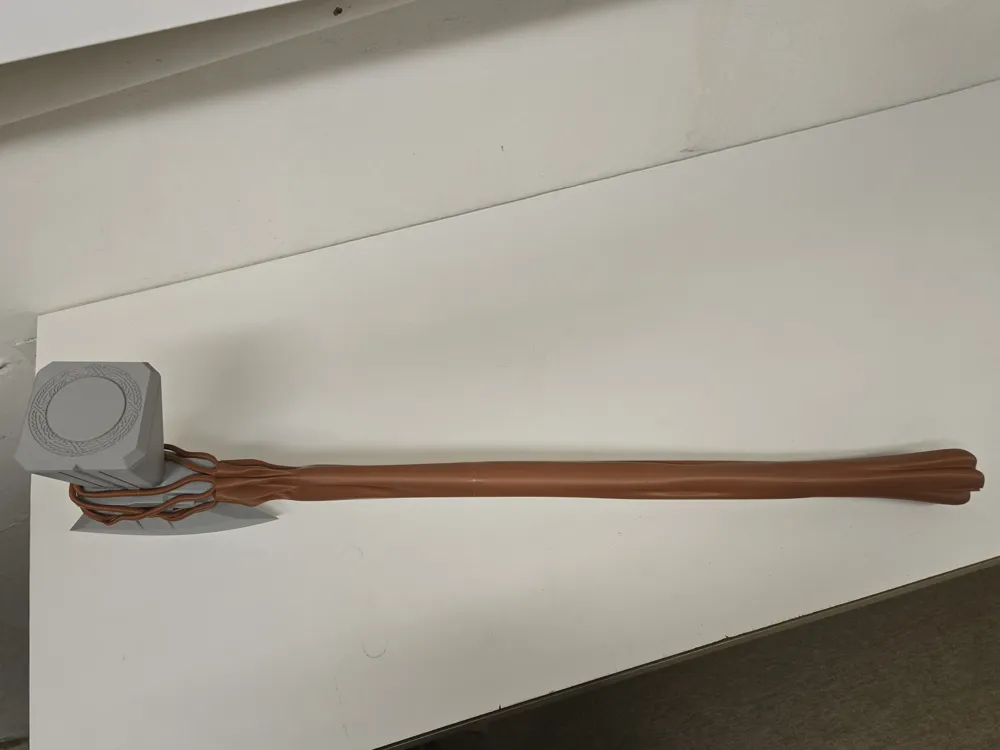

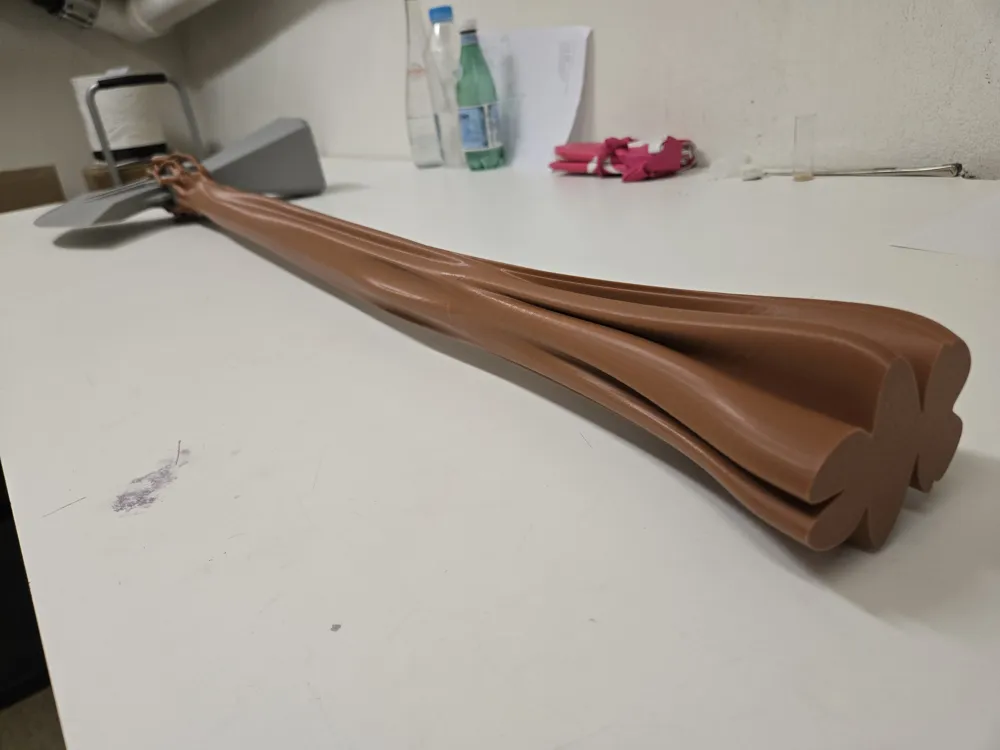

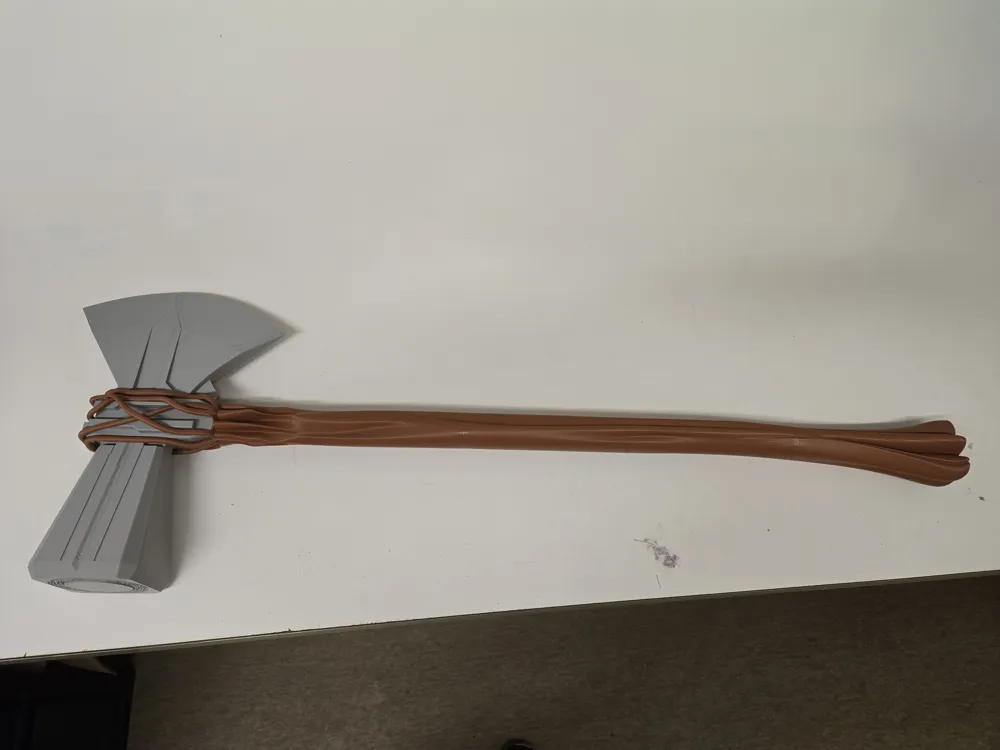

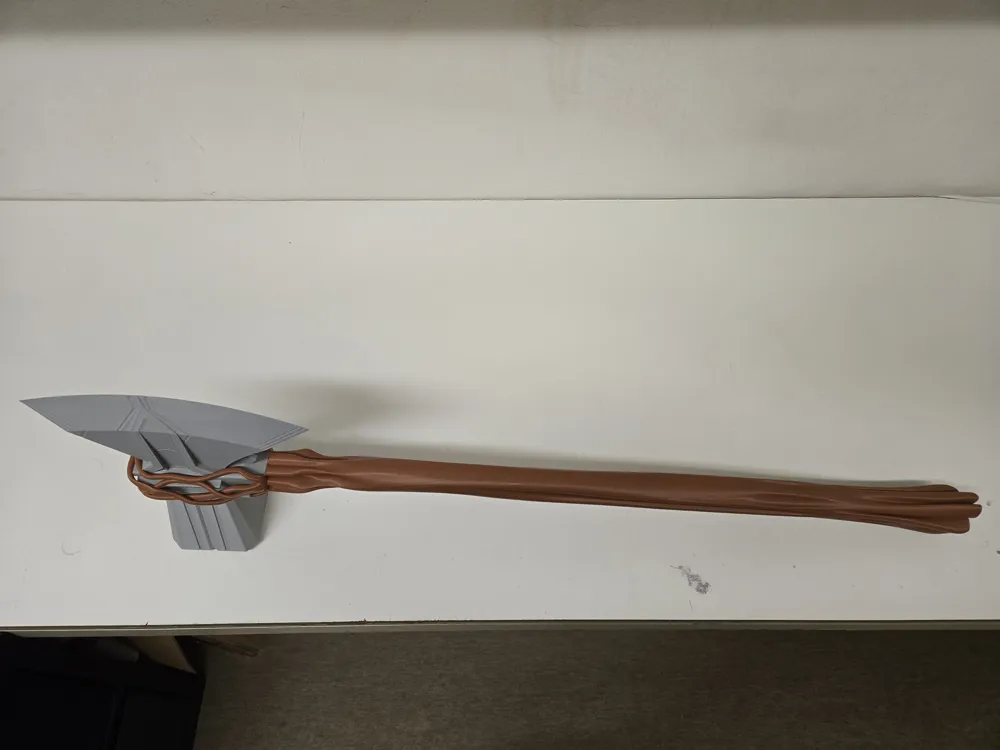

Bring the power of the God of Thunder to life with this full-size Stormbreaker axe, inspired by Thor’s weapon in the MCU.
This epic print is split across 11 plates, with smart alignment and obvious connections — it's nearly impossible to get wrong!
📐 Dimensions
- Total size: ~1200 × 410 × 120 mm
- Designed for 1:1 scale cosplay or display
🎨 Filament & Colors
- Bambu Lab PLA Basic
- Brown (Ref. 10800) – for the handle & root details
- Gray (Ref. 10103) – for the axe head
🧵 Print Settings
- Wall count: 3
- Infill: 12% Gyroid
- Layer height: 0.2 mm (uniform)
- Speeds:
- Outer walls: 120 mm/s
- Infill: 300 mm/s
- Supports:
- Tree supports
- Threshold: 25°
- Touching build plate only
🛠️ Assembly
- The parts aren’t uniquely keyed, but their shapes make assembly obvious
- Use PLA glue for a strong bond
- The twisted roots near the axe head are printed separately for better detail
📦 Contents
- 11 pre-sliced plates included in the .3mf file
- All supports are already set up
- Plug & print — no tweaking needed
💪 Difficulty
Medium. Due to size and number of parts, some handling is required, but no painting, no post-processing, just glue and go ⚡
⚡ Already printed Stormbreaker?
Complete your Marvel collection with my full-size Captain America Shield! 🛡️
Designed with the same philosophy:
• Standard 256×256×256 mm printers
• Easy assembly
• Huge final display size
• No AMS required
