Parametric vent for cabinets
Print Profile(1)
Description

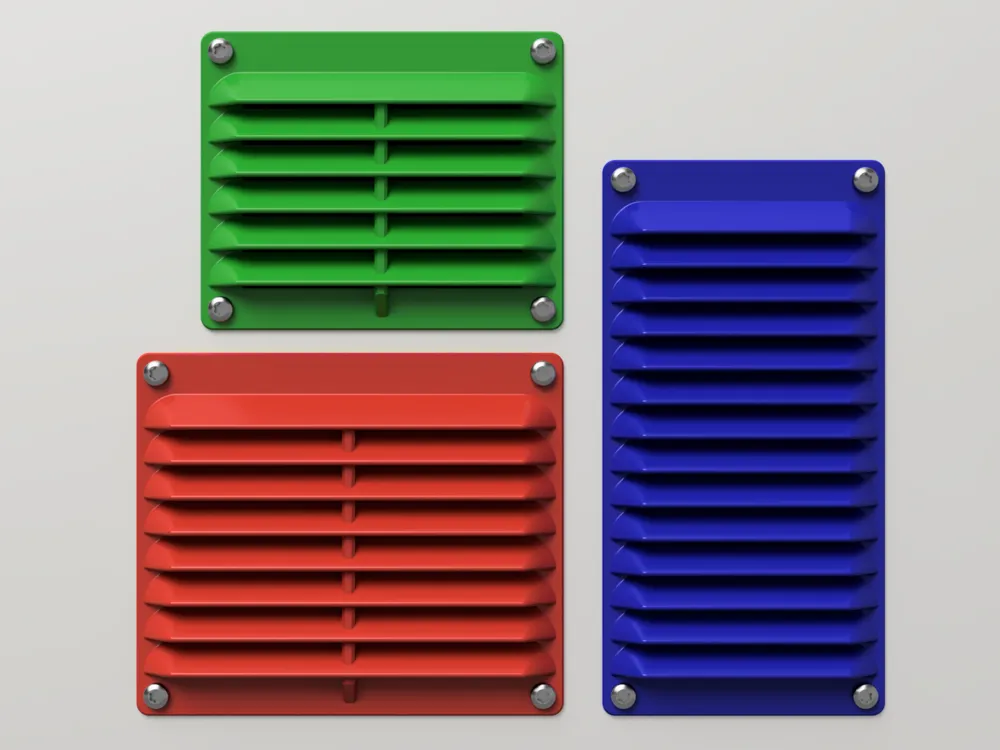

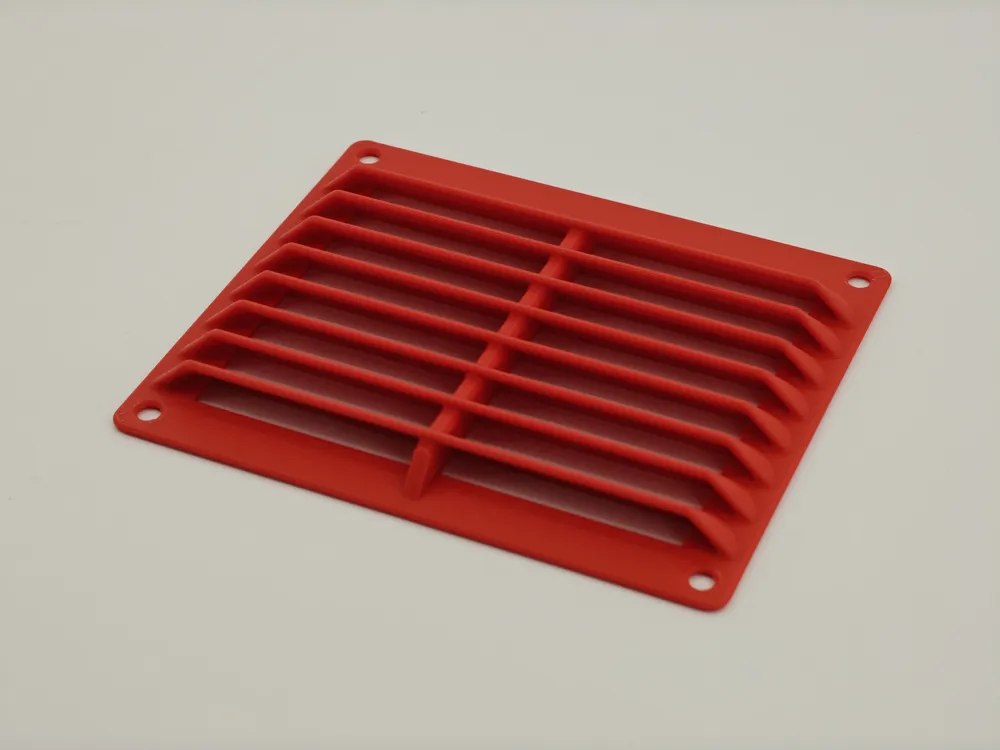

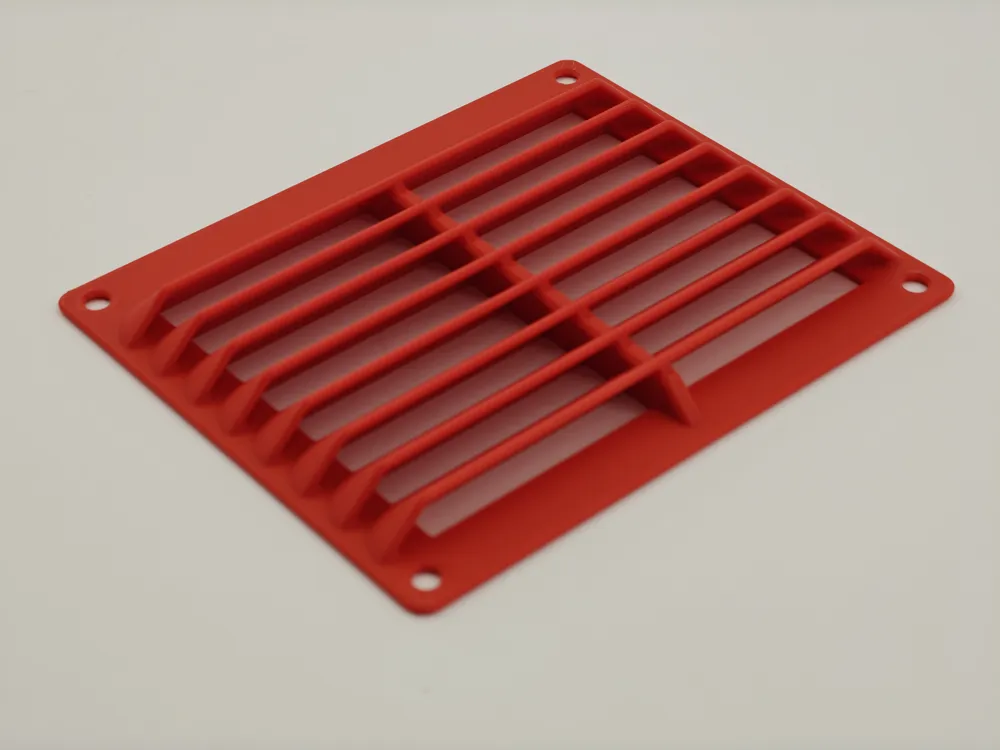

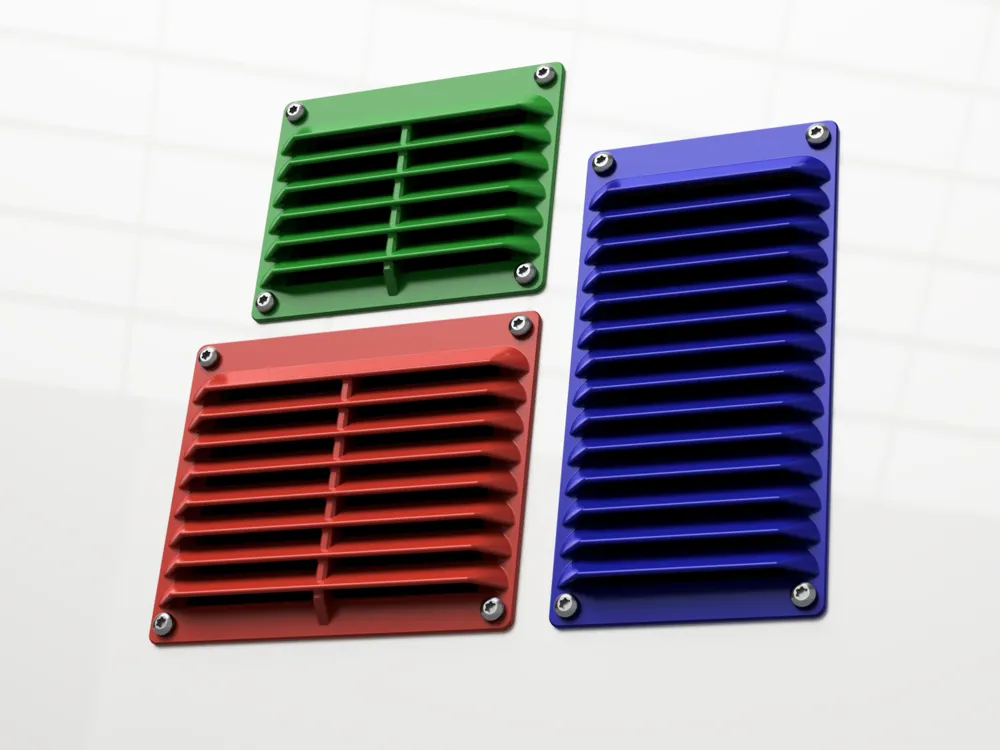

Parametric vent for cabinets. Parametric, customizable, easy print without supports or stiff overhangs.
It's based on vertical and horizontal distances between screws, take note and calculate for your needs:
-Cabinet wall opening vertical dimension is ~16mm smaller than the screws' distance
-Cabinet wall opening horizontal dimension is ~13mm smaller than the screws' distance
There is also parameter for screw hole diameter.
Use customizer to adjust parameters, number of fins is calculated automatically.

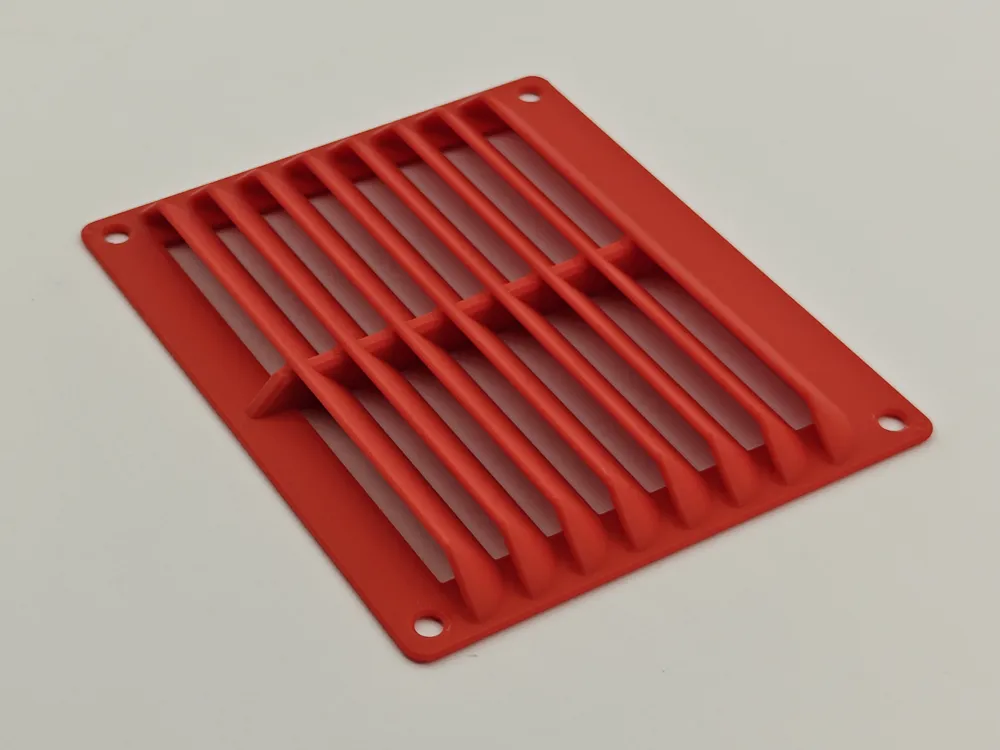

If horizontal dimension is >80mm there will be additional bar at the middle to increase strenght.
I suggest to insert filter mesh between cabinet wall and vent for additional protection.
