Bosch GSS 160 to Kärcher NT DN 35 adapter clip 1.0
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
8
32
4
0
58
30
Released
Description

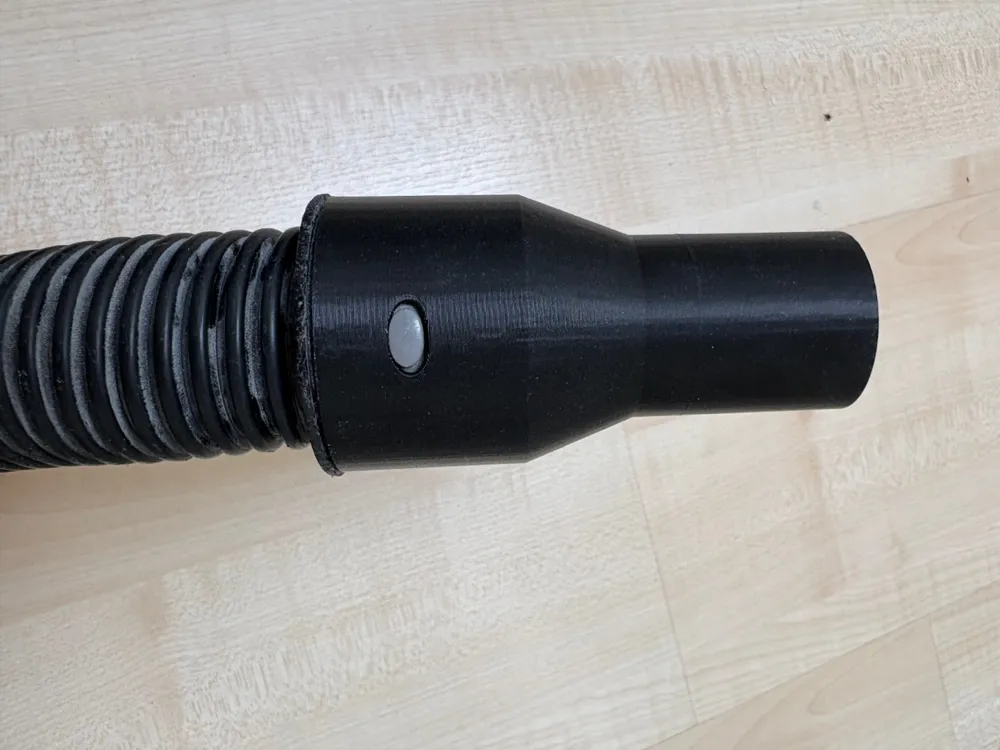

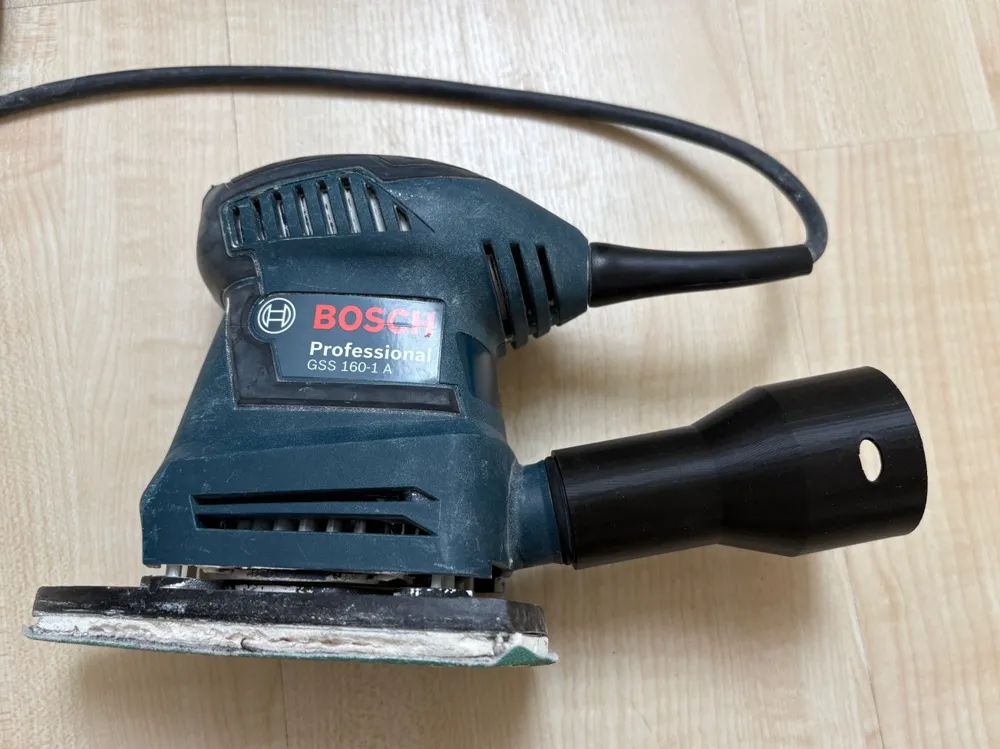

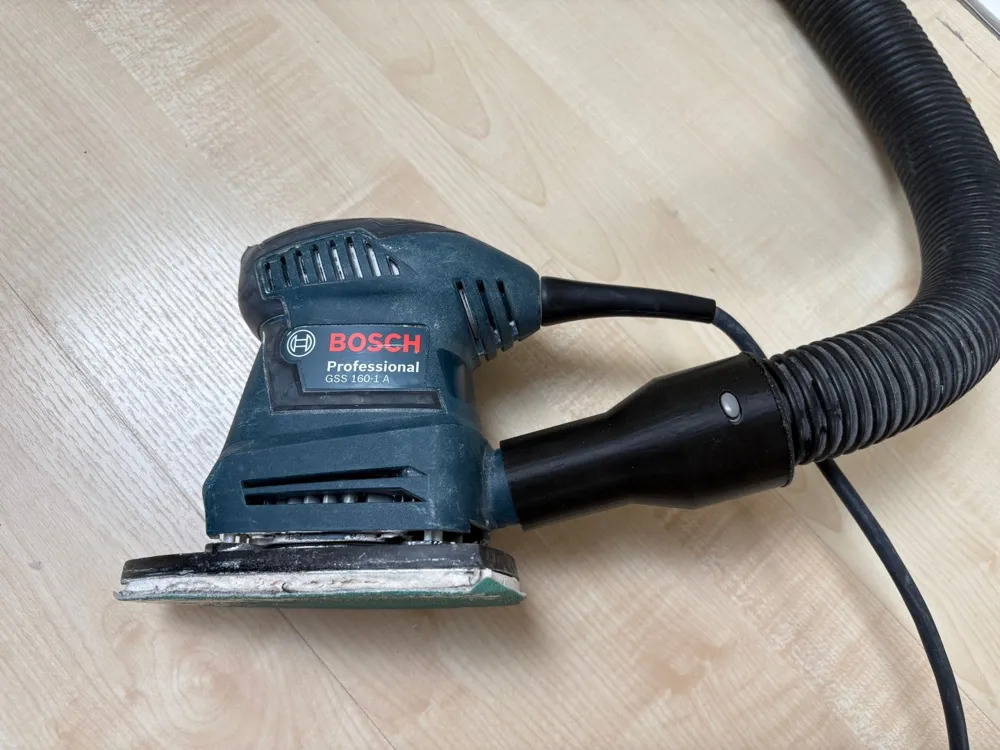

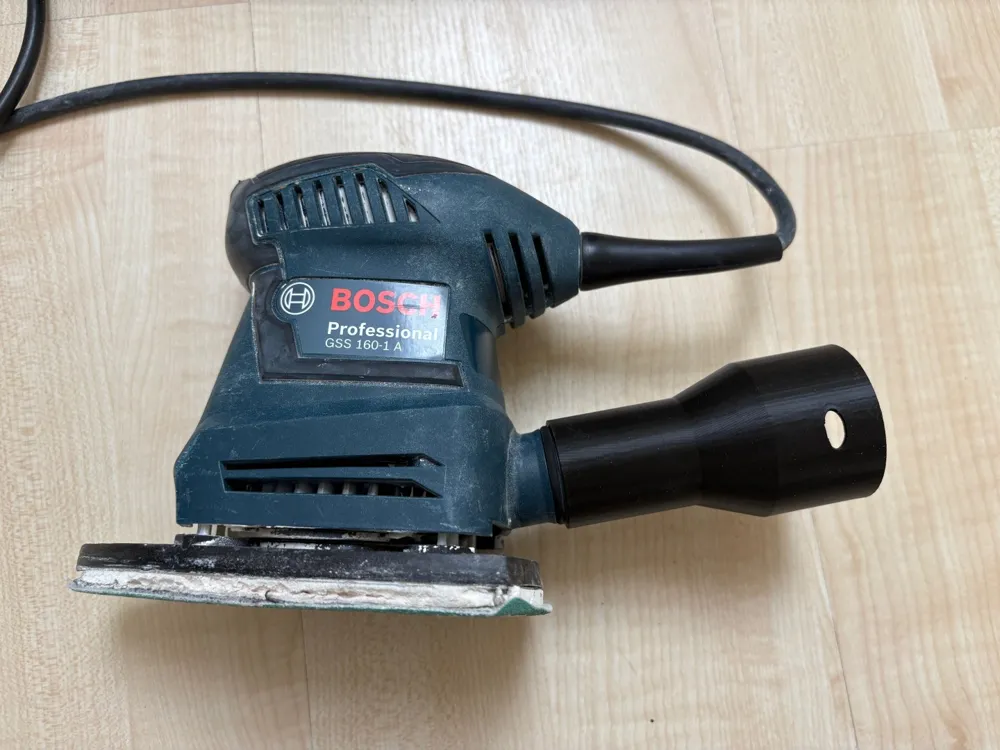

This adapter is designed to connect a Bosch GSS 160 sander to a Kärcher vacuum with a DN35 Clip 1.0 hose.
The model was created entirely from scratch in SolidWorks for Makers, based on precise real-world measurements and optimized for a snug, secure fit.
Although inspired by similar adapters, this is not a remix or modification of any existing STL file. The outer dimensions were specifically tuned to fit the dust port (with rubber sealing ring) of the Bosch GSS160.
- Wall thickness: approx. 2 mm
- Material: PLA
- Printed with supports enabled in Bambu Studio
Example hose product link (Kärcher DN35 Clip 1.0 / Bayonet 1.0)
Boost Me (for free)
Perfect fit for Bosch GSS160 + Kärcher DN35 clip 1.0, Fully custom-designed.
give it a try and leave feedback
Tested on:
- Kärcher NT35/Tact
Expected compatibility with:
- NT 14/1 Ap
- NT 14/1 Ap Adv
- NT 14/1 Ap Te Adv
- NT 14/1 Ap Te Adv L
- NT 14/1 Classic
- NT 25/1 Ap
- NT 35/1 Ap
- NT 35/1 Tact
- NT 35/1 Tact Bs
- NT 35/1 Tact Te
- NT 40/1 Tact
- NT 40/1 Tact Te
- NT 45/1 Tact
- NT 45/1 Tact Te
- NT 45/1 Tact Te Ec
- NT 48/1 Te
- NT 55/1 Tact
- NT 55/1 Tact Bs
- NT 55/1 Tact Te
- NT 611 ECO K
- NT 611 Eco KF
- NT 611 Mwf
