Twilight Imperium Milty Draft Board

Description:

This is a modification of the MILTY DRAFT BOARD SOLUTION FOR TWILIGHT IMPERIUM 4 project, it includes an expansion ring allowing up to 8 players to use the Milty Draft and it includes tile holders for Thunder's Edge. ✨

Some manual adjustment will be needed when placing hexes, especially to accommodate hyperlanes but it's totally doable with a bit of planning.

Print Settings:

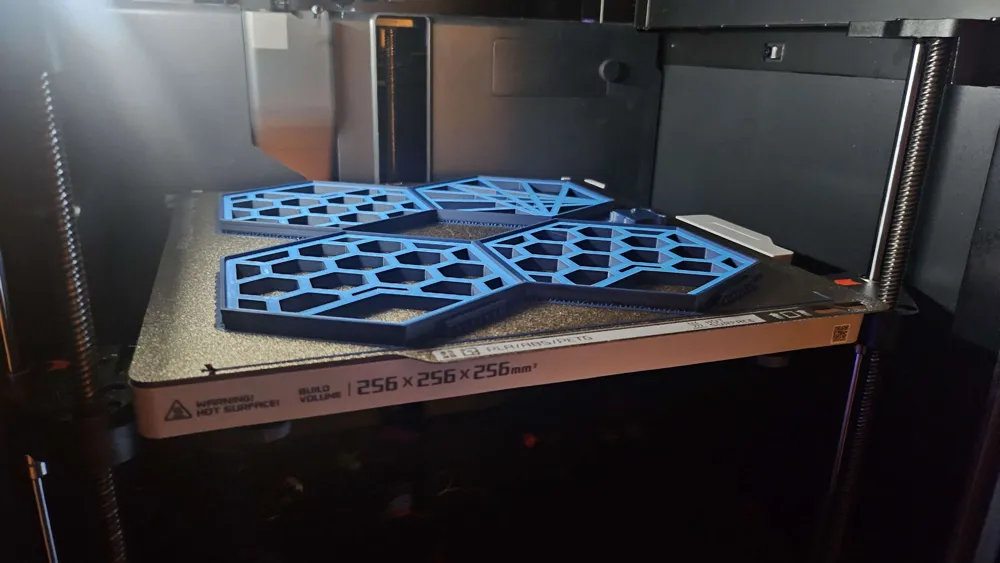

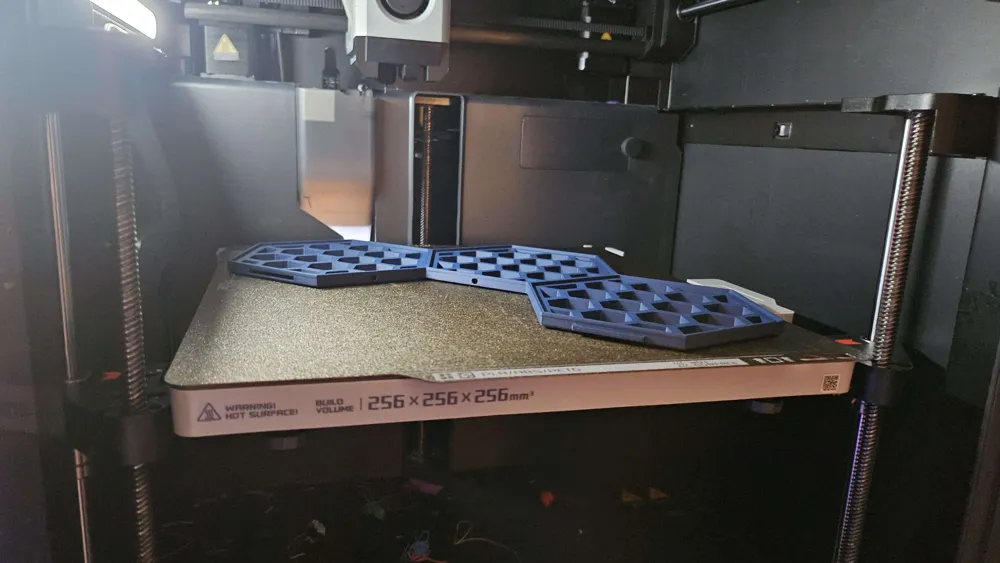

• Printed on a Bambu P1P
• 0.4 mm nozzle
• Supports enabled
• Default Bambu Studio settings used otherwise

Remix Details:

• I created 2- and 3-part interlocking sections for the expansion ring, based on the original Versatile Hex model.

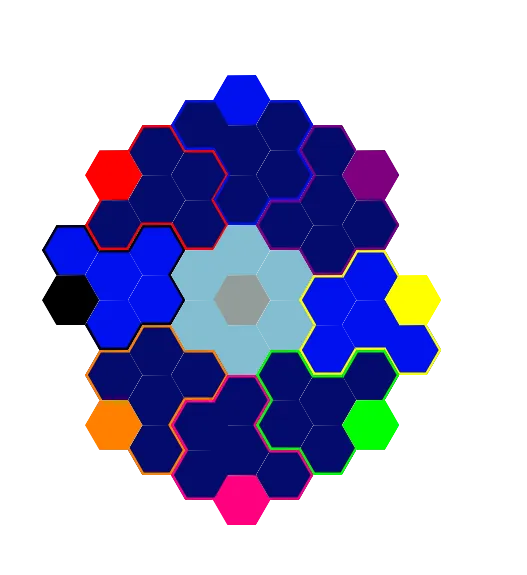

• I flipped the standard home and mech sections to correctly orient them for Players 7 and 8 as these need to be mirrored to maintain proper alignment (see diagram for details).
• I've added holder for Thunder's Edge
• The original holders didn't fit my game so I resized it slightly to ensure a proper fit.
