Enclosure for Raspberry Pi 4 with Geekworm X872 NVMe
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
10
24
0
1
23
21
Released
Description
Content has been automatically translated.
Description of the enclosure for Raspberry Pi 4 with Geekworm X872 V2.0 NVMe expansion

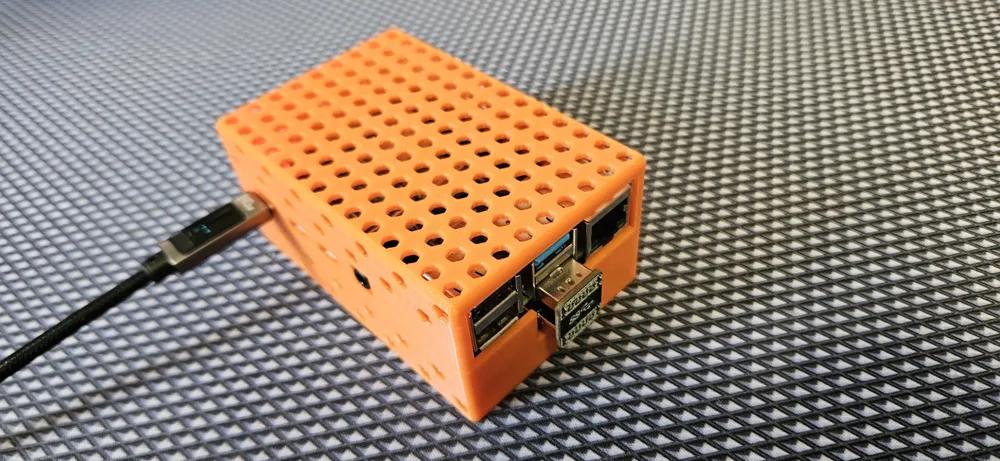

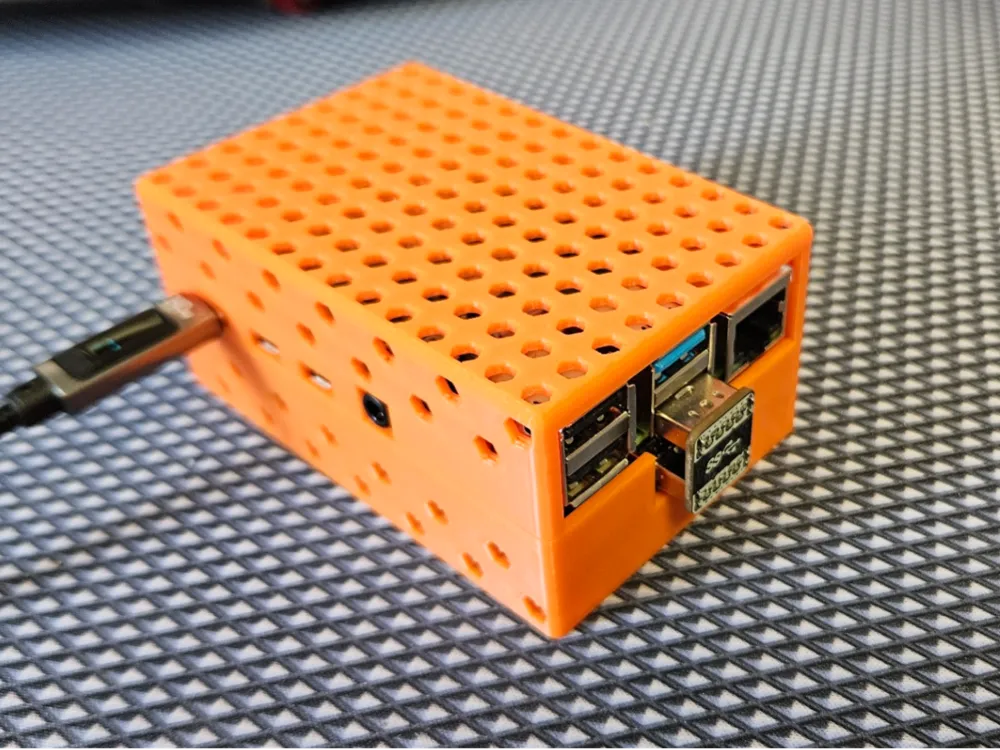

This custom-designed enclosure was developed for the Raspberry Pi 4 in combination with the Geekworm X872 V2.0 USB 3.0 to M.2 NVMe SSD expansion board. It offers a compact, stable, and fanless solution for securely housing both components.
- Material: 3D-printed from ABS (any other heat-resistant filament such as PETG or ASA is also suitable).

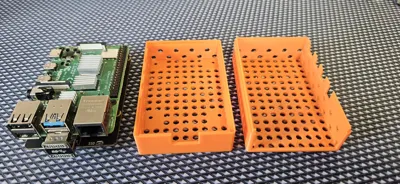

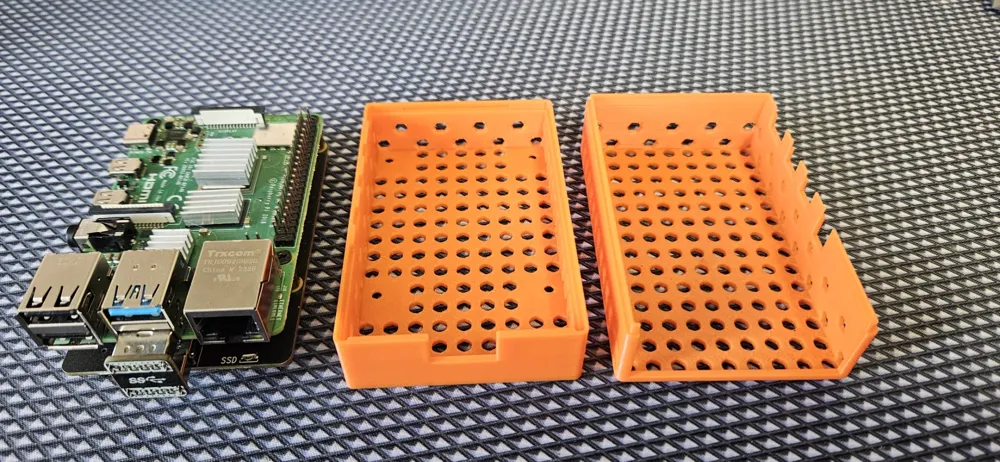

- Construction: The enclosure consists of two parts that interlock - completely without screws or glue.

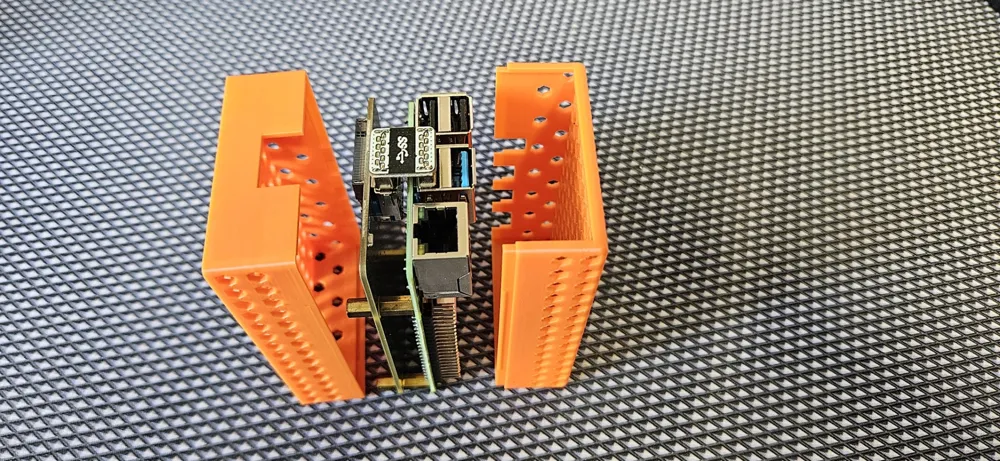

- Assembly: The Raspberry Pi 4 is screwed in from the inside (threaded bushings or suitable holes provided).

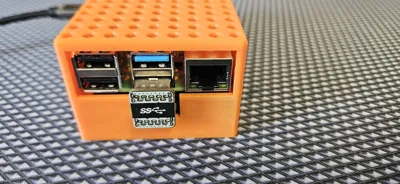

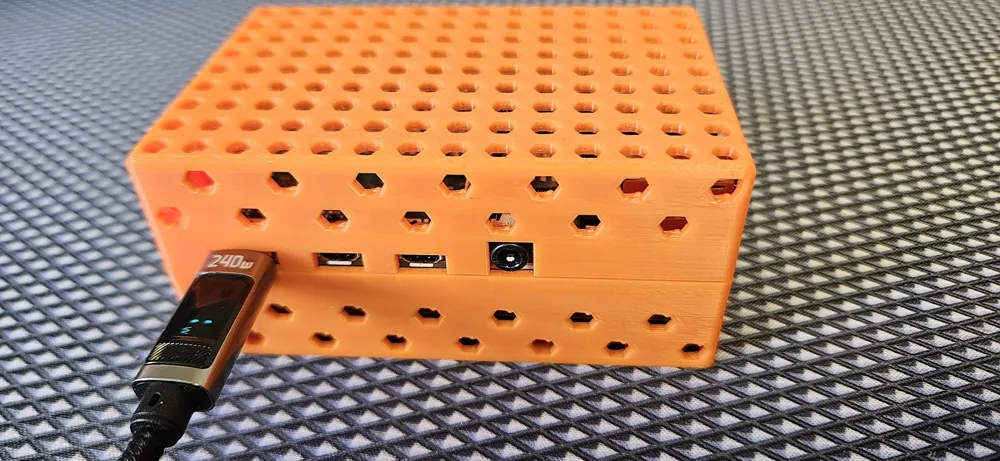

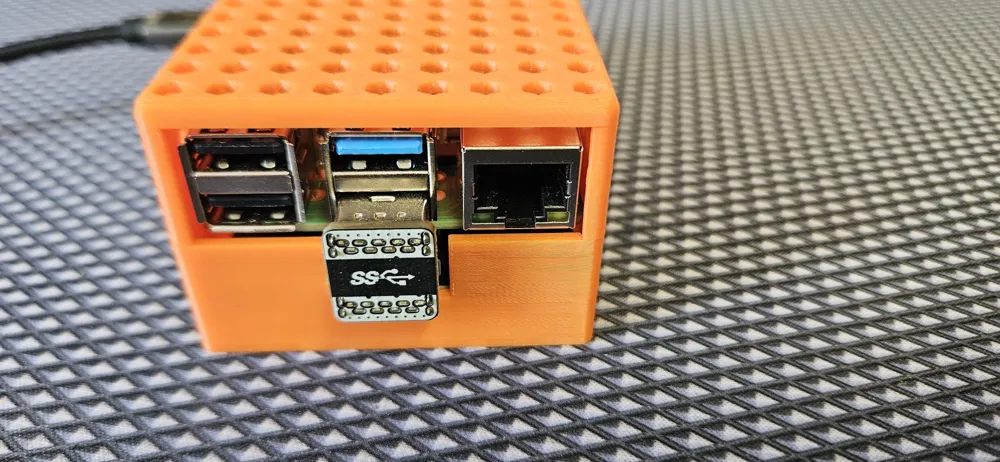

- Cutouts: All Pi ports (USB, HDMI, power, SD card) as well as the USB 3.0 port of the X872 are freely accessible.
- Cooling: No active fan provided – the housing is designed for passive ventilation. Ventilation slots can be added optionally.
Ideal for compact NAS or media server projects with NVMe support.
