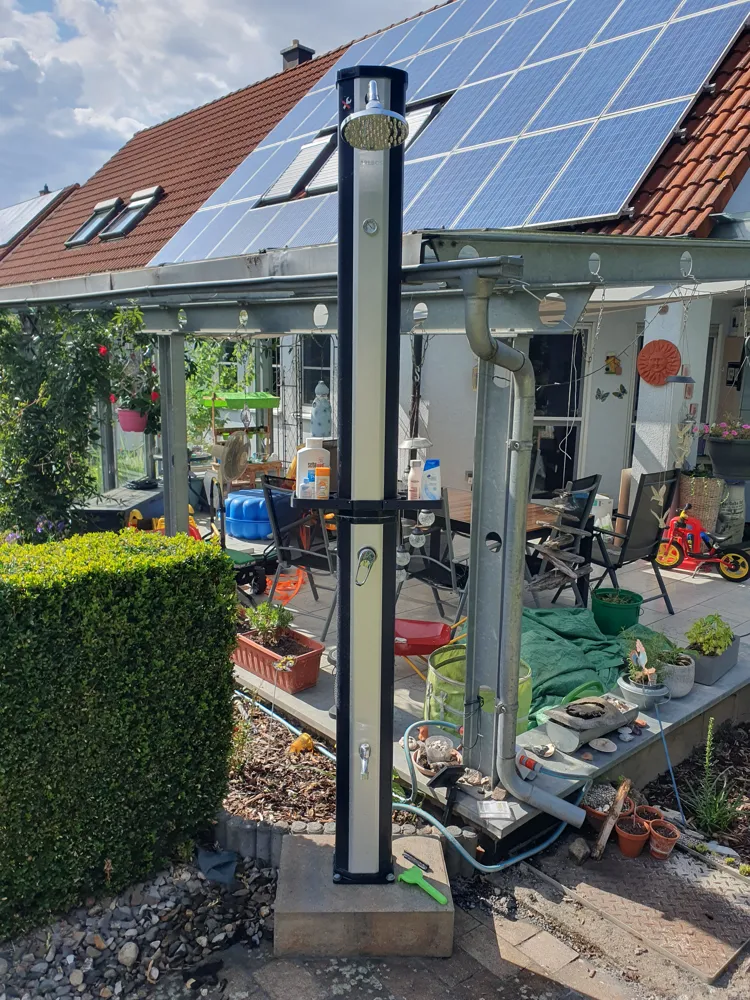

My solar shower arrived without a shelf, so I had to devise a solution.
Placing shampoo directly on the ground was impractical; it would constantly be wet and require bending over.

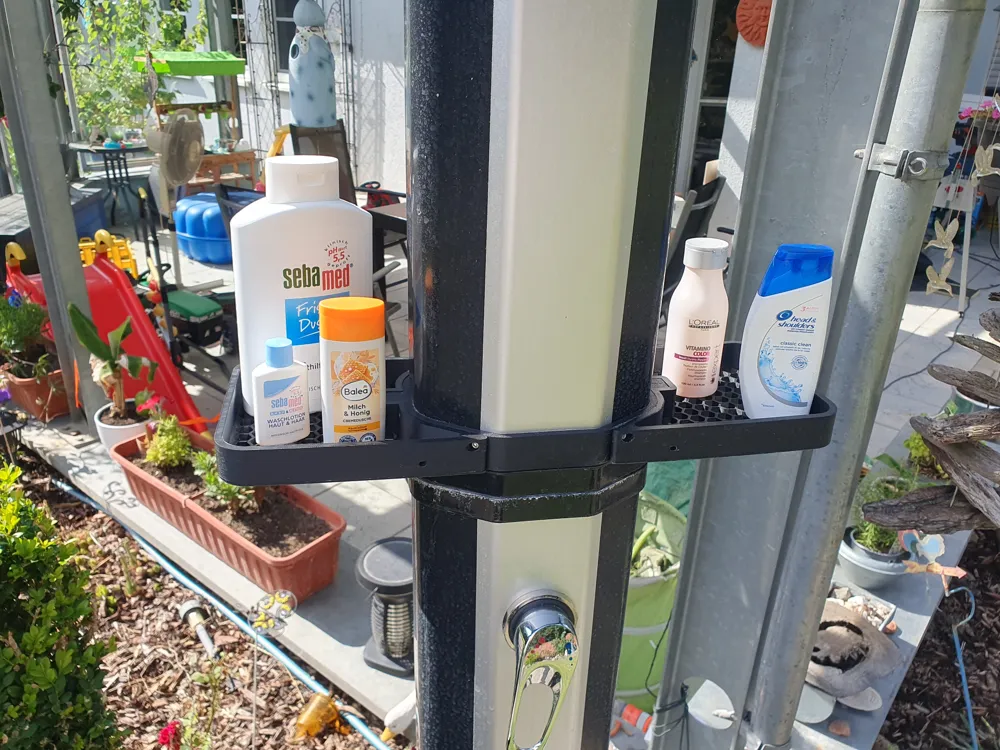

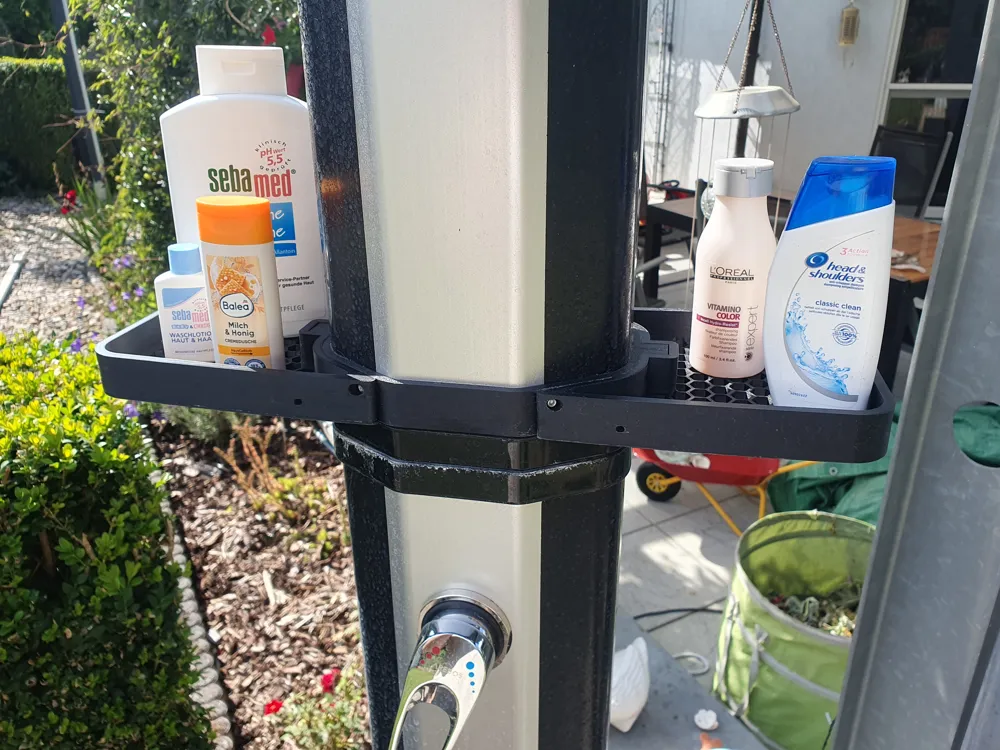

Therefore, I designed a shelf that clamps onto the solar shower and rests on the central support.

First, insert the M3 nuts into the two half-rings, or glue them in place if they are loose.

Then, attach/clamp the two halves to the solar shower using two M4 screws and nuts.

Finally, attach the left and right shelves to the ring using the M3 screws and the previously inserted nuts.



I 3D-printed it using ASA, and it holds up exceptionally well.
However, PETG would likely also be suitable.



Bill of Materials:

2x M4x10 Countersunk screws

2x M4 nuts

12x M3x6 Countersunk screws

12x M3 nuts
