Optigrill Stand Feet
Print Profile(2)
Description
🔧 Model Name: OptiGrill Level Feet
📐 Goal:
The Tefal OptiGrill, due to its design, is slightly tilted forward – usually so that fat can drain to the front. However, for certain applications (e.g., grilling without leakage or better contact between both grill plates), the grill should stand **horizontally**. The design raises the front of the grill. **(Caution, it may happen that liquids no longer drain and/or run out the back)**
🧱 Number of Parts: 2 pieces (left and right foot)
📏 Dimensions :
- Height: approx. 40 mm
- Width (foot contact surface): 25 mm
- Depth: 25 mm
🔩 Design Features:
- Precisely fitting support surface for the original feet of the OptiGrill – recess into which the feet safely "sink"
- Slanted sidewall for stability and load distribution
- Stop edge small inner rim for fixing the grill in position
🖨️ 3D Printing Recommendation:
- Material: PLA+ or PETG (heat-resistant, stable)
- Infill: 15%
- Layer height: 0.28 mm
- Supports: Not necessary with preset orientation
- Print duration: approx. 30 minutes per foot
📌 Assembly:
- Slightly lift the grill

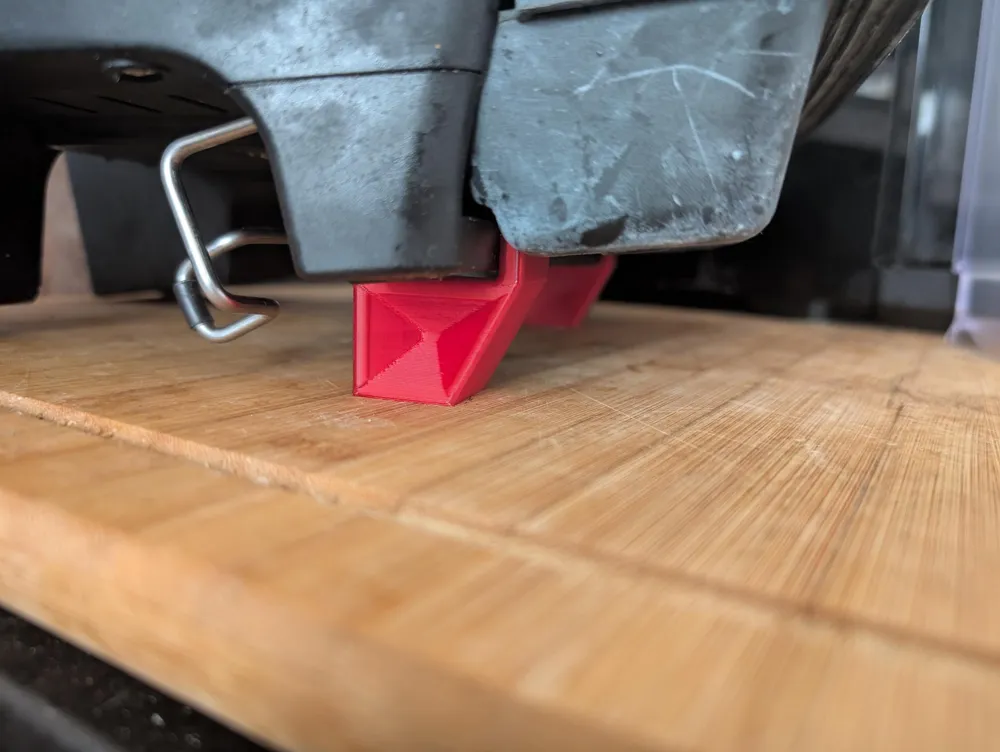

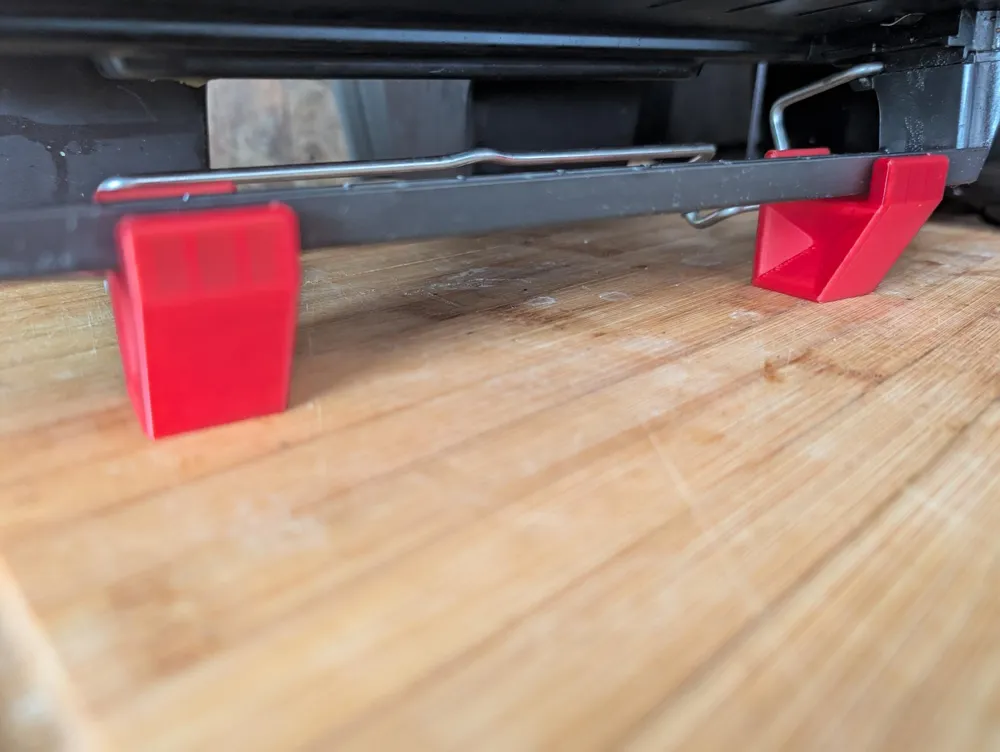

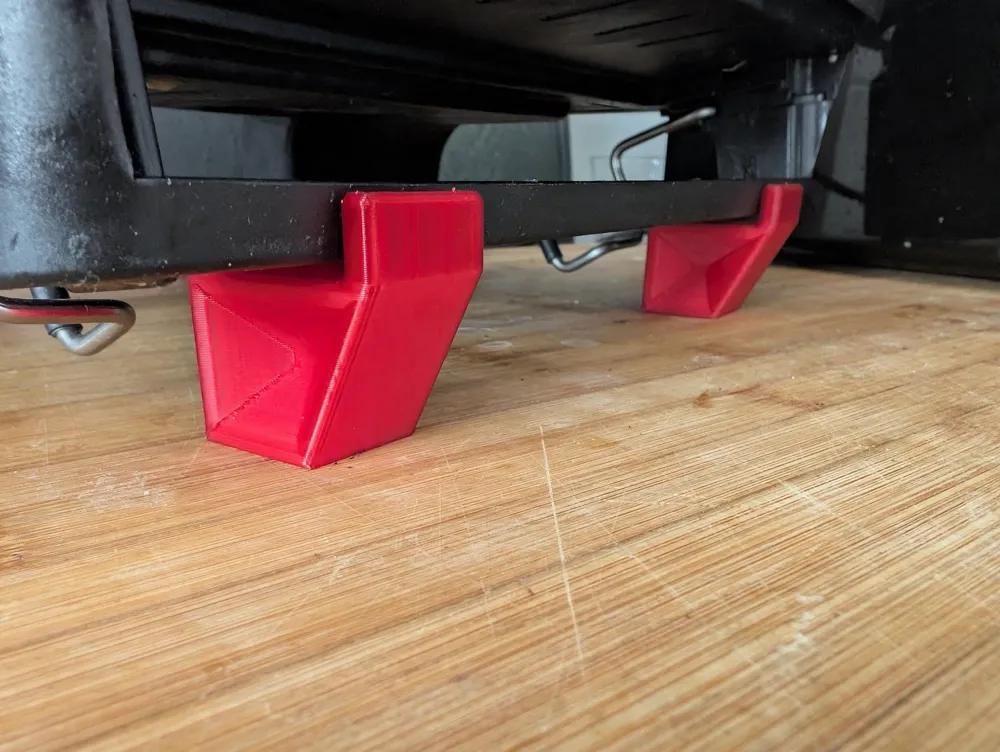

- Slide the 3D printed feet under the front support feet
- Ensure that the grill is now level (a spirit level can help)
- Optional: Fix with double-sided adhesive tape
Suitable for the OptiGrill Elite
