Adapting a GSXR 1000 mirror to a Bandit GSF1250SA GT

WORK IN PROGRESS, please read the description.

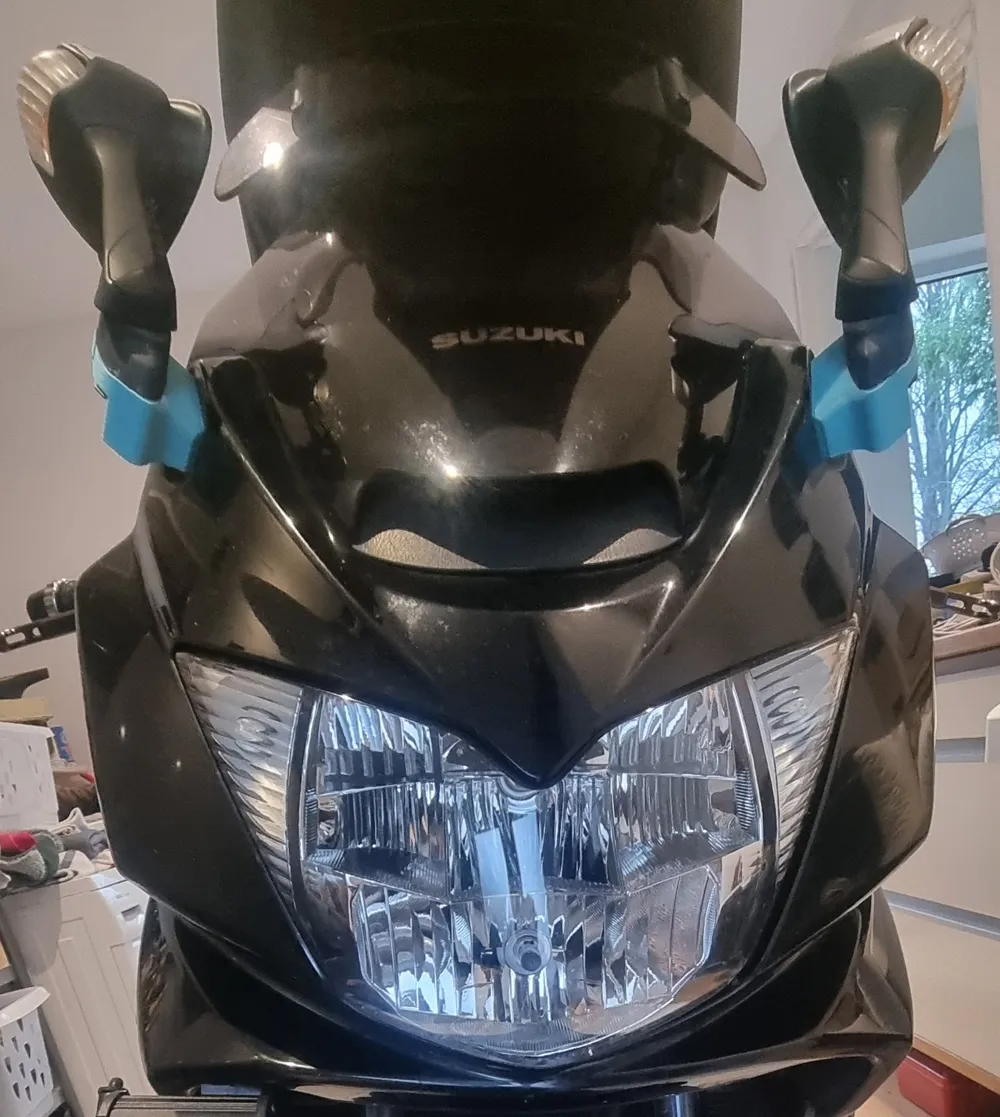

I wanted mirrors on my GSF 1250 SA GT with turning signals. But didn't want aftermarkt models. So looked for a model that came with these from the factory. I found the Suzuki GSXR 1000 (2012-2014) with the model I wanted.

But like always (my luck) they didn't have the same mounting system.

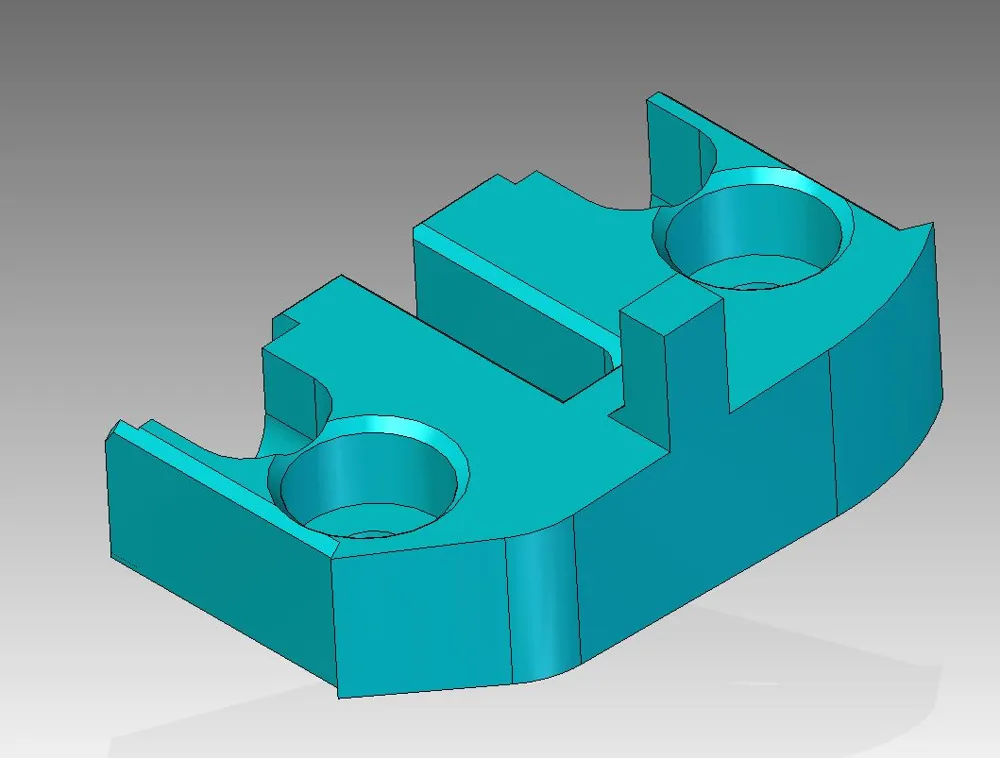

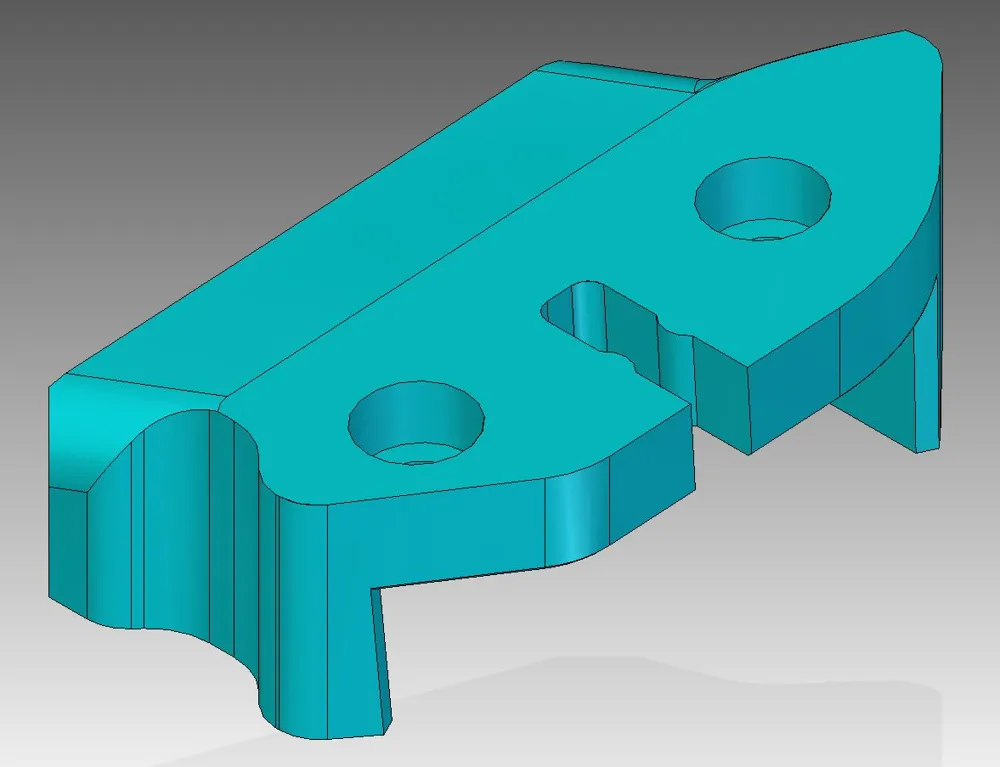

For stability I didn't wanted to mount the mirrors with only a 3D-printed part. So added a 1mm angled steel plate, keep in mind you will have to make this on the go don't have dimensions on that. You will also need to drill a hole in the fairings for the cables. And make a new connection to the wireharness of your bike.

I made a filler to cover up the bolts, but didn't mount them.

It would be best to print them in ABS of PETG, although i printed them in PLA and were on the bike for nearly 4 years before I had to replace them with new prints.

I think these will also fit on a GSF650 OR GSF1200 OR GSX1250FA.

I've only drawn 1 side as you can just mirror the right models to have the left versions ;)

Keep in mind you are resposible for the correct mounting, not me :)

As this is a work in progress that's mainly on hold, you can ask me for the Solid Edge files with the message function if you want to look into the design for a remix.

Update 24-Jul-25:

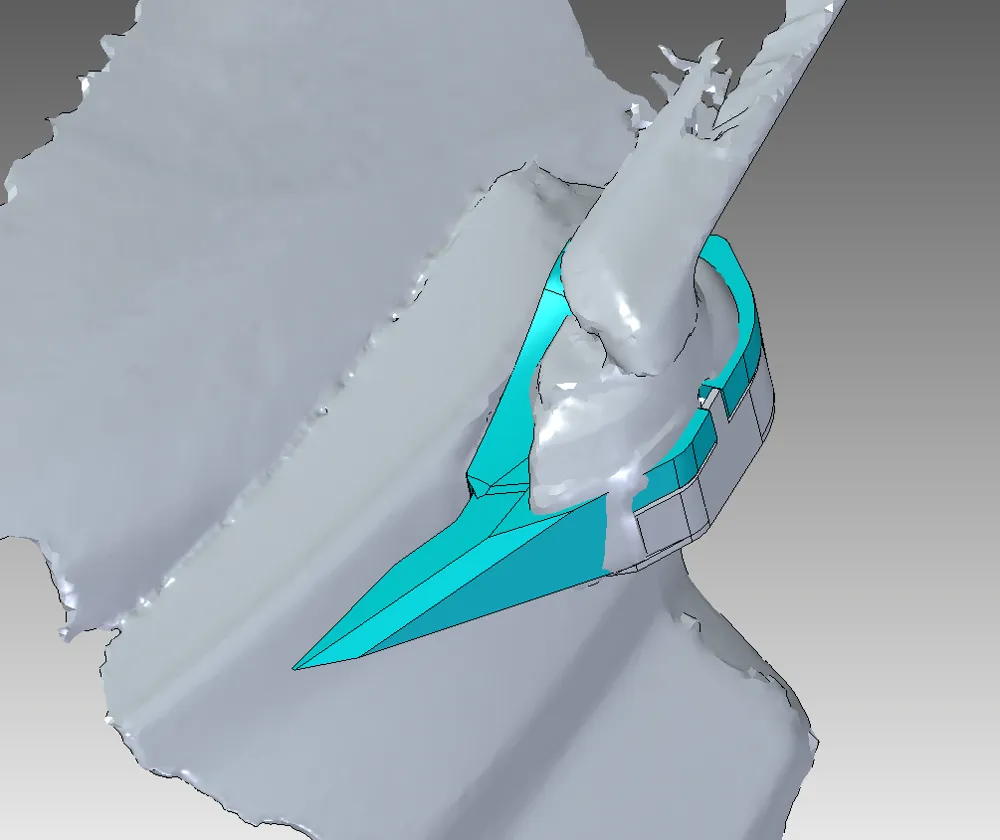

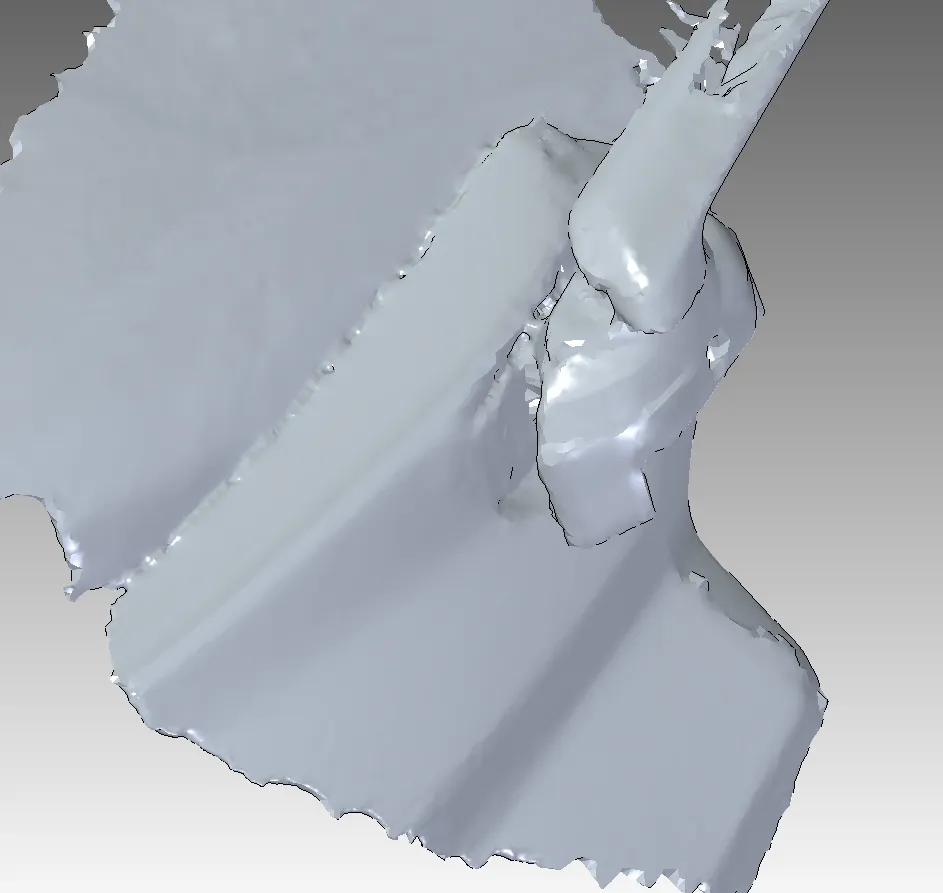

I'm currently working on a updated model. I made a 3D-scan the mounting area, so I can adjust the “design lines” of the model to fit the motorcycle (See last two pictures).
