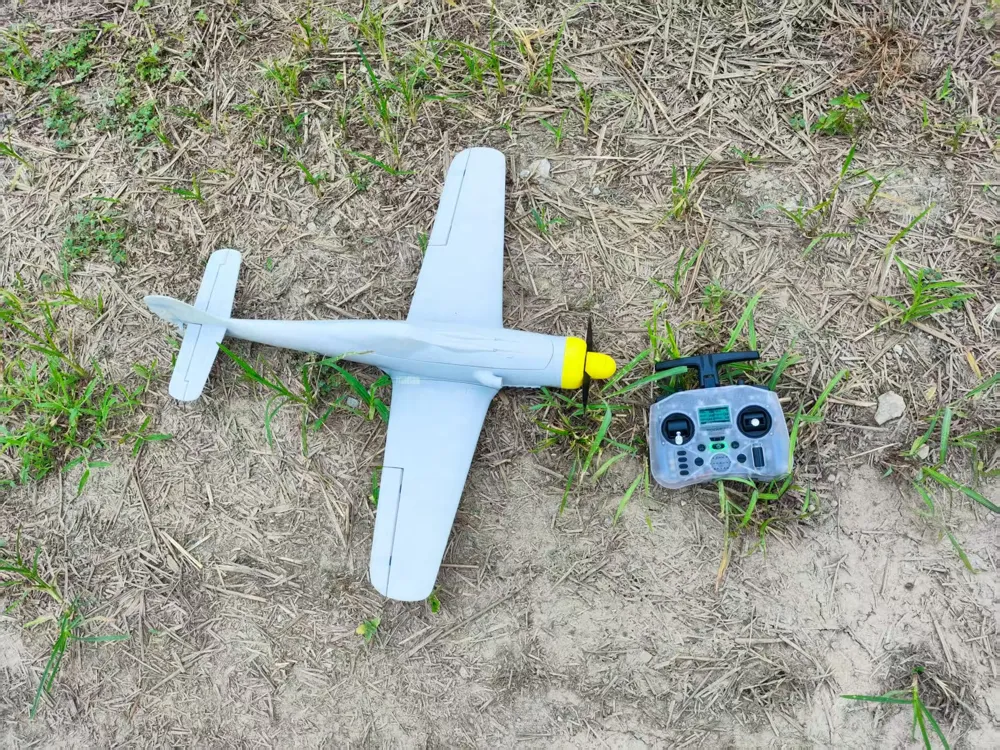

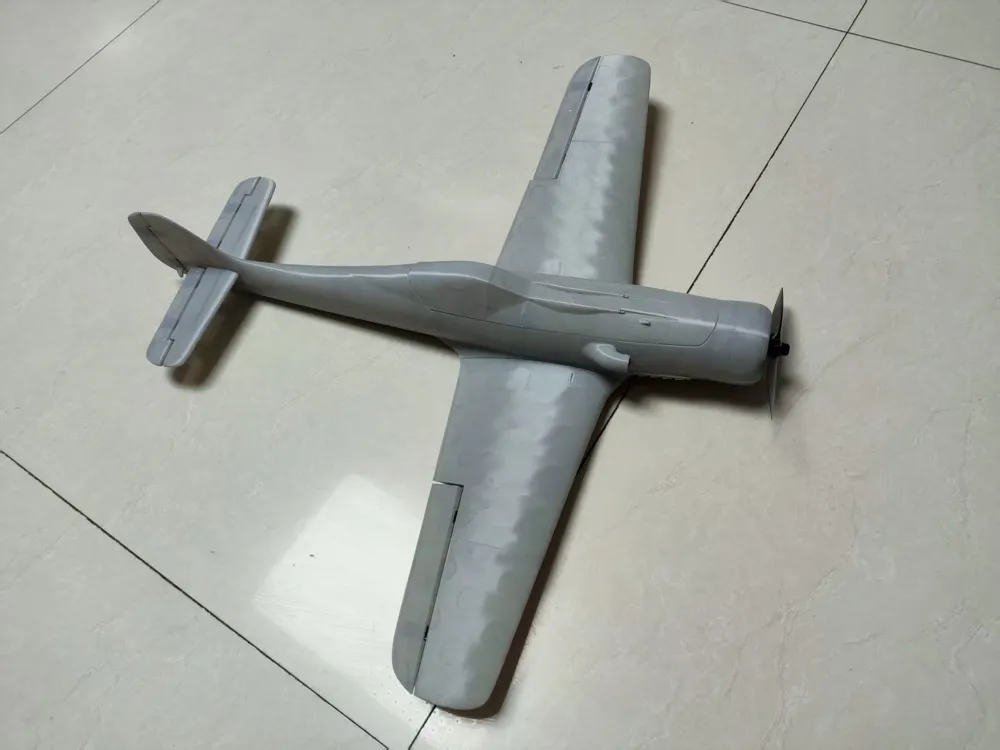

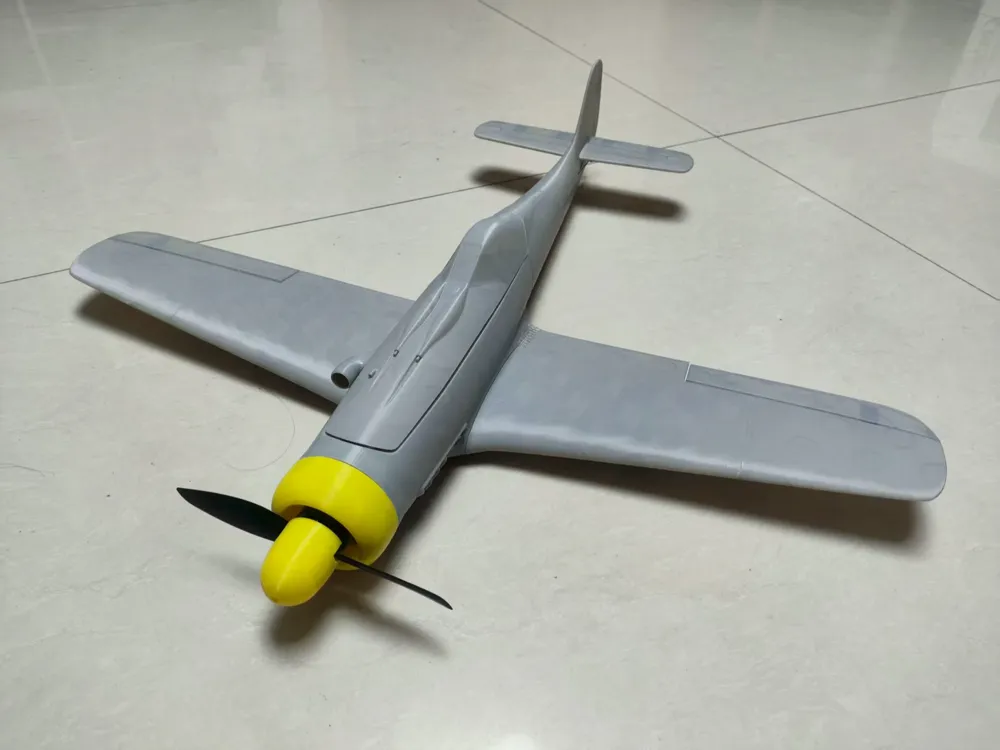

FW190D-9 Fixed Wing RC Model

Wingspan 60 cm

Materials:

Fuselage and wings use ABS/ASA with 0.875 flow rate

Motor mount uses PETG

Hinges use TPU95A

1 piece of 4 mm diameter, 22 cm long carbon tube (fuselage and wing connection)

1 piece of 4 mm diameter, 14 cm long carbon tube (tail fin)

Optional reinforcement: 1 piece of 4 mm diameter, 14-22 cm long carbon tube (fuselage and wing connection)

2 pieces of 4 mm diameter, 21 cm long carbon tubes (wings)

2 pieces of 10 mm diameter, 2 mm thick cylindrical magnets (hatch cover)

4 M2 6 mm long screws (for motor mount use, to prevent screws from being too long and touching the battery)

Optional 1 M2 6-10 mm long screw (for propeller fairing use)

3-4 9g servos (if rudder is not used, can be fixed with hot glue or tape)

Servo pushrods use 1 piece of 1 mm or 1.2 mm diameter, 1 meter long steel wire

Recommended to use Qianfeng 6045-2 propellers, do not use 3D printed 6045 propellers

Have fun!

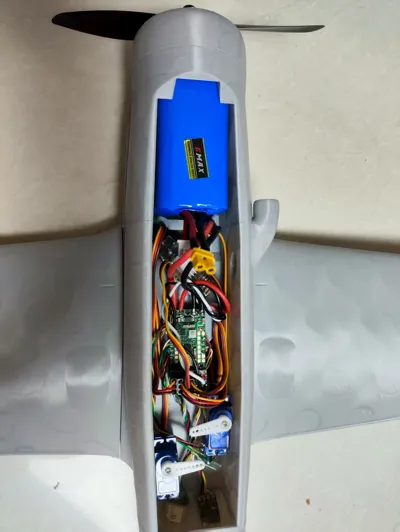

Reference configuration:

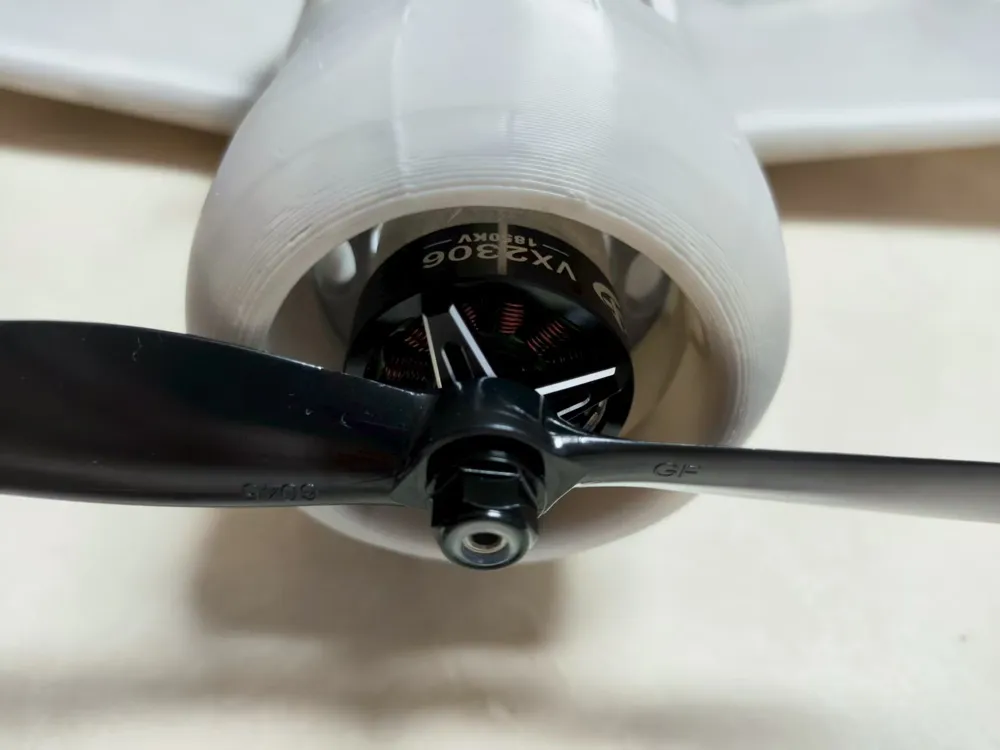

2306 1850kv

6045-2

30A and above ESC (ensure good heat dissipation)

F405

4s18650

9g servo

Takeoff weight 530g

Reference values:

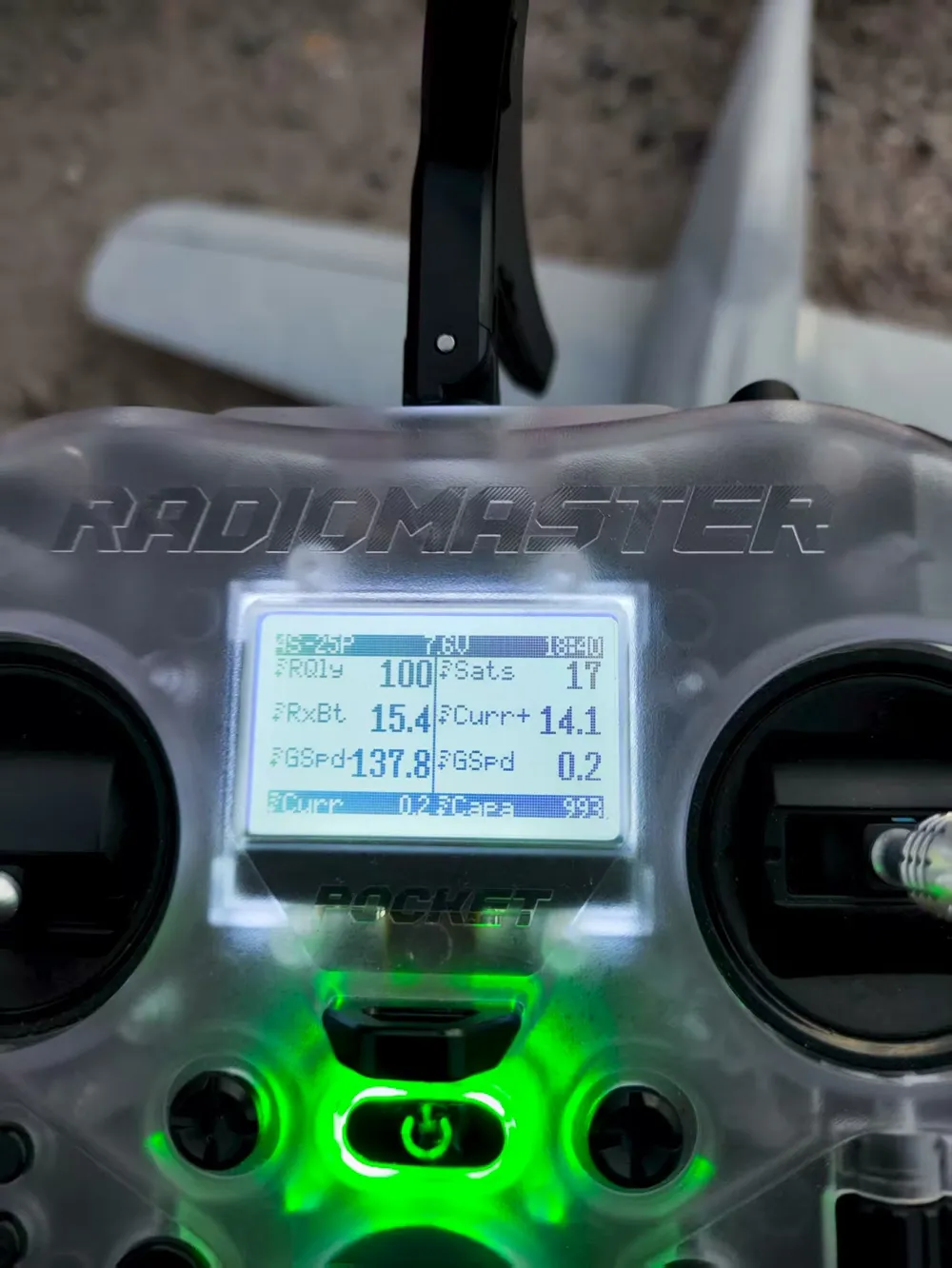

Max level flight speed 130+ km/h Max current 14A

Cruise speed 80-90 km/h Cruise current 4-4.5A

Stall speed 50 km/h

For first flight, be sure to strictly trim according to the center of gravity marked on the upper surface of the wing!!!

You can flip the fuselage over and observe with your fingertips at the marked point

70% throttle, around 25° angle of attack, hand launch vigorously into the wind

This model is no longer updated, V1 version is recommended for printing. See you on the next aircraft!
